Available to Order
Not sure which one? Ask us to confirm fitment first →For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. Outside the UK, shipping is shown at checkout and local customs and taxes remain your responsibility.
Some products are made to order, imported or custom built. If timing matters, contact us before ordering and we will confirm the expected delivery timeframe.
Send the vehicle, engine and current setup if you want us to confirm the exact application before checkout.
| Specification | Details |
|---|---|
| Vehicle application | 2022+ Ford Ranger Raptor 3.0 V6 EcoBoost petrol |
| Core dimensions | 480 × 180 × 125 mm |
| Core construction | Bar and plate |
| Location | Factory intercooler position |
| Pipe compatibility | Factory piping or separate Process West Stage 1/stock hard-pipe kit |
| Factory shutters | Shutter assembly removed during installation |

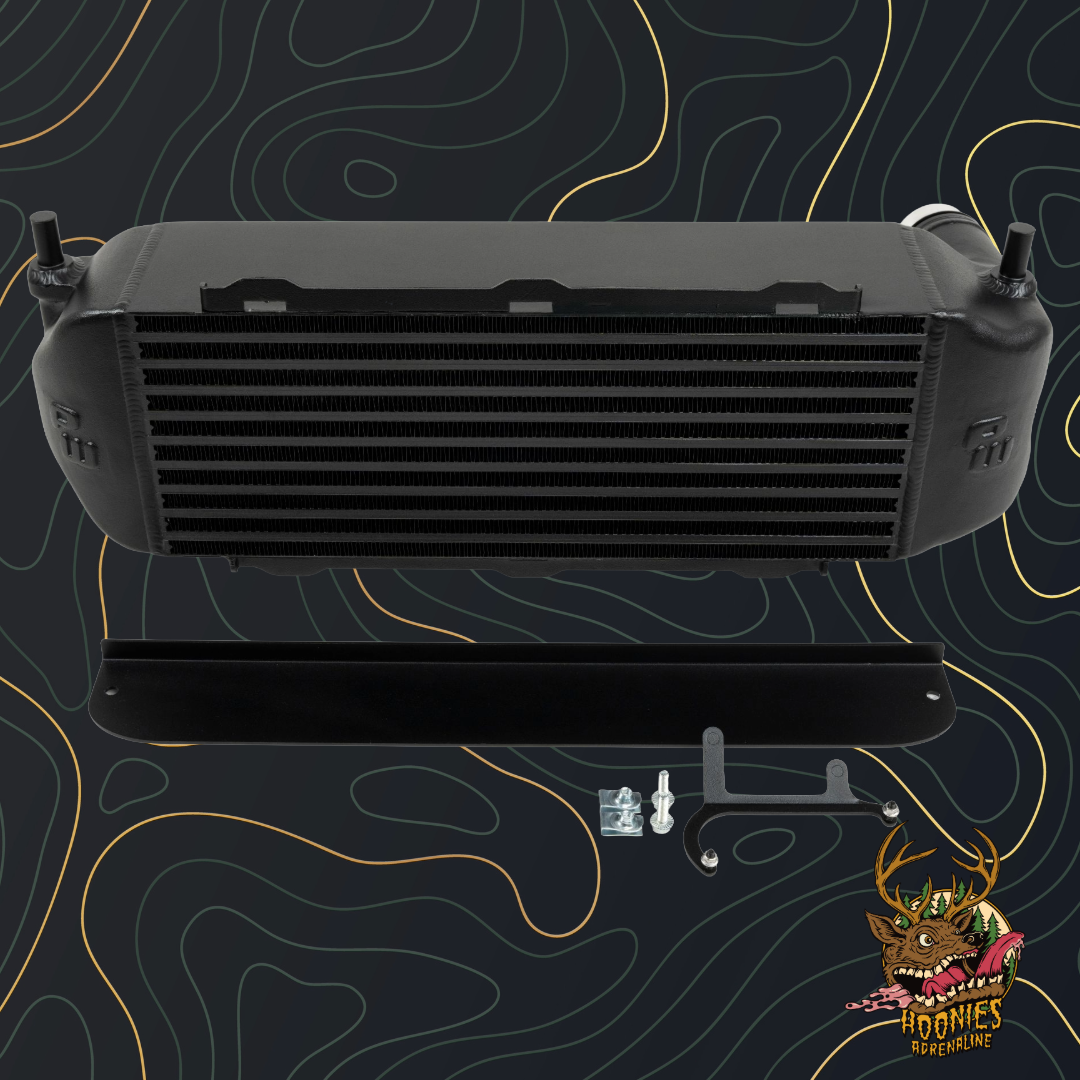

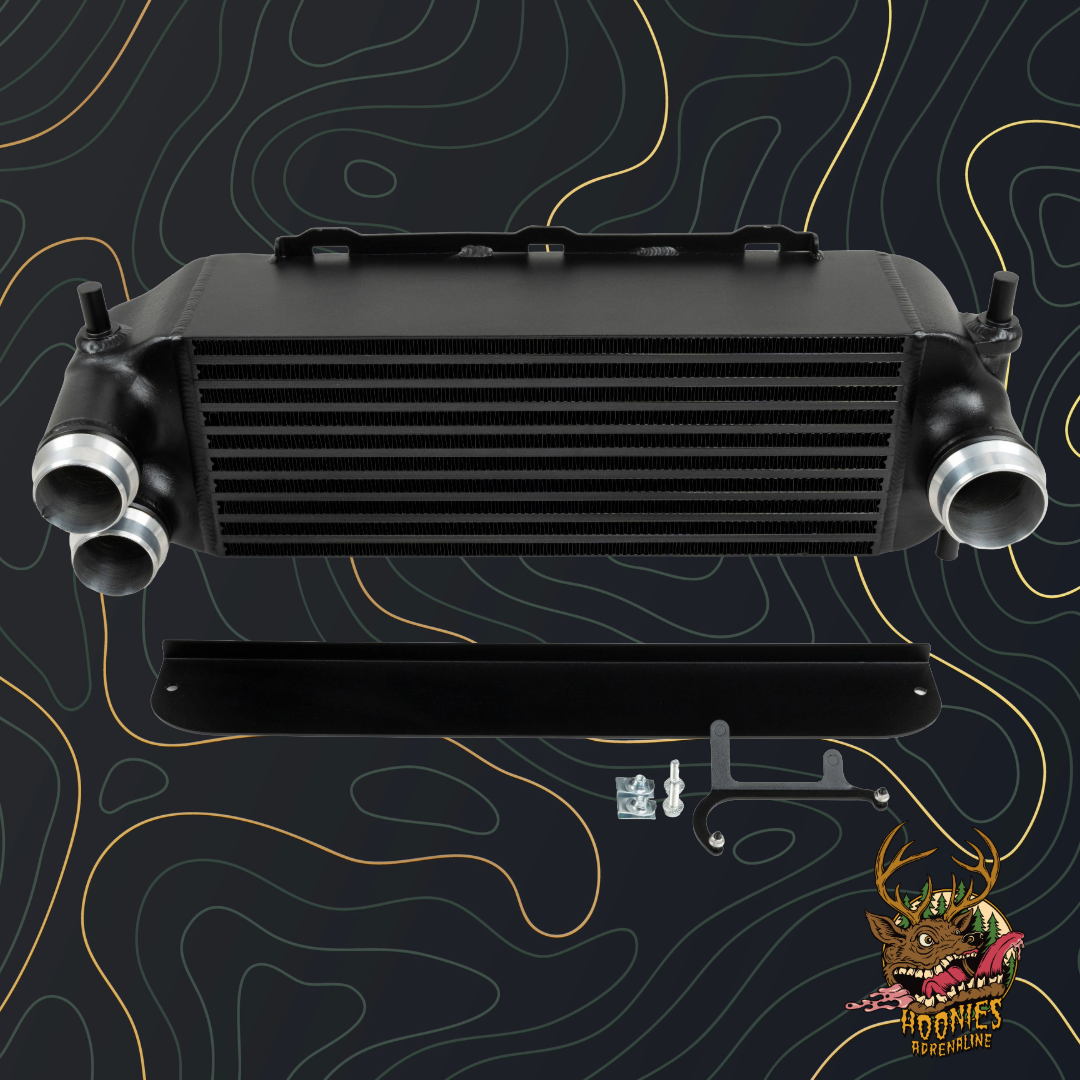

| Finish options | Raw aluminium or black |
| Installation changes | Shutter assembly removed; motor relocated; specified drilling, trimming and mounting-tab adjustment required. |

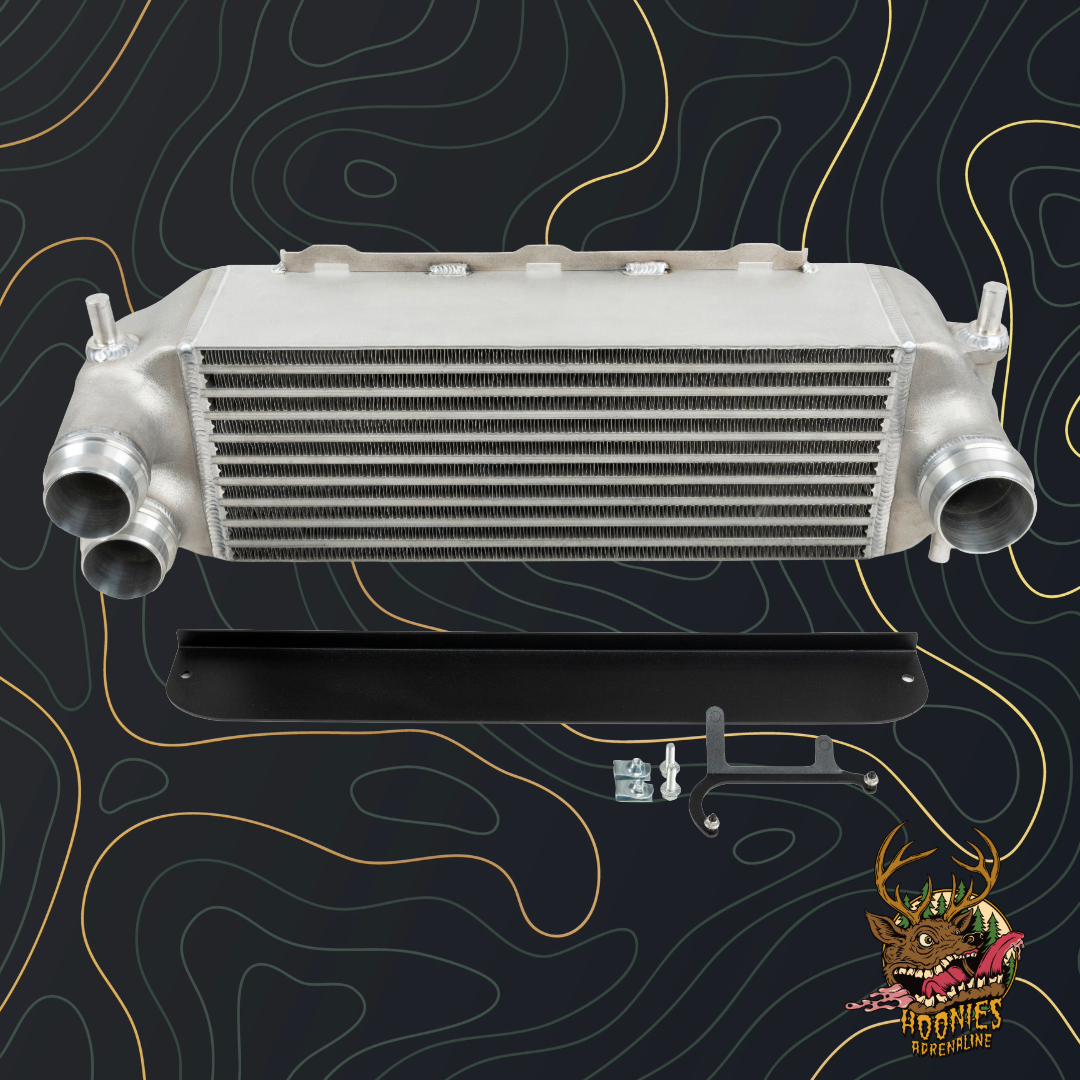

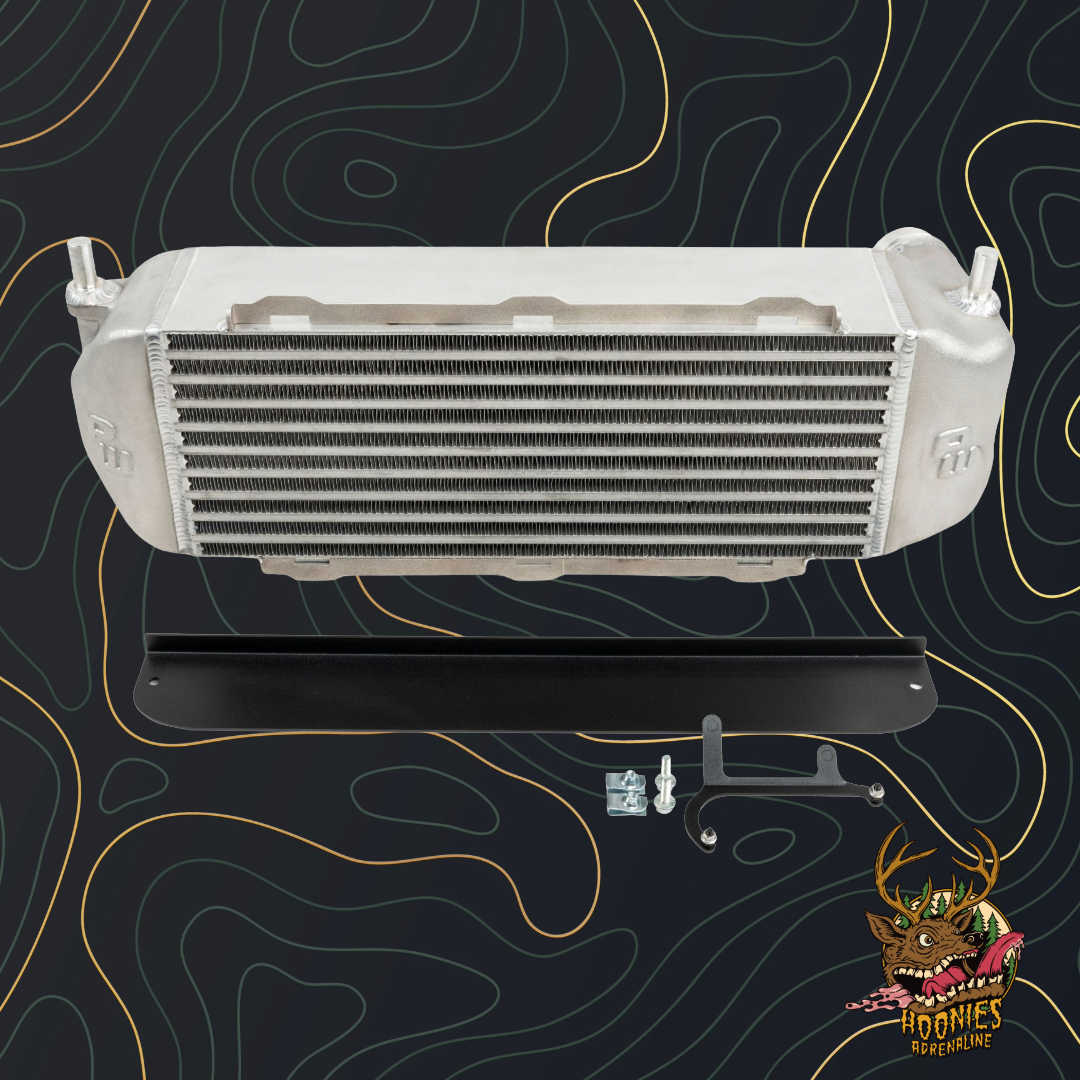

A Raptor should be as enjoyable at the end of a demanding drive as it is at the beginning. The Process West Stage 1 intercooler adds charge-air cooling capacity in the original location, giving your 2022+ 3.0 V6 EcoBoost petrol a stronger foundation for sustained use and future tuning.
Its appeal is the straightforward route into better cooling: a substantial bar-and-plate core, the factory pipe connections and a choice of raw aluminium or black finish. You can upgrade the intercooler now without buying a complete set of hard pipes.
| Option | SKU | Price |
|---|---|---|
| Raw | PWRRIC01 | £1,276.44 |
| Black | PWRRIC01B | £1,276.44 |
Turbochargers heat the air they compress. An intercooler removes some of that heat before the air reaches the engine; under sustained load, that cooling matters to the performance the calibration can deliver. Stage 1 uses a 480 × 180 × 125 mm core to make more of the factory intercooler space.
We would choose this route for a road and touring Raptor where keeping the original mounting position and pipes matters. The larger Stage 2 installation is a separate choice with a different core layout and more involved fitting.
| Intercooler | Price | Pipework | Installation difference | Why choose it |
|---|---|---|---|---|
| Turbosmart | £851.94 | Original / factory-style pipes | Factory shutter and shroud retained | Choose it to keep the factory shutter arrangement and avoid cutting. |
| Fenix cooler + pipes | £1,250.00 | Aluminium pipe kit included | Factory intercooler shroud removed | Choose the complete cooler-and-pipe upgrade in one purchase. |
| Process West Stage 1 | £1,276.44 | Factory pipes compatible; hard pipes separate | Shutter removal, motor relocation, drilling and trimming | Choose the factory-position Process West upgrade, with room to add its hard pipes later. |
| Process West Stage 2 | £1,770.31 | Factory pipes compatible; Stage 2 hard pipes separate | Trimming, plastic drilling and shutter-motor relocation | Choose the larger Process West core layout and allow for the more involved fitting. |
These prices cover the parts shown; fitting is separate. The table compares what you buy and what changes on the truck. The individual pages give the core dimensions and any product-specific test results.
The intercooler works with the original pipes. Our separately listed Stage 1/stock hard-pipe kit replaces the plastic pipework with aluminium if you want to develop the installation further. Neither that piping kit nor fitting labour is included here.

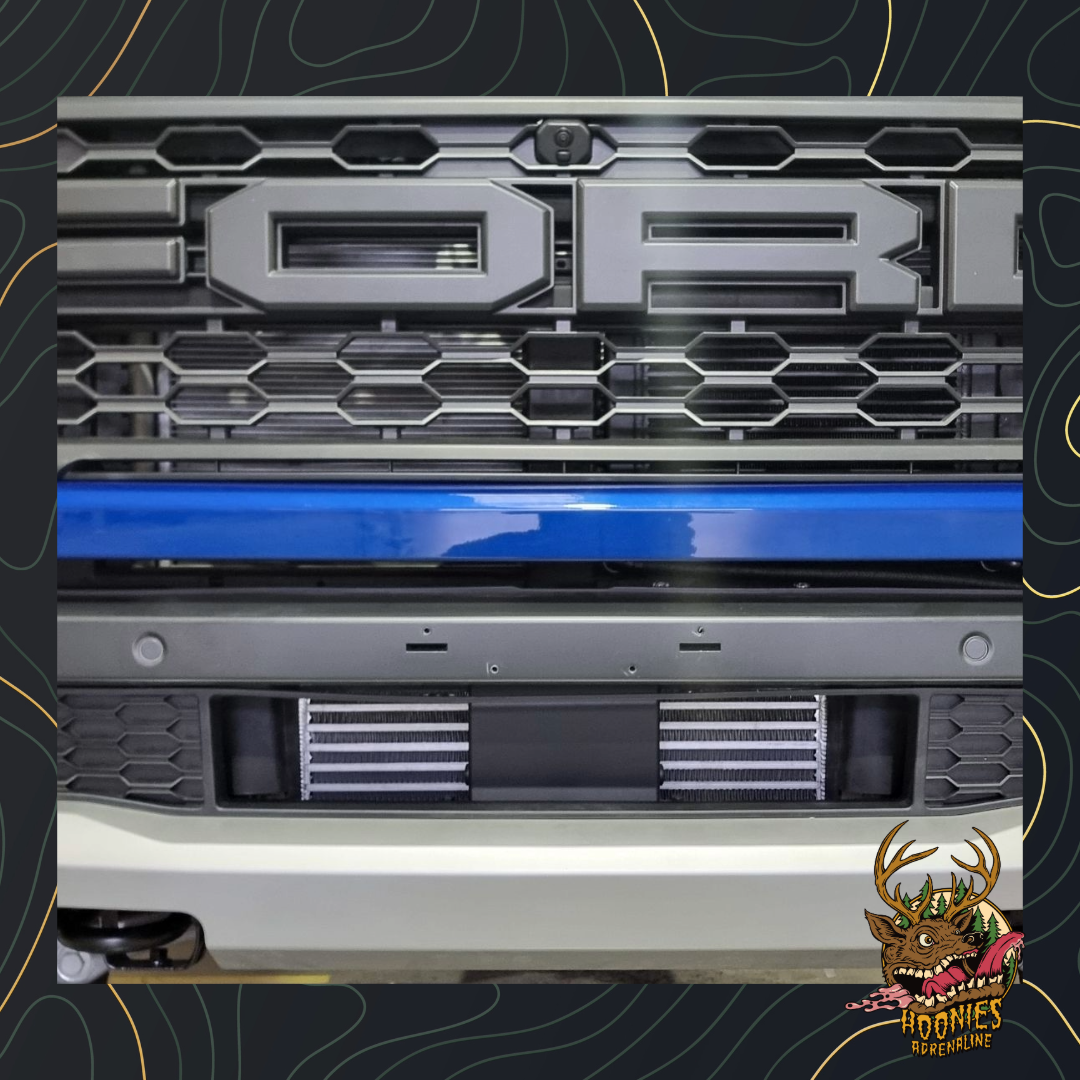

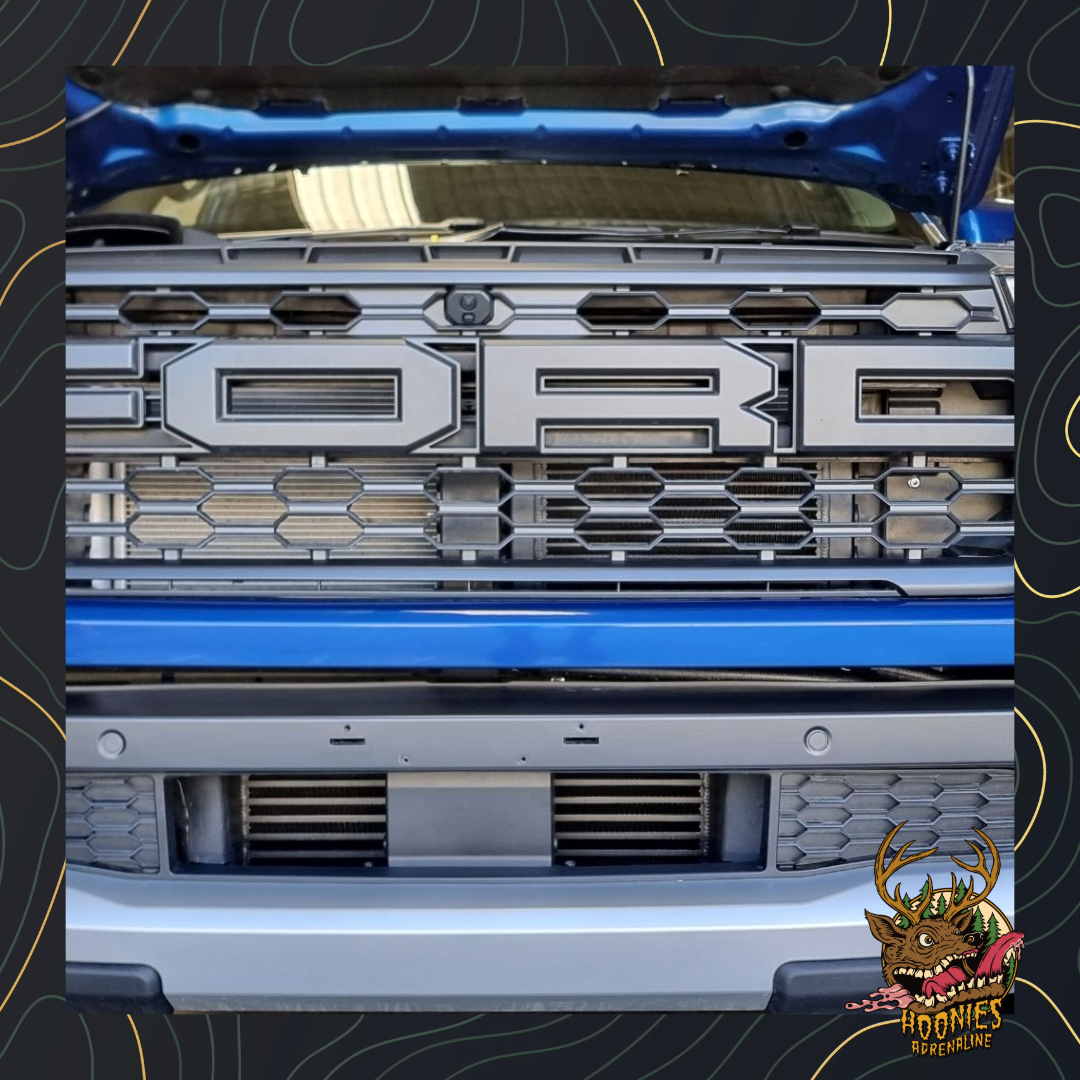

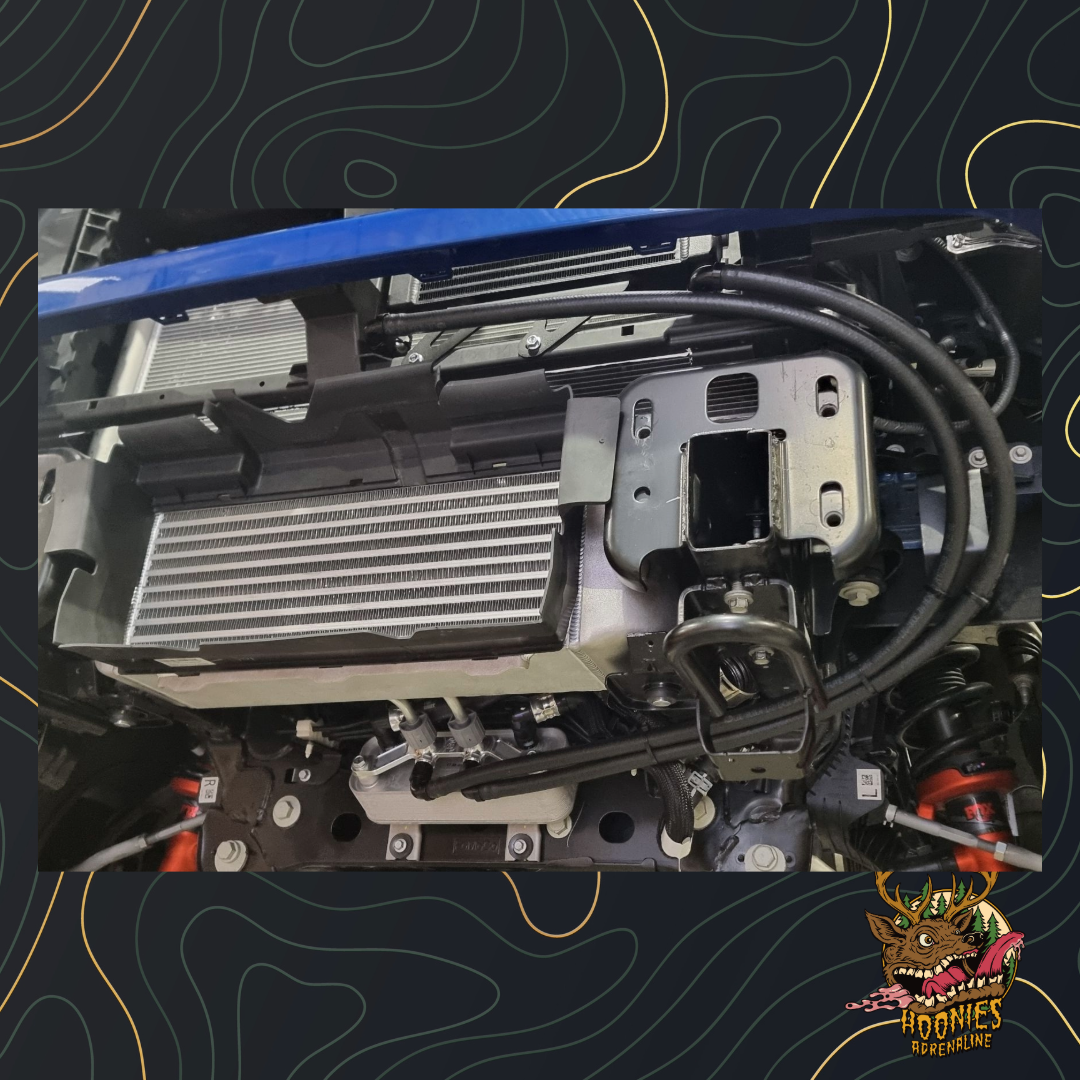

Stage 1 keeps the original intercooler position and accepts the factory pipes. Installation removes the shutter assembly and relocates its motor onto the supplied bracket. The PWRRIC01 guide also requires drilling and trimming, including specified plastic sections, cover-plate clearance and duct tabs, with a mounting tab bent for core clearance.
Professional fitting should include the front-end access, mounting work, hose connections and final clearance and leak checks. If keeping the factory shutter arrangement and avoiding cutting are priorities, compare the Turbosmart intercooler.
After muddy or dusty trips, inspect the cooling face and clear debris carefully without damaging the fins. Give the hose connections and mounts attention during routine servicing, especially after other front-end work.
A larger intercooler supports the engine; it does not replace a radiator or transmission cooler. Choose the next cooling component around the temperatures and use of your own truck.
Read the Process West PWRRIC01 fitting instructions
| Specification | Details |
|---|---|
| Vehicle application | 2022+ Ford Ranger Raptor 3.0 V6 EcoBoost petrol |
| Core dimensions | 480 × 180 × 125 mm |
| Core construction | Bar and plate |
| Location | Factory intercooler position |
| Pipe compatibility | Factory piping or separate Process West Stage 1/stock hard-pipe kit |
| Factory shutters | Shutter assembly removed during installation |
| Finish options | Raw aluminium or black |
| Installation changes | Shutter assembly removed; motor relocated; specified drilling, trimming and mounting-tab adjustment required. |
Yes. Stage 1 is compatible with the factory piping. The matching hard-pipe upgrade is optional and sold separately.
Yes. The PWRRIC01 installation includes drilling and trimming specified sections, removing the shutter assembly and relocating its motor. The original intercooler position and factory pipe compatibility are retained.
No. Stage 1 uses the original intercooler location and a 480 × 180 × 125 mm core. Stage 2 uses a different, larger layout and has its own fitting and piping requirements.
For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. For customers outside the UK, local customs and taxes remain your responsibility, and shipping is shown at checkout. If a shipping option is not available, email us and we will prepare a tailored quote.
Many of the products we sell are made to order, imported or custom built, so a lead time may apply. If you need a part urgently, contact us before ordering and we will confirm the expected delivery timeframe and process.
Model year, engine, drivetrain, hardware and existing modifications can all change what fits. Check the applications and supplier notes above, or send us your exact vehicle and setup before ordering.
Send us your vehicle, year, current setup and any fitting date, event, trip or deadline before ordering. We will help check fitment, product choice and timing.
