Summary

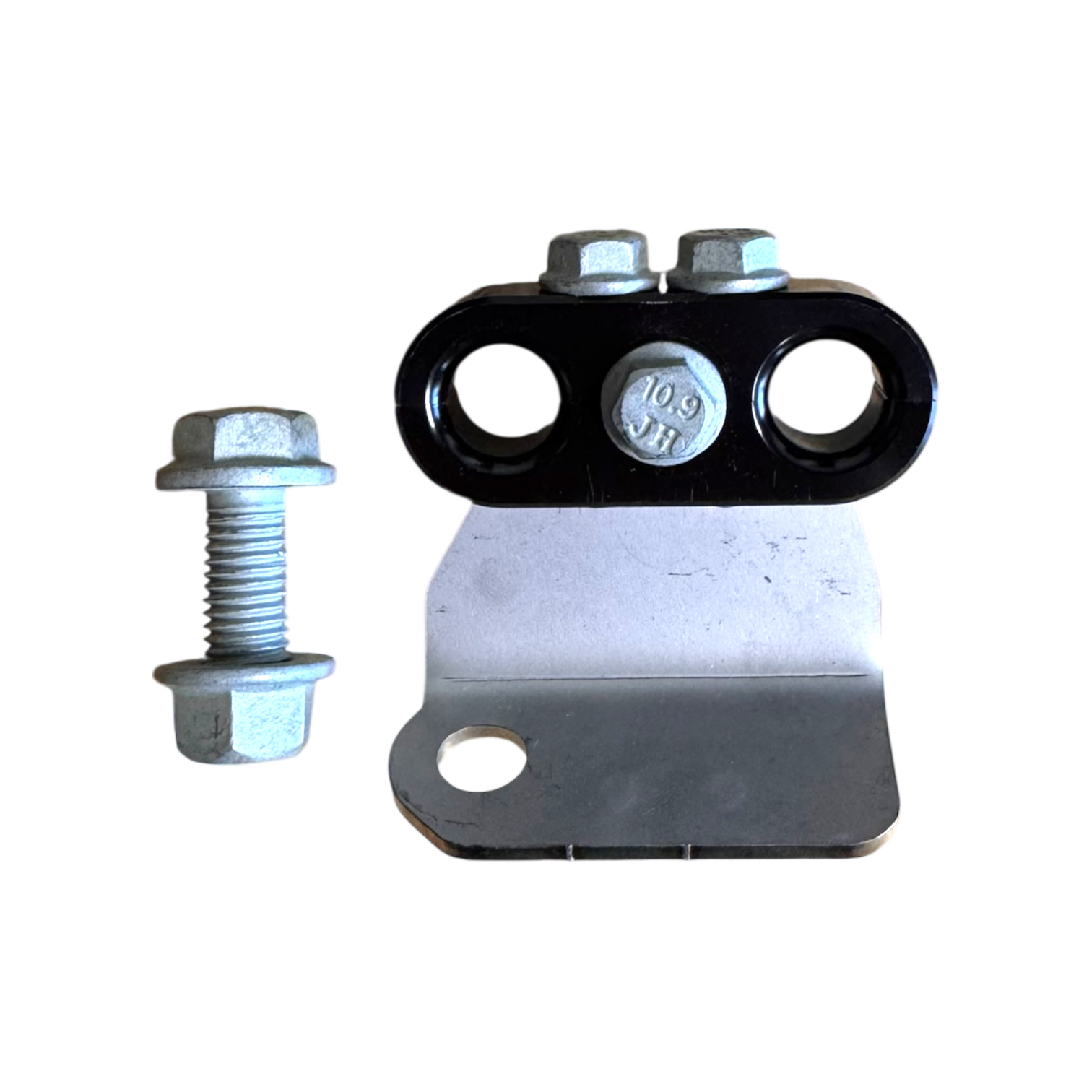

This APEX Design USA bracket secures Through Shaft Ram hydraulic hoses to the top of the driver-side lower control arm bracket. Hoses crossing between chassis and axle have to survive suspension movement, and anchoring them at the LCA bracket keeps the flex controlled - the hose moves where it was designed to move, instead of chafing wherever it lands.
Best For
- TSR installs managing the chassis-to-axle hose transition
- Builds where hoses currently flex unsupported near the control arms
- Finishing a hydraulic assist install to a trail-proof standard
Key Specs
- Manufacturer: APEX Design USA
- Product Type: Hydraulic hose mount bracket
- SKU: X01-17-022
- Mounting Position: Top of driver-side lower control arm bracket
- Compatibility: APEX TSR hydraulic hoses
Fitment And Setup Checks
Confirm your hose route passes the driver-side LCA before ordering, and check hose length through full suspension travel once mounted - the line should flex freely at ride height, full droop and full compression without pulling tight or rubbing.
Technical Specifications
| Manufacturer | APEX Design USA |
| Product Type | Hydraulic hose mount bracket |
| SKU | X01-17-022 |
| Mounting Position | Driver-side LCA bracket, top |
Frequently Asked Questions
Why anchor hoses at the control arm?
It fixes the point where the hose transitions from chassis to moving axle, so the flex happens in a controlled loop rather than wherever the hose falls. That is what stops long-term chafe.
Combine it with the frame and differential mounts from the APEX steering range for a fully secured run.
