Summary

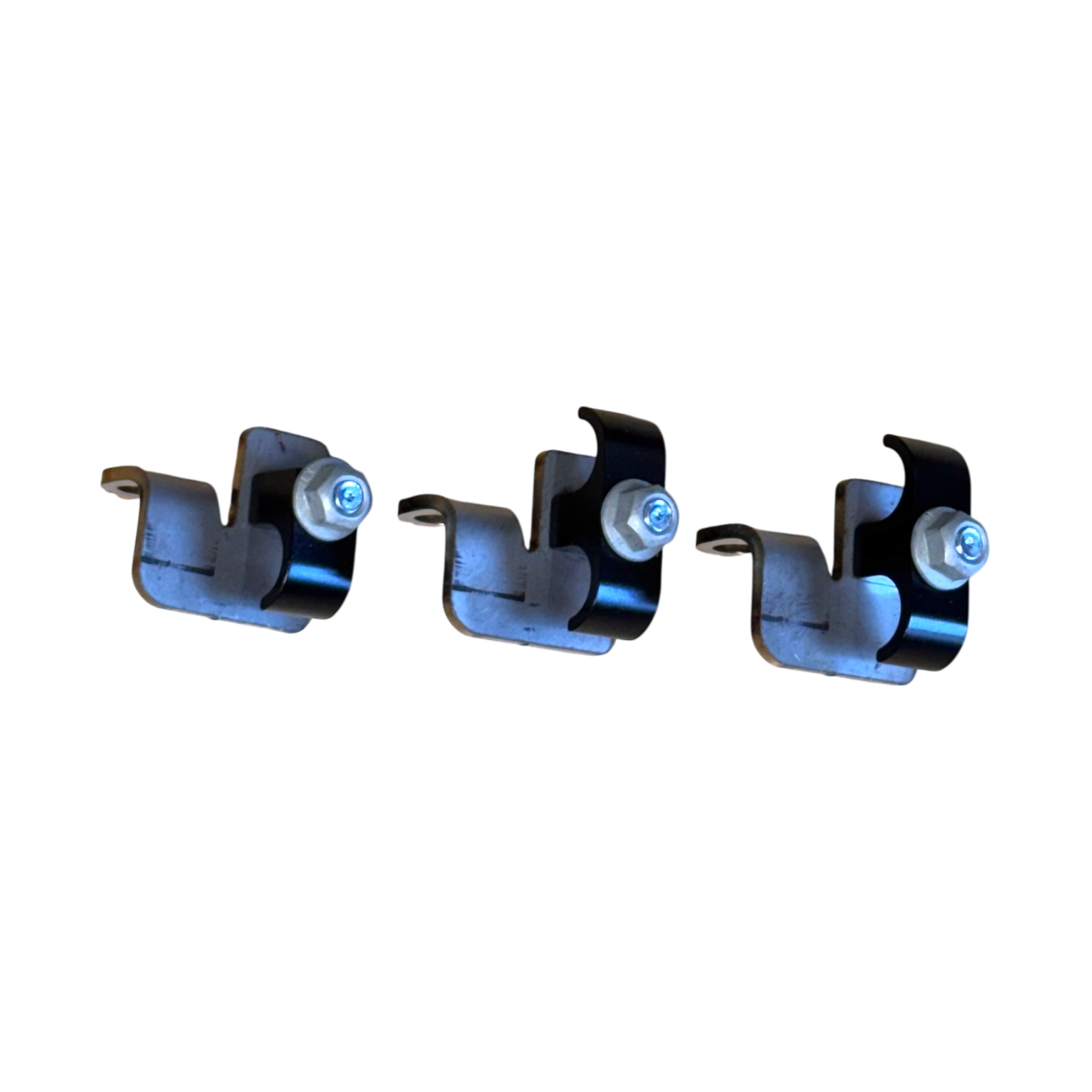

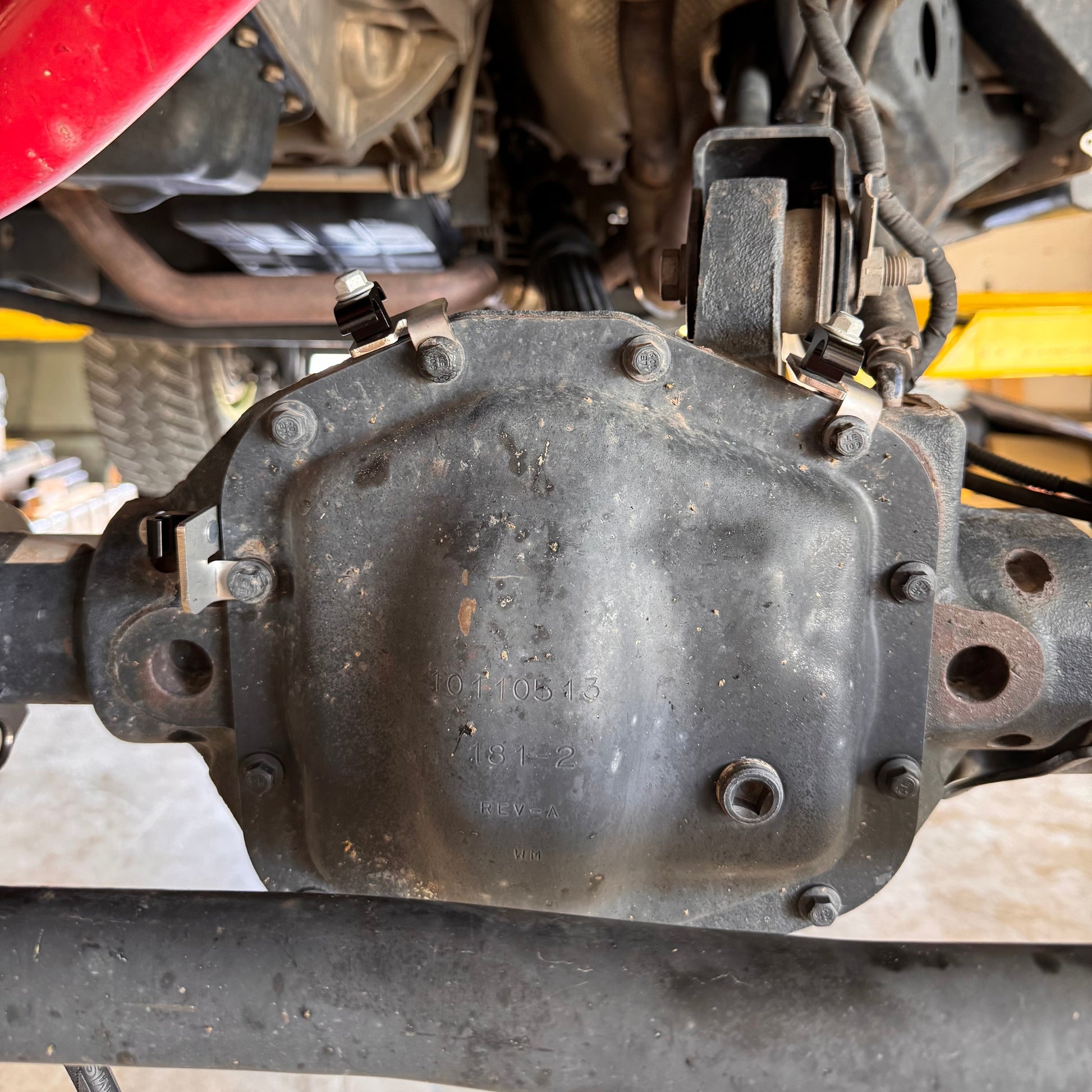

This APEX Design USA hose mount kit routes Through Shaft Ram hydraulic hoses across the top of the differential cover - three brackets that turn the messiest part of a hydraulic assist install into a clean, secured run. Hydraulic hoses that drape loose under a 4x4 snag on rocks and rub through on corrugations; fixed mounting is what keeps an assist system reliable once the trails get rough.
Best For
- TSR installs routing hydraulic hoses across the axle to the ram
- Builds tidying an existing assist install where hoses run unsecured
- Owners planning hose protection before remote off-road trips
Key Specs
- Manufacturer: APEX Design USA
- Product Type: Hydraulic hose mount kit (3 brackets)
- SKU: X01-17-021
- Mounting Position: Top of the differential cover
- Compatibility: APEX TSR hydraulic hoses
Fitment And Setup Checks
Confirm your TSR hose routing passes over the diff cover before ordering, and plan the three bracket positions so the hoses sit clear of moving suspension parts through full travel. Check the run again after the first hard drive - a hose route is only finished when nothing rubs.
Technical Specifications
| Manufacturer | APEX Design USA |
| Product Type | Hydraulic hose mount kit |
| SKU | X01-17-021 |
| Contents | 3 brackets |
| Mounting Position | Top of differential cover |
Frequently Asked Questions
Do I need this with a TSR kit?
If your hose route crosses the axle, yes - it is the clean way to fix the lines to the diff cover instead of leaving them loose where terrain can reach them.
Match it with the rest of the APEX hose mounts to secure the full run from steering box to ram - see the steering range for the set.
