APEX Design USA TSR Hydraulic Hose Mount - Inside Frame
APEX Design USA TSR Hydraulic Hose Mount - Inside Frame
Couldn't load pickup availability
Fitment check
Fitment check
Fitment check
Check these details before ordering. If anything is unclear, contact us with your vehicle, year and current setup.
Fitment details are still being improved. Send us your vehicle and current setup if you want us to confirm before ordering.
Specs and options
Specs and options
Questions before checkout?
Questions before checkout?
Questions before checkout?
Send us your vehicle, year and current setup and we will help check fitment before you order.
Ask about this product
Delivery, returns and support
Delivery, returns and support
Delivery, returns and support
Delivery timing can vary by supplier, product size and current stock. Contact us before ordering if you are working to a fitting date, event, trip or deadline.
Keep packaging and product paperwork until fitment is confirmed. If anything looks wrong when it arrives, get in touch before installation so we can help check the next step.
Summary

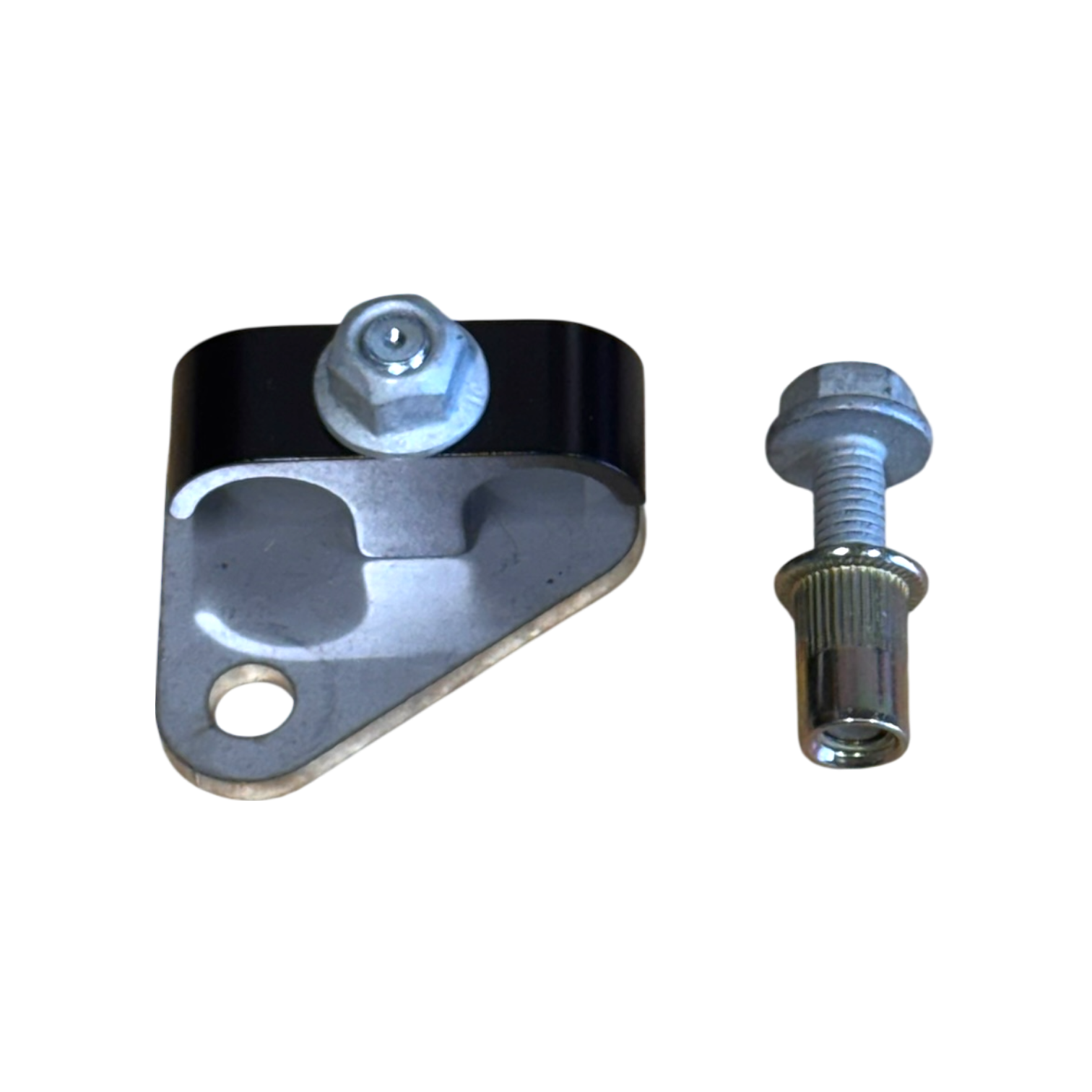

This APEX Design USA bracket fastens Through Shaft Ram hydraulic hoses to the inside of the chassis frame - or any flat surface along the run. Frame-side routing keeps assist lines up out of the strike zone, and a dedicated bracket holds them there permanently instead of relying on cable ties around whatever is nearby.
Best For
- TSR installs routing hydraulic hoses along the chassis rail
- Builds with a flat panel or frame face where lines need fixing
- Tidying an assist install so every hose has a mounted home
Key Specs
- Manufacturer: APEX Design USA
- Product Type: Hydraulic hose mount bracket
- SKU: X01-17-024
- Mounting Position: Inside of frame or any flat surface
- Compatibility: APEX TSR hydraulic hoses
Fitment And Setup Checks
Walk your hose route before ordering and count the fixing points you need - most installs use several mounts between the steering box and the ram. Position the bracket where the hoses run straight and clear of suspension movement, heat and edges.
Technical Specifications
| Manufacturer | APEX Design USA |
| Product Type | Hydraulic hose mount bracket |
| SKU | X01-17-024 |
| Mounting Position | Inside frame / flat surface |
Frequently Asked Questions
How many do I need?
Depends on your route - plan the run from steering box to ram and place a mount wherever the hoses need holding straight or lifting clear. Order the number of fixing points your chassis needs.
See the rest of the APEX hose mounts in the steering range to cover the whole run.
