Summary

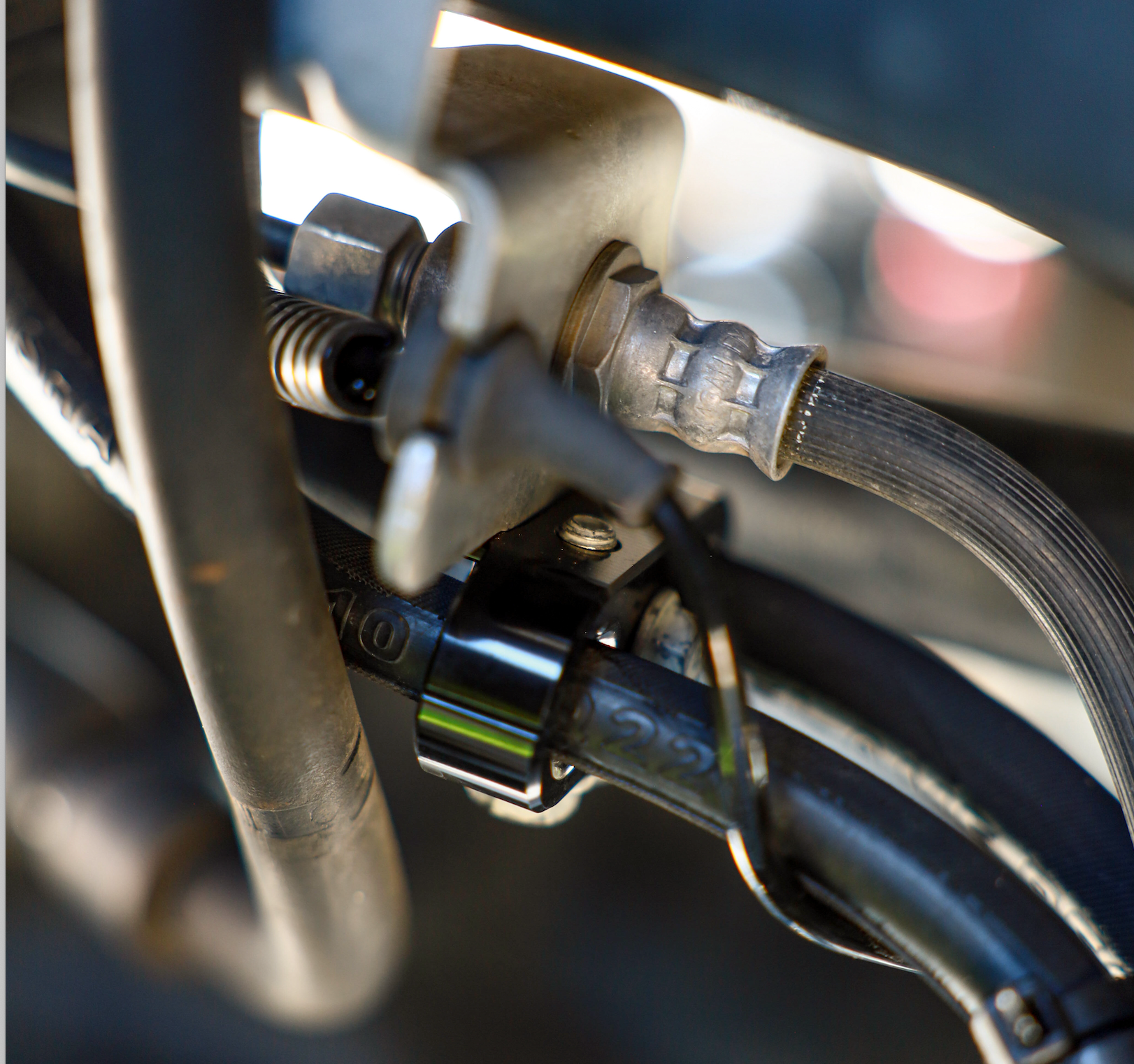

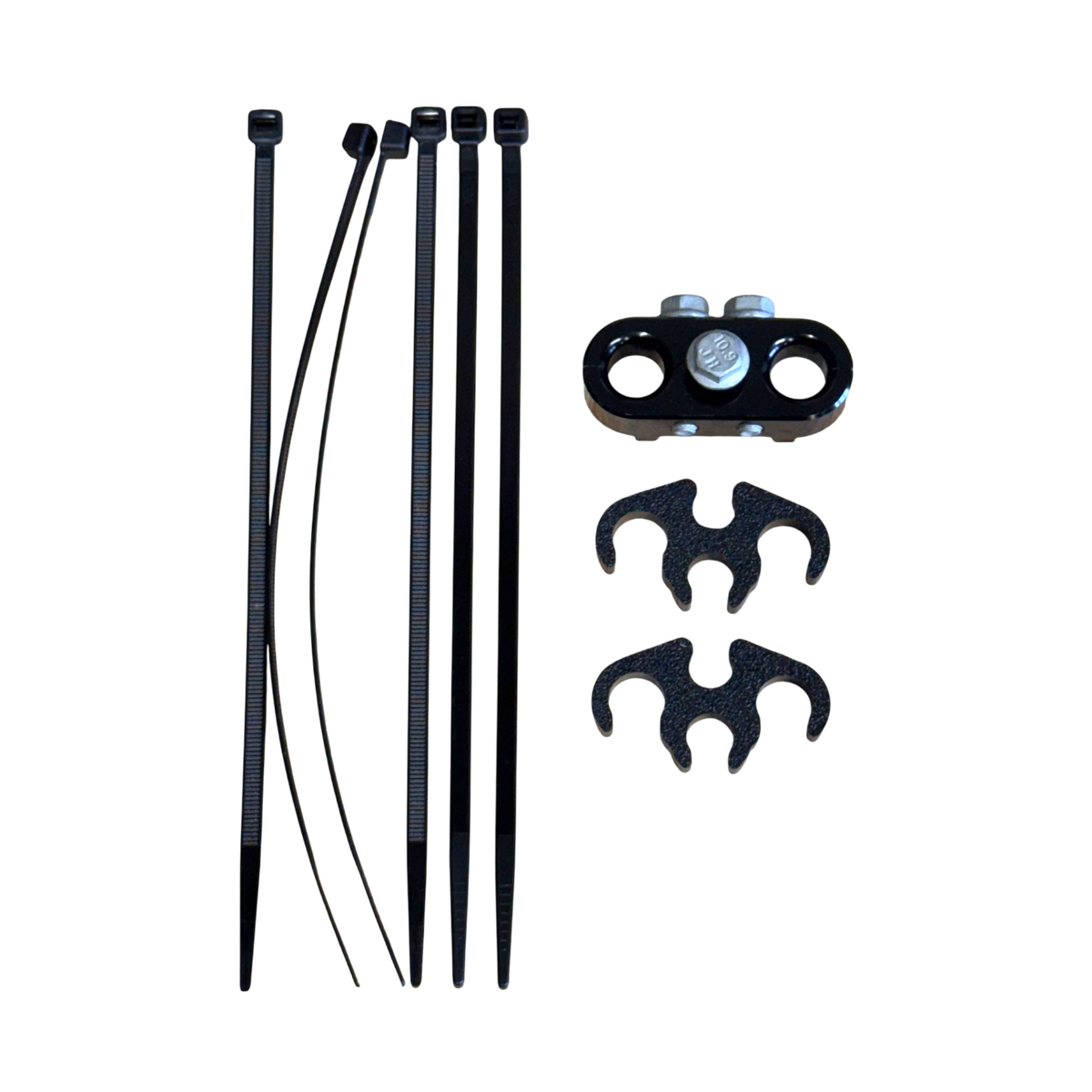

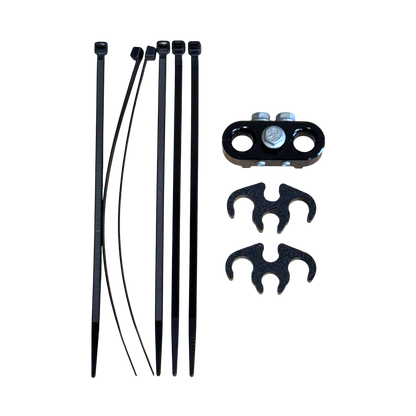

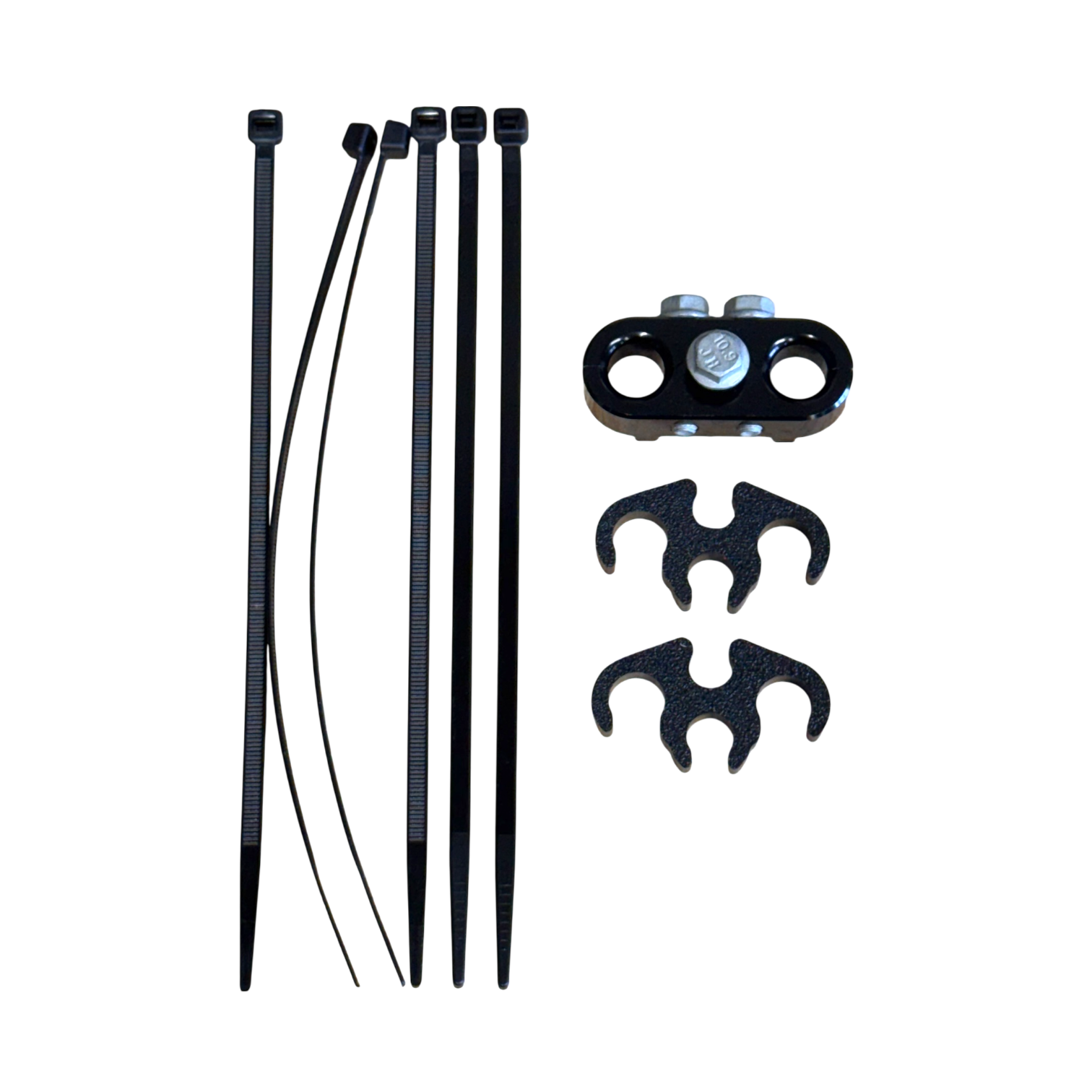

This APEX Design USA bracket fastens Through Shaft Ram hydraulic hoses to the factory brake line and its bracket - using a mounting point the vehicle already has instead of drilling new ones. The factory brake line route survived the manufacturer's own durability testing, which makes it a smart path to borrow for hydraulic assist lines heading the same way.
Best For
- TSR installs routing hoses alongside the factory brake lines
- Builds that prefer OE mounting points over new holes in the chassis
- Completing a hose run with every section fixed and rub-free
Key Specs
- Manufacturer: APEX Design USA
- Product Type: Hydraulic hose mount bracket
- SKU: X01-17-023
- Mounting Position: Factory brake line and brake line bracket
- Compatibility: APEX TSR hydraulic hoses
Fitment And Setup Checks
Check your factory brake line routing matches your planned hose path before ordering, and make sure the mounted assist hoses cannot load or chafe the brake line itself - the brake system always keeps priority. Verify clearance through suspension movement after fitting.
Technical Specifications
| Manufacturer | APEX Design USA |
| Product Type | Hydraulic hose mount bracket |
| SKU | X01-17-023 |
| Mounting Position | OE brake line and bracket |
Frequently Asked Questions
Will it interfere with my brake lines?
It is designed to fix the assist hoses to the factory brake line bracket cleanly. Fit it so the hydraulic lines sit secure without pressing on the brake line, and check the run after installation.
Complete the route with the inside-frame and LCA mounts from the APEX steering range.
