| Specification | Details |
|---|---|
| Vehicle application | 2022+ Ford Ranger Raptor 3.0 V6 EcoBoost petrol |
| Core size | 440 × 185 × 115 mm; excludes tanks |
| Construction | Aluminium bar-and-plate intercooler and aluminium pipes |
| Connections | Dual 50 mm inlet; 63 mm outlet |
| Finish | Black cooler and pipework |
| Capacity and tested temperature change | 37.5% greater intercooler capacity; up to 20°C lower IAT in Fenix testing |
| Factory parts retained | Blow-off valve, air-temperature sensor and recirculation connection |
| Installation change | Factory intercooler shroud removed |
Upgrade the intercooler and pipes in one go.

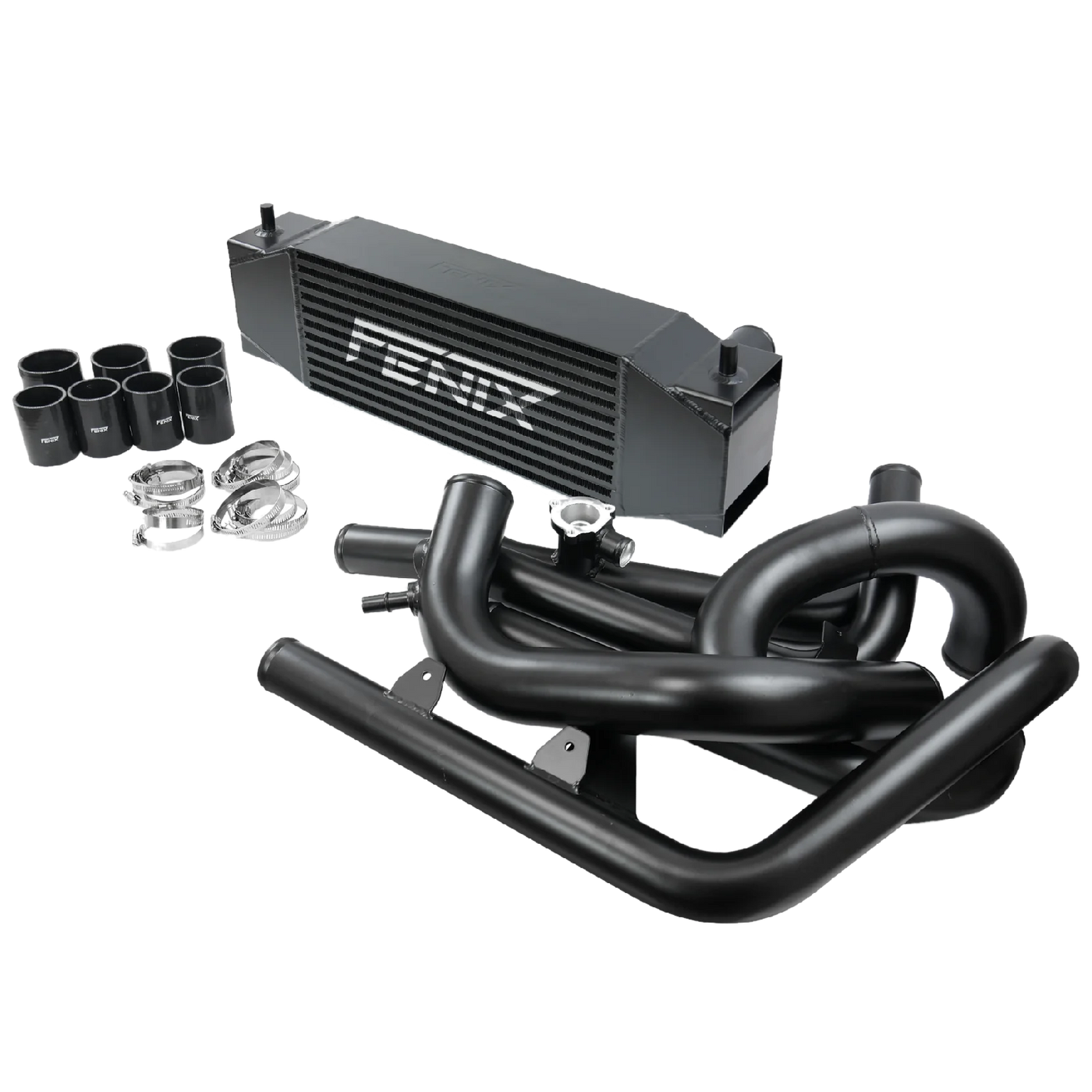

Hard use puts both the intercooler and its pipework to work. This Fenix package replaces both with an aluminium cooling assembly and matching pipework, finished in black for a tidy installation.
Developed with CTB Performance for the 2022+ Ranger Raptor 3.0 V6 petrol, it brings the cooler, pipes and connections into one purchase. It is a particularly useful option when you want to replace the whole factory intercooler arrangement in the same workshop visit.
The 440 × 185 × 115 mm bar-and-plate core has dual 50 mm inlets and a 63 mm outlet. CNC-machined connections accommodate the original blow-off valve, air-temperature sensor and recirculation pipe, keeping those factory components part of the installation.
The intercooler adds 37.5% more capacity, with intake-air temperatures up to 20°C lower in Fenix testing. That extra cooling capacity is useful when the engine is working hard repeatedly.
| Intercooler | Price | Pipework | Installation difference | Why choose it |
|---|---|---|---|---|
| Turbosmart | £851.94 | Original / factory-style pipes | Factory shutter and shroud retained | Choose it to keep the factory shutter arrangement and avoid cutting. |
| Fenix cooler + pipes | £1,250.00 | Aluminium pipe kit included | Factory intercooler shroud removed | Choose the complete cooler-and-pipe upgrade in one purchase. |
| Process West Stage 1 | £1,276.44 | Factory pipes compatible; hard pipes separate | Shutter removal, motor relocation, drilling and trimming | Choose the factory-position Process West upgrade, with room to add its hard pipes later. |
| Process West Stage 2 | £1,770.31 | Factory pipes compatible; Stage 2 hard pipes separate | Trimming, plastic drilling and shutter-motor relocation | Choose the larger Process West core layout and allow for the more involved fitting. |
These prices cover the parts shown; fitting is separate. The table compares what you buy and what changes on the truck. The individual pages give the core dimensions and any product-specific test results.
The black cooler and pipework are the configuration described here. The original valve and sensors are reused; an upgraded blow-off valve and fitting labour are separate.
The kit uses the original sensor and mounting connections, but the factory intercooler shroud must be removed. Have the installer check the front-end layout alongside any bull bar, skid plates or additional transmission cooler.
We would combine the cooler and pipe fitting in the same job. The supplied parts are designed to work together, avoiding a second strip-down simply to replace the intercooler pipes later.
Keep the core face free of packed mud and inspect the hose joints, brackets and sensor connections during servicing. Aluminium pipework still depends on correctly installed joiners and clamps.
This is a charge-air cooler. It does not cool the gearbox oil or replace the engine radiator. If transmission temperature is the concern, the Fenix transmission cooler tackles that separate circuit.
For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. For customers outside the UK, local customs and taxes remain your responsibility, and shipping is shown at checkout. If a shipping option is not available, email us and we will prepare a tailored quote.
Many of the products we sell are made to order, imported or custom built, so a lead time may apply. If you need a part urgently, contact us before ordering and we will confirm the expected delivery timeframe and process.
Yes. This package includes the intercooler, aluminium pipes, silicone joiners, clamps and fittings.
No upgraded valve is included in this configuration. The kit has the connection for your original valve.
No. Fenix requires removal of the factory intercooler shroud for this installation.
No. The transmission uses a separate fluid circuit and requires its own cooler.
Model year, engine, drivetrain, hardware and existing modifications can all change what fits. Check the applications and supplier notes above, or send us your exact vehicle and setup before ordering.
