The LP9 Pro brings a strong, purposeful look to your truck and serious coverage to the track in front of it. Its large 8in housing carries nine forward LEDs plus dedicated peripheral lighting, helping you see around the front corners as the route changes. Choose your beam and lens colour, then enjoy the confidence of having useful light across more of the scene ahead.
The LP9 Pro produces 12,547 forward-projecting raw lumens plus 2,302 from its peripheral LEDs, giving 14,849 combined raw lumens per light. The Integrated Peripheral Technology spreads light across 200 degrees overall. That broad coverage is useful on tracks where the edges and turns matter as much as the view straight ahead.

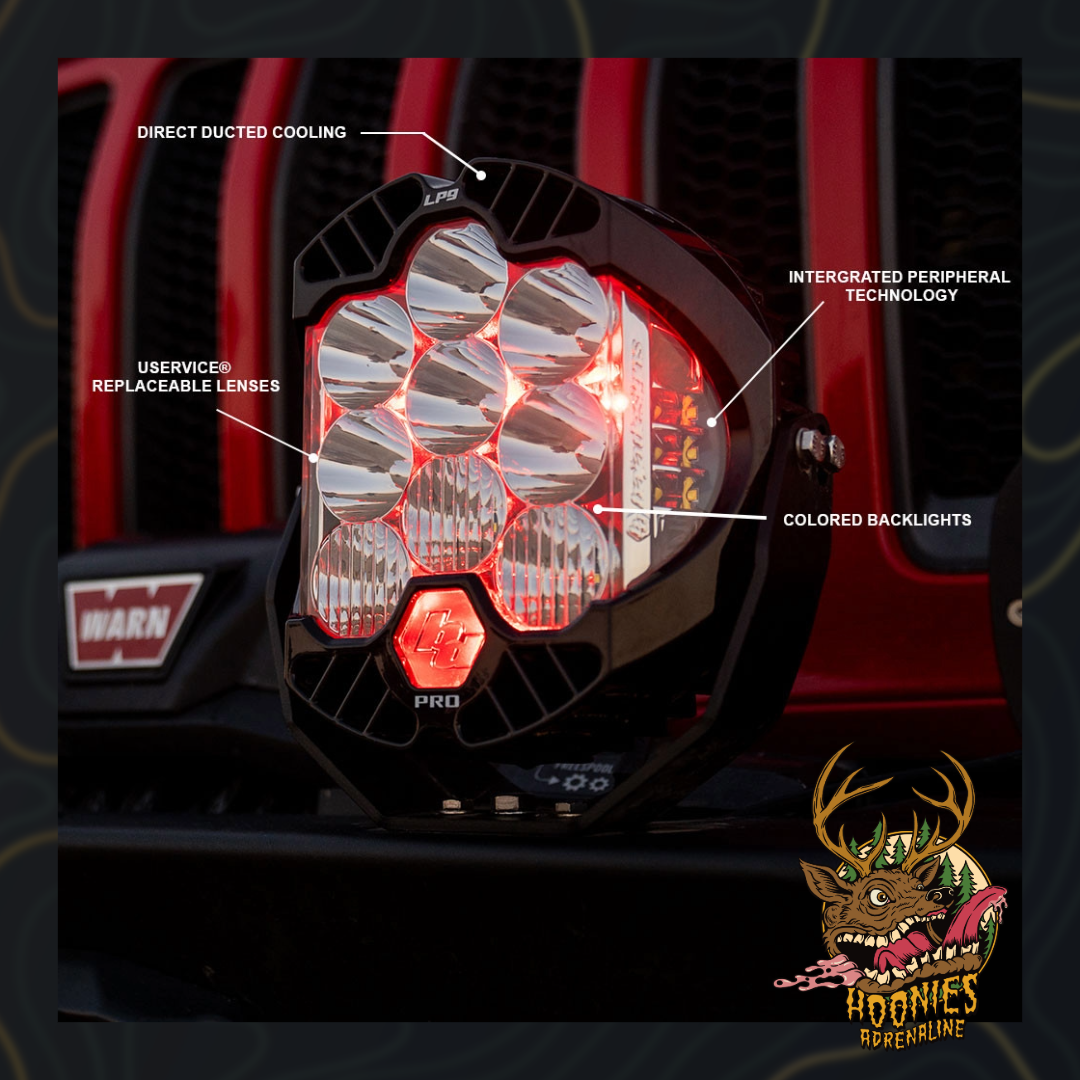

Direct Ducted Cooling channels air over the heat sinks behind the light. The lens and optics are replaceable, so the light can be maintained with matching parts after years of use or a damaged lens.

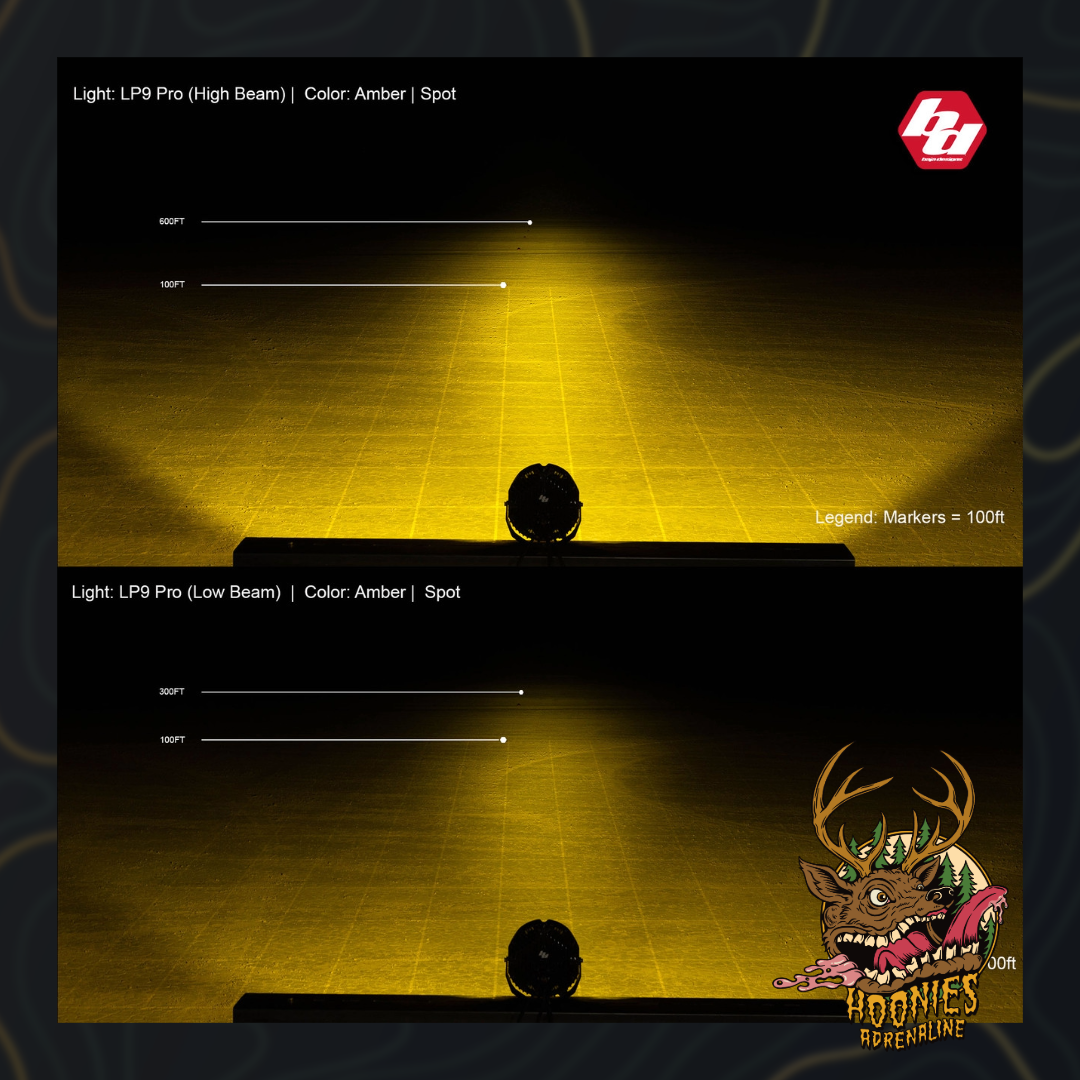

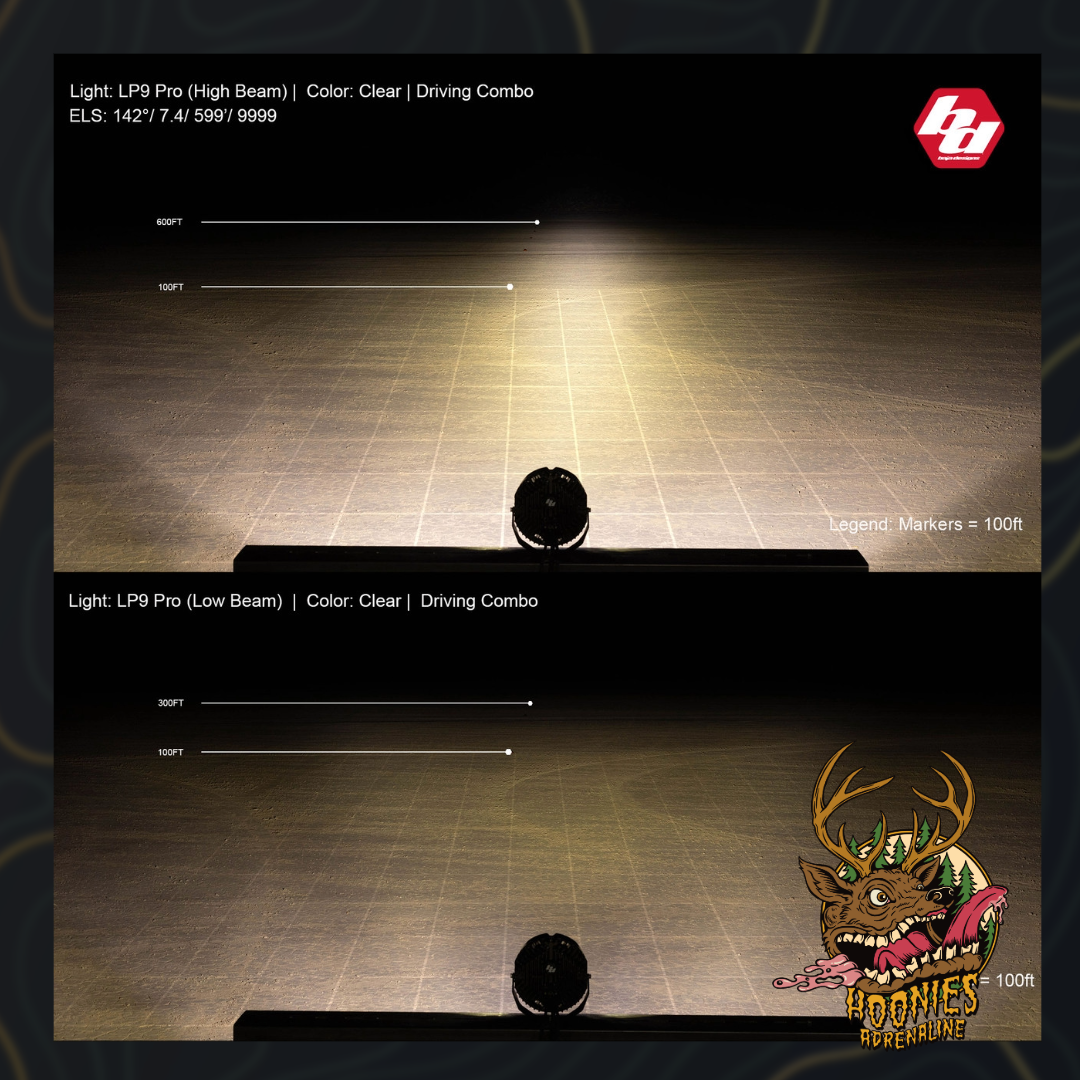

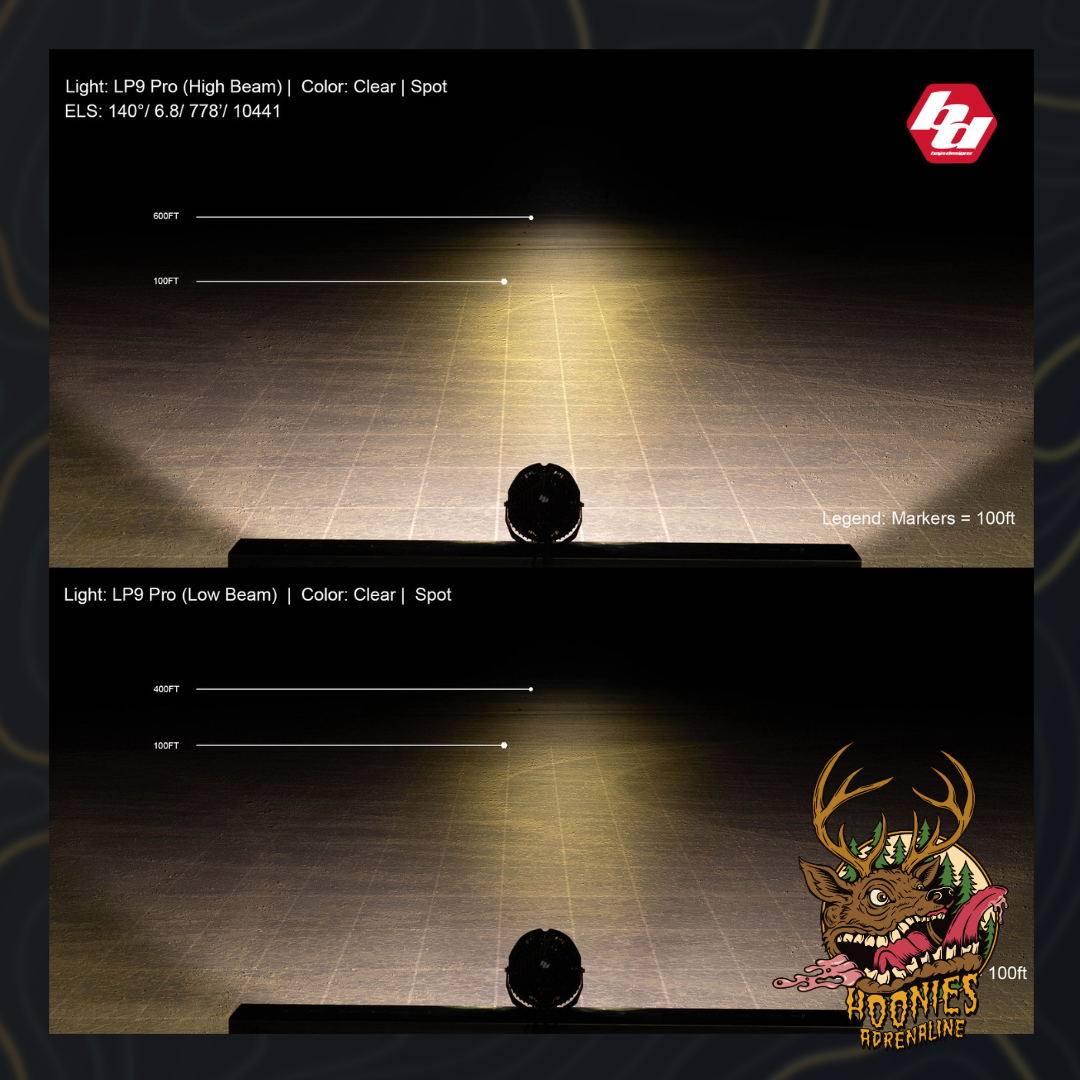

Spot concentrates the forward beam for distance. Driving/Combo blends driving spread with spot reach. Both are offered with clear or amber main lenses here, and each has an amber backlight. The high and low output modes give you control over how much light you use when they are correctly wired.
This listing is for one LP9 Pro with mounting hardware. Check the 8in light body, bracket and aiming space against your bar or chosen vehicle mount. The wiring harness is separate.
Our 640172 LP-series harness supplies up to two compatible LP6/LP9 Pro lights with high/off/low switching. For existing upfitter switches or a suitable power module, see the 640167 lock-out harness. High and low circuits must never receive power together. The 660302 security hardware kit is an optional addition for the compatible mounting fasteners.
| Specification | Details |
|---|---|
| Brand | Baja Designs |
| Supplied quantity | One light |
| Combined raw output per light | 14,849 lm: 12,547 forward + 2,302 peripheral |
| Forward / peripheral LEDs | Nine forward LEDs; six peripheral LEDs |
| Overall light spread | 200 degrees with IPT |
| Forward electrical rating per light | 124.2W / 9A |
| IPT electrical rating per light | 21W / 1.52A |
| Amber backlight rating per light | 2.8W / 0.2A |
| Operating supply | 12-36V |
| Modes | High, low and amber backlight; never power high and low together |
| Housing | Powder Coat Cast Aluminum |
| Lens | Hardcoated Polycarbonate |
| Mounting hardware material | Stainless Steel |
| Average rated LED life | 49,930 hours |
| Light body dimensions, W x H x D | 8 x 8 x 3.25in; allow additional mounting/connector clearance |
| Weight per light | 6.5lb |
| Main lens choices | See the beam and lens options below |
| Wiring harness included | No |
| Mounting hardware included | Yes |
| Durability rating | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Impact rating | IK10 Compliant (Mechanical Impact Testing) |
| Water-resistance rating | IP69K (Waterproof up to 9ft & Pressure Washable) |
| SKU / reference | Option | Details |
|---|---|---|

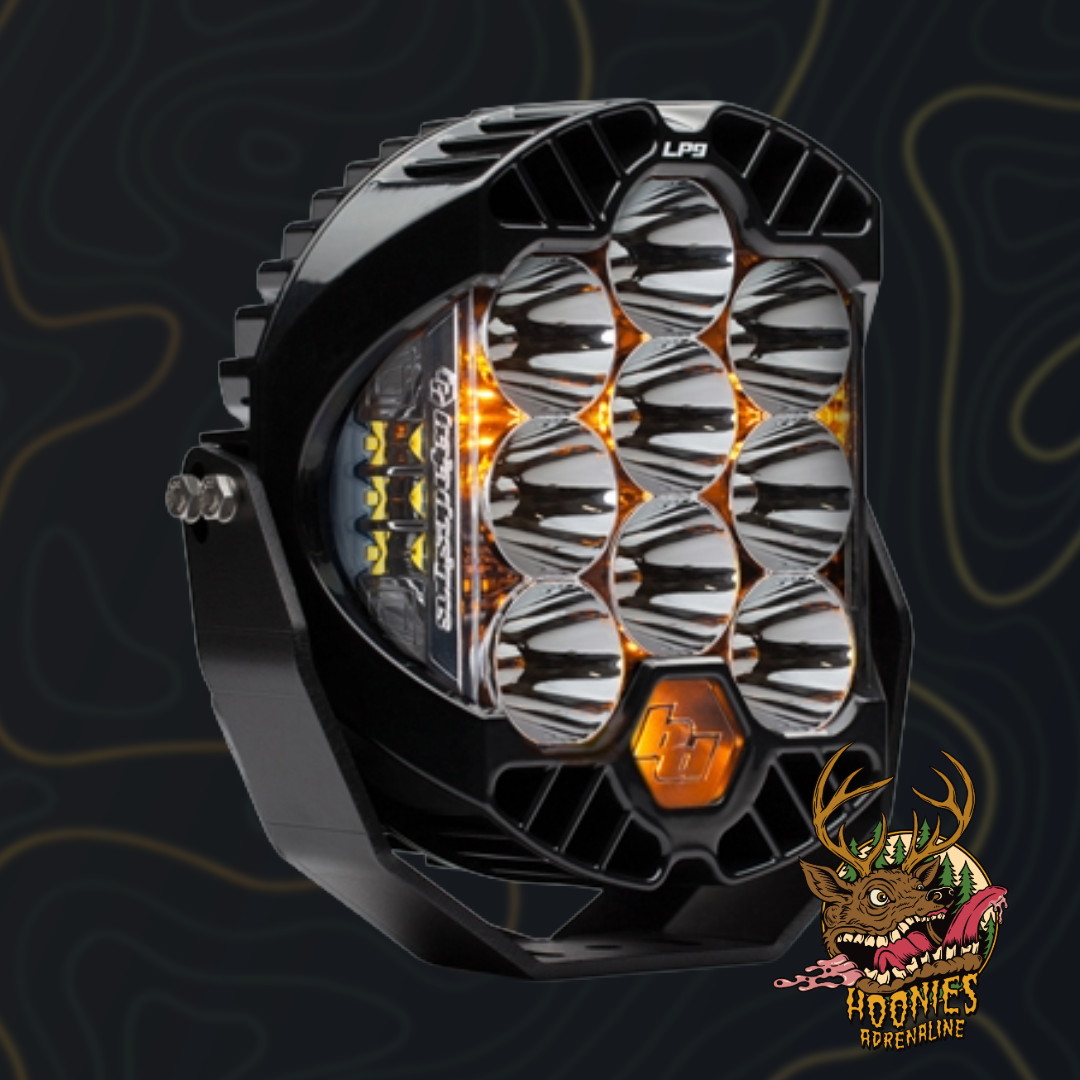

| 320001 | Spot / Clear | One light; Spot; Clear main lens; harness separate |

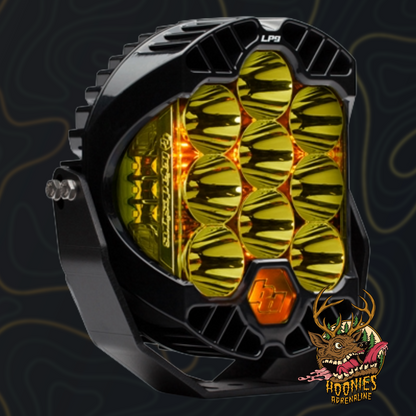

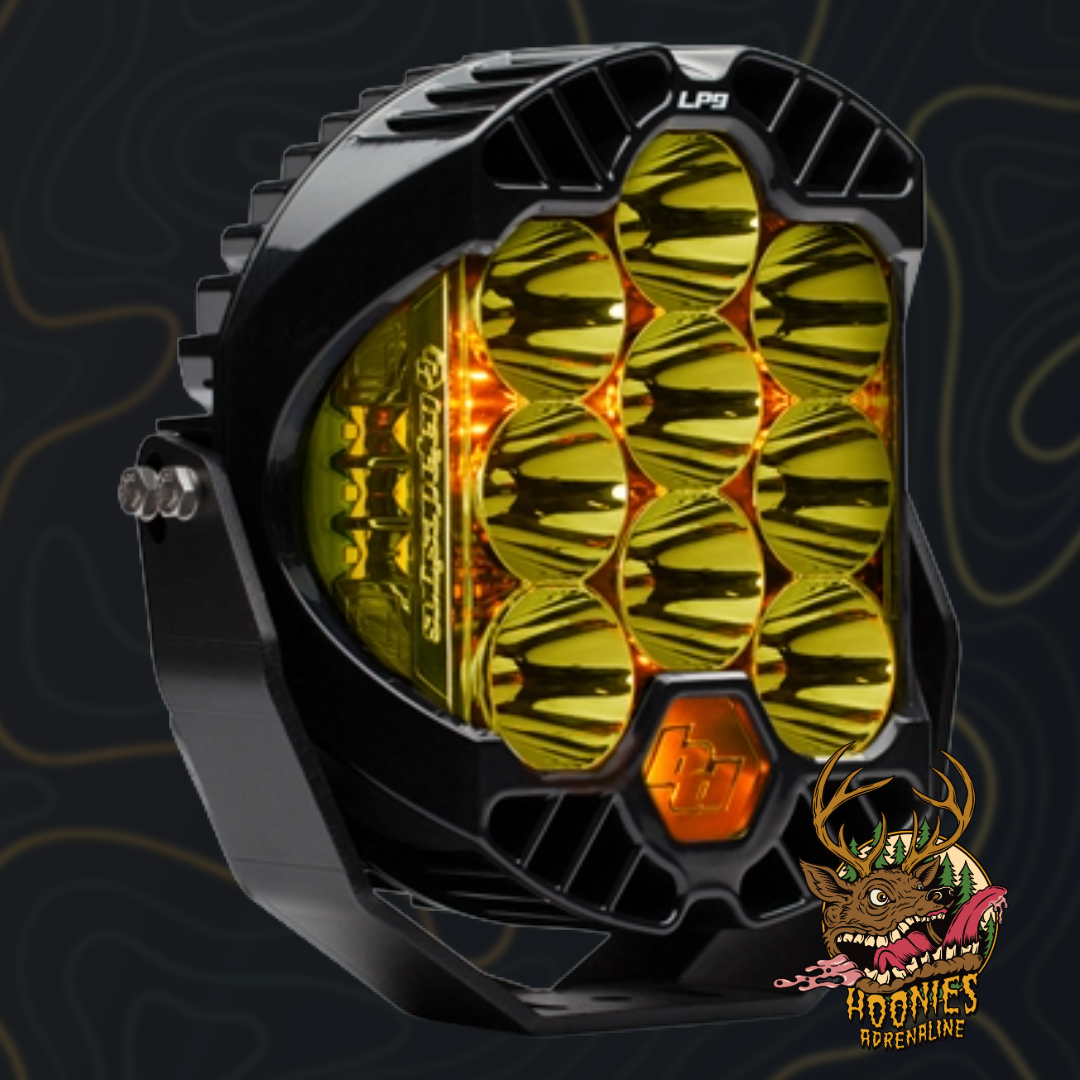

| 320011 | Spot / Amber | One light; Spot; Amber main lens; harness separate |

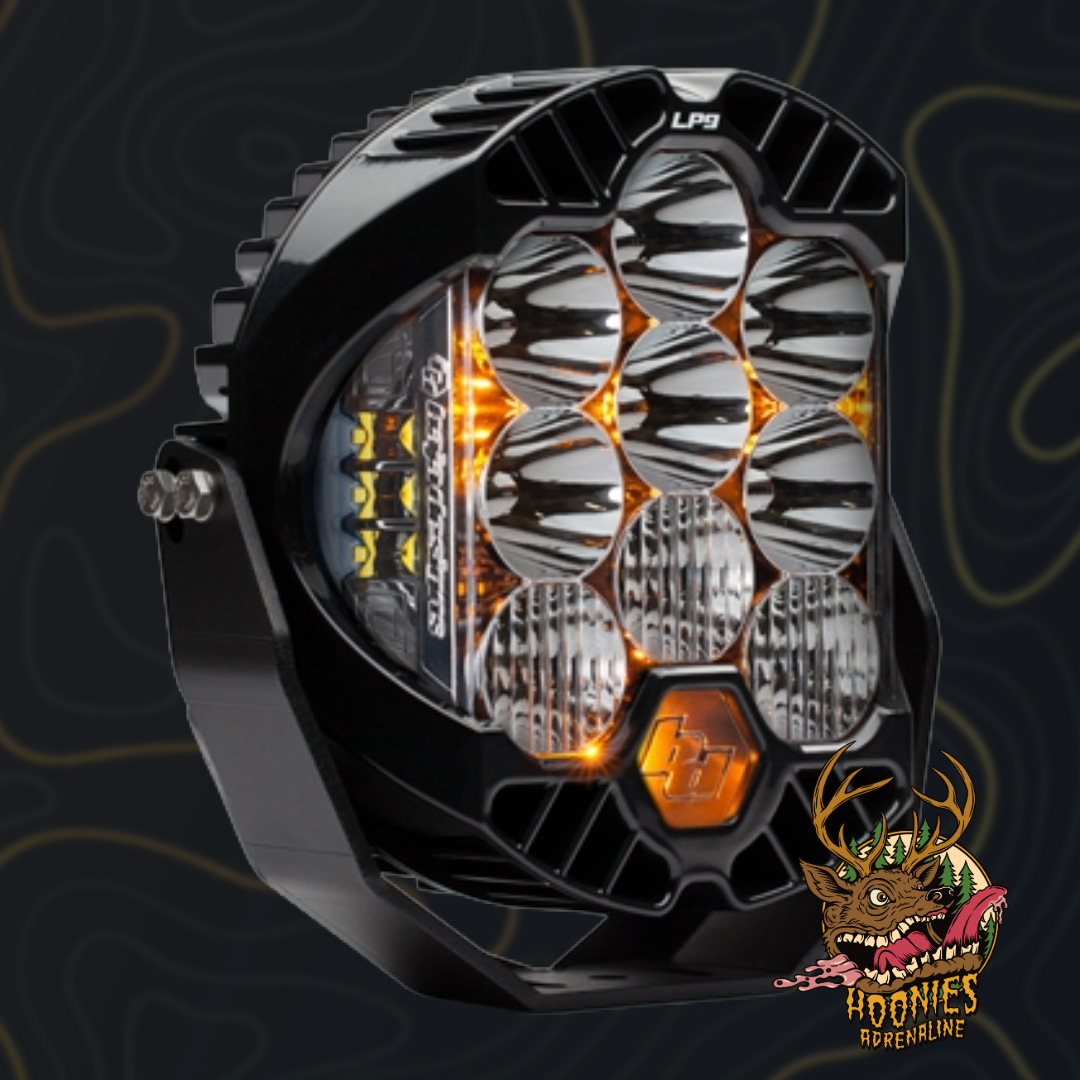

| 320003 | Driving / Combo / Clear | One light; Driving/Combo; Clear main lens; harness separate |

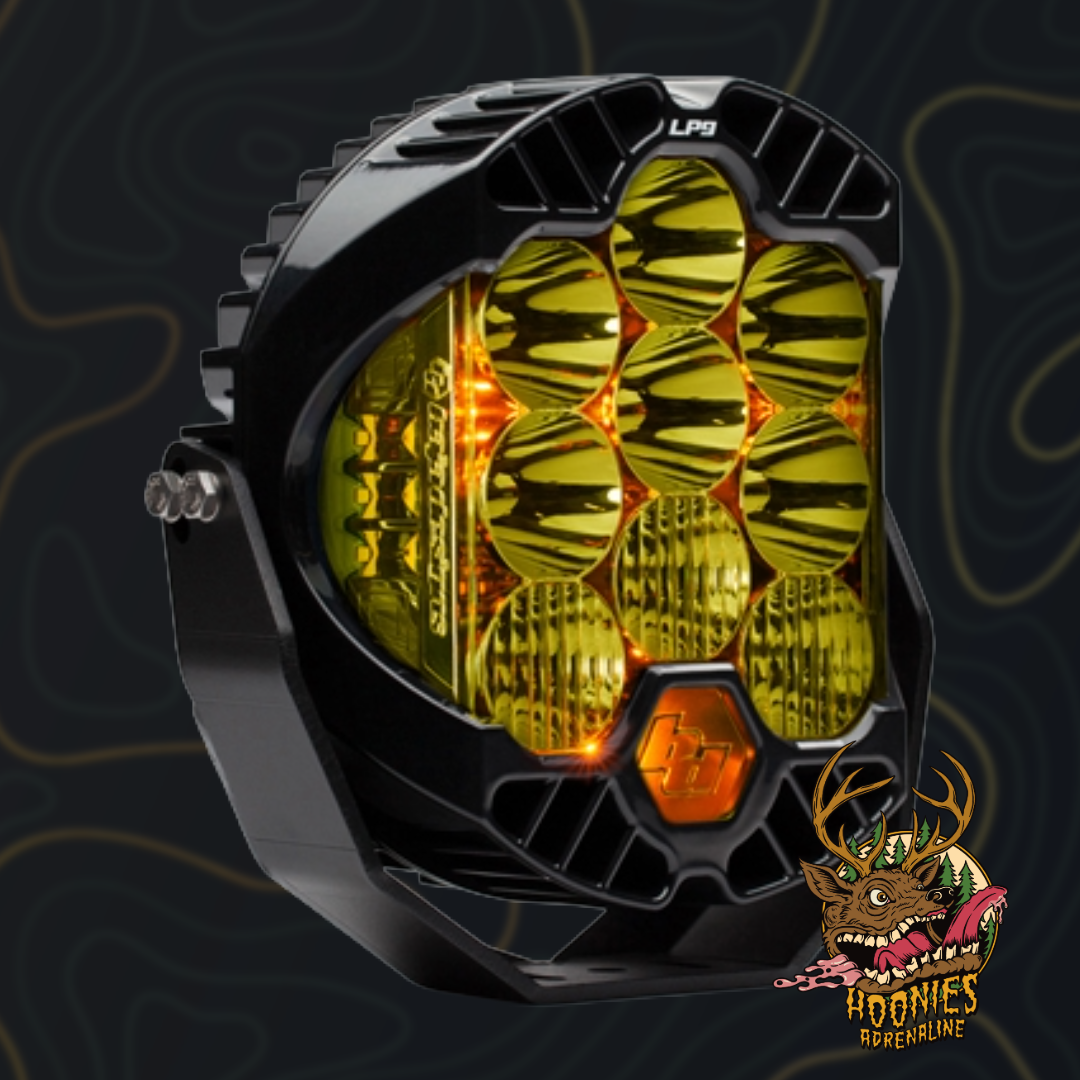

| 320013 | Driving / Combo / Amber | One light; Driving/Combo; Amber main lens; harness separate |
Yes. This listing supplies one LP9 Pro and mounting hardware. The harness is sold separately.
The 14,849 combined raw-lumen figure adds 12,547 forward lumens and 2,302 peripheral lumens for one LP9 Pro. It is not a lux or beam-distance measurement.
The 640172 harness is the switched high/off/low option for up to two compatible LP6/LP9 Pro lights. Use the 640167 lock-out arrangement when integrating suitable existing upfitter controls instead.
No. Never power both circuits at once. Follow the LP9 Pro pin layout and use switching that keeps those functions separate.
Yes. All four options here have amber backlighting; the clear/amber selection describes the main lens.
