Reliable Wiring Solution for Baja Designs LP9/LP6 Lighting Systems

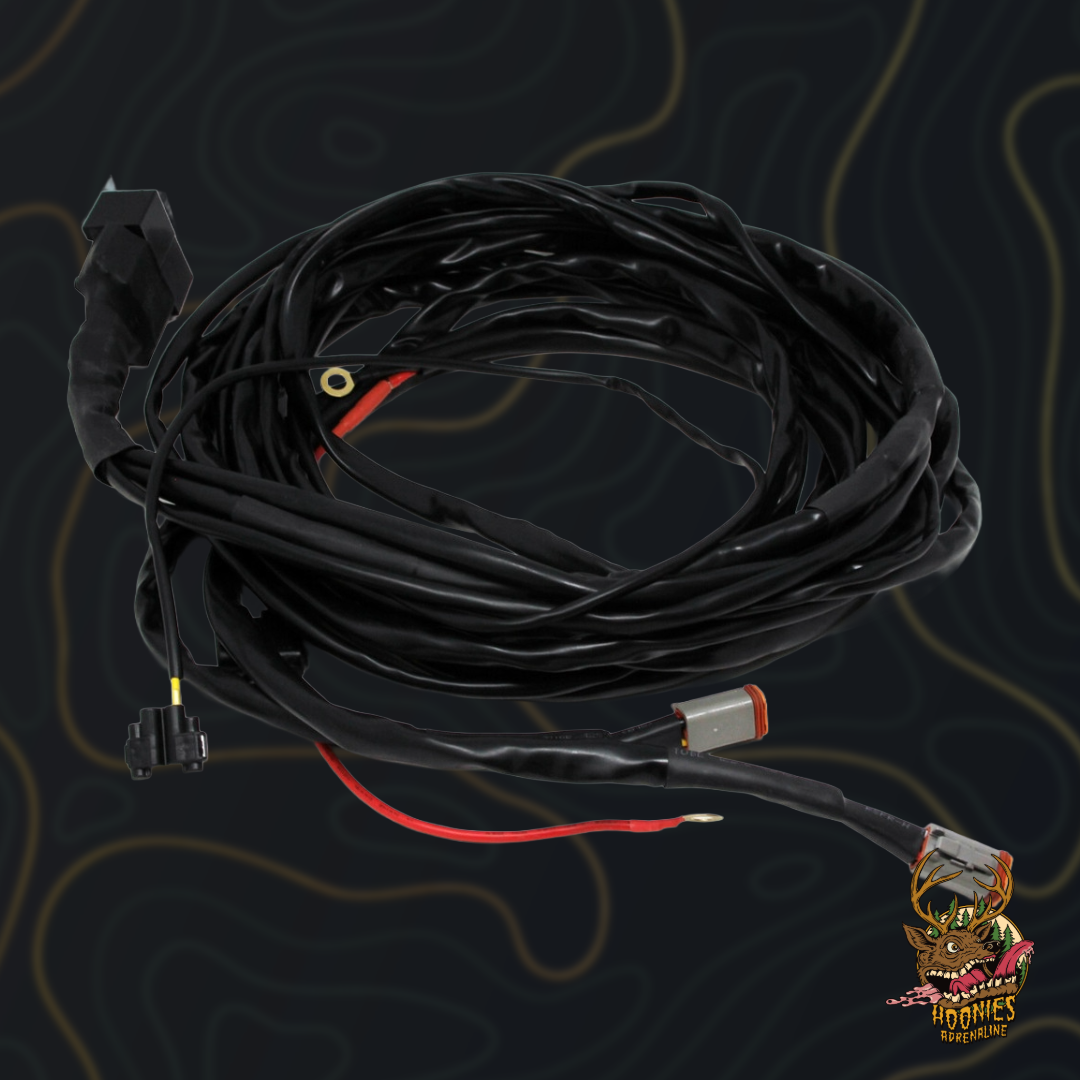

The Baja Designs LP9/LP6 Series Upfitter Lock-Out Wiring Harness is purpose-built for enthusiasts and professionals who demand safe, dependable integration of high-performance auxiliary lighting. Designed specifically for the LP9 and LP6 series, this universal harness ensures your lighting operates exactly as intended when paired with upfitter modules like sPOD, Switch-Pros, or factory systems.
How This Harness Supports Safe Lighting Integration
When adding powerful auxiliary lights to modern vehicles, wiring complexity can lead to operational issues—especially with dual-circuit lights. This harness isolates the high and low circuits of your LP9 or LP6 lights, preventing both from being powered simultaneously. The result is a safer, more reliable lighting setup that protects your investment and avoids electrical faults or unwanted light behaviour.
Who Should Choose This Upfitter Lock-Out Harness?
This harness is ideal for:
- 4x4 and off-road vehicle owners upgrading to Baja Designs LP9 or LP6 lights
- Expedition and overland builders seeking professional-grade wiring solutions
- Installers integrating lighting with advanced switch panels or factory upfitter systems
- Anyone wanting to eliminate wiring guesswork and ensure compliant, safe operation
If your build relies on upfitter switches and you want to avoid the risk of circuit overlap, this harness offers a straightforward, universal-fit answer.
Key Benefits for Your Lighting System
- Prevents simultaneous high/low circuit activation for LP9/LP6 lights
- Supports seamless integration with sPOD, Switch-Pros, and factory upfitter modules
- Universal design for flexible installation across vehicle platforms
- Reduces installation errors and protects lighting system integrity
- Engineered by Baja Designs for compatibility and reliability
Technical Specifications
| Manufacturer | Baja Designs |
|---|---|
| Product Type | Upfitter Lock-Out Wiring Harness |
| Application | LP9/LP6 Series Lights |
| Mounting Hardware Included | No |
| Switch Included | No |
| Universal or Specific | Universal |
| Wiring Harness Included | Yes |
Installation and Practical Use Notes
Installation is direct for those experienced with auxiliary lighting. The harness connects your LP9 or LP6 lights to compatible upfitter modules, ensuring proper circuit isolation. No mounting hardware or switches are included—be sure to have the necessary accessories for your build. Always follow Baja Designs' installation instructions for optimal safety and performance.
Note: Confirm compliance with local laws regarding auxiliary lighting. Some products may be intended for off-road use only.
Frequently Asked Questions About the LP9/LP6 Upfitter Lock-Out Harness
What problem does this harness solve for LP9/LP6 installations?
It prevents both high and low circuits from being powered at the same time, which can cause operational issues or damage in advanced lighting setups.
Is this harness compatible with other Baja Designs light models?
No, it is specifically engineered for LP9 and LP6 series lights. For other models, consult Baja Designs for the correct harness.
Can I use this harness with factory upfitter switches?
Yes, it is designed for seamless use with factory upfitter systems and popular aftermarket modules like sPOD and Switch-Pros.
Does the harness include mounting hardware or a switch?
No, this product is supplied as a standalone harness for integration with your existing lighting and switching setup.
Is installation suitable for DIY users?
If you are comfortable with automotive wiring, installation is straightforward. If in doubt, professional installation is recommended.
Is this harness suitable for road use?
Check your local regulations regarding auxiliary lighting. Some lighting products may be intended for off-road use only.
