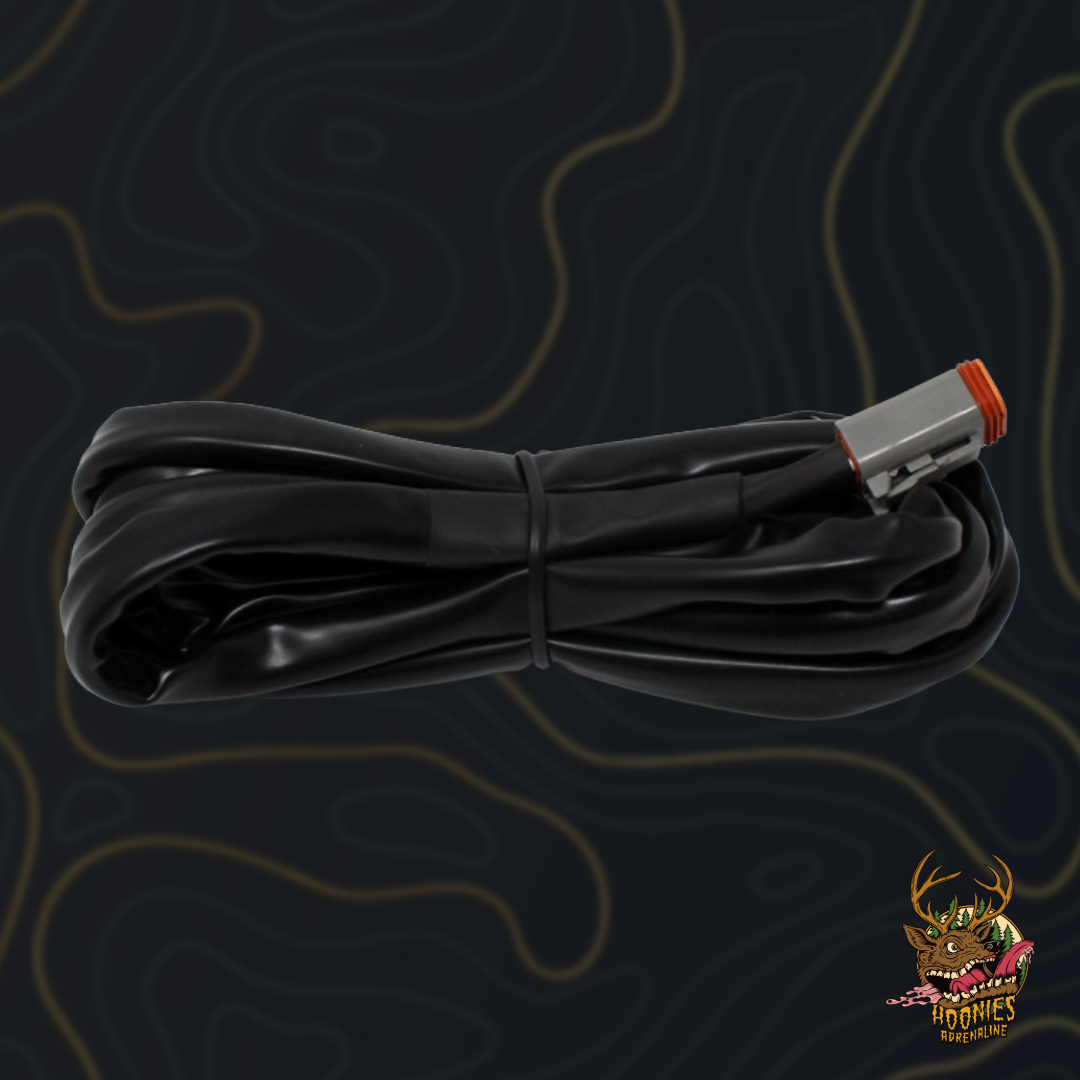

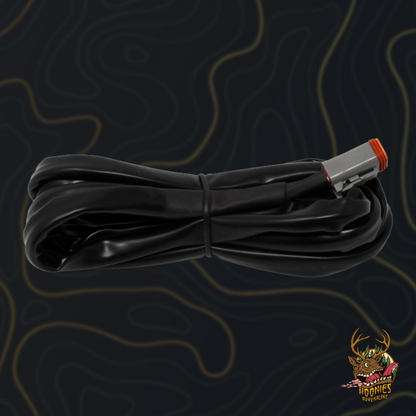

Universal Harness for Baja Designs LP6 and LP9 Lighting Systems
The Baja Designs LP6/LP9 Controller Module Harness is purpose-built for enthusiasts and professionals integrating LP6 or LP9 lights into their vehicle’s electrical system. Designed specifically for these high-performance lighting models, this universal harness streamlines installation, reduces wiring complexity, and ensures a secure, reliable connection—whether you’re outfitting an off-road build or upgrading a competition vehicle.
How the LP6/LP9 Controller Module Harness Supports Your Lighting Setup
This harness acts as the dedicated link between your LP6 or LP9 light and the vehicle’s pre-wired switches or control module. With a robust 84-inch (7-foot) length and premium sheathing, it enables flexible routing through engine bays, cabins, or chassis, helping you achieve a professional-grade installation without custom pinning or crimping. Each harness is tailored for a single light, supporting independent control and simplified troubleshooting.
Why Choose This Harness Over Generic Wiring Solutions?
Unlike universal wiring kits, the LP6/LP9 Controller Module Harness is engineered specifically for Baja Designs’ flagship LP series. This means:
- Pinout and connector compatibility are assured—no guesswork or adaptation required.
- Designed to handle the current draw and operational demands of LP6 and LP9 lights.
- Reduces risk of electrical faults common with improvised or mismatched harnesses.
- Supports seamless integration with Baja Designs’ control modules and switch panels.
Typical Use Cases for the LP6/LP9 Controller Module Harness
This harness is ideal for:
- Off-roaders upgrading to LP6 or LP9 lights and seeking a factory-quality installation.
- Motorsport teams requiring reliable, serviceable wiring for rapid light changes or diagnostics.
- Expedition builds where durability and electrical integrity are critical.
- Custom vehicle projects integrating LP series lights with existing switchgear or control modules.
Key Benefits for Performance and Off-Road Buyers
- Assured fitment for Baja Designs LP6 and LP9 lights—no adaptation needed.
- High-grade sheathing protects against abrasion, moisture, and vibration.
- 84-inch length offers installation flexibility for a range of vehicle types.
- Supports clean, professional wiring layouts—ideal for show builds and competition vehicles.
- Each harness supports one light for independent control and simplified maintenance.
Construction and Technical Details
Baja Designs’ reputation for quality extends to this harness, which features:
- Premium automotive-grade wiring and sheathing for long-term durability.
- OEM-style connectors for reliable, secure attachment to LP6 and LP9 lights.
- Universal design for use across a wide range of vehicles and custom builds.
Installation and Practical Considerations
Installation is straightforward—simply route the harness from your LP6 or LP9 light to the control module or pre-wired switch. No mounting hardware or switches are included, as this harness is designed to integrate with existing Baja Designs control solutions. For dual-light setups, purchase one harness per light to maintain independent operation and ease of servicing. Always measure your installation path to ensure the 84-inch length meets your needs.

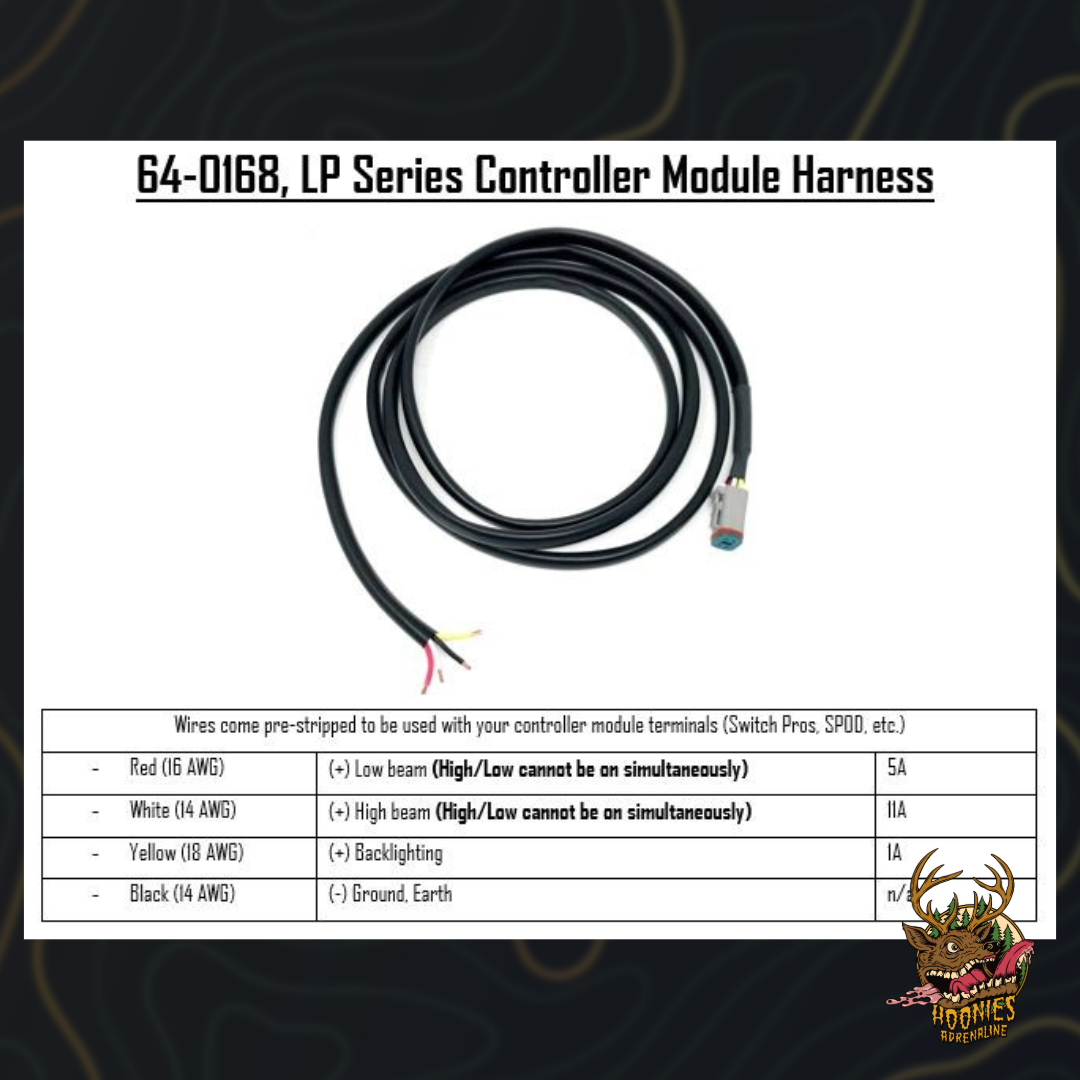

Technical Specifications
| Manufacturer | Baja Designs |
|---|---|
| Product Type | LP Series Controller Module Harness |
| Application | LP6 and LP9 lights |
| Wiring Harness Length | 84 inches (7 feet) |
| Mounting Hardware Included | No |
| Switch Included | No |
| Universal or Specific | Universal |
| Wiring Harness Included | Yes |
Solving Real-World Installation Challenges
Integrating high-output lighting like the LP6 or LP9 often exposes wiring to harsh conditions—heat, vibration, and moisture. Generic harnesses can lead to unreliable connections, electrical faults, or time-consuming troubleshooting. This Baja Designs harness is engineered to eliminate those risks, providing a robust, plug-and-play solution that supports the reliability and performance expected from premium lighting systems.
Frequently Asked Questions – Baja Designs LP6/LP9 Controller Module Harness
Is this harness compatible with both LP6 and LP9 lights?
Yes, it is specifically designed for use with Baja Designs LP6 and LP9 models, ensuring correct pinout and secure fitment.
Can I use one harness for two lights?
No, each LP6 or LP9 light requires its own harness for independent operation and maximum reliability.
Does the harness include switches or mounting hardware?
No, this harness is intended for integration with pre-wired switches or control modules. Switches and mounting hardware are not included.
How long is the harness, and will it fit my vehicle?
The harness is 84 inches (7 feet) long, offering flexibility for most vehicle installations. Always measure your intended routing path to confirm fitment.
What makes this harness different from generic wiring kits?
This harness is engineered specifically for LP6 and LP9 lights, providing assured compatibility, robust construction, and easy integration with Baja Designs control solutions.
Is the harness suitable for harsh off-road conditions?
Yes, it features high-quality sheathing and connectors designed for durability in demanding environments.
