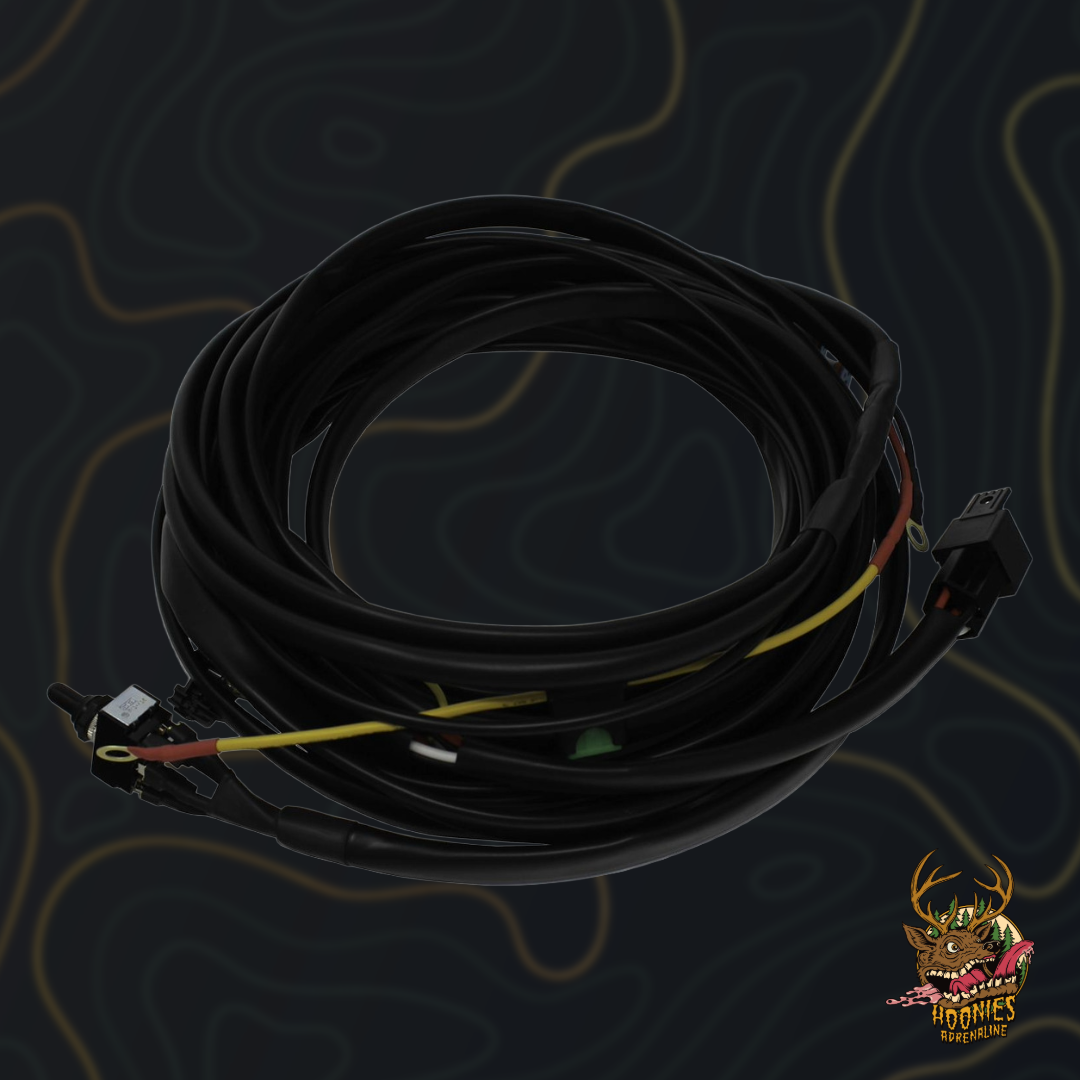

Purpose-Built Wiring Harness for Baja Designs LP6/LP9 Pro Lights
The Baja Designs LP6/LP9 Pro 2-Light Max Wiring Harness is engineered for enthusiasts and professionals who require reliable, safe, and straightforward wiring for high-performance auxiliary lighting. Designed specifically for the LP6 Pro and LP9 Pro models, this harness supports demanding off-road, expedition, and motorsport builds where dependable lighting control is essential.
How This Harness Enhances Your Lighting System
This harness enables independent high and low beam operation for two LP6 or LP9 Pro lights, allowing you to tailor light output to changing conditions. The included On/Off/On switch provides direct control, while robust Deutsch connectors help ensure secure, weather-resistant connections even in harsh environments. An additional lead is provided for the amber daytime running light (DRL), offering enhanced visibility and safety during daylight hours.
Ideal Applications and Buyer Suitability
Whether you're building an overlanding rig, prepping a rally vehicle, or upgrading a 4WD for night-time trails, this harness is designed for users who value reliability and ease of integration. Its universal fit and extended cable length make it suitable for a wide range of vehicles and mounting configurations, from roof racks to bull bars. This harness is best suited for buyers who:
- Are installing Baja Designs LP6 Pro or LP9 Pro lights (not compatible with LP9 Sport or LP4 models)
- Need independent beam control for two lights
- Require a pre-assembled, robust wiring solution for challenging environments
- Prefer a harness that supports DRL integration
Key Benefits of the LP6/LP9 Pro 2-Light Max Wiring Harness
- Purpose-built for LP6 Pro and LP9 Pro lights
- Independent high/low beam switching with included On/Off/On switch
- Weather-sealed Deutsch connectors for secure, reliable operation
- Amber DRL lead for enhanced daytime safety
- Universal fitment with a 144-inch harness length for flexible routing
- Pre-terminated for easier installation—some basic wiring knowledge required
- Relay and inline fuse included for system protection
Technical Specifications
| Manufacturer | Baja Designs |
|---|---|
| Product Type | LP6/LP9 Pro 2-Light Max Wiring Harness |
| Application | LP6 Pro, LP9 Pro auxiliary lights |
| Switch Included | Yes (On/Off/On) |
| Terminal Type | Deutsch Connectors |
| Wiring Harness Length | 144 inches |
| Mounting Hardware Included | No |
| Wiring Harness Included | Yes |
| Universal or Specific | Universal |
Installation and Usage Guidance
This harness is pre-assembled to simplify installation, but some basic understanding of automotive wiring is recommended. The Deutsch connectors allow for secure, tool-free connections to compatible Baja Designs lights. The included switch and relay are designed for straightforward integration, but mounting hardware is not supplied—ensure you have appropriate fixings for your setup. For road-legal use, always check local regulations regarding auxiliary lighting operation and switching.
Solving Common Auxiliary Lighting Challenges
Integrating high-output auxiliary lights can be complex, with risks of unreliable connections, insufficient control, or wiring errors. This Baja Designs harness addresses those challenges by providing a dedicated, model-specific solution: it helps reduce installation time, minimises the risk of miswiring, and ensures your LP6/LP9 Pro lights operate reliably in demanding conditions. The inclusion of DRL support and robust connectors further sets it apart from generic looms.
Frequently Asked Questions
Which lights are compatible with this harness?
This harness is designed exclusively for Baja Designs LP6 Pro and LP9 Pro lights. It does not support LP9 Sport or LP4 models.
Does the harness include mounting hardware?
No, mounting hardware is not included. The harness is supplied with pre-terminated connectors, relay, fuse, and switch.
Can I use the DRL function with this harness?
Yes, an additional lead is provided for connecting the amber daytime running light (DRL) if desired.
Is this harness truly universal?
The harness is designed for universal vehicle fitment, but always confirm cable lengths and routing options for your specific build before installation.
What installation skills are required?
Basic automotive wiring knowledge is recommended. The harness is pre-terminated, but correct connection and switch mounting require familiarity with vehicle electrical systems.
Are there any legal considerations?
Auxiliary lighting laws vary by region. Ensure your installation and switching comply with local road regulations, especially regarding when auxiliary lights may be used.
