LP6 Pro: Baja Designs' Flagship for Demanding Off-Road Lighting

The Baja Designs LP6 Pro LED Auxiliary Light Pod is engineered for off-road and expedition drivers who need maximum visibility and reliability in the harshest conditions. As the largest pod in the Baja Designs range, the LP6 Pro is chosen by serious enthusiasts, rally teams, and overland builders who require a single, high-output unit to illuminate both the trail ahead and the periphery—without compromise.

How the LP6 Pro LED Pod Solves Real-World Lighting Challenges

Standard vehicle lights often fail to provide adequate coverage or withstand the rigours of off-road use. The LP6 Pro addresses these issues with:

11,225 lumens of output for unmatched forward projection and wide-area coverage
200° Integrated Peripheral Technology (IPT) to eliminate dangerous blind spots
Direct Ducted Cooling (DDC) for consistent performance during extended night runs or in hot climates
IP69K waterproofing and MIL-STD810G compliance for confidence in mud, rain, and vibration

This combination means the LP6 Pro is not just brighter, but also more robust and reliable than smaller or less advanced pods—making it a trusted choice for those who cannot afford lighting failure in remote or competitive environments.

Who Should Choose the LP6 Pro LED Pod?

The LP6 Pro is ideal for:

Off-road racers requiring both distance and wide-angle illumination in a single unit
Overlanders and expedition vehicles facing unpredictable terrain and weather
Utility, recovery, or service vehicles operating in hazardous or low-visibility conditions
Custom builds where reducing wiring complexity and maximising lighting performance is a priority

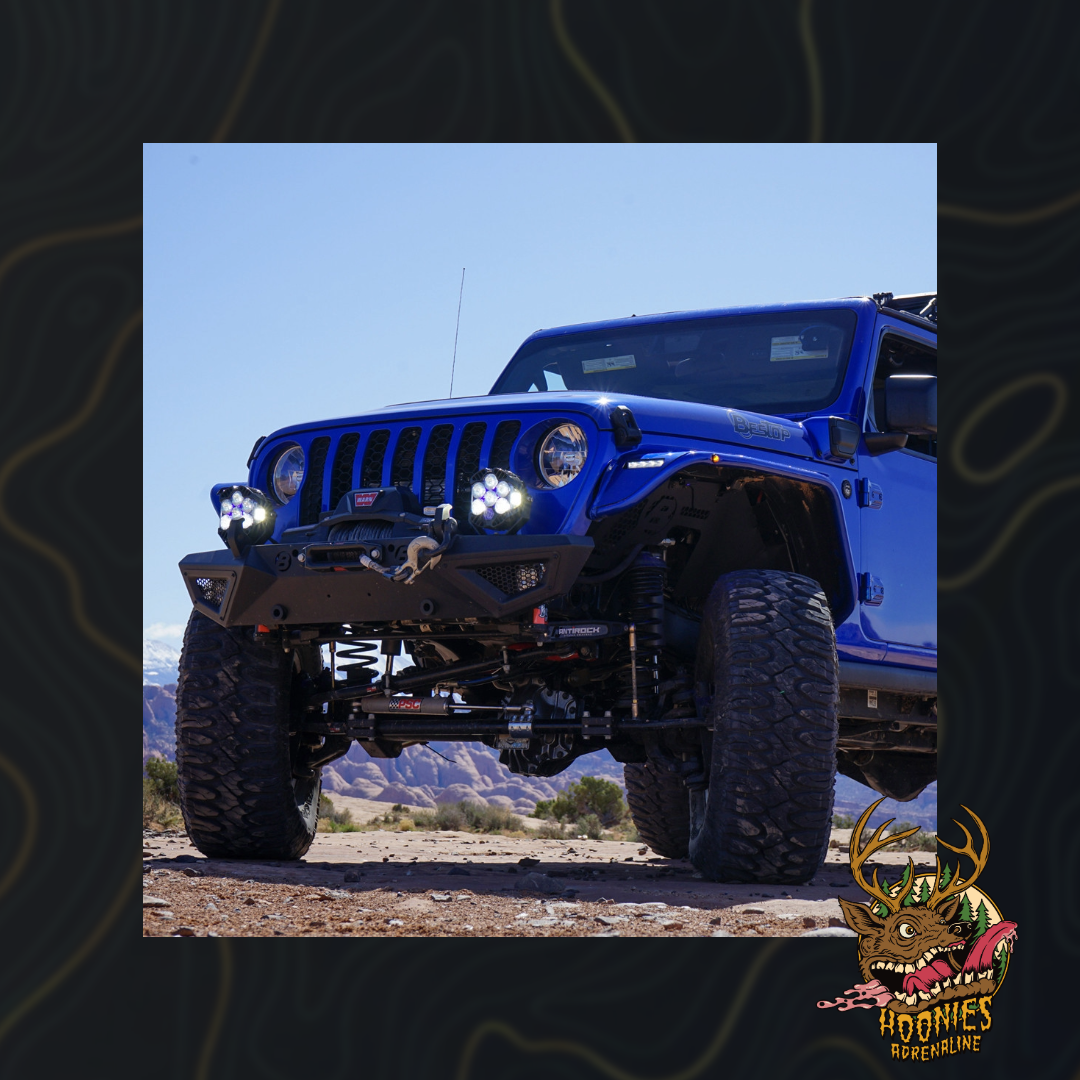

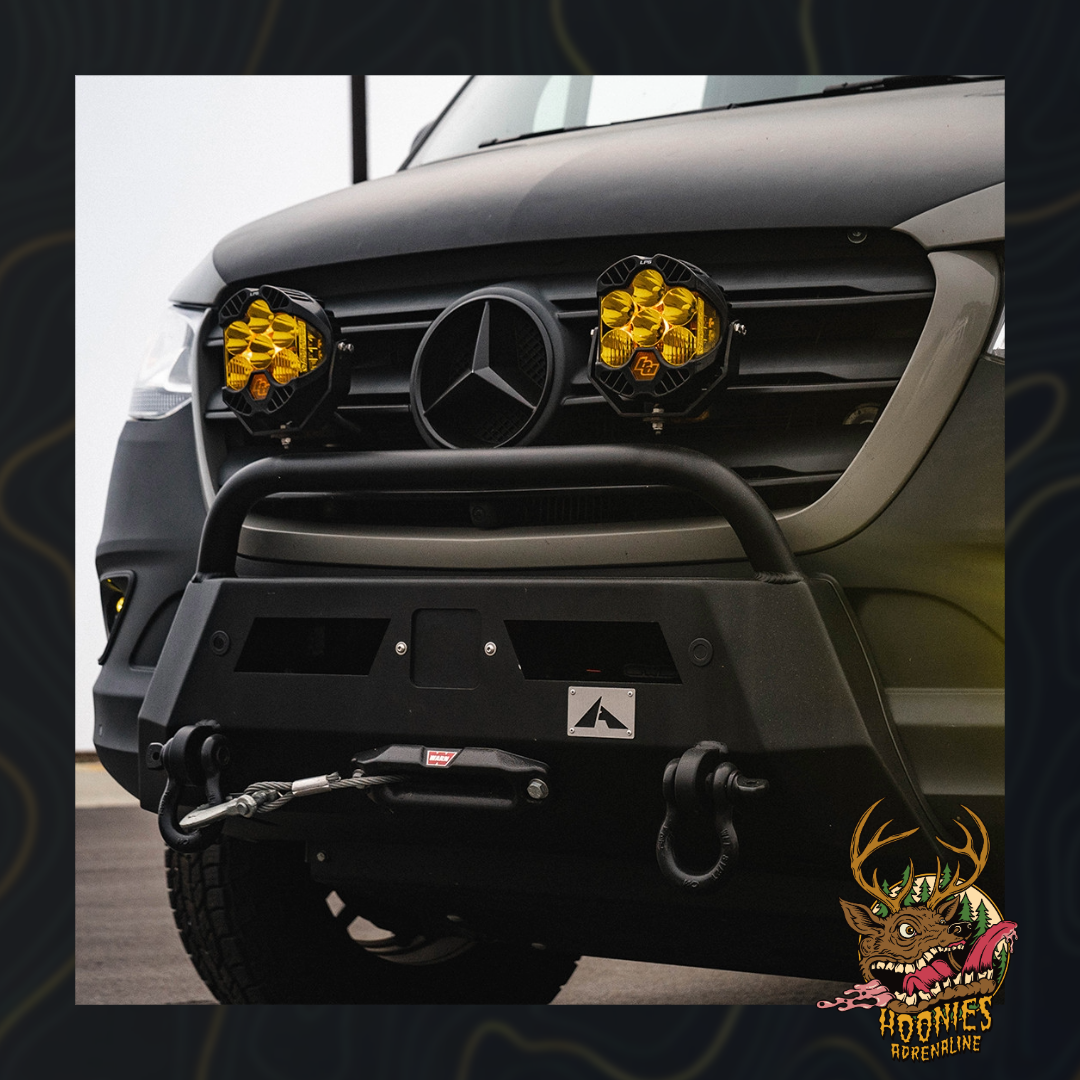

If you are upgrading from multiple smaller pods, the LP6 Pro offers a cleaner installation and reduces the risk of electrical or mounting issues. Its universal fitment supports trucks, 4WDs, UTVs, motorcycles, and adventure vans—provided there is sufficient space and electrical capacity.

Key Advantages of the Baja Designs LP6 Pro LED Auxiliary Light Pod

Single-unit solution replaces multiple lights for streamlined builds
Selectable Driving/Combo and Spot beam patterns for tailored coverage
Customisable backlight colours: amber (road-legal in most areas), red, green, blue (off-road/display use)

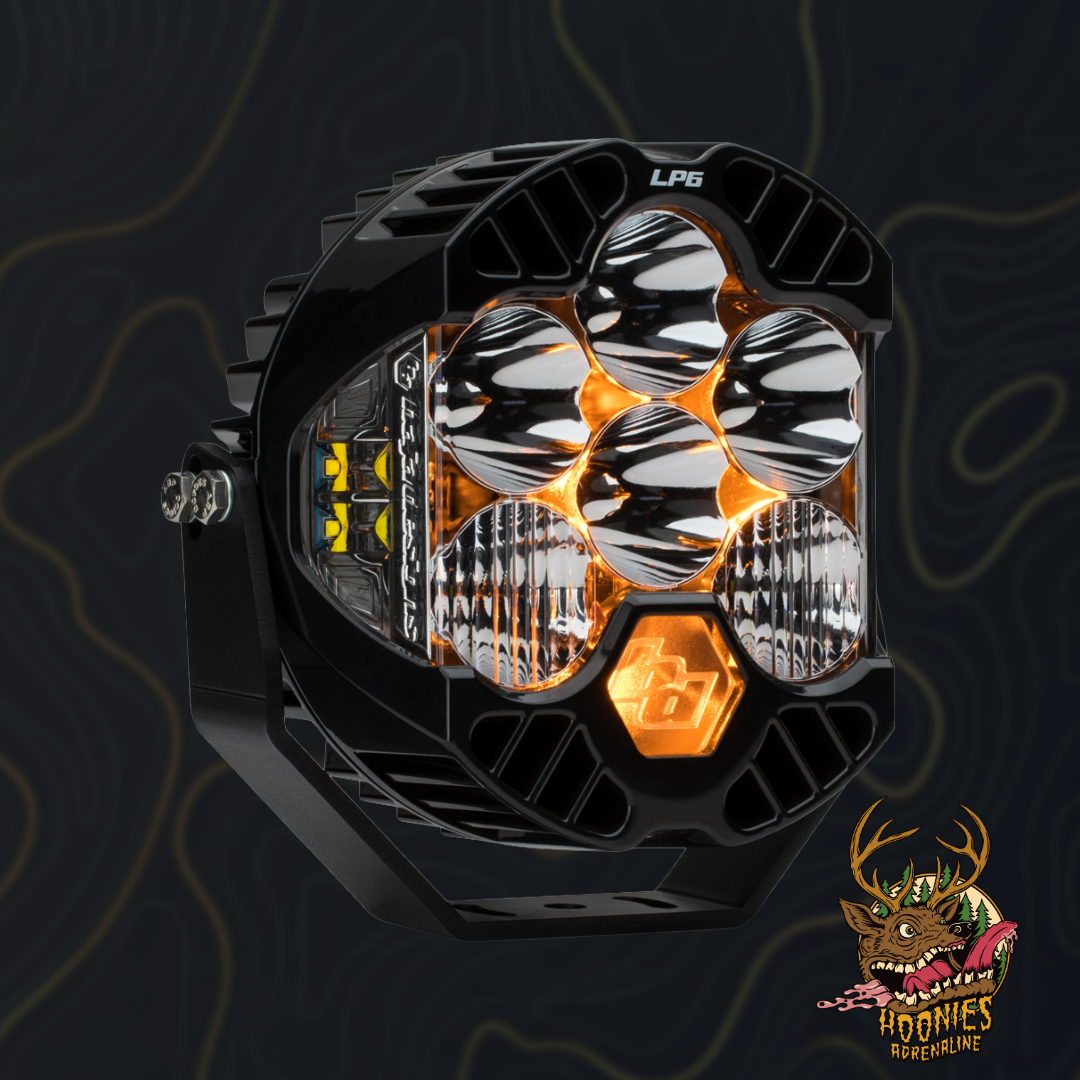

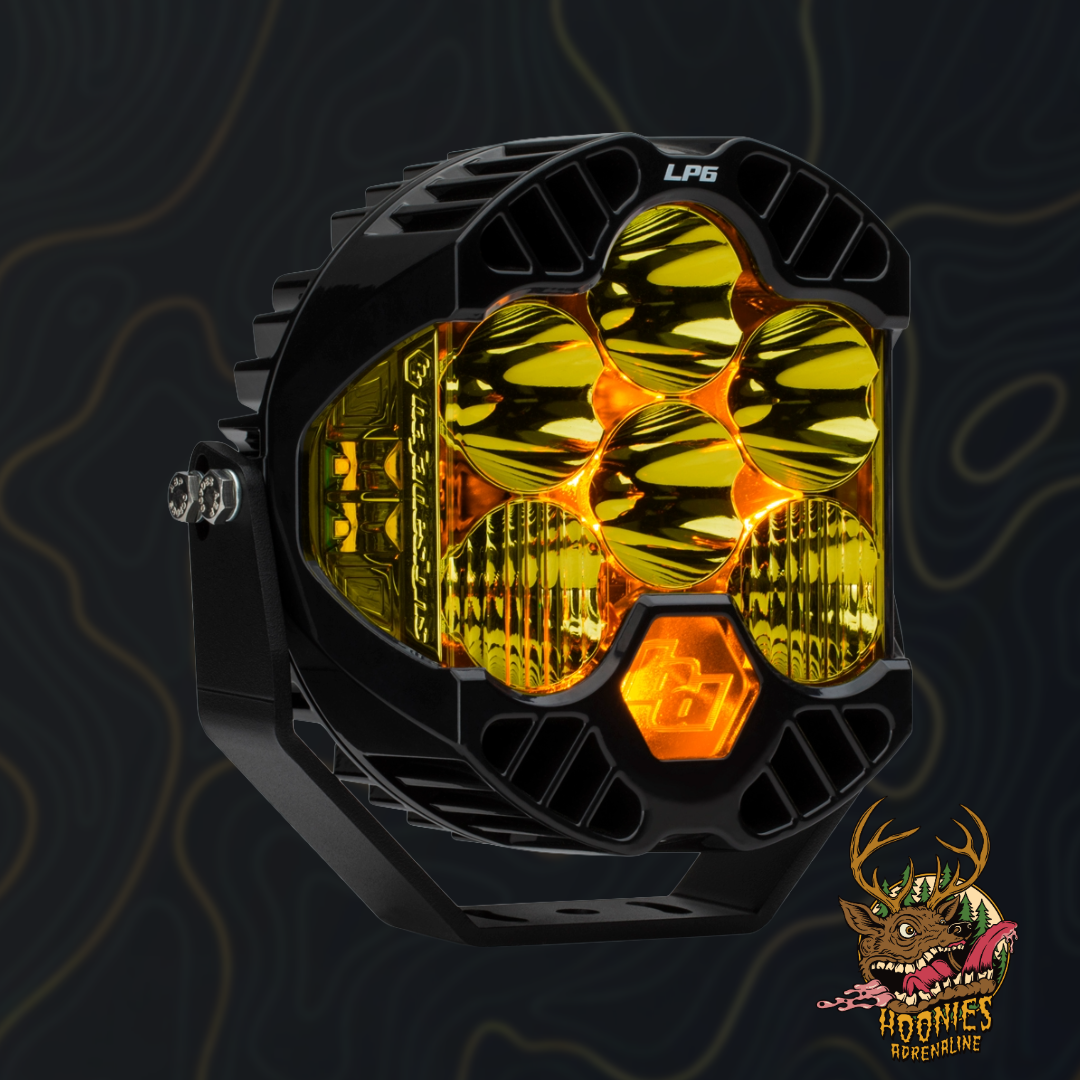

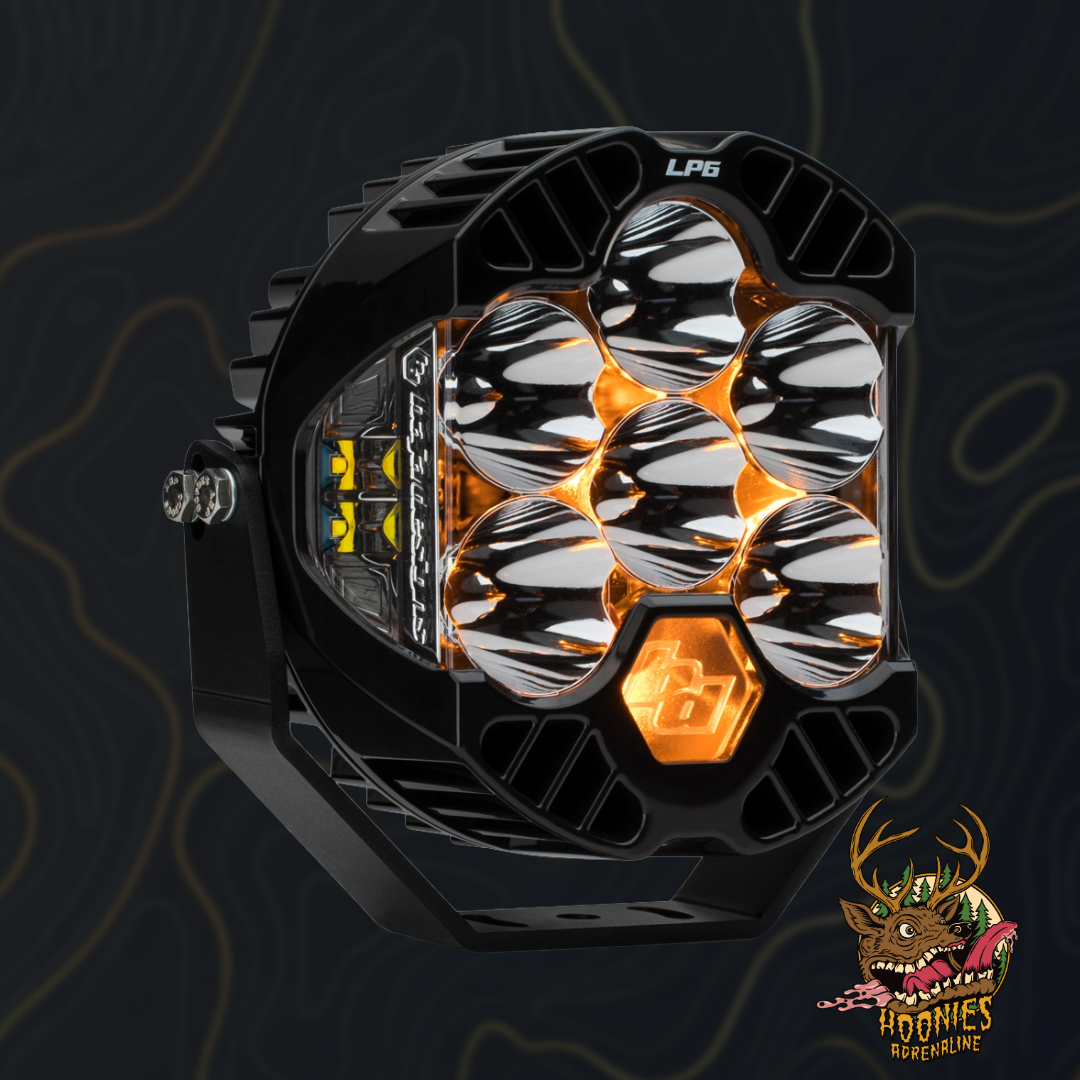

Rugged construction: powder-coated cast aluminium housing, hardcoated polycarbonate lens, stainless steel hardware
Tested to exceed IP69K, IK10, and MIL-STD810G standards for water, impact, and vibration resistance

Technical Specifications

Manufacturer	Baja Designs
Product Type	LP6 Pro LED Auxiliary Light Pod
Brightness	11,225 lumens (primary), 1,972 lumens (secondary)

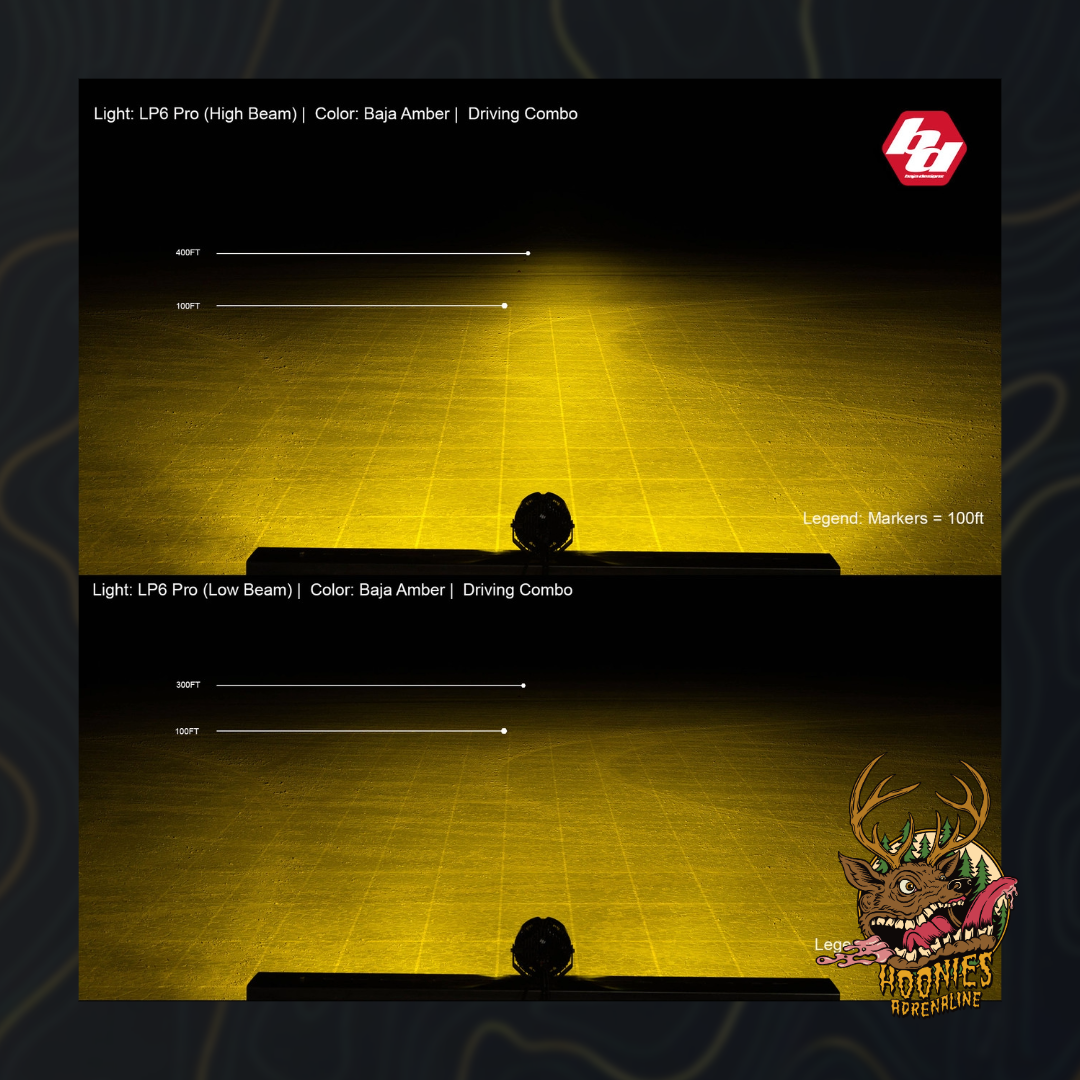

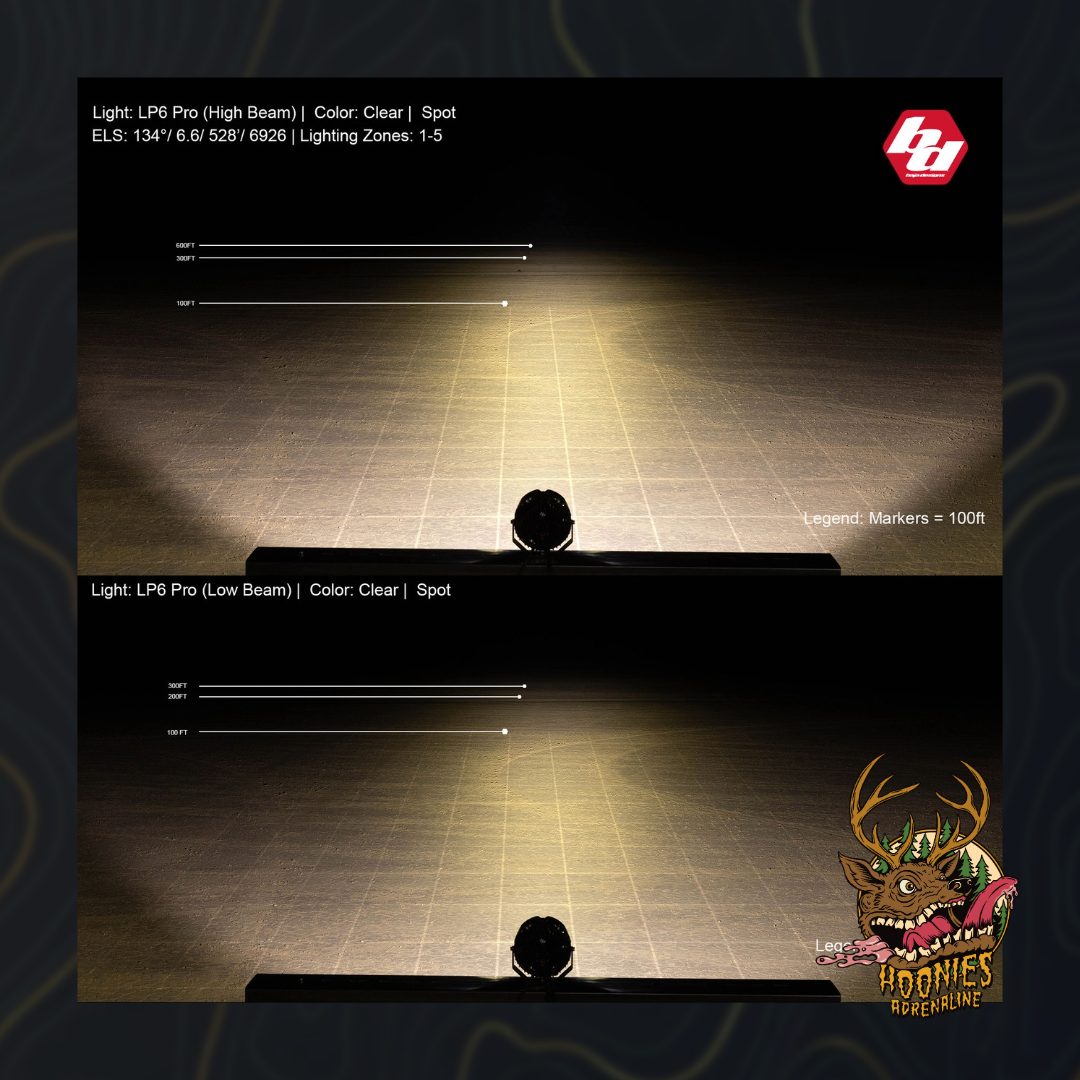

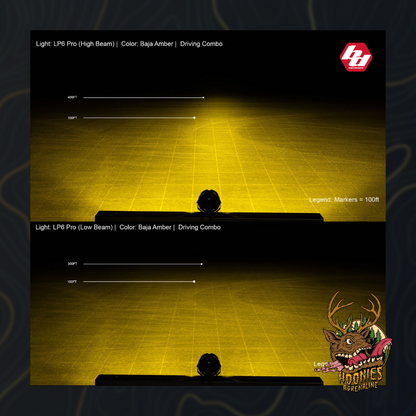

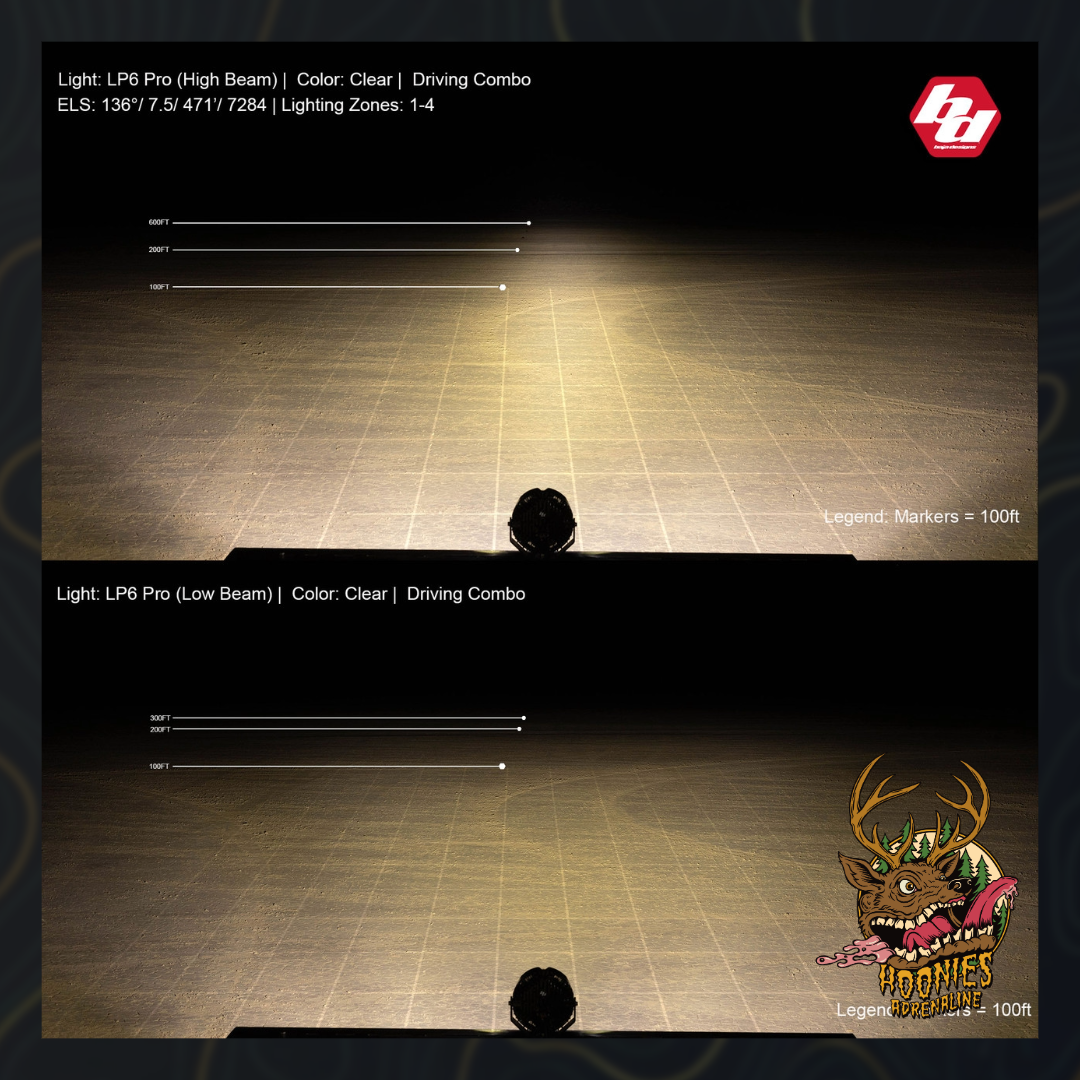

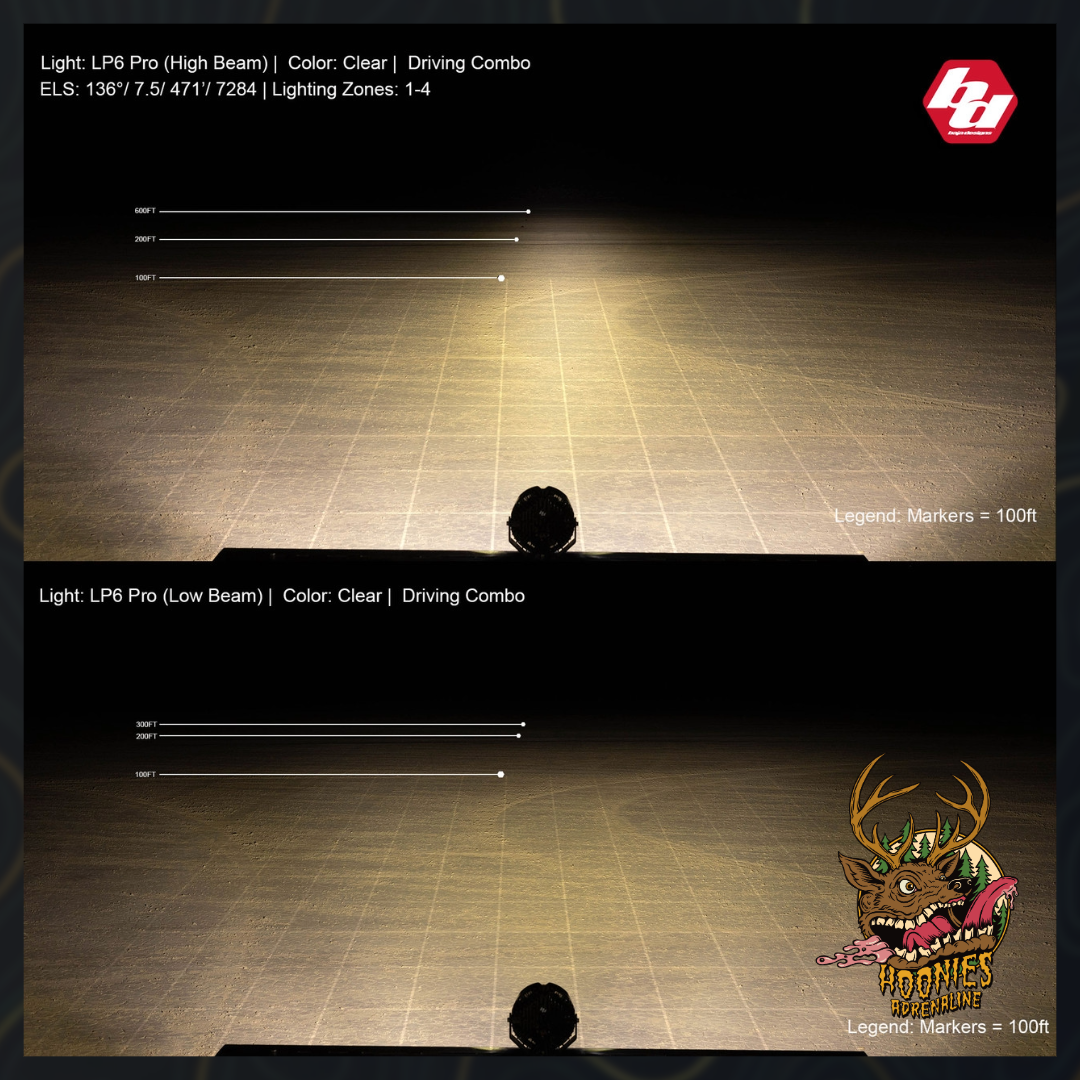

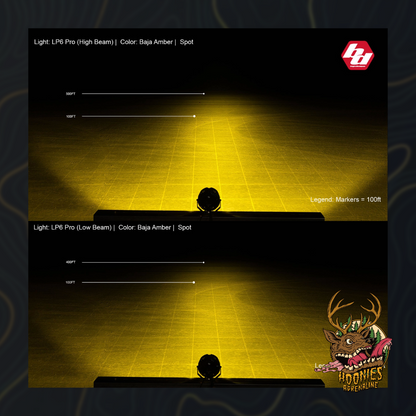

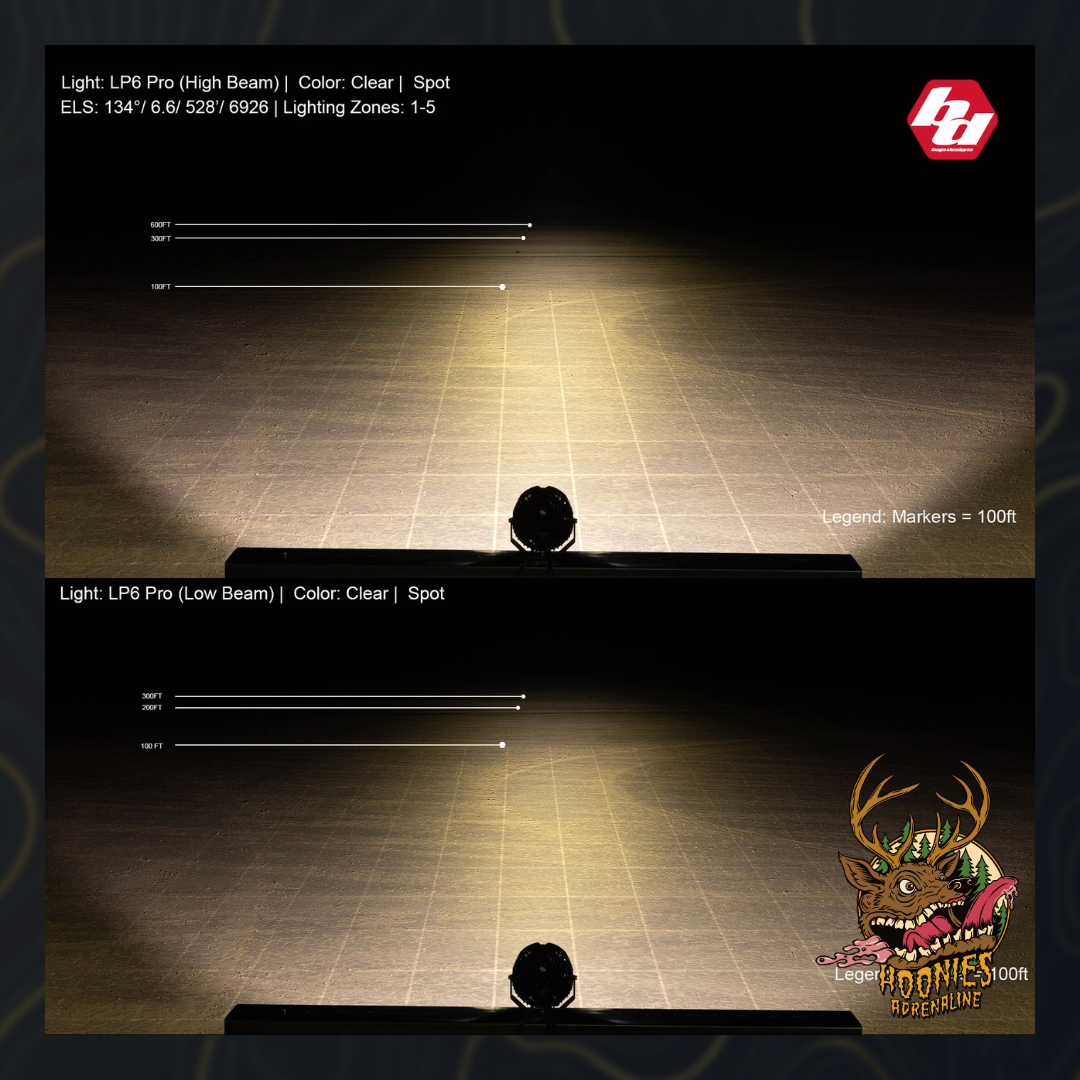

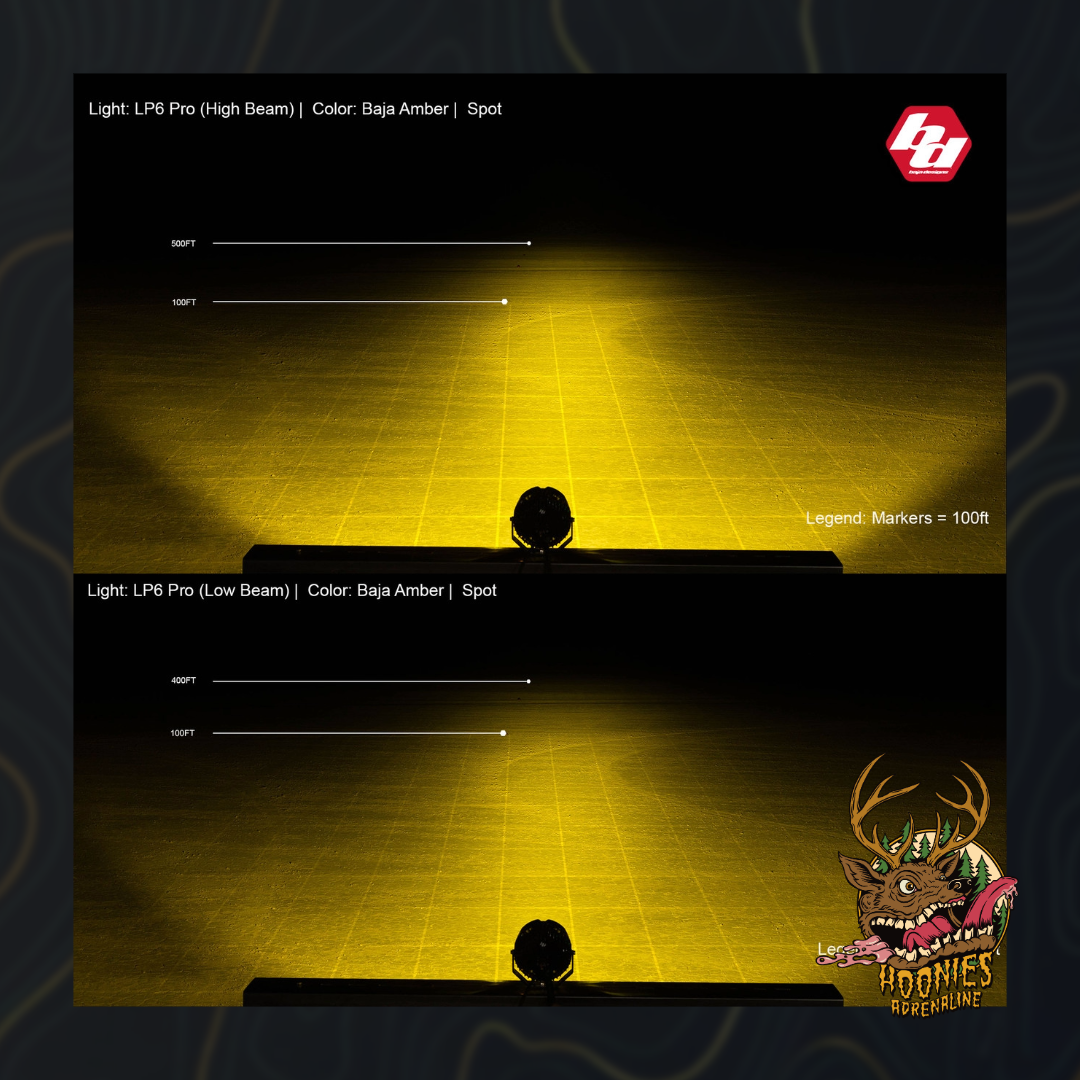

Beam Patterns	Driving/Combo (42° driving, 8° spot), Spot (8° focus)
Lighting Modes	High Beam, Low Beam, Daytime Running Backlight
LED Quantity	6 forward LEDs, 4 IPT LEDs
Wattage	103.5 W (primary), 15 W (secondary), 4.14 W (backlight)
Amperage	7.5 A (primary), 1.0 A (secondary), 0.3 A (backlight)
Average Rated Life	49,930 hours
Waterproof Rating	IP69K
Impact Rating	IK10
Housing/Bezel Material	Powder-coated cast aluminium
Lens Material	Hardcoated polycarbonate
Mounting Hardware	Stainless steel (included)
Connector	DT06-4S Deutsch
Dimensions	6.5" H x 6.5" L x 3.2" D
Weight	4.2 lbs
Fitment	Universal
Wiring Harness	Not included
Backlight Colour Options	Amber, Red, Green, Blue
Durability Standards	Exceeds MIL-STD810G, IP69K, IK10
Warranty	Limited Lifetime Warranty (see Baja Designs for details)

Installation and Practical Considerations

The LP6 Pro is supplied with robust stainless steel mounting hardware for secure installation. Its universal fit means it can be adapted to a wide range of vehicles, but always confirm mounting space and electrical compatibility before purchase. A wiring harness is not included and must be sourced separately. For best safety and performance—especially when integrating high/low beam and backlight modes—professional installation is recommended. Note that red, blue, and green backlights are for off-road or display use only and may not be legal on public roads.

Frequently Asked Questions – Baja Designs LP6 Pro LED Auxiliary Light Pod

How does the LP6 Pro differ from other Baja Designs pods?

The LP6 Pro is the only Baja Designs pod to combine a 6-inch format, 200° IPT spread, and advanced DDC cooling, making it uniquely suited to those who need both distance and wide-area coverage in a single, robust unit.

Is the LP6 Pro suitable for daily-driven vehicles?

Yes, with selectable beam patterns and an amber backlight option, it can be used on daily drivers—just ensure compliance with local regulations regarding auxiliary lighting and backlight colours.

Can I install the LP6 Pro myself?

Experienced users may install the LP6 Pro, but professional fitting is advised to ensure correct wiring, beam alignment, and integration with vehicle systems.

Does the LP6 Pro come with a wiring harness?

No, a compatible harness must be sourced separately to match your vehicle and intended use.

What warranty does Baja Designs offer for the LP6 Pro?

The LP6 Pro is covered by Baja Designs' Limited Lifetime Warranty—see their official terms for full details and support.

How do I maintain the LP6 Pro for long-term reliability?

Routine cleaning is recommended, especially after exposure to mud or water. The unit is pressure washable and designed for minimal maintenance in off-road environments.
