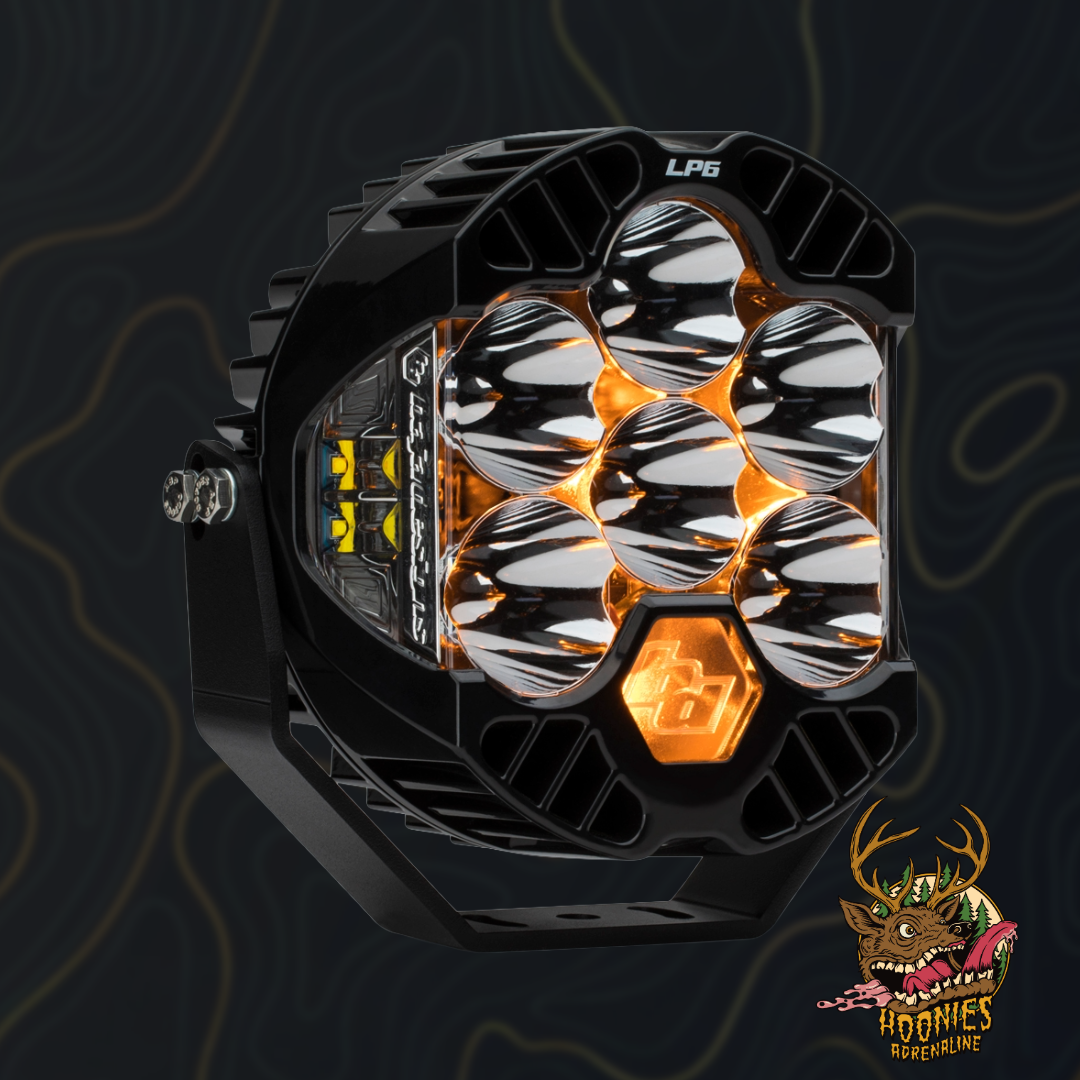

Give yourself a clear view of the track and more light around its edges when the sun goes down. The Baja Designs LP6 Pro combines forward illumination with dedicated side-facing LEDs in a purposeful 6.5in housing. It is an upgrade you will appreciate on winding trails, with high and low output modes and an amber backlight to finish the look of your truck.
Integrated Peripheral Technology adds light to the sides of the forward beam, giving the LP6 Pro its 200-degree overall spread. That helps illuminate the edges around you as well as the track ahead. Dedicated peripheral LEDs add light around the front corners as well as the forward beam.
Air travels through the housing and over the rear heat sinks through Direct Ducted Cooling. The hard-coated polycarbonate lens, metal housing and stainless mounting hardware are practical details for a light that will see dust, rain and repeated trips off road.
Choose Spot for a concentrated beam reaching further ahead, or Driving/Combo for a blend of driving spread and spot reach. Clear and amber lens choices are available in both of those patterns. The lens colour is separate from the amber backlight: a clear main lens still has the amber accent lighting.
The replaceable lenses and optics let you maintain the light or change its pattern with the matching parts later. Fit the correct lens and seal carefully so the housing stays protected.
This listing supplies one light and mounting hardware. For a straightforward installation of up to two LP6/LP9 Pro lights with a high/off/low switch, add our 640172 LP-series harness. If you use factory upfitter switches or a compatible power module, see the 640167 lock-out harness instead.
High and low circuits must never be powered together. Match the wiring to the LP6 Pro instructions, and allow room for the light body, bracket, aiming movement and cooling airflow. For exposed matching mounts, our 660302 security hardware adds pin-head fasteners at the compatible mounting points.
| Specification | Details |
|---|---|
| Brand | Baja Designs |
| Supplied quantity | One light |
| Peripheral raw output per light | 1,972 lm from the dedicated IPT LEDs |
| Forward / peripheral LEDs | Six forward LEDs; four peripheral LEDs |
| Overall light spread | 200 degrees with IPT |
| Main electrical rating per light | 103.5W / 7.5A |
| IPT electrical rating per light | 15W / 1A |
| Amber backlight rating per light | 4.14W / 0.3A |
| Operating supply | 12-36V |
| Modes | High, low and amber backlight; never power high and low together |
| Housing | Powder Coat Cast Aluminum |
| Lens | Hardcoated Polycarbonate |
| Mounting hardware material | Stainless Steel |
| Average rated LED life | 49,930 hours |
| Light body dimensions, W x H x D | 6.5 x 6.5 x 3.2in; allow additional mounting/connector clearance |
| Weight per light | 4.2lb |
| Main lens choices | See the beam and lens options below |
| Wiring harness included | No |
| Mounting hardware included | Yes |
| Durability rating | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Impact rating | IK10 Compliant (Mechanical Impact Testing) |
| Water-resistance rating | IP69K (Waterproof up to 9ft & Pressure Washable) |
| SKU / reference | Option | Details |
|---|---|---|
| 270001 | Spot / Clear | One light; Spot; Clear main lens; harness separate |
| 270011 | Spot / Amber | One light; Spot; Amber main lens; harness separate |
| 270003 | Driving / Combo / Clear | One light; Driving/Combo; Clear main lens; harness separate |
| 270013 | Driving / Combo / Amber | One light; Driving/Combo; Amber main lens; harness separate |
One LP6 Pro light, with mounting hardware. The wiring harness is separate.
Spot concentrates the forward beam for reach. Driving/Combo blends wider driving optics with spot reach and is a useful all-round trail choice. Both retain the dedicated side lighting.
The option changes the main lens to amber. All four options here have an amber backlight, including the clear-lens versions.
Yes. Wire the modes correctly and never power high and low at the same time. The 640172 harness provides the appropriate high/off/low switching for up to two compatible Pro lights.
It is a universal light with mounting hardware. Choose a suitable vehicle bracket or bar and check the space for the 6.5in light body and its aiming movement.
