| Manufacturer | Nostrum High Performance |
| Product Type | Ethanol content sensing module kit |
| SKU | L187-1955 |
| Vehicle Application | Ford Ranger 2.3 EcoBoost |
| Measured values | Ethanol content, fuel temperature, fuel pressure with a compatible sensor |
| Outputs | 0-5V analog, PWM, CAN, usable simultaneously |
| Sensor | Genuine Continental ethanol sensor on a stainless-steel bracket |
| Connectivity | Bluetooth with the Nostrum iOS app |

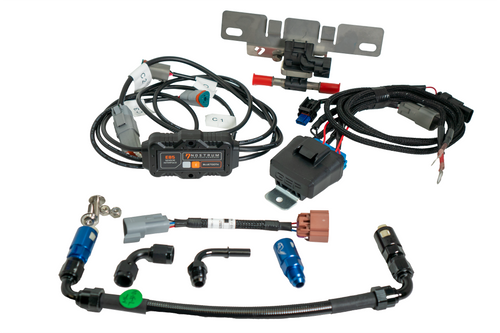

| Included items | ESSIM unit, ethanol sensor and bracket, vehicle-specific low pressure fuel lines, harness adapters, hardware, instructions |
| Warranty | Nostrum Limited Lifetime |
If you run ethanol in a 2.3 EcoBoost Ranger, the blend in the tank is never quite the number on the pump. It shifts with season, supplier and whatever was left in the tank before, and a calibration that assumes a fixed blend is guessing. The Nostrum ESSIM kit ends the guesswork: the Ethanol Sensor Signal Interface Module reads ethanol content and fuel temperature at the engine in real time and turns that into 0-5V analog, PWM and CAN signals that can all be configured individually and used at once. This is the vehicle-specific version, so it comes with a genuine Continental ethanol sensor on a stainless bracket made for the truck, the low pressure fuel lines to and from the sensor, pre-terminated harness adapters and instructions written for this application.
Ethanol content and fuel temperature are the core readings, taken at the engine rather than in the tank, so the value reflects what is actually being burned. Fuel pressure monitoring is possible as well, with a compatible pressure sensor added separately. The three output types run simultaneously, which means a standalone gauge can take the analog signal while the tuning suite takes CAN. For quick checks there is Bluetooth and the Nostrum iOS app, which is the easiest way to see the blend before you fill up or after a top-up with petrol.
For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. For customers outside the UK, local customs and taxes remain your responsibility, and shipping is shown at checkout. If a shipping option is not available, email us and we will prepare a tailored quote.
Many of the products we sell are made to order, imported or custom built, so a lead time may apply. If you need a part urgently, contact us before ordering and we will confirm the expected delivery timeframe and process.
Because that is where the fuel actually is when it burns. Content measured at the engine reflects mixing and top-ups, so a blend-aware tune reacts to the real number rather than the last thing you put in.
Yes. The analog, PWM and CAN outputs are configured individually and run together, so a gauge and a logging device can both take data from one module.
That is a common pairing. Once a high flow pump and injector bundle is in, fuel quality becomes the main variable left, and this is what measures it.
