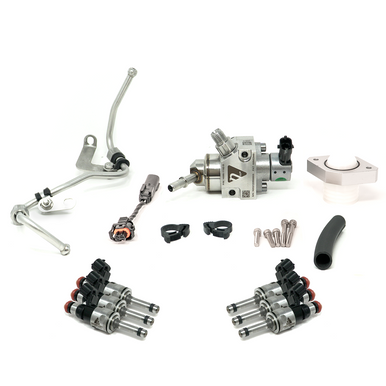

| Manufacturer | Nostrum High Performance |
| Product Type | HPFP and direct injector bundle |
| SKU | H186-1553 |
| Vehicle Application | 3.0L EcoBoost twin-turbo V6 |
| Pump | Big Bore HPFP with custom hard line, 47% over stock |
| Injectors | Stage 2 direct injectors, 24% over stock |
| Injector flow rate | 15.7 g/s at 100 bar |
| Maximum operating pressure | 248 bar / 24.8 MPa / 3600 psi |
| Fuel compatibility | Gasoline (93 octane) and E85 |
| Tune required | Yes, HP Tuners recommended |
| Rated fuel-system capacity | 850 WHP gasoline, 750 WHP E85 |
| Warranty | Limited Lifetime against manufacturing defects |
Stage 2 is the ethanol rung. It keeps the same 47% Big Bore high pressure fuel pump used at Stage 1 and moves the six direct injectors up to Stage 2 at 24% over stock, or 15.7 g/s at 100 bar, so a 3.0 EcoBoost Explorer ST, Explorer Platinum or Lincoln Aviator has injector left to run E85 properly instead of sitting at the top of its duty cycle. The number worth reading is the split: Nostrum rates this fuel system to 850 WHP on gasoline and 750 WHP on E85, against 875 and 650 at Stage 1. Gasoline capacity barely moves, ethanol capacity climbs 100 WHP.
Ethanol carries less energy per unit mass than gasoline, so the same power on E85 needs far more fuel through the same six holes. That is an injector problem before it is a pump problem, which is why Stage 2 leaves the Big Bore alone. The 24% step buys back the duty cycle ethanol eats, and the OEM-equivalent spray pattern keeps combustion quality close to standard.
A variable blend means the calibration needs to know what is in the tank. The Explorer ST ESSIM kit reads ethanol content and fuel temperature at the engine, and is a separate purchase. If the build heads further, the Stage 3 bundle keeps this pump and moves to a 96% injector. The injectors alone are the Stage 2 injector set.
| 2020+ Ford Explorer | ST and Platinum trims, 3.0L EcoBoost |
| 2020+ Lincoln Aviator | 3.0L EcoBoost |
For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. For customers outside the UK, local customs and taxes remain your responsibility, and shipping is shown at checkout. If a shipping option is not available, email us and we will prepare a tailored quote.
Many of the products we sell are made to order, imported or custom built, so a lead time may apply. If you need a part urgently, contact us before ordering and we will confirm the expected delivery timeframe and process.
Look at the fuel. Stage 1 rates higher on gasoline and lower on E85; Stage 2 gives up a little gasoline capacity and gains a lot on ethanol.
No. All three use the same Big Bore HPFP at 47% over stock. Only the Stage X package moves to the larger 1200-250 Goliath pump.
No. Ethanol sensing is the separate ESSIM kit for the 3.0 EcoBoost Explorer.
