| Specification | Details |
|---|---|
| Manufacturer | ARB |
| SKU | XAAX171302V2 |
| Manufacturer part number | 171302V2 |
| Hose length | 23ft, approximately 7m |
| Hose pressure rating | 150psi |
| Hose design | High-temperature, kink-resistant internal structure |
| Compressor coupling | Quick connect with dust cap |
| Tyre chuck | Quick-connect, release-handle design |
| Additional fittings | Suitable inflatables |
| Included adaptor application | CKMA12 / CKMA24 single compressors |
| CKMTA12 / CKMTA24 connection | Matching manifold recommended |

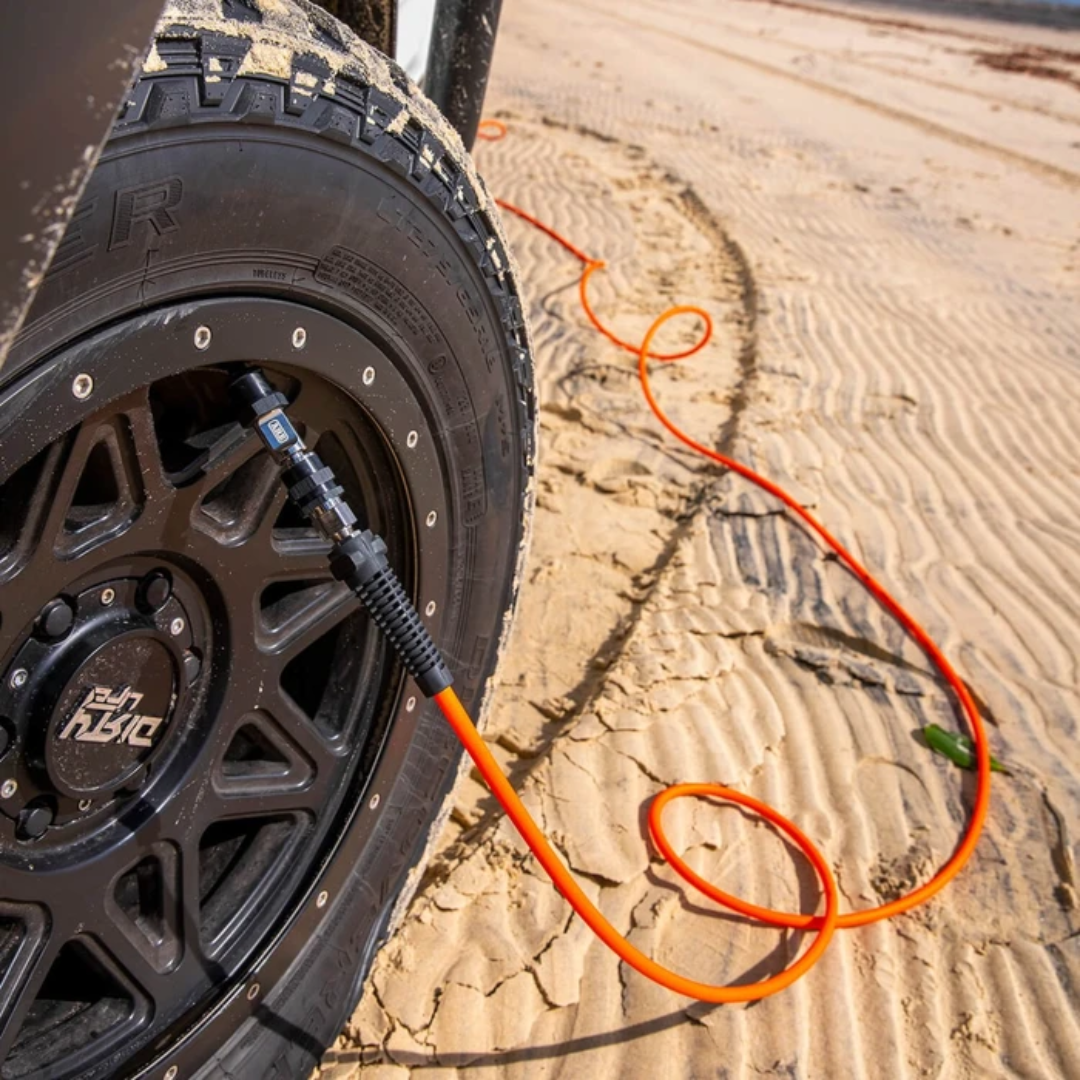

Changing tyre pressures is more convenient with a hose that reaches around the vehicle and a chuck that stays on the valve. The ARB Pump Up Kit supplies the hose and fittings for the compatible compressor installation, ready for tyres and suitable inflatables.
SKU: XAAX171302V2

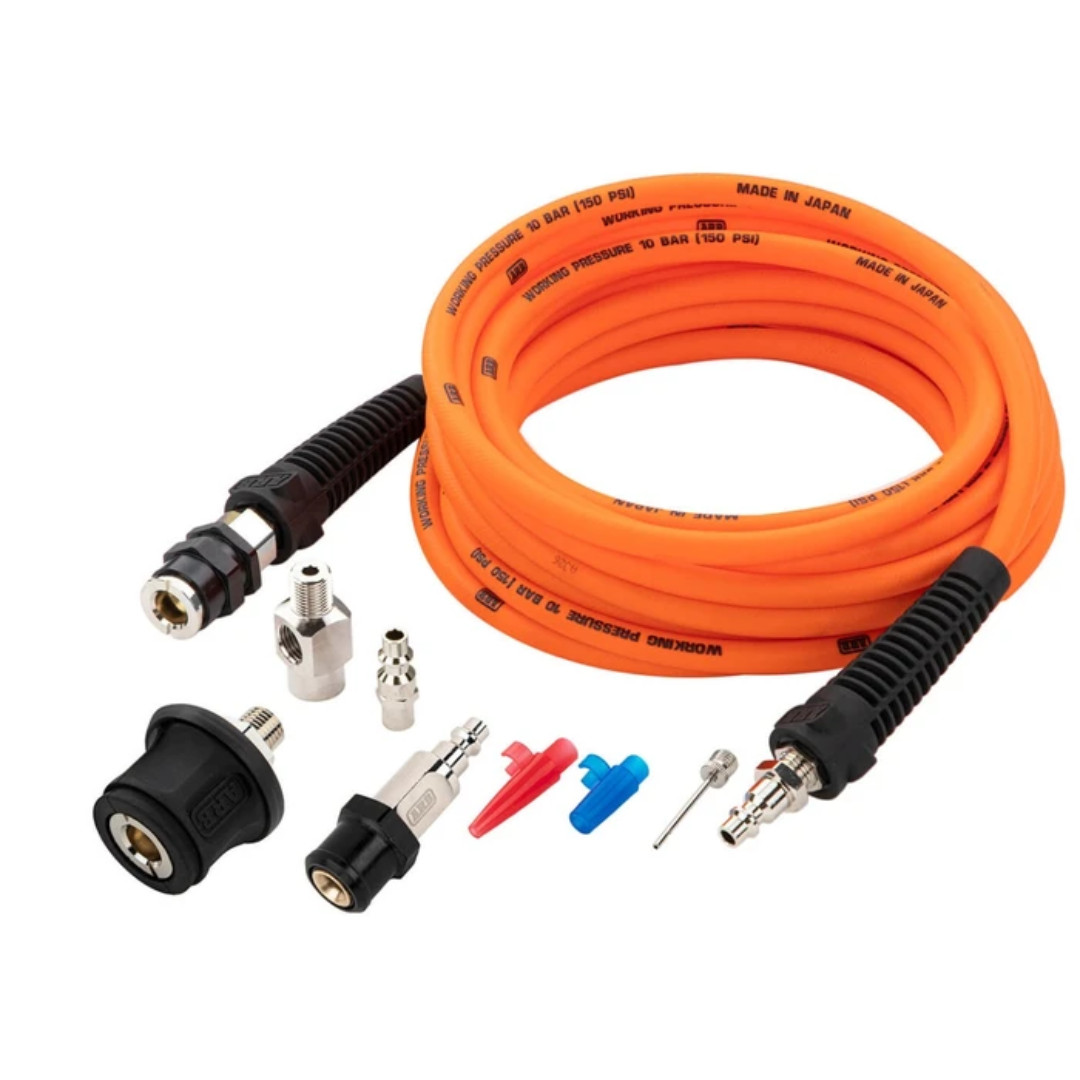

The high-temperature hose is 23ft long, around 7m, and rated to 150psi. Its internal structure helps resist kinking, while the quick-connect coupling has a dust cap to protect it between uses.
The quick-connect tyre chuck uses a release handle for straightforward attachment and removal. Additional fittings allow you to inflate suitable air mattresses, toys and other inflatables. The ARB Digital Tyre Inflator is a separate option when you want pressure measurement at the inflation control.
A T-piece adaptor is included for the CKMA12/24 single compressor application. The matched manifold kit is recommended with CKMTA12/24 twin compressors. Other compressor models need their own specified connection arrangement.
| Specification | Details |
|---|---|
| Manufacturer | ARB |
| SKU | XAAX171302V2 |
| Manufacturer part number | 171302V2 |
| Hose length | 23ft, approximately 7m |
| Hose pressure rating | 150psi |
| Hose design | High-temperature, kink-resistant internal structure |
| Compressor coupling | Quick connect with dust cap |
| Tyre chuck | Quick-connect, release-handle design |
| Additional fittings | Suitable inflatables |
| Included adaptor application | CKMA12 / CKMA24 single compressors |
| CKMTA12 / CKMTA24 connection | Matching manifold recommended |
It supplies the hose and inflation fittings for the compatible compressor installation. Choose the compressor separately.
The supplied tyre chuck is the inflation connection. Choose a separate compatible gauge or inflator when you want pressure measurement at the tyre.
For the CKMTA12/24 twin application, use the specified connection arrangement, including the recommended matching manifold.
The additional fittings are for suitable inflatables. Follow the inflatable pressure requirements; a high-pressure compressor needs careful control for low-pressure items.
