| Specification | Details |
|---|---|
| Manufacturer | ARB |
| SKU | XAA171503 |
| Manufacturer part number | 171503 |
| Purpose | Air Locker solenoid and matched inflation connections |
| Maximum working pressure | 150psi / 1030kPa |
| Supplied mounting | Brackets |
| Included hose | PTFE-lined, stainless-steel braided |
| Matched pump-up application | CKMTA12 / CKMTA24 with the appropriate Pump Up Kit |
| Pressure control | Use the specified control arrangement for the connected equipment |
| Solenoid ports | Two 1/8-inch BSPP, for up to two Air Locker solenoids |
| Main ports | Two 1/4-inch NPSC |
| Main fitting compatibility | Specified NPT male with sealant or NPSC male with O-ring |
| Included connection fittings | Two JIC4 to 1/4-inch NPSC nipples and one JIC4 90-degree elbow |
| Mounting hardware | Two M6 bolts and nylon lock nuts |

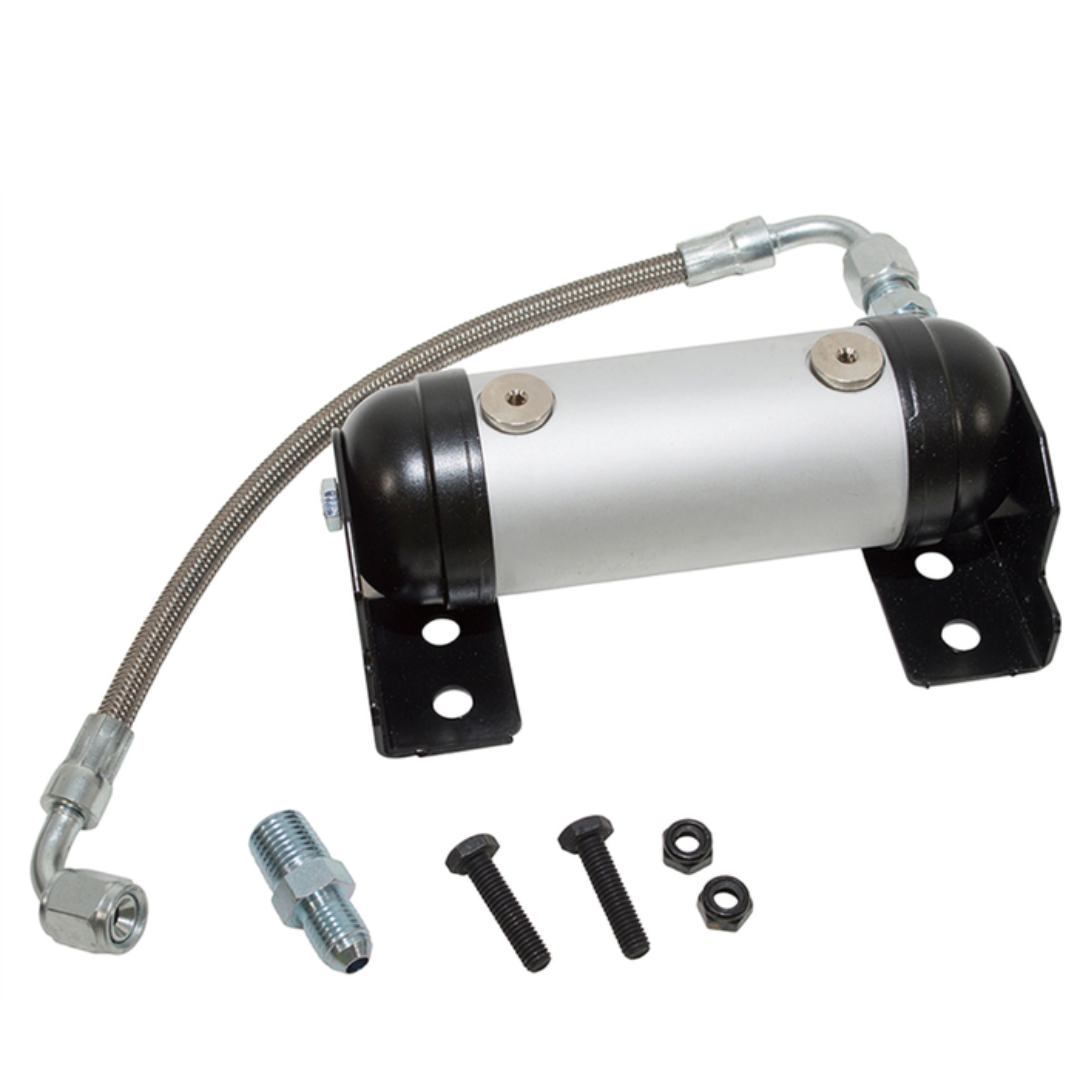

A properly arranged air installation lets one suitable compressor serve different jobs. The ARB 171503 manifold provides the specified connection points for Air Locker solenoids and the matched pump-up arrangement, making those connections easier to organise.
SKU: XAA171503

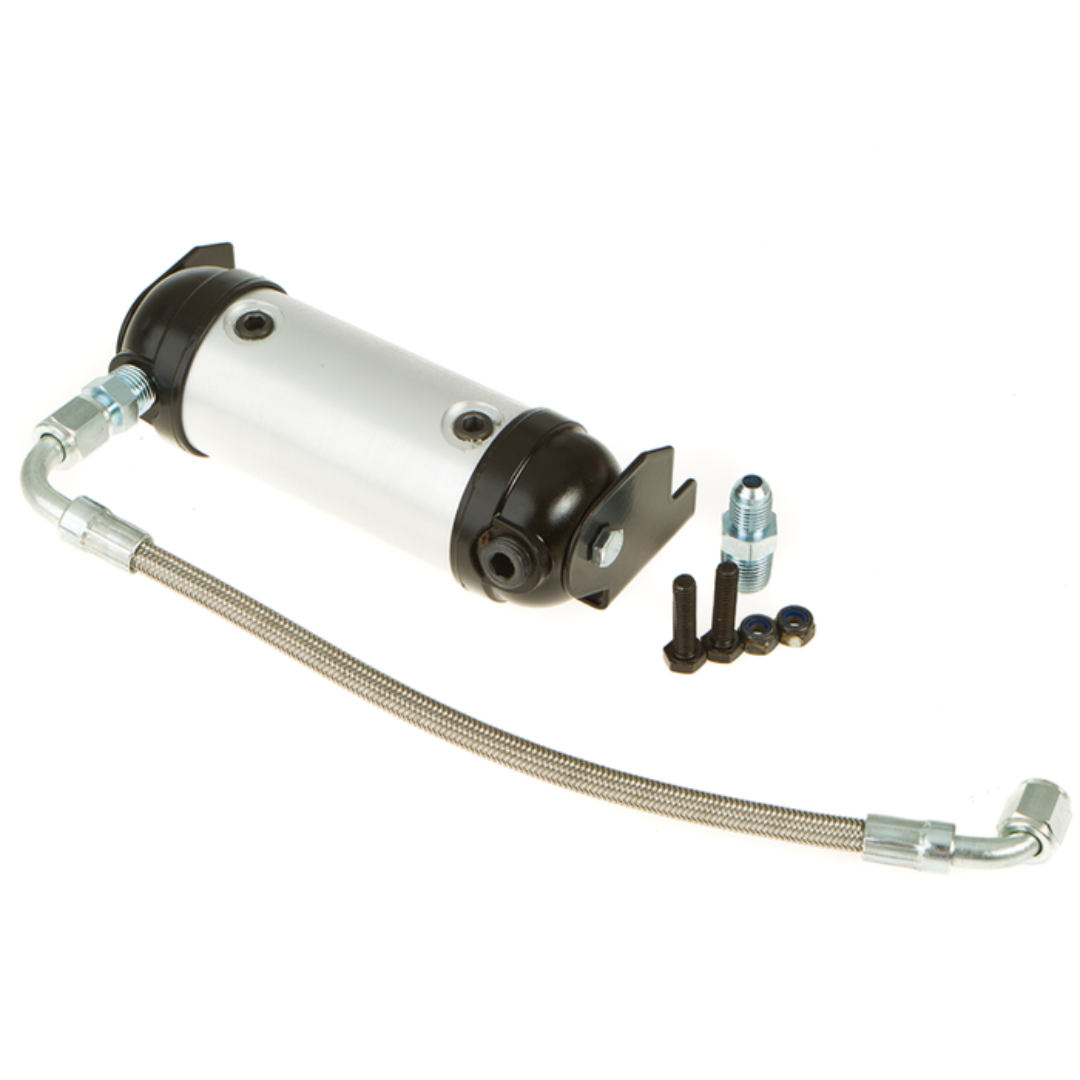

The manifold works with the specified high-output compressor application and provides multiple ports for the locker and inflation connections. Its 150psi working-pressure rating describes the manifold limit; the complete system still needs the correct pressure control for the equipment being supplied. Two 1/8-inch BSPP ports accept up to two Air Locker solenoids. The two 1/4-inch NPSC ports serve the air inlet and optional pump-up connection; they accept the specified NPT male fittings with sealant or NPSC fittings with their O-ring arrangement.

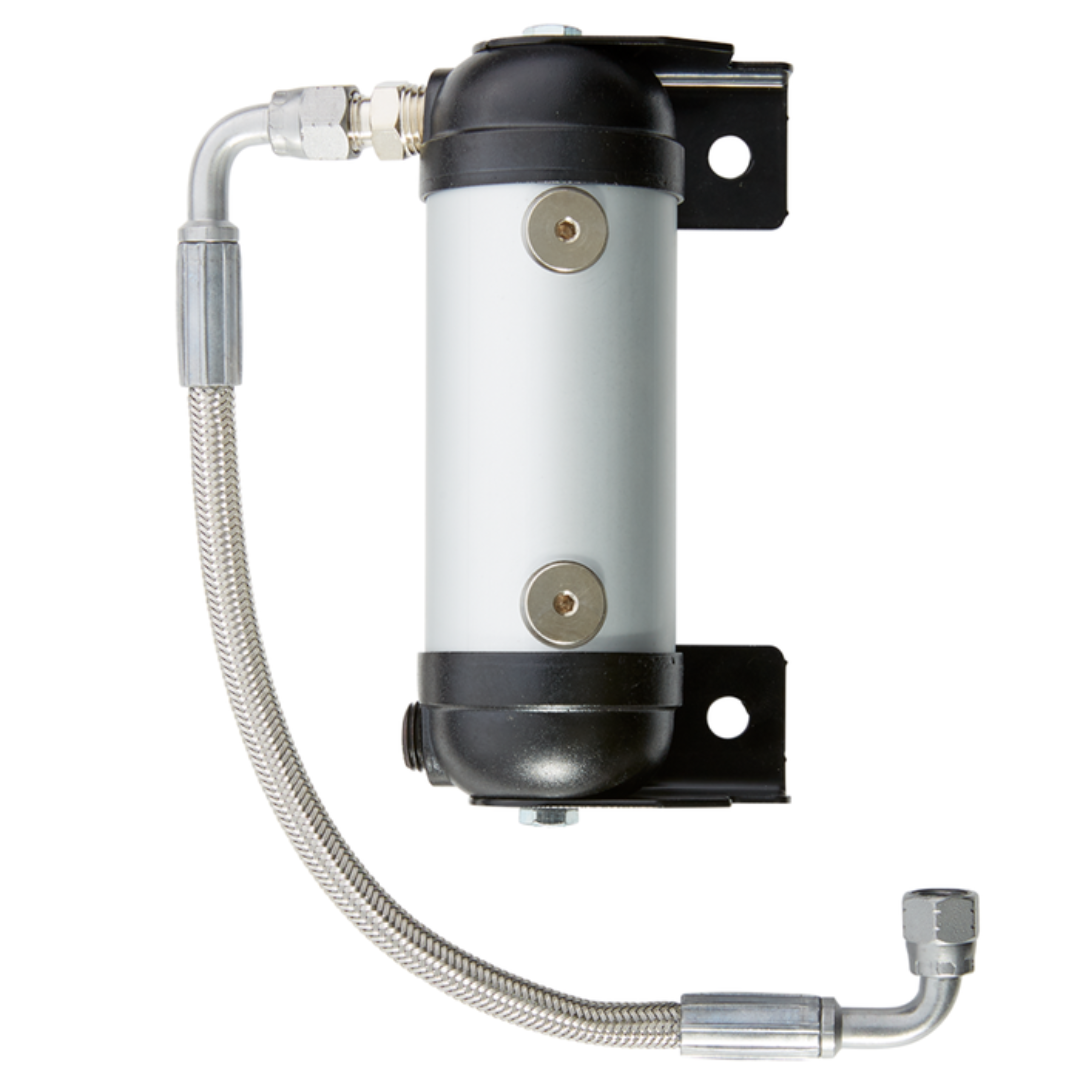

Mounting brackets and a PTFE-lined stainless-steel braided hose are included. The hose links the air supply and manifold in the specified arrangement and helps manage the temperature of the supplied air.
For the CKMTA12/24 twin compressor application, the manifold is recommended with the Pump Up Kit. The twin brushless compressor is another high-output option, but its connections and installation need to follow that model's own instructions.
| Specification | Details |
|---|---|
| Manufacturer | ARB |
| SKU | XAA171503 |
| Manufacturer part number | 171503 |
| Purpose | Air Locker solenoid and matched inflation connections |
| Maximum working pressure | 150psi / 1030kPa |
| Supplied mounting | Brackets |
| Included hose | PTFE-lined, stainless-steel braided |
| Matched pump-up application | CKMTA12 / CKMTA24 with the appropriate Pump Up Kit |
| Pressure control | Use the specified control arrangement for the connected equipment |
| Solenoid ports | Two 1/8-inch BSPP, for up to two Air Locker solenoids |
| Main ports | Two 1/4-inch NPSC |
| Main fitting compatibility | Specified NPT male with sealant or NPSC male with O-ring |
| Included connection fittings | Two JIC4 to 1/4-inch NPSC nipples and one JIC4 90-degree elbow |
| Mounting hardware | Two M6 bolts and nylon lock nuts |
It provides the air connections. Use the pressure control or regulator specified for the compressor and connected equipment.
It supplies the manifold kit, brackets and braided hose. Choose the compressor, lockers and their operating equipment separately.
The manifold provides the matched connection arrangement for the specified pump-up application. Follow the instructions for your compressor model.
