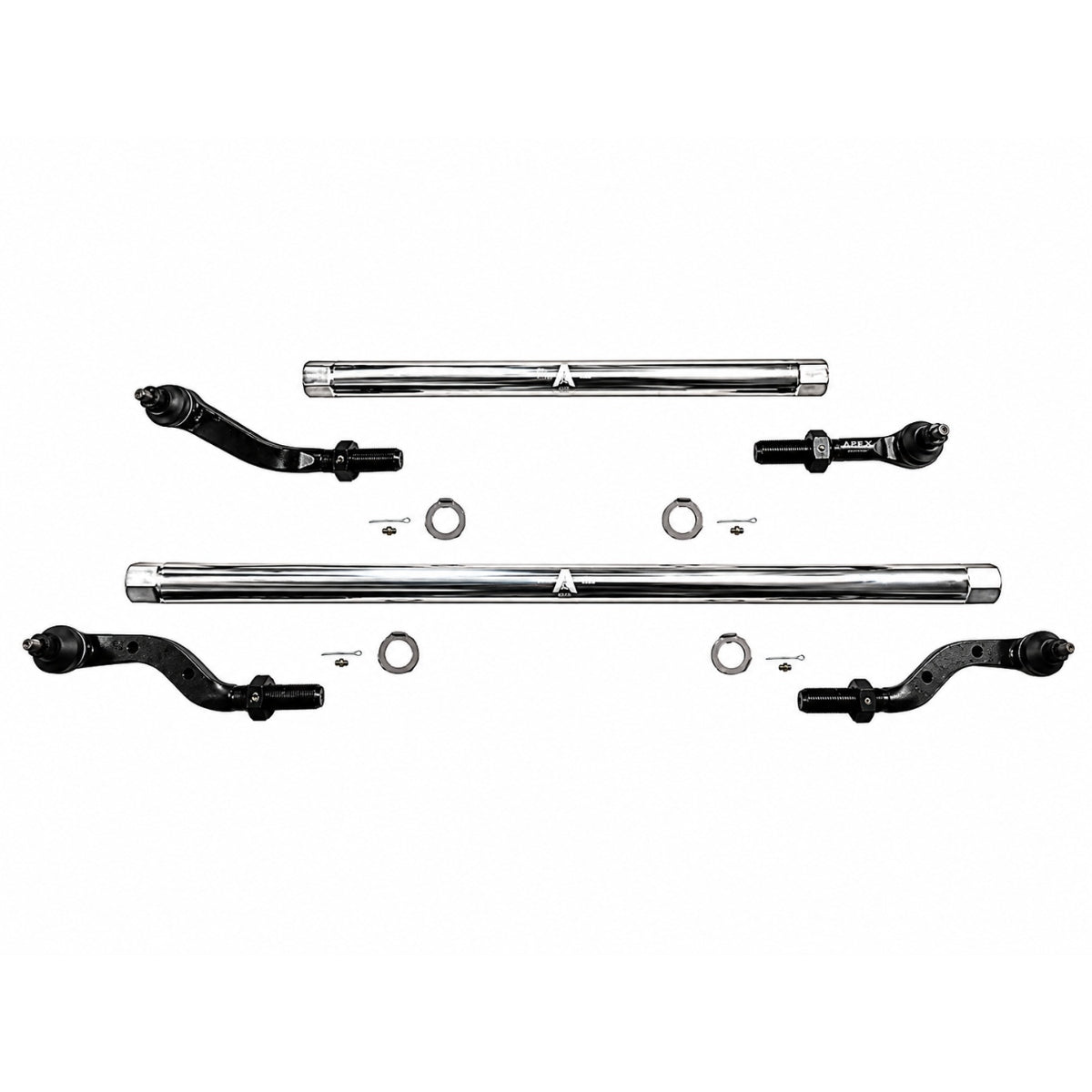

You can give your JK a more substantial steering system and keep the AEV or factory Rubicon wheels you like. The Apex KIT140NF uses 2 in polished 7075-T6 aluminium tie rod and drag link rods with forged ends and ProLock locking hardware. This is the no-flip kit for stock Dana 30/44 axles, with clearance for the supported 17 in wheels without spacers.
SKU: KIT140NF
The aluminium rods form the adjusting sleeves as well as the main connecting links. They give the front axle a substantial, clean machined-metal appearance and use 7075-T6 aluminium with flex and recovery characteristics useful when a steering bar meets an obstacle. CNC-machined SAE 1045 housings and induction-treated SAE 4140 studs complete the heavy-duty joints.
ProLock keyway washers and set-screw jam nuts resist unwanted adjustment changes. The built-in anti-flop bearings in the tie rod ends and right-hand drag link end control fore-and-aft movement while allowing steering articulation. They keep that control within the bearing design, while the rubber boots protect the joint.
The kit clears the supported 17 in AEV and factory Rubicon wheels without spacers. It fits the stock Dana 30/44 axle arrangement and retains under-knuckle steering. The no-flip selection is normally suggested for lifts of 3.5 in or less. A steering stabiliser bracket is separate and must match your damper.
Professional fitting and alignment lets you get the benefit of the stronger linkage with the steering wheel and toe set correctly. Keep the drag-link minimum-engagement mark covered and check clearance through steering and suspension movement. Recheck the jam nuts after 500 miles, then every 5,000 miles or at oil changes. Use the specified locking-washer arrangement rather than stacking the alternative washers. The fitting guide includes the final locking-tab procedure after alignment.
On the same 2007-2018 Wrangler JK application, our KIT102 four-piece ball joint kit replaces both upper and lower front joints. It is a separate purchase for joints that also need attention, rather than an automatic requirement for fitting this steering kit.
| Specification | Details |
|---|---|
| SKU | KIT140NF |
| Manufacturer option | KIT140-NoFlip |
| Product type | Complete 2.5 Ton-series tie rod and drag link kit |
| Vehicle application | Jeep Wrangler JK 2007-2018 4WD, stock Dana 30/44 axles |
| Included items | Polished tie rod and drag link adjusting rods, left/right forged ends and ProLock locking hardware |
| Adjusting rods | 2 in 7075-T6 aluminium, polished |
| Mounting | No flip; standard under-knuckle |
| Lift guidance | No-flip version normally suggested for lifts of 3.5 in or less |
| Wheel compatibility | Supported 17 in AEV and factory Rubicon wheels without spacers |
| Locking system | ProLock keyway washers and set-screw jam nuts; use the specified alternative-washer arrangement |
| Anti-flop bearings | Tie rod ends and right-hand drag link end; 27 degrees left/right stud swing and 2 degrees fore/aft |
| Steering stabiliser bracket | Separate purchase; choose to match the damper |
| Boot features | CR rubber and DuroBoot features |
| Thread engagement | Drag link minimum-engagement mark must remain covered |
| Manufacturer | Apex Chassis |
| Position | Front |
| Housing material | CNC-machined SAE 1045 forged steel |
| Ball stud material | Hot-forged SAE 4140 chromoly steel, induction heat treated |
| Bearing design | Metal-to-metal |
| Threads | Rolled and stepped |
| End finish | E-coat |
| Hardware | Grade 8 / class 10.9; castle nuts |
| Lubrication | Pre-greased and greaseable; grease fittings included |
| Maintenance | Check jam nuts at 500 miles, then every 5,000 miles or at oil changes; professional alignment after fitting |
| SKU | Make | Model | Years | Details |
|---|---|---|---|---|
| KIT140NF | Jeep | Wrangler JK | 2007-2018 | 4WD; stock Dana 30/44; no flip; normally lifts up to 3.5 in |
Register your Apex parts with proof of purchase within 90 days to access the manufacturer's limited lifetime warranty while you own the vehicle. It covers eligible product defects, premature wear and breakage under the policy; labour, consequential costs and listed wear items are excluded. Read the warranty terms and registration requirements for the full conditions.
Yes. The supported 17 in AEV and factory Rubicon wheels clear this kit without wheel spacers.
KIT140NF uses 2 in 7075-T6 rods and ProLock locking hardware. KIT155NF uses 1.5 in rods and Ninja locking washers, and needs 1.5 in spacers with AEV or stock Rubicon wheels.
No. KIT140NF retains standard under-knuckle steering and is normally suggested for lifts of 3.5 in or less.
No. The bracket is separate and needs to suit your steering damper.
Yes. Professional alignment is recommended after fitting, followed by the locking procedure in the instructions.
Check jam nuts at 500 miles and then every 5,000 miles or at oil changes. Inspect boots, grease fittings and thread engagement as part of normal servicing.
