Available to Order
Not sure which one? Ask us to confirm fitment first →For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. Outside the UK, shipping is shown at checkout and local customs and taxes remain your responsibility.
Some products are made to order, imported or custom built. If timing matters, contact us before ordering and we will confirm the expected delivery timeframe.
We confirm build spec, lead time and delivery arrangements with you before any money moves. Prefer to talk it through first?
| Specification | Details |
|---|---|
| Manufacturer | Process West |
| Product | Intercooler and pipe kit |
| Vehicle application | Next-generation Ford Ranger PY 3.0 V6 diesel, 2023+ |
| Additional supported application | Volkswagen Amarok NF V6 diesel, 2023+ |
| Core dimensions | 480 x 180 x 125 mm |
| Core construction | Bar-and-plate |
| Black SKU / part number | PWNGIC01B |
| Silver SKU / part number | PWNGIC01 |
| Pipework | Replacement hot-side and cold-side pipework included |
| Reused factory components | Temperature sensor, lower fan duct and four rubber intercooler mounting grommets |
| Airbox and bash plate | Original parts refitted after installation |
Keep enjoying your Ranger's pulling power when the work gets harder.
A long climb with a trailer or a heavily loaded touring trip asks more of your Ranger than the daily commute. This Process West intercooler and pipe kit gives your 3.0 V6 diesel more charge-air cooling capacity, helping it sustain performance under load. You get the larger cooler and its matching pipework together, replacing the factory intercooler and pipes in one upgrade.
SKU / part number: PWNGIC01B / PWNGIC01
| Colour | SKU / part number | Price |
|---|---|---|
| Black | PWNGIC01B | £1,800.00 |
| Silver | PWNGIC01 | £1,800.00 |
An intercooler cools the air after the turbo has compressed it, before that air reaches the engine. When you're using the engine's performance repeatedly, removing that heat becomes more valuable. The 480 x 180 x 125 mm bar-and-plate core gives your Ranger a more substantial cooler for that job, with construction suited to high boost and demanding off-road use.
We'd put this upgrade on the shortlist for a Ranger that regularly tows or carries touring equipment. The appeal is being able to make better use of the V6's performance over a demanding drive, with the cooling hardware to support it.
In Process West's comparison of three back-to-back dyno runs, this kit produced lower intercooler outlet temperatures and 12-15 kW more power at the wheels than the standard intercooler. Those repeated runs show why cooling matters beyond the first acceleration. The figures describe that test; your result depends on the vehicle, calibration and operating conditions.

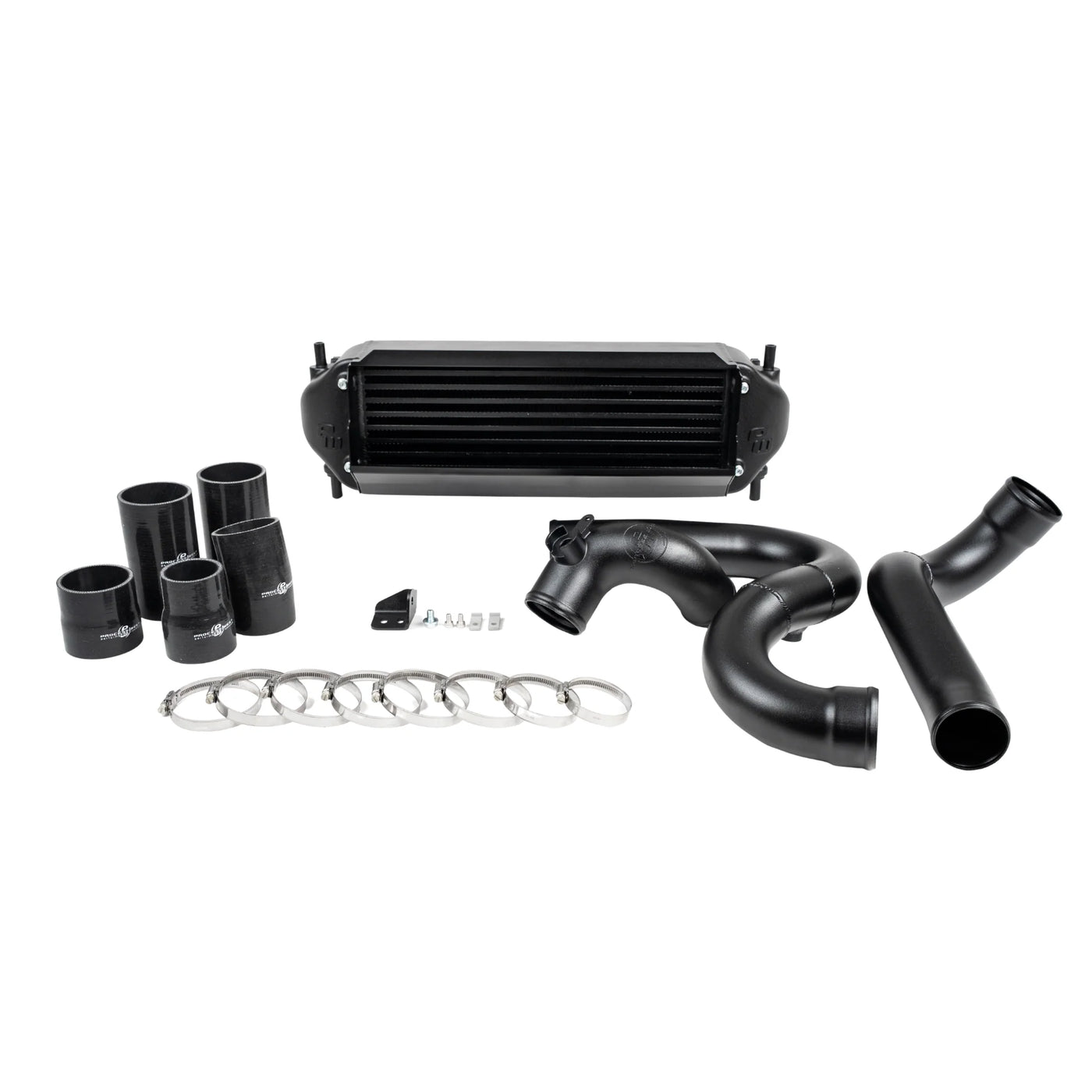

The kit includes the intercooler, replacement hot-side and cold-side pipework, silicone connections, hose clamps, the cast sensor elbow and cable bracket. It replaces the factory cooler and piping as a matched assembly, so you don't need to buy a separate intercooler pipe upgrade to complete this installation.
Your original temperature sensor, lower fan duct and four rubber intercooler mounting grommets are reused. The factory airbox and bash plate are removed for access and refitted afterwards.
Choose black for a discreet finish or silver if you prefer the exposed metal look. Both options have the same 480 x 180 x 125 mm core dimensions and the same application. We sell both at the same price, so you can choose the appearance you prefer.
This is a direct replacement for the intercooler and pipework on the next-generation Ranger 3.0 V6 diesel. We recommend professional fitting, including correct sensor transfer, pipe alignment and a leak check once the system is assembled.
After muddy trips, check that the cooling fins are clear so air can pass through the core. Include the hoses, clamps and mounting points in routine inspections, especially after other work around the engine bay.
We're an official UK/EU Process West distributor. For UK orders, the displayed price includes the product, VAT, shipping and customs, so there are no additional import charges to add to this kit's price.
For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. For customers outside the UK, local customs and taxes remain your responsibility, and shipping is shown at checkout. If a shipping option is not available, email us and we will prepare a tailored quote.
Many of the products we sell are made to order, imported or custom built, so a lead time may apply. If you need a part urgently, contact us before ordering and we will confirm the expected delivery timeframe and process.
The pipes are included. You're buying the intercooler and matching replacement pipework together, with silicone connections, clamps, the cast sensor elbow and cable bracket.
No. The fitting procedure removes your factory airbox for access and reinstalls it once the intercooler and pipes are in place.
No. This is the V6 diesel kit. For the petrol Raptor, we offer the separate Process West Stage 2 intercooler, with its own pipework choices and fitting requirements.
Yes. The kit also fits the 2023+ Volkswagen Amarok NF V6 diesel. That is the newer NF-generation application, not the earlier Amarok V6.
No. Your original sensor transfers from the factory pipe into the new cast elbow.
No. Both versions are £1,800. Black is PWNGIC01B; silver is PWNGIC01.
Model year, engine, drivetrain, hardware and existing modifications can all change what fits. Check the applications and supplier notes above, or send us your exact vehicle and setup before ordering.
Send us your vehicle, year, current setup and any fitting date, event, trip or deadline before ordering. We will help check fitment, product choice and timing.
