| Specification | Details |
|---|---|
| Vehicle application | Next-generation Ford Ranger Raptor 3.0 V6 EcoBoost petrol |
| Manufacturer product name | Cold Air Intake for the next-generation Ranger Raptor |
| Filter | 6-inch K&N pod filter |
| Crossover compatibility | Original crossover or optional Process West 3.5-inch crossover |
| Crossover supplied? | The 3.5-inch upgrade is separate |
| Installation summary | Designed to fit without vehicle modifications |
| Included mounting hardware | Steel bracket with rubber bumpers; cable tie |
| Included hose | JBL142 silicone hose |
| Included clamps | One 40–60 mm and one 70–90 mm hose clamp |
| Reused factory parts | Rubber mounting grommets, intake-temperature sensor and intake-duct rubber seal |
| Tuning | Tune recommended; tuning is a separate service. |
Hear more of your Raptor’s V6.
A Process West intake brings more of the V6’s induction character into the drive, with a complete airbox assembly built around a 6-inch K&N pod filter.

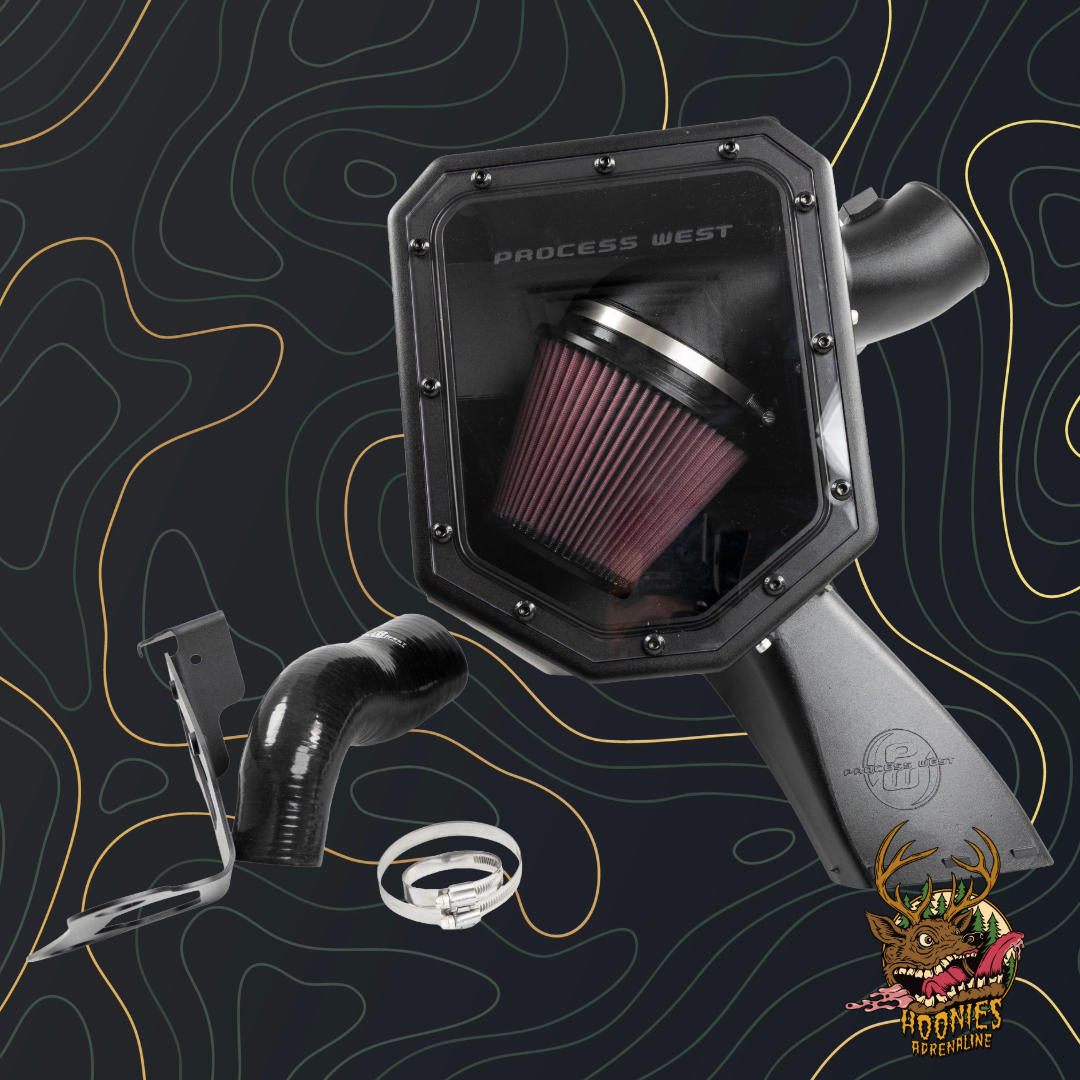

PWRRAB01 includes the box, filter, mounting bracket, silicone hose and fitting hardware. It works with the original crossover, so you can enjoy the airbox upgrade on its own or add the matching 3.5-inch crossover as a separate step.
SKU: PWRRAB01
The airbox, mounting bracket and silicone hose form a package designed around this truck. The assembly keeps a cover over the filter and accepts the factory intake-temperature sensor, with the original rubber grommets securing it at the mounting points. That dedicated fit complements the more pronounced induction note under acceleration. The less restrictive intake path also supports improved airflow and throttle response.
The fitting guide shows how these parts use the original mounting locations and intake components. The optional crossover and installation labour are separate.
The original rubber mounting grommets, intake-temperature sensor and rubber seal from the factory intake duct transfer to the new assembly. If the truck already has a different intake, make sure those original pieces are still available for the installation.
The washer filler tube is removed and refitted during the job. The guide also calls for the coolant header tank to be loosened for bracket access and the nearby coolant line secured with the supplied cable tie. Your installer checks the final connections, sensor wiring and airbox seating before refitting the cover.
Read the PWRRAB01 installation guide
Start with the airbox if you want the induction change and the dedicated K&N filter installation. Keeping the factory crossover avoids buying another component before you need it.
The separate 3.5-inch Process West crossover is the next intake-path option: black PWRRCP01B or red PWRRCP01R. The crossover has its own fitting guide, including different breather-hose steps on some 2023 builds.
For charge-air cooling after the turbos, choose an intercooler suited to your build. That is a different job from the airbox and crossover, so the parts can be chosen in stages.
We recommend a tune with the PWRRAB01 airbox, matched to your Raptor’s fuel and other modifications. Tuning is a separate service, so allow for it alongside the airbox and fitting.
Inspect the filter, its seating and the intake connections during servicing, with extra attention after dusty use. Follow the supplied K&N element’s care instructions, and keep filter-cleaning chemicals away from polished or anodised aluminium.
Our UK price includes VAT, customs and delivery unless checkout states otherwise, so you can budget for the part arriving here without arranging your own import. Fitting is separate. We can check the delivery estimate before you book your installer. Outside the UK, shipping is shown at checkout and local import charges remain your responsibility.
For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. For customers outside the UK, local customs and taxes remain your responsibility, and shipping is shown at checkout. If a shipping option is not available, email us and we will prepare a tailored quote.
Many of the products we sell are made to order, imported or custom built, so a lead time may apply. If you need a part urgently, contact us before ordering and we will confirm the expected delivery timeframe and process.
It is the assembled replacement airbox with a 6-inch K&N pod filter and the bracket, hose, clamps and cable tie listed above.
The factory crossover is compatible. The matching 3.5-inch Process West pipe is a separate option in black or red, so you can add it now or later.
No. It fits without cutting or permanent vehicle modification. The factory grommets, temperature sensor and intake-duct seal are reused with the supplied bracket and hose.
The confirmed connections are the factory crossover and matching Process West upgrade. Send us the other part’s make and reference so we can help assess that specific connection.
No. The intake supplies filtered air towards the turbos; the intercooler cools the compressed air afterwards. Each has a different job in the build.
Discuss the intake change with your warranty provider. The product’s fitting method does not determine the terms of that separate cover.
Yes. We recommend a tune with the PWRRAB01 airbox, matched to your Raptor’s fuel and other modifications. The airbox price does not include tuning.
Model year, engine, drivetrain, hardware and existing modifications can all change what fits. Check the applications and supplier notes above, or send us your exact vehicle and setup before ordering.
