| Specification | Details |
|---|---|
| Vehicle application | 2022+ Ford Ranger Raptor 3.0 V6 EcoBoost petrol |
| Lamp quantity | One Triple-R 16 Elite |
| Raw output | 18,040 lm |
| Driver field-of-view flux | 11,888 lm |
| Colour temperature | 5,000 K |
| Power / current | 208 W; 14.4 A at 14.4 V |
| Beam | 30° horizontal × 15° vertical |
| Beam reach | 1 lux at 960 m; 3 lux at 554 m |
| Lamp weight | 3.2 kg; not complete installed kit weight |
| Protection / EMC | IP68; ECE R10 |
| Manufacturer warranty | Five years, subject to terms |
One integrated light bar. A much bigger view of the trail.

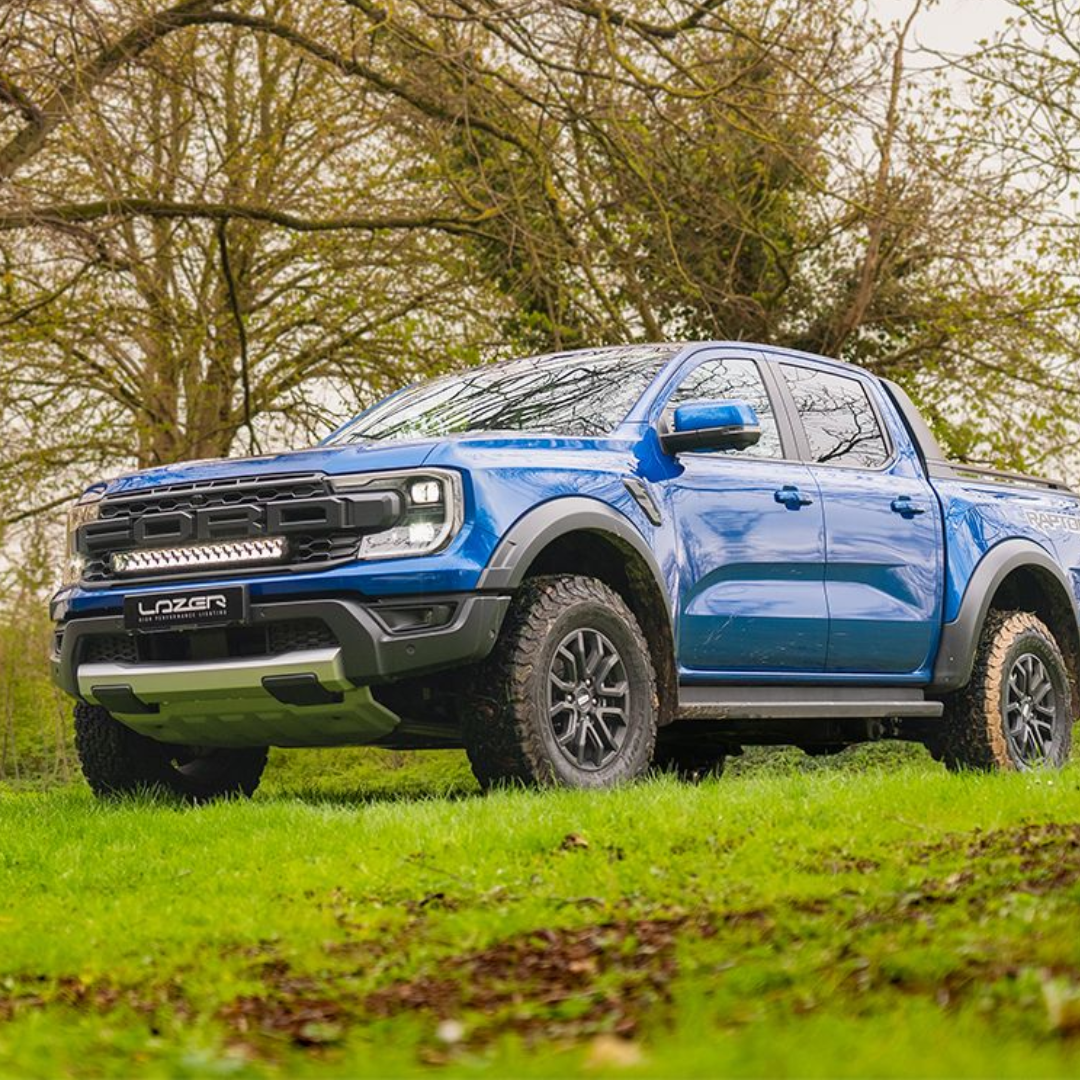

When the trip carries on after sunset, a long-reaching beam changes how much of the route you can see. The Lazer Triple-R 16 Elite combines that off-road lighting appeal with a clean installation inside the Raptor’s original centre grille.
The kit includes one Elite light bar, two vehicle-specific mounting brackets and a one-lamp wiring kit. It is the single-bar alternative to the paired Triple-R 850 arrangement.
SKU: GK-RAP-ELITE-03K
The Elite bar produces 18,040 raw lumens, with a 1-lux distance of 960 metres and a 30° horizontal by 15° vertical beam. Its 5,000 K colour temperature gives the light a neutral-white appearance.
That long-range beam gives the kit its appeal on dark off-road routes, with a single bar neatly integrated into the grille.
Two high-strength, UV-stable composite brackets are shaped around the standard Raptor grille. The cutting guides and fasteners are part of the kit, helping create the intended neat, secure finish.
This listing supplies Triple-R 16 Elite. Elite+ and its selectable modes are separate products in Lazer’s wider range; they are not included in this kit.
Professional fitting is separate. The grille is cut during installation; plan that permanent change before booking the work.
The bar draws 14.4 A at 14.4 V and is rated at 208 W, so use the specified wiring, circuit protection and switching arrangement. The installer should aim the beam, secure the wiring and verify the intended operating conditions.
The lamp is IP68 rated. This kit is for off-road lighting: its ECE R10 certification covers electromagnetic compatibility, not road high-beam approval.
A five-year manufacturer warranty supports long-term ownership, subject to its terms. Clean the lens and inspect the brackets and wiring with routine servicing.
For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. For customers outside the UK, local customs and taxes remain your responsibility, and shipping is shown at checkout. If a shipping option is not available, email us and we will prepare a tailored quote.
Many of the products we sell are made to order, imported or custom built, so a lead time may apply. If you need a part urgently, contact us before ordering and we will confirm the expected delivery timeframe and process.
One Triple-R 16 Elite light bar. The Triple-R 850 grille kit is the separate two-lamp option.
This kit supplies Triple-R 16 Elite. Elite+ is a separate model with its own selectable modes.
Yes. Cutting guides are included, but the grille alteration is permanent.
No. It covers electromagnetic compatibility. This Triple-R 16 Elite kit is for off-road lighting; ECE R10 does not approve it as a road high beam.
Yes. The kit includes the Raptor grille mounting kit and a one-lamp wiring kit. Fitting labour is separate.
Model year, engine, drivetrain, hardware and existing modifications can all change what fits. Check the applications and supplier notes above, or send us your exact vehicle and setup before ordering.
