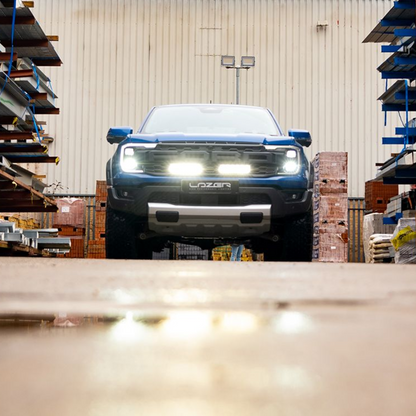

Lazer Lamps Triple-R 850 Grille Kit - Next-Gen Ford Ranger Raptor (2023+)

£738.00 GBP

Sale Sold out

Taxes included.

Lighting Option Triple-R 850 Triple-R 850 Elite

Overview:

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.

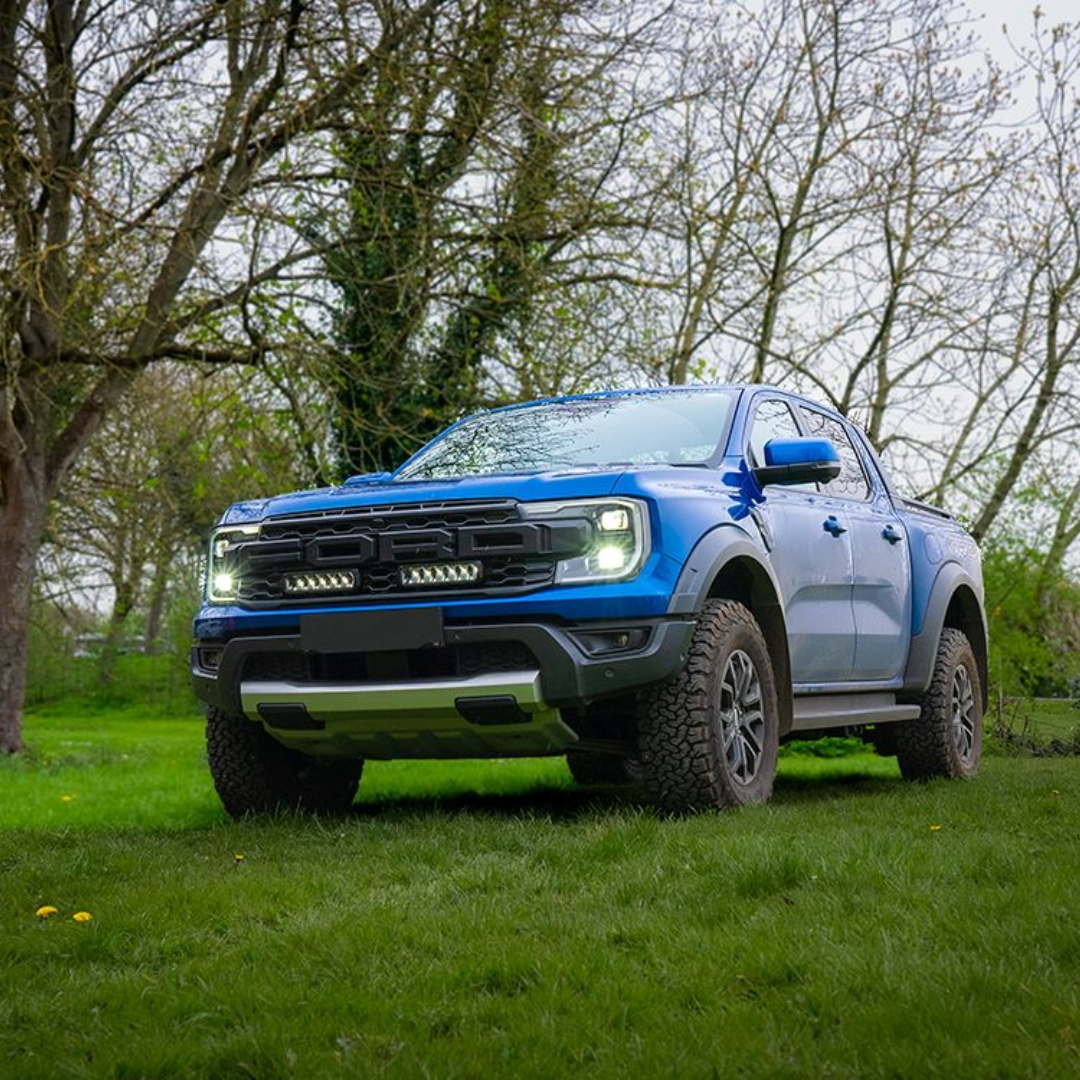

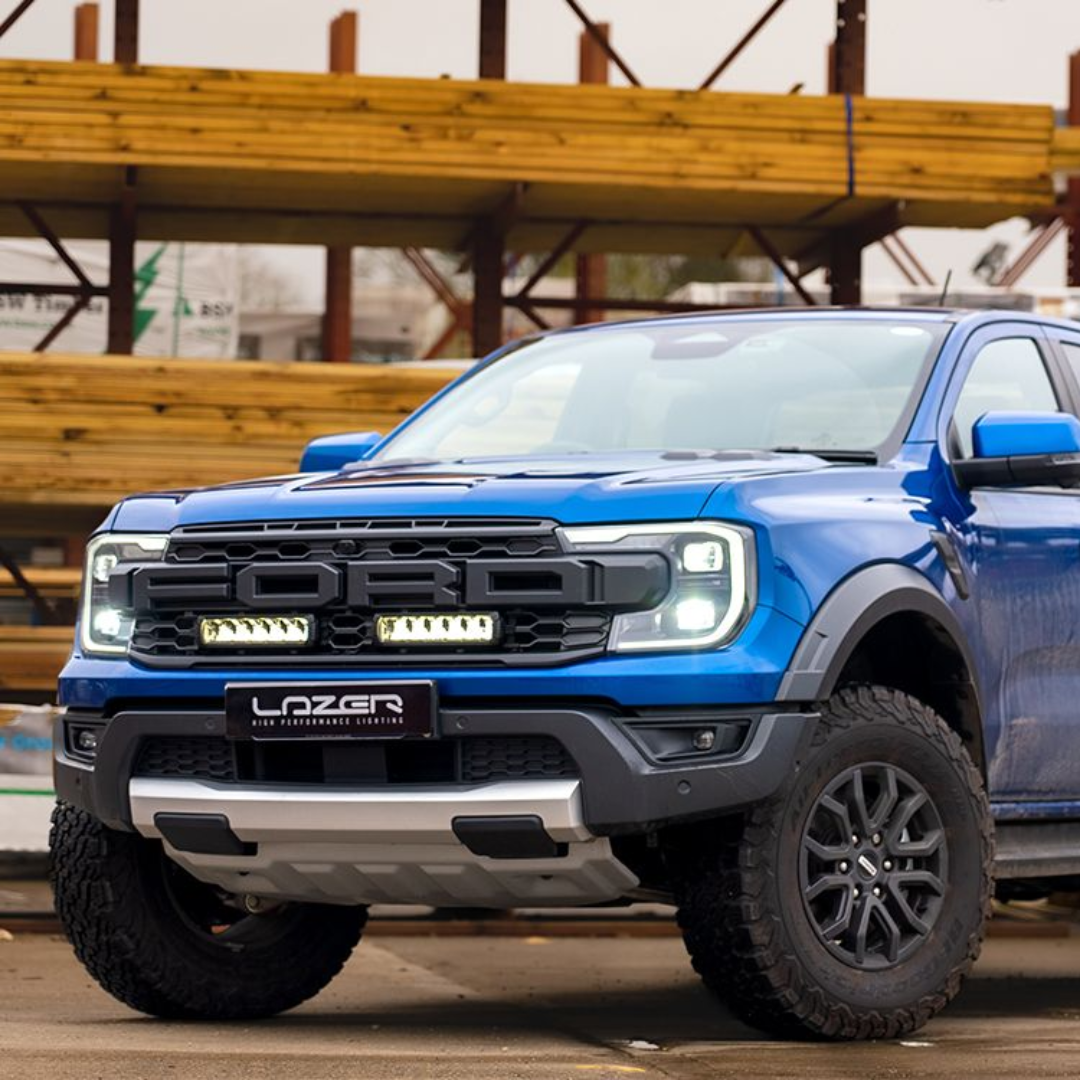

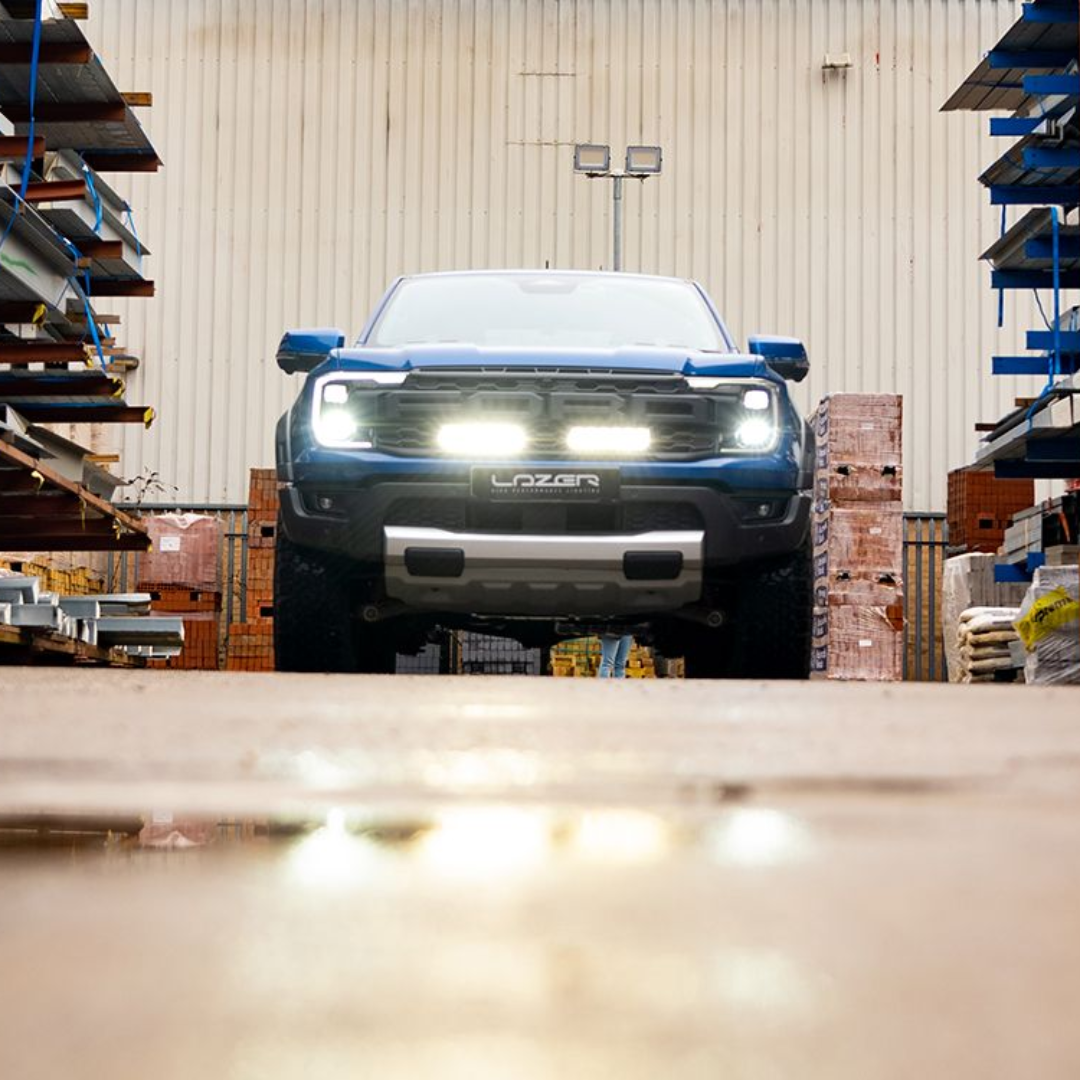

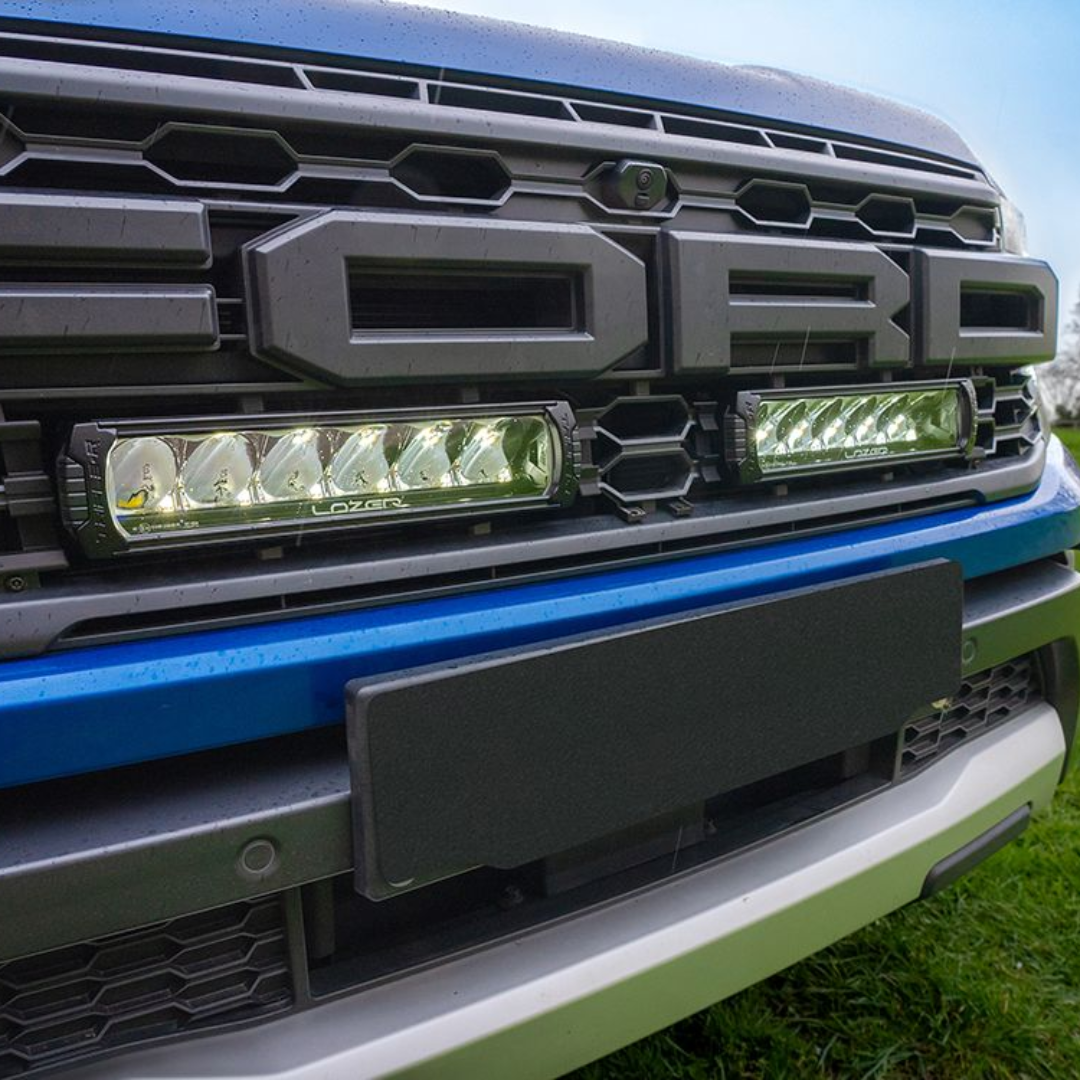

The Ford Ranger Raptor kit, designed for model year 2023 vehicles, includes a pair of Triple-R 850 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from a high strength composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.

The Ford Ranger Raptor (2023+) Grille Integration Kit is carefully engineered and optimised for use with Triple-R 850 High Performance LED Spotlights.

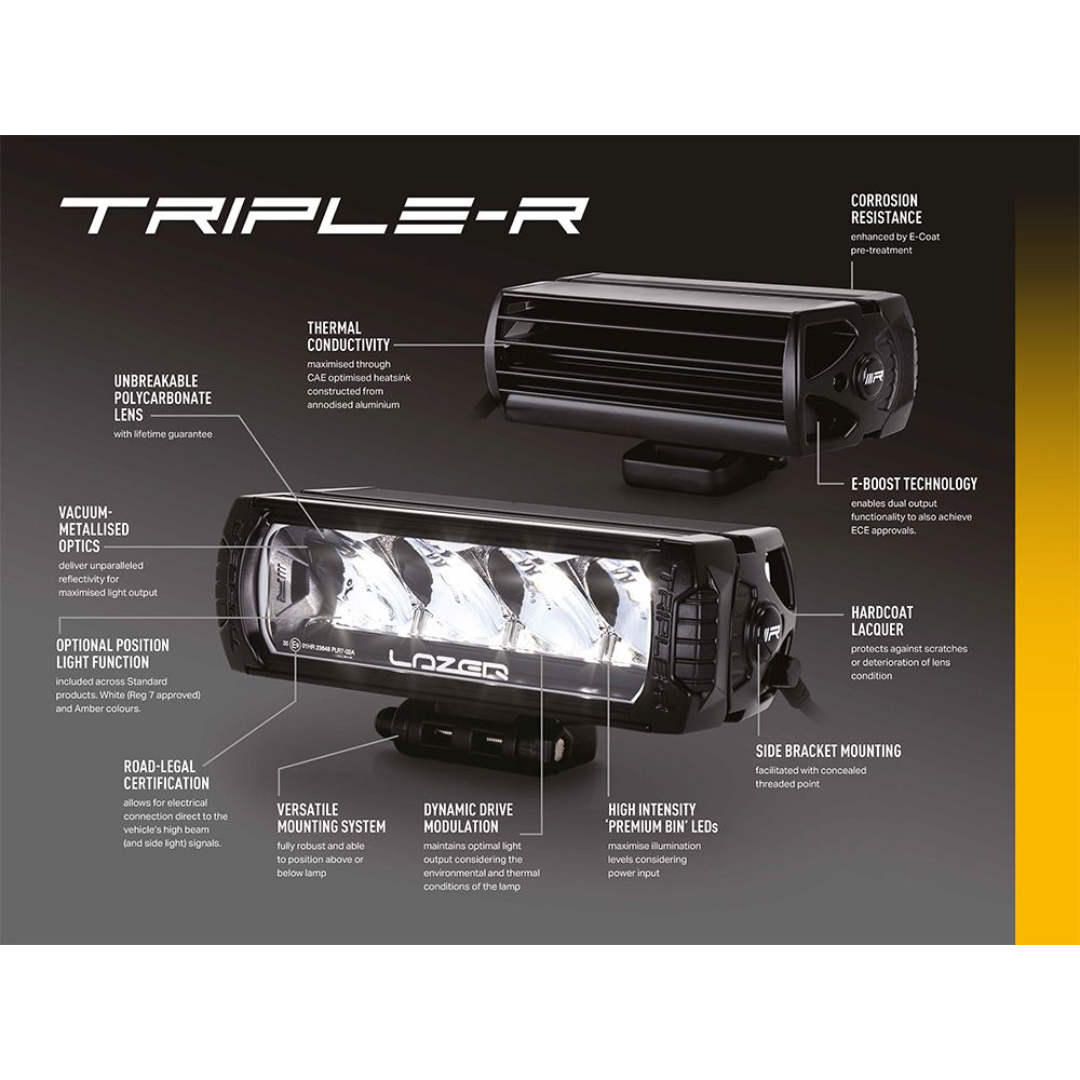

Product Features

Bespoke vehicle integration kit for Lazer LED Spotlight installation
Custom fit for Ford Ranger Raptor (MY 2023)
Available with: Triple-R 850 High Performance LED Spotlights
Added option for integrated white and amber backlight function (white only approved for on-road use - Standard model only)
Kit also includes bespoke mounting brackets and two-lamp wiring kit
Cutting guides included
Brackets made from high strength, UV -stable, composite material
Fully road-legal
5-year warranty
Made in Britain

Whats Included:

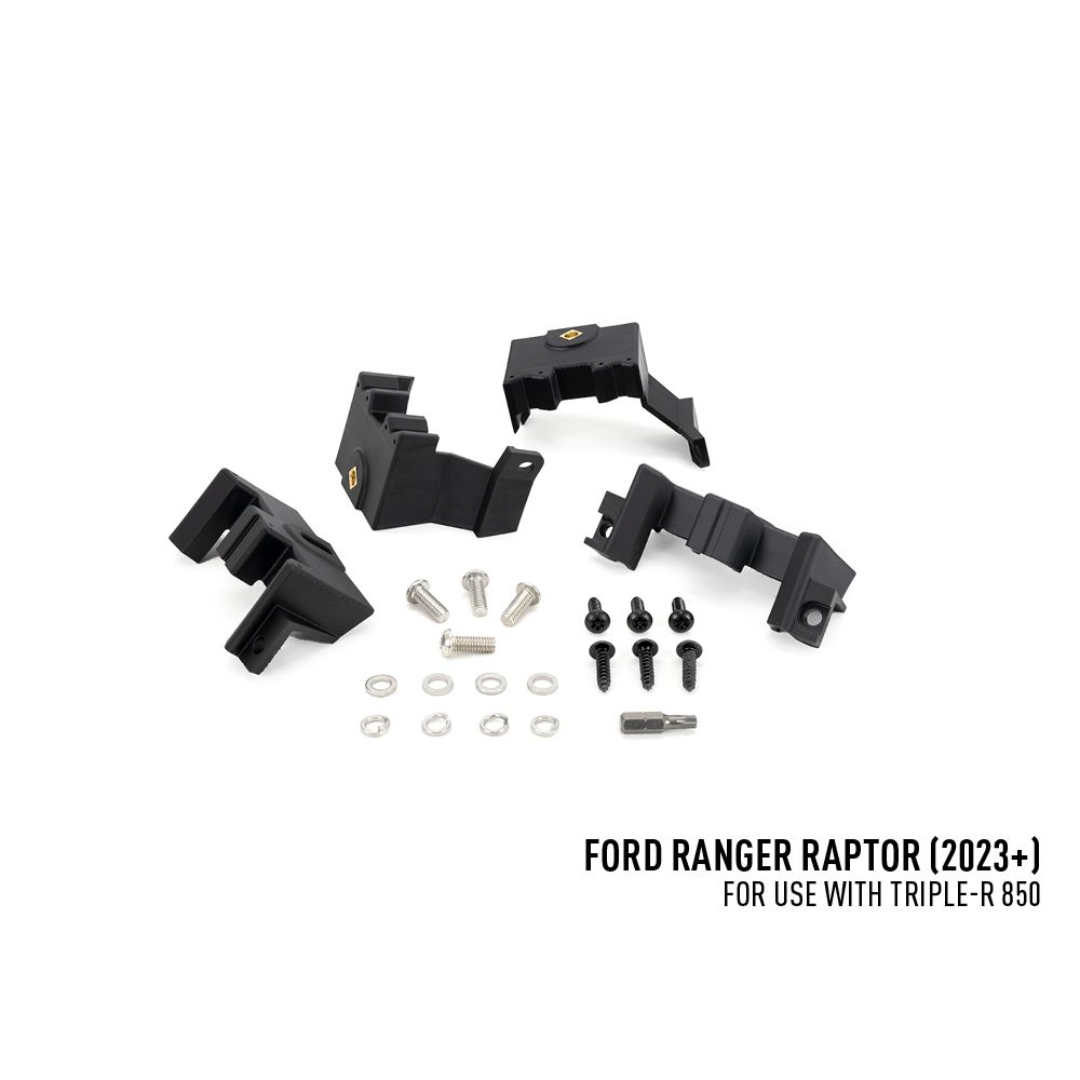

1x Grille Mounting Kit (includes cutting guides)
2x Triple-R 850 LED Lamps OR 2x Triple-R 850 Elite LED Lamps

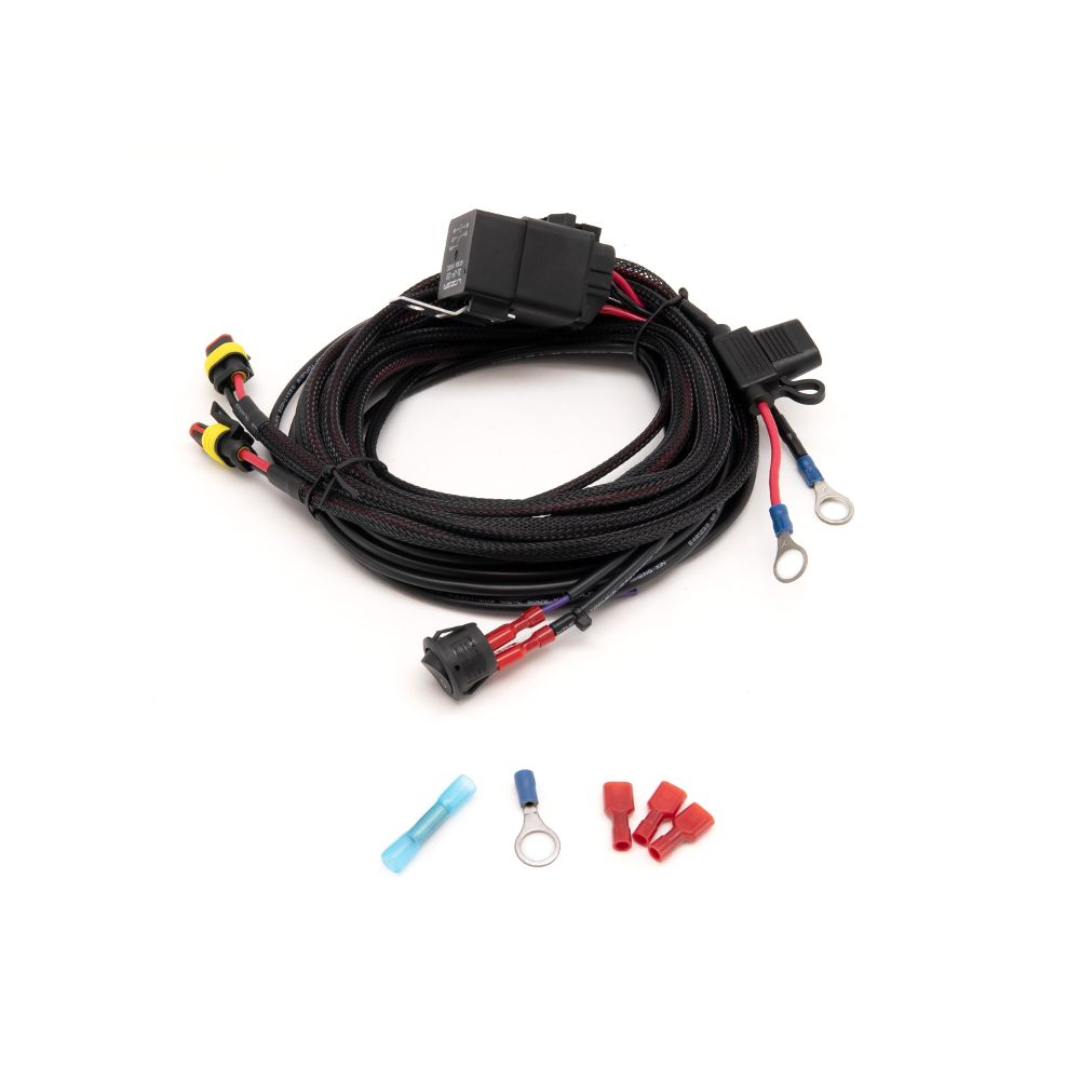

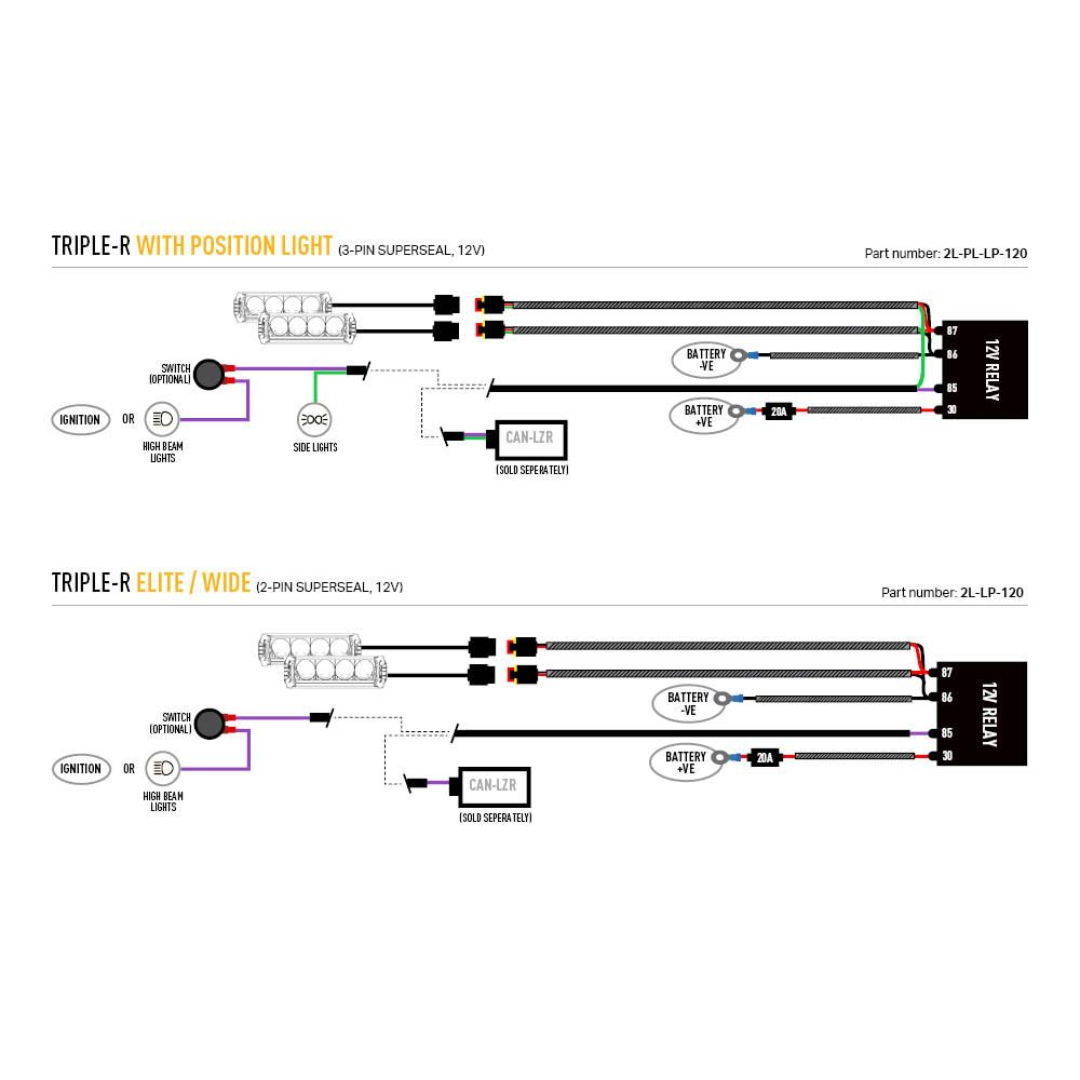

1x Two-Lamp Wiring Kit
Installation Instructions

Technical Specifications:

Technical Specifications

	2x TRIPLE-R 850	2x TRIPLE-R 850 ELITE (BOOST MODE)

Voltage Range (DC)	10-32V	10-32V
LED Life	50,000 hours	50,000 hours
Weight	2.6 kg	2.6 kg

HIGH BEAM FUNCTION
Total Luminous Flux	13860 Lm	16136 Lm
Total Driver 'FOV' Flux †	8358 Lm	10634 Lm
Colour Temperature	5000K	5000K
Power Consumption	132 Watts	146 Watts
Current Draw (14.4V)	10.2 Amps	10.2 Amps
Connector	3-Pin Superseal (+25cm Cable)	2-Pin Superseal (+25cm Cable)

CERTIFICATION
IP Rating #	IP68	IP68
High Beam (E9 approval)	ECE R112 - Ref: 2x 45	ECE R112 - Ref: 2x 17.5 (Low Output Mode)
Position Light (White)	ECE R148	N/A
EMC Certification	ECE R10	ECE R10
Salt Spray Test	ISO 9227	ISO 9227
Dump Load Protection	ISO 7637-2	ISO 7637-2

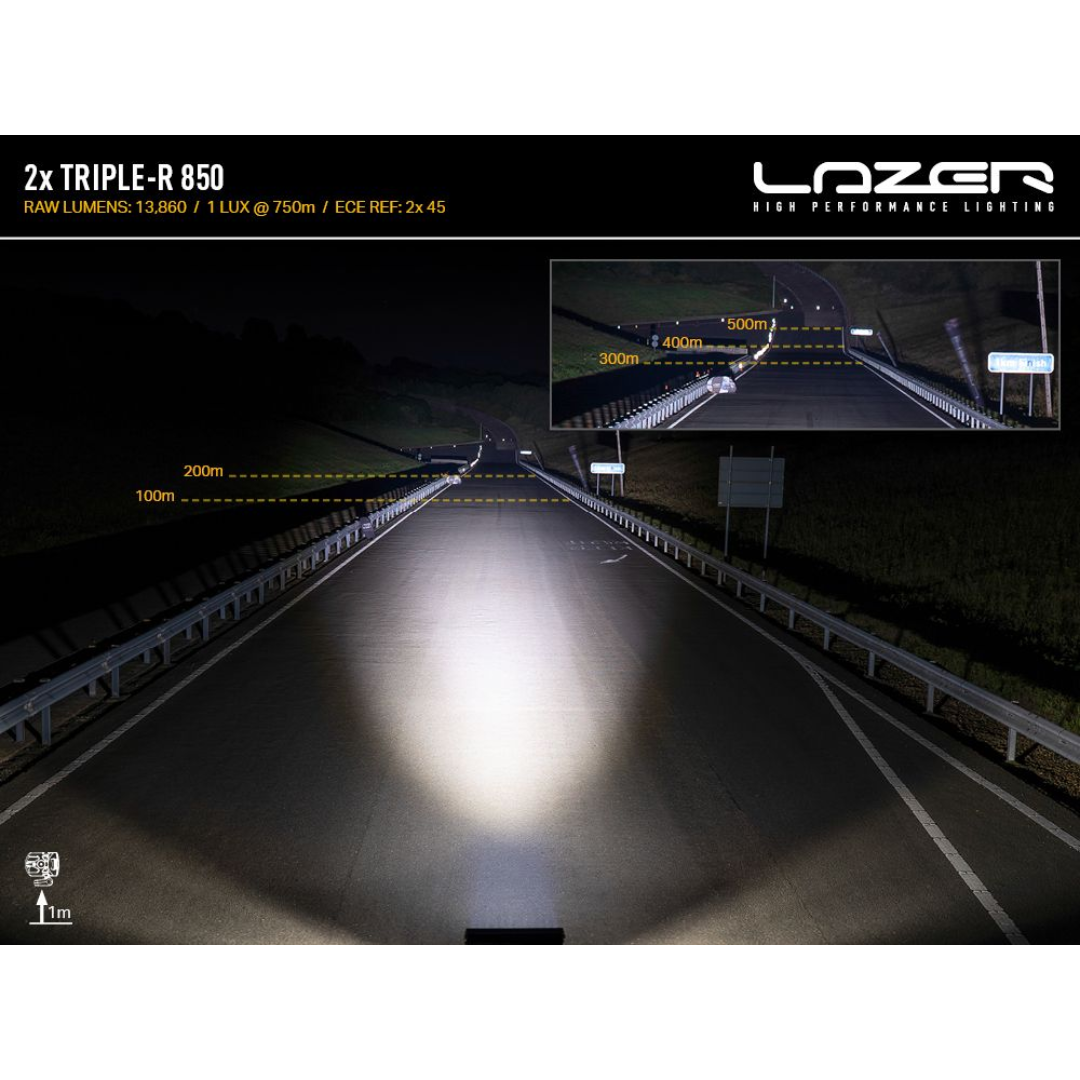

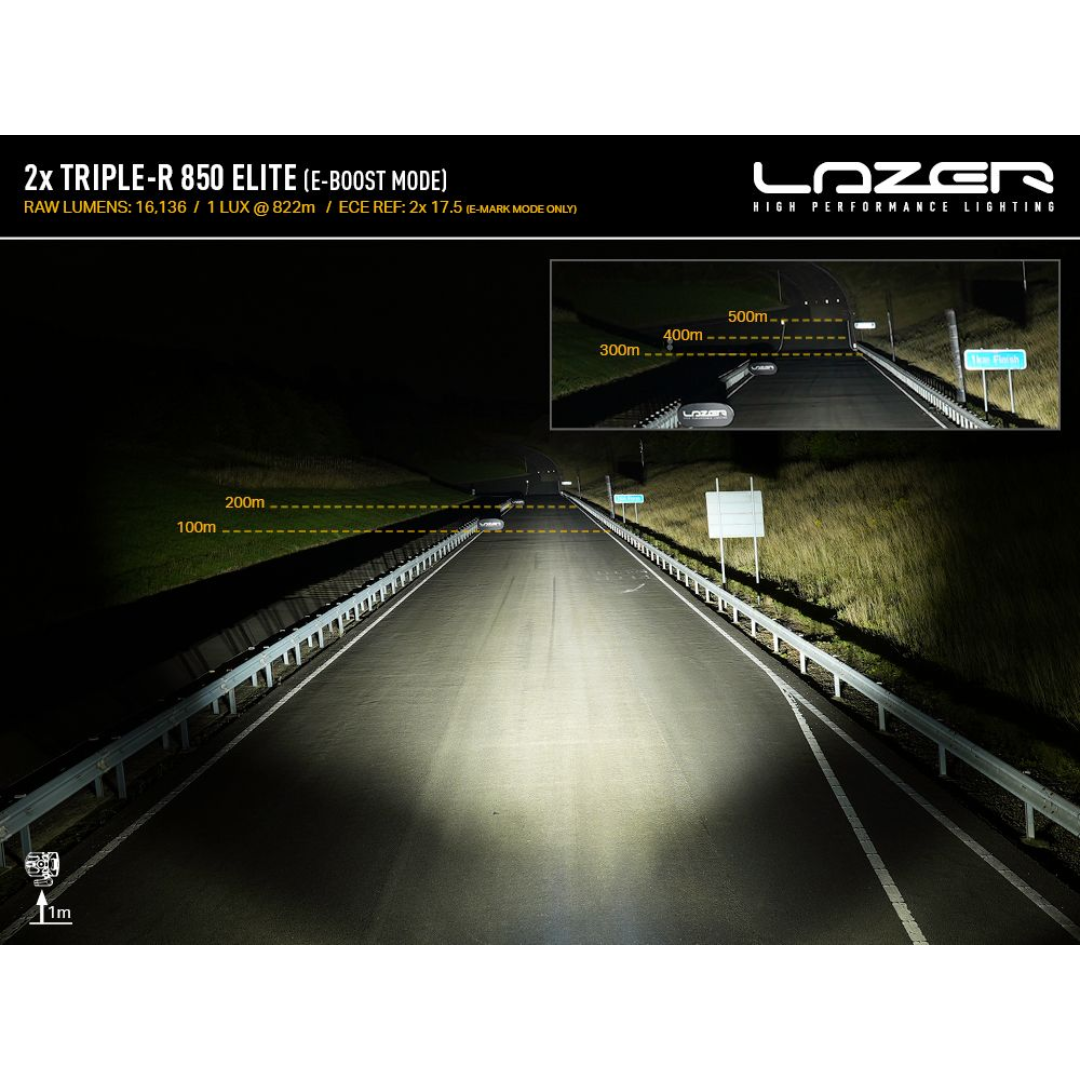

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle	19° / 18°	42° / 13°
0.25 Lux	1500m	1643m
0.5 Lux	1061m	1162m
1 Lux	750m	822m
3 Lux	433m	474m

† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
