Send the vehicle, engine and current setup if you want us to confirm the exact application before checkout.
| Manufacturer | Nostrum High Performance |
| Product Type | High flow DI injector set |
| SKU | H720-2023 |
| Vehicle Application | Audi EA837 3.0 TFSI supercharged V6 |
| Engine codes | CAJA, CCAA |
| Volume flow rate (nHeptane) | 1484 cc/min at 100 bar |
| Mass flow rate (Viscor 16A) | 17.9 g/s at 100 bar |
| Flow increase over stock | 15% |
| Max operating pressure | 180 bar / 18 MPa / 2610 psi |
| Injector family | Bosch HDEV5 replacement |
| Spray pattern | OEM compatible |
| Interchange part numbers | 06E906036AC, 06E906036K, 06E906036P, 06E906036AL |
| Tune required | Yes, HP Tuners or winOLS |
| Warranty | Nostrum limited lifetime, manufacturing defects |

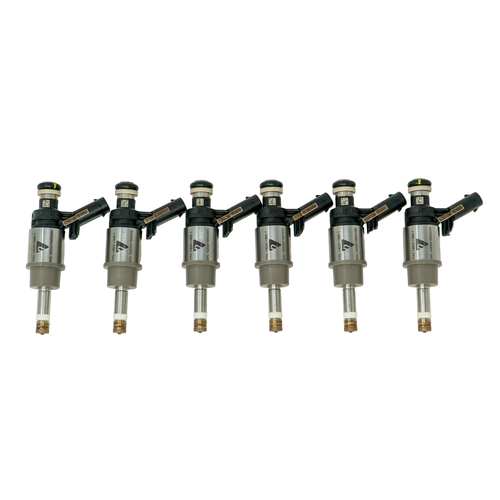

The Nostrum Audi EA837 3.0 TFSI Supercharged V6 High Flow DI Injector Set is the quiet upgrade on a tuned supercharged Audi: 15% more injector flow than the factory Continental unit, at what Nostrum positions as OE replacement pricing. On a B8 S4 or S5 running a pulley and a map, the injector is often the part quietly capping the calibration, and 15% extra volume is the difference between a tuner working around the fuelling and working with it. These flow 1484 cc/min at 100 bar with a 180 bar maximum operating pressure and an OEM compatible spray pattern, and they went through seven months of in-vehicle testing before release. They drop straight in as a Bosch HDEV5 replacement with no harness and no spacers, and all the factory diagnostic functions carry on working as they did.
This is not a race-injector jump, and that is deliberate. A modest, well-matched increase keeps the minimum pulse width behaviour close to standard, which is what keeps idle and part-throttle drivability clean while giving the tuner room at the top. The factory injectors are Continental; these are built on the Bosch HDEV5 family and swap in the same place.
Most supercharged V6 builds run into the injector first on a pulley and map, and the pump becomes the limit as the target climbs or the fuel changes. The EA837 high pressure fuel pump is the next step, and the EA837 pump and injector bundle does both together if you would rather not open the same job twice.
Fitment is decided by the CAJA or CCAA engine code, so check that before the model year, and note that the later EA837 EVO engines with CREA or CREC codes are a different fuel system. A tune is required; Nostrum names HP Tuners and winOLS, with Stratified and JH Motorsports as certified tuners. Check the model and years in the table below, and send Hoonies the details on imported or already-modified cars.
| Model | Years |
|---|---|
| Audi B8 Q5 | 2009-2017 |
| Audi B8 SQ5 | 2014-2017 |
| Audi 4L Q7 | 2007-2015 |
| Audi B8 S4 / S5 | 2009-2016 |
| Audi C6 C7 A6 | 2005-2011 |
| Audi C7 A7 | 2012-2018 |
For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. For customers outside the UK, local customs and taxes remain your responsibility, and shipping is shown at checkout. If a shipping option is not available, email us and we will prepare a tailored quote.
Many of the products we sell are made to order, imported or custom built, so a lead time may apply. If you need a part urgently, contact us before ordering and we will confirm the expected delivery timeframe and process.
Yes. Nostrum built these to keep the factory diagnostic functions intact, which is part of why they stay close to OEM spray pattern and pulse behaviour.
No. They are a direct replacement for the Bosch HDEV5 injector with no harness and no spacers required.
No. Those are the later EA837 EVO engines and run a different fuel system. This set is validated for the CAJA and CCAA supercharged V6.
