| Specification | Details |
|---|---|
| SKU | XRRJ1770070 |
| Manufacturer | ARB |
| Manufacturer part number | 1770070 |
| Platform dimensions | 1255 x 1285 mm |
| Product type | BASE Rack platform |
| Construction | Fully welded extruded aluminium with internal beam bracing |
| Cross beams | 5 |
| Platform net weight | 14.3 kg; mounts and accessories add to fitted weight |
| Finish | Black powder coat |
| Accessory mounting | Perimeter and internal-beam dovetail |
| Assembly | Platform supplied fully assembled |
| Vehicle mounting | Vehicle-specific mounting kit purchased separately |
| Cross-beam load limit | 25 kg per beam; lower overall vehicle or mounting limits apply |
| Wiring access | Removable UV-resistant corner caps |
| T-slot accessories | Compatible accessories require suitable BASE Rack adapters |

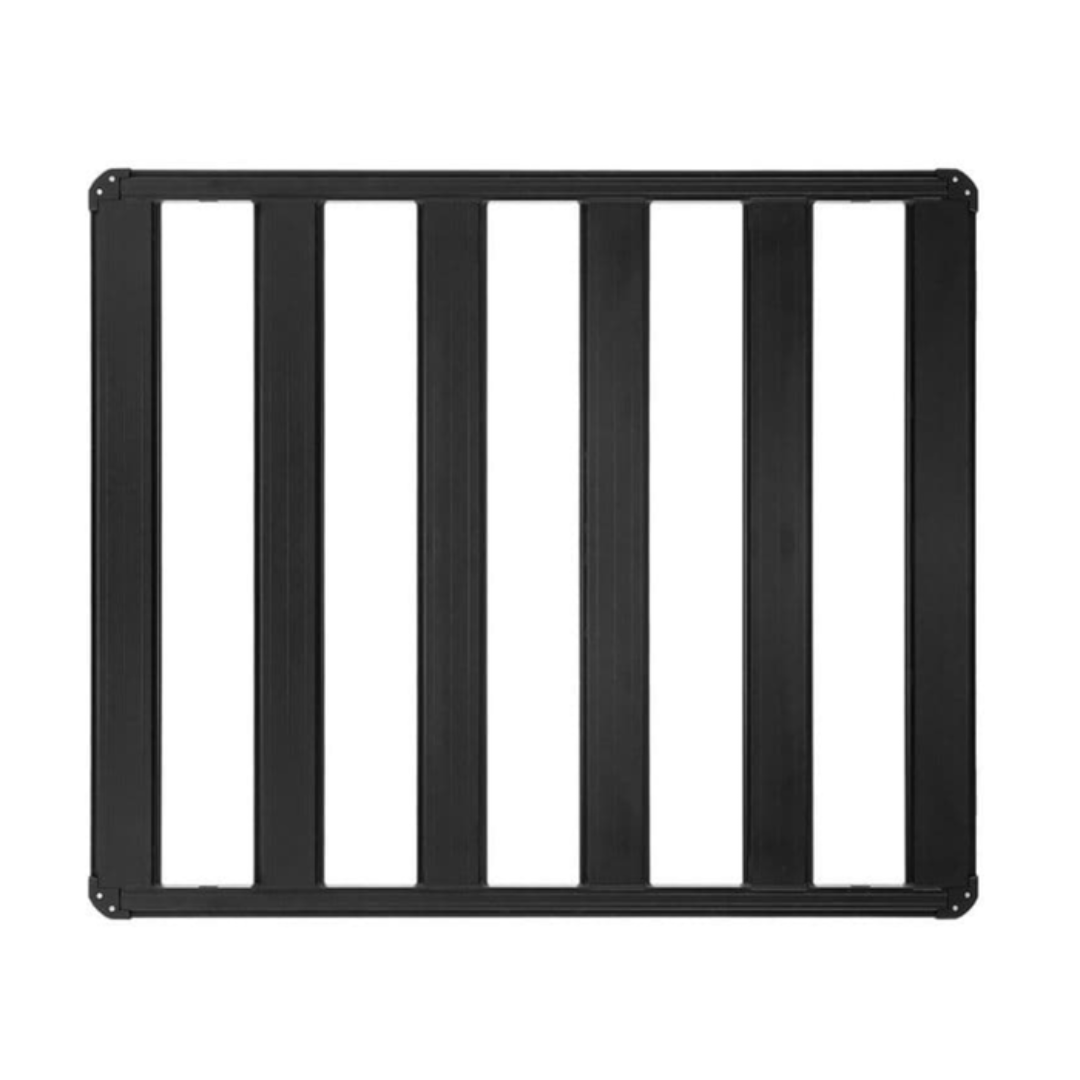

The 1255 x 1285 mm BASE Rack gives your Ranger or Raptor a useful extra platform for touring kit, recovery gear and everyday carrying. Pair it with the correct mounting kit for your exact vehicle and roof, then arrange the accessories to suit how you use it.
SKU: XRRJ1770070
The 1255 x 1285 mm platform gives you a shorter load area for cases, bags and recovery equipment. Compared with the 1255 x 1445 mm platform, it is 160 mm narrower at the same length. Use that footprint to work out where your usual gear will sit, then pair this 1770070 platform with the separately purchased mounts for your exact Ranger or Raptor roof. Choose each platform with the mounting system approved for that size and vehicle.
The fully welded extruded aluminium construction gives the platform its strength. Internal bracing runs through the beams, adding rigidity without making the outside of the rack larger. The low profile keeps the rack close to the roof line and helps reduce wind noise, so the drive to camp can be as enjoyable as the stay.
The dovetail runs around the perimeter and along the edges of the internal beams. Matching clamps attach where you need them, so you can move a tie-down or accessory without sliding it past everything else in a T-slot channel. Appropriate BASE Rack adapters also let you use many existing T-slot accessories.
Removable UV-resistant corner caps give access inside the beams for concealed wiring. That is useful when adding suitable rack lights: the cables can follow a neater route instead of hanging around your luggage. The platform arrives fully assembled, ready for its mounting system.
Our roof rack accessories range includes BASE Rack-compatible tie-downs, recovery-board mounts, awning brackets and light mounts. The BASE Rack eyebolt set and 3 m ratchet straps are useful additions for securing suitable cargo. Choose fittings marked for BASE Rack and check any accessory-specific size or load conditions.
This listing supplies the platform. Choose the vehicle-specific mounts separately to suit your vehicle, cab or canopy. Count the rack, mounts, accessories and cargo against the permitted roof load, and follow any lower rack or mounting-system limit. Spread loads across the beams and keep within the 25 kg limit per cross beam. A larger platform gives you more packing space; your vehicle roof limit still determines how much you can carry.
| Specification | Details |
|---|---|
| SKU | XRRJ1770070 |
| Manufacturer | ARB |
| Manufacturer part number | 1770070 |
| Platform dimensions | 1255 x 1285 mm |
| Product type | BASE Rack platform |
| Construction | Fully welded extruded aluminium with internal beam bracing |
| Cross beams | 5 |
| Platform net weight | 14.3 kg; mounts and accessories add to fitted weight |
| Finish | Black powder coat |
| Accessory mounting | Perimeter and internal-beam dovetail |
| Assembly | Platform supplied fully assembled |
| Vehicle mounting | Vehicle-specific mounting kit purchased separately |
| Cross-beam load limit | 25 kg per beam; lower overall vehicle or mounting limits apply |
| Wiring access | Removable UV-resistant corner caps |
| T-slot accessories | Compatible accessories require suitable BASE Rack adapters |
No. The vehicle-specific mounting kit is purchased separately. Choose mounts for your exact vehicle and roof or canopy. The platform dimensions and part number identify the rack you are buying.
Use the lowest applicable limit for your vehicle roof, rack and mounts, and include the weight of the fitted rack and accessories. Spread the load, keeping each cross beam within 25 kg. Off-road limits can differ from normal road limits.
Yes, with the appropriate BASE Rack-compatible brackets. Our roof rack accessories range includes suitable mounting options. Check the bracket requirements for your particular awning or boards before choosing.
Many T-slot accessories can be used with suitable BASE Rack adapters. Match the adapter to the accessory and its fixing arrangement; the dovetail gives you useful flexibility in where it sits.
A compatible tent and mounting system can be used when the rack, roof and mounting limits allow it. Check the tent mounting points and both driving and parked load requirements, including the tent, people and equipment.
Check the mounting and accessory fasteners, secure each load and recheck the vehicle roof allowance when adding equipment. Follow the fitting instructions for inspection intervals and keep the dovetail contact surfaces clean.
