Planted Aluminum 90 Degree Universal Side Mount

✓ Universal fit
£183.22 VAT included. Shipping calculated for your destination.

In stock

Not sure which one? Ask us to confirm fitment first →
Fitment checked before you order

Send the vehicle, engine and current setup if you want us to confirm the exact application before checkout.

Ask us to check fitment →

Application

Planted Aluminum 90 Degree Universal Side Mount

  • Side of vehicle: Universal
  • Material: Aluminum
  • Colour: Grey and Black

Colour options and Planted part numbers

Colour Planted part number
Black PA90SM-B
Grey PA90SM-G

Product information from Planted

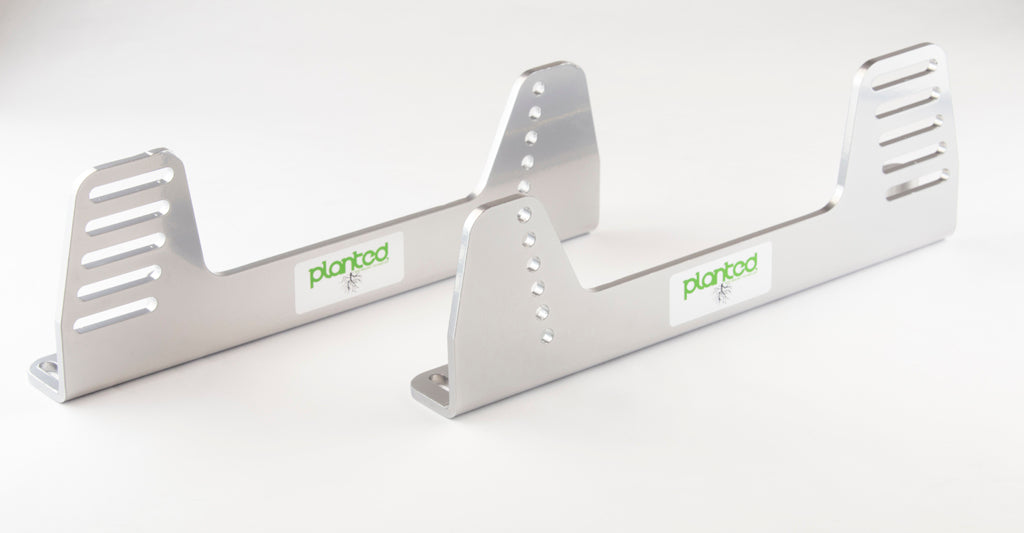

The Planted Side Mount is an "L" shaped bracket sold in pairs (left and right) used to install side mount seats. Side mount seats have the mounting holes on the side of the seat rather then the bottom so a Side Mount or similar product is required for installation.

The Planted Aluminum 90 Degree Universal Side Mount is made from 1/4th inch thick aluminum which complies with FIA's required thickness, weighs approximately 3 lbs, and is powder coated. These will fit Side Mount Seats offered by most seat manufacturers and have been tested on Bride, Corbeau, Cobra, Momo, NRG, OMP, Ractech, Recaro, Sabelt, Sparco, Status Racing & Takata. The wider slots allow the Side Mounts to be compatible with most other seat manufacturers as well but we have not test fitted them all. The Side Mounts are made to bolt directly to sliders but have multiple slots for adjustability when direct mounting (eliminating sliders).

90 Degree Vs Offset Side Mounts

  • Planted offers two types of Side Mounts; 90 Degree and Offset. Both types are offered in Aluminum or Steel.
  • 90 Degree Side Mounts are the most common type and should be used when the width of the sliders is narrower then the width of the seat so the sliders sit under the seat.
  • Offset Side Mounts are less common and should be used when the width of the sliders is equal to or wider then the width of the seat.
  • Either 90 Degree or Offset Side Mounts can be used when direct mounting without sliders. We recommend the 90 Degree Side Mounts though because the overall assembly will be narrower allowing more side to side adjustability.

Disclaimers

  • Sold as a left and right for one seat.
  • Hardware is sold separately.
Delivery, customs and taxes

Know the landed cost before you order

For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. For customers outside the UK, local customs and taxes remain your responsibility, and shipping is shown at checkout. If a shipping option is not available, email us and we will prepare a tailored quote.

Lead times and urgent orders

Check timing before you commit

Many of the products we sell are made to order, imported or custom built, so a lead time may apply. If you need a part urgently, contact us before ordering and we will confirm the expected delivery timeframe and process.

Fitment first

Universal product - confirm the application

Check dimensions, mounting points, clearance and any wiring or hose requirements against your setup before ordering.

✓ Universal fit
