Available to Order
Not sure which one? Ask us to confirm fitment first →For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. Outside the UK, shipping is shown at checkout and local customs and taxes remain your responsibility.
Some products are made to order, imported or custom built. If timing matters, contact us before ordering and we will confirm the expected delivery timeframe.
Send the vehicle, engine and current setup if you want us to confirm the exact application before checkout.
| Manufacturer | Nostrum High Performance |
| Product Type | High pressure fuel pump (HPFP) |
| SKU | H136-0571 |
| Engine Application | Subaru FA20DIT 2.0 turbo (direct injection) |
| Flow Increase | 37% over the factory pump |
| Geometric Displacement | 1.57 cc/rev |
| Max Operating Pressure | 150 bar / 15 MPa / 2200 psi |
| Fuel Compatibility | Ethanol compatible, E85 or blends |
| Included Items | Fully assembled pump, installation instructions |
| Tune Requirement | Driveable untuned; calibration recommended (COBB, EcuTek) |
| Fuel System Capacity | 725 whp gasoline / 550 whp E85 with full supporting build |
| Warranty | Limited lifetime |

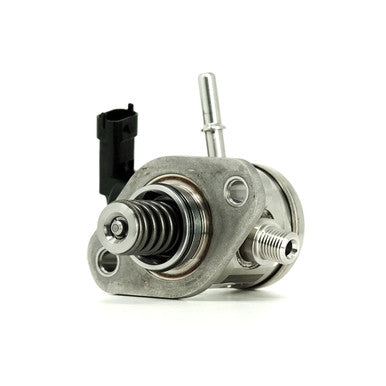

The cam-driven high pressure pump fills the direct injection rail on an FA20DIT, and on a WRX or Forester XT that has picked up an intake, intercooler and a bit more boost it is usually the first thing to run out. Nostrum's replacement flows 37% more than the factory pump at up to 150 bar, arrives fully assembled and is flow tested before sale. The result is boost dialled in earlier without rail pressure collapsing, felt as low-end torque rather than a peak number. It is ethanol compatible, so E85 becomes a realistic fuel choice.
Being camshaft driven, this pump turns at half crank speed, so output is tied to engine speed. Around peak torque there is plenty of time per injection event but not enough volume behind it, and that is where the standard unit runs short once boost goes up. A 37% larger flow capacity gives the calibration room to bring boost in earlier and hold the fuel target while it does - a very different feeling on the road from a peak-power-only change.
Ethanol carries a higher effective octane and is less knock prone than 95 or 99 pump petrol, but needs materially more volume for the same air. Nostrum recommends full pump E85 over intermediate blends, because blends around E30 to E50 can drop gasoline additives out of solution and gum up any fuel system. If you do blend, occasional tanks of straight petrol are worth treating as maintenance.
Covers the 2015-2021 Subaru WRX and 2014-2018 Forester XT. Nostrum states the pump can be fitted and driven on without a tune, but recommends calibrating to use its full capacity, so plan the tuning as part of the job. The 725 whp gasoline and 550 whp E85 figures are fuel-system capacity for a fully supported build. For the top end as well as the mid range, add the matching upgraded direct injectors, or buy the two together as the FA20DIT Stage 1 bundle.
| 2015-2021 | Subaru WRX |
| 2014-2018 | Subaru Forester XT |
For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. For customers outside the UK, local customs and taxes remain your responsibility, and shipping is shown at checkout. If a shipping option is not available, email us and we will prepare a tailored quote.
Many of the products we sell are made to order, imported or custom built, so a lead time may apply. If you need a part urgently, contact us before ordering and we will confirm the expected delivery timeframe and process.
The pump addresses the mid range, where the limit is volume rather than time. Peak power is usually injector limited at high rpm, which is why the two are often bought together.
Nostrum recommends full pump E85 over intermediate blends. Around E30 to E50, additives can come out of solution and leave a residue in the fuel system. If you do blend, run straight petrol occasionally as maintenance.
Yes - fully assembled and flow tested, with installation instructions in the box. No separate flange or tube assembly is needed here.
Use the checked vehicle route, then confirm model year, engine, drivetrain, hardware and existing modifications on the product page or with our team before you commit.
Send us your vehicle, year, current setup and any fitting date, event, trip or deadline before ordering. We will help check fitment, product choice and timing.
