Know the landed cost before you order
Prices include VAT. Shipping is charged separately and calculated at checkout for your destination. If no shipping option is shown, contact us for a quote before ordering.
Keep the matching secondary air injection connection in your fabrication

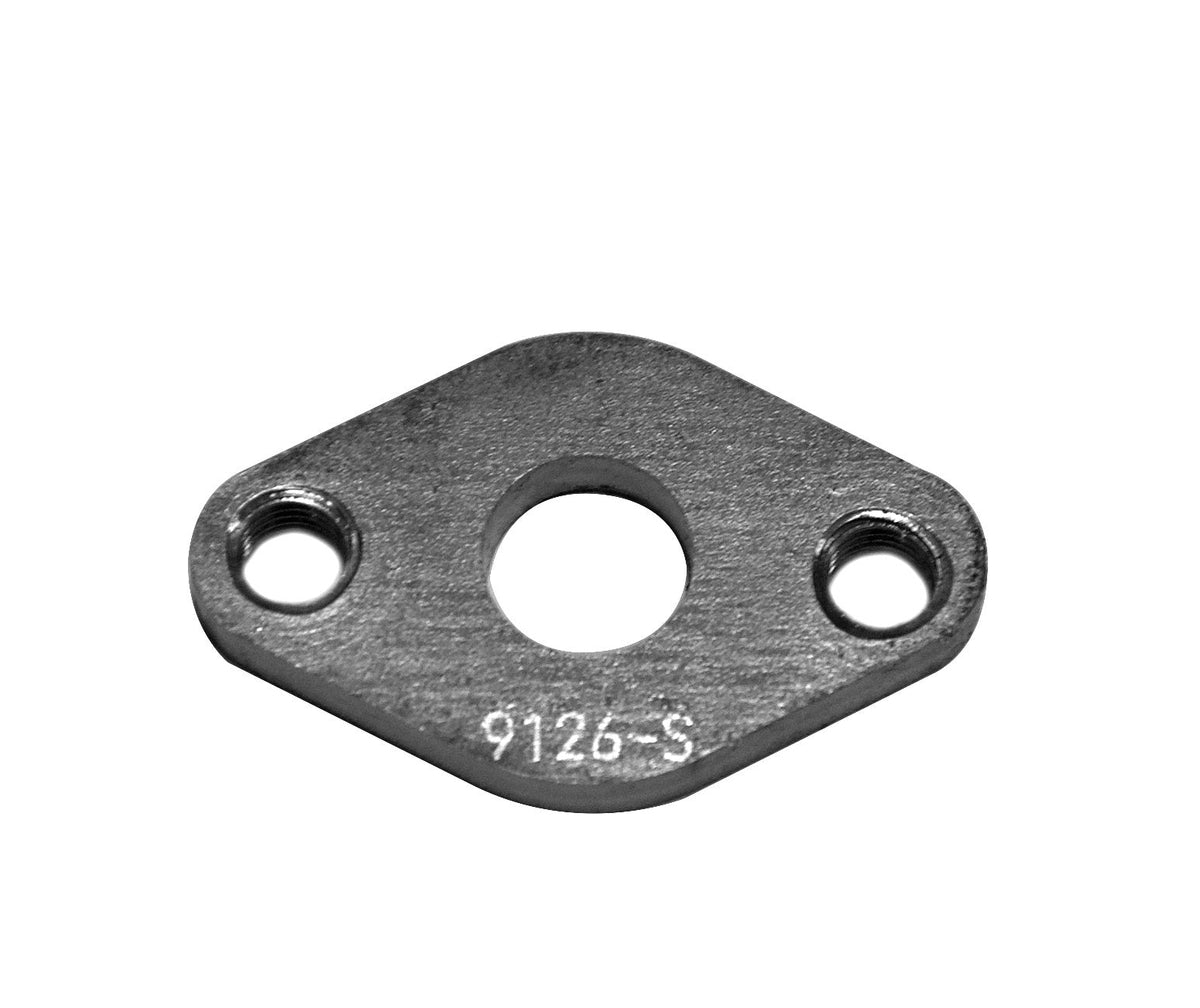

Add the appropriate GM secondary air injection connection when making the header or exhaust section for your 1997-2004 LS1 Corvette and 1998-2002 LS1 F-body. This Kooks plate is laser-cut from 1/4-inch 304 stainless steel.
SKU: 9126-S
Made for the OEM bolt connection
The plate has tapped holes for the OEM bolts and is welded into the fabricated assembly. One plate is supplied for the listed Secondary Air Injection interface.
Ordering and delivery
Estimated lead time is 4-6 weeks. Delivery may be faster depending on stock levels. Shipping is charged separately.
Technical specifications
| Specification | Details |
|---|---|
| SKU | 9126-S |
| Application | 1997-2004 Corvette; 1998-2002 GM F-body; LS1 engine |
| Connection | GM secondary air injection |
| Material | 304 stainless steel |
| Plate thickness | 1/4-inch |
| Construction | Laser-cut; tapped holes for OEM bolts |
| Installation | Welding required |
| Supplied quantity | One plate |
Frequently asked questions
How is the plate fitted?
It requires welding into the fabricated assembly and has tapped holes for the OEM bolts.
What is supplied?
One laser-cut, 1/4-inch-thick 304 stainless plate for the listed connection.
