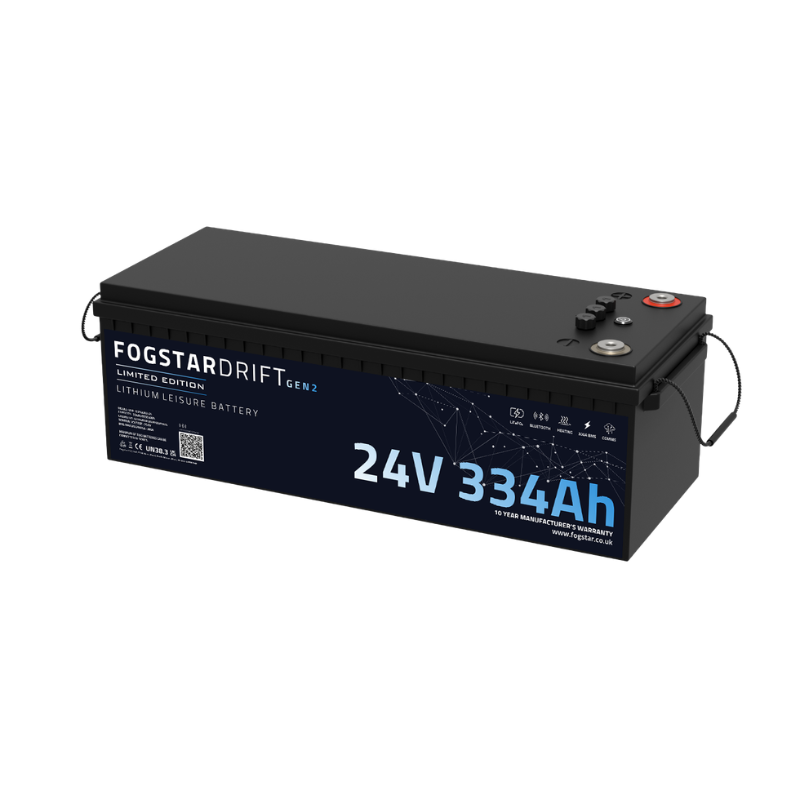

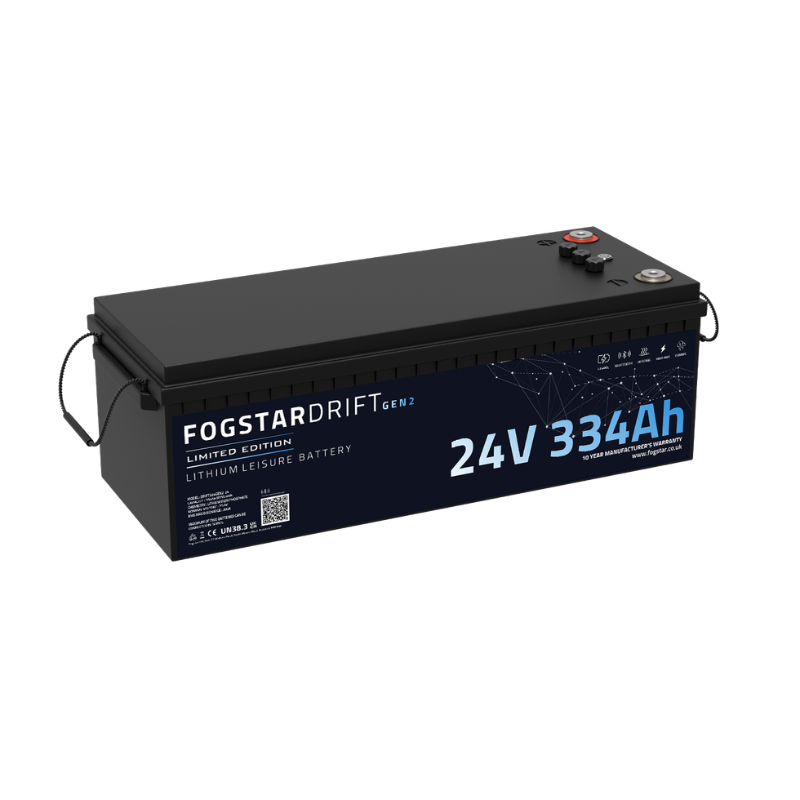

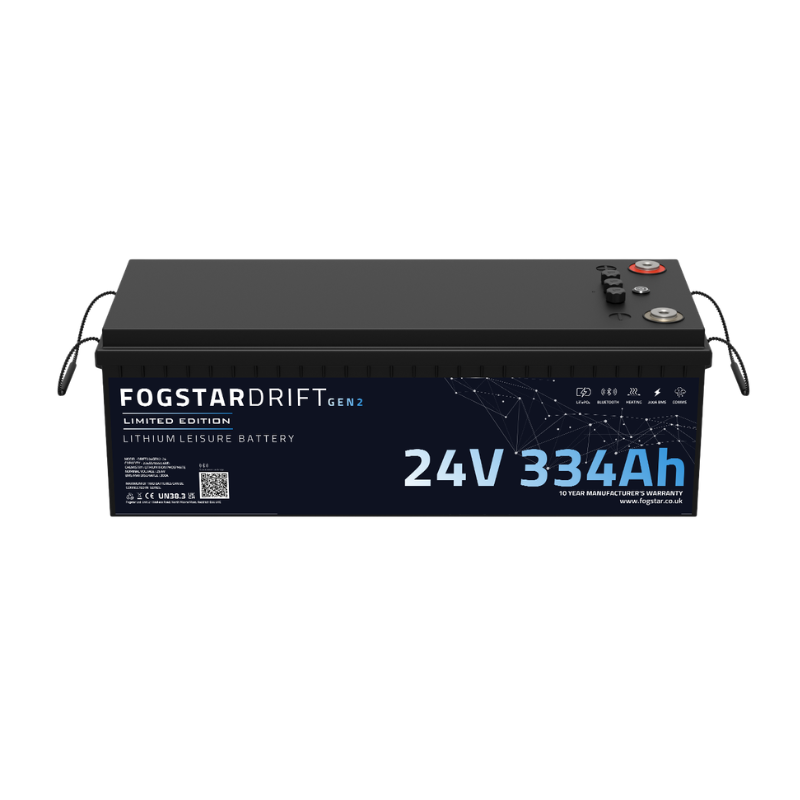

Fogstar Drift Gen2 24V 334Ah LiFePO4 Leisure Battery
Fogstar Drift Gen2 24V 334Ah LiFePO4 Leisure Battery
Couldn't load pickup availability
Fitment check
Fitment check
Fitment check
Check these details before ordering. If anything is unclear, contact us with your vehicle, year and current setup.
Fitment details are still being improved. Send us your vehicle and current setup if you want us to confirm before ordering.
Specs and options
Specs and options
Specs and options
- Brand
- Fogstar Drift
- Category
- Electrical
- SKU
- Fog/Dri/Gen2/24V/334
- Options
- Battery Bracket: No, Yes
Questions before checkout?
Questions before checkout?
Questions before checkout?
Send us your vehicle, year and current setup and we will help check fitment before you order.
Ask about this product
Delivery, returns and support
Delivery, returns and support
Delivery, returns and support
Delivery timing can vary by supplier, product size and current stock. Contact us before ordering if you are working to a fitting date, event, trip or deadline.
Keep packaging and product paperwork until fitment is confirmed. If anything looks wrong when it arrives, get in touch before installation so we can help check the next step.
The Fogstar Drift Gen2 24V 334Ah LiFePO4 Leisure Battery is a 25.6V 334Ah lithium iron phosphate (LiFePO4) leisure battery, giving 8,550.4Wh of usable energy. It is built to run inverters and larger off-grid loads in 24V campervan, motorhome, marine and off-grid systems.
A 300A Smart BMS with 0.2A shunt accuracy and active balancing manages charging and discharging, and you can check state of charge, voltage and temperature over Bluetooth in the Fogstar Drift app.
Integrated low-temperature heating lets the battery charge safely in cold conditions.
Supplied with a Fogstar 10-year warranty.
Key features
- 334Ah capacity (25.6V nominal) — 8,550.4Wh
- Continuous discharge: 300A
- 300A Smart BMS with 0.2A shunt accuracy and active balancing
- Bluetooth monitoring via the Fogstar Drift app
- Integrated low-temperature heating
- EVE Grade A LF334 cells
- Cycle life: 4000 cycles (80% DoD)
- IP67 rated
- Weight: approx. 56kg
- 10-year warranty
Technical specification
| Capacity | 334Ah |
|---|---|
| Nominal voltage | 25.6V |
| Usable energy | 8,550.4Wh |
| Chemistry | LiFePO4 |
| Cells | EVE Grade A LF334 |
| BMS | 300A Smart BMS with 0.2A shunt accuracy and active balancing |
| Continuous discharge | 300A |
| Recommended charge voltage | 28.8V |
| Cycle life | 4000 cycles (80% DoD) |
| Dimensions (L x W x H) | 635 x 244 x 220 mm |
| Weight | approx. 56kg |
| Terminals | M8 (1.25 pitch, 12mm), bolts included |
| Low-temperature charging | Integrated low-temperature heating |
| Bluetooth / app | Fogstar Drift app |
| Ingress protection | IP67 |
| Series configuration | Up to 2 in series |
| Parallel configuration | Up to 16 in parallel |
| Warranty | 10-year warranty |
In the box
- Battery unit
- M8 terminal bolts
- Optional mounting bracket (select the 'With bracket' variant)
Installation and buyer checks
- Confirm your system is 24V before ordering.
- Set your charger, DC-DC charger and solar controller to a lithium (LiFePO4) profile (Fogstar states a charge voltage of 28.8V).
- Terminals: M8 (1.25 pitch, 12mm), bolts included — check your cable lugs and connectors match.
- Physical size is 635 x 244 x 220 mm and it weighs approx. 56kg — check the battery box or tray space and secure mounting.
- Expansion limits: Up to 2 in series, Up to 16 in parallel.
- This is a leisure/auxiliary (house) battery for domestic loads.
- Availability can vary at the manufacturer — confirm lead time before ordering.
