Fabulous Fabrications Next-Gen Ford Ranger Raptor Twin Intake Alloy Airbox – Standard Inlet Location

Performance Airbox Upgrade for Next-Gen Ford Ranger Raptor

The Fabulous Fabrications Twin Intake Alloy Airbox is precision-engineered for the Next-Gen Ford Ranger Raptor, offering a dedicated performance solution for owners seeking improved airflow and superior filtration. Designed and fabricated in Australia, this airbox is tailored for the standard inlet location and is suitable for all Next-Gen Raptor models not fitted with a snorkel.

How the Twin Intake Alloy Airbox Improves Your Ranger Raptor

Unlike the factory airbox, which forces both turbos to draw air through a single T-piece, the Fabulous Fabrications system provides a true twin intake configuration. This ensures each turbo receives its own uninterrupted airflow path, helping to optimise turbo response and engine performance. The increased filtered surface area, thanks to Unifilter foam elements, further enhances protection and efficiency.

Real-World Problem Solving: Airflow and Filtration

Factory airboxes can limit airflow and cause both turbos to compete for intake air, potentially restricting performance under heavy load or off-road conditions. The dedicated twin intake design of this airbox addresses this issue by providing each turbo with a separate, direct airflow channel. The result is improved breathing for the engine and better filtration, which is especially valuable in dusty or demanding environments.

Typical Use Cases for the Fabulous Fabrications Airbox

This airbox is ideal for Next-Gen Ranger Raptor owners who:

• Seek increased engine efficiency and performance for road, off-road, or towing applications
• Operate in dusty or challenging environments requiring enhanced filtration
• Want a robust, serviceable intake system designed for longevity
• Prefer a straightforward upgrade that retains the standard inlet location (non-snorkel)

Key Benefits of the Twin Intake Alloy Airbox

• True twin intake design for dedicated turbo airflow
• 51% increase in filtered surface area with Australian-made Unifilter foam elements
• Precision laser-cut, folded, and TIG-welded 3mm aluminium construction
• Fully serviceable filters for long-term cost savings

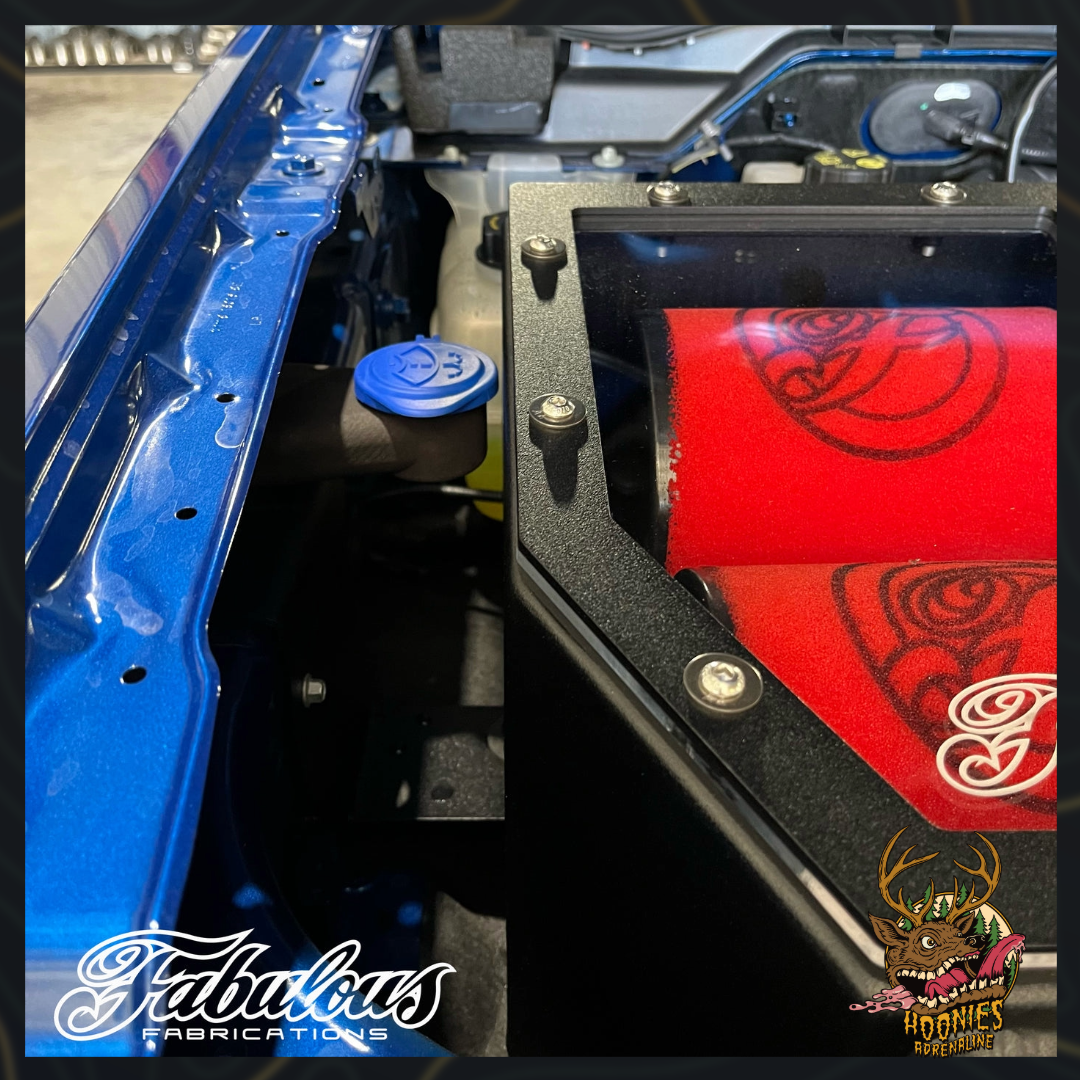

• Includes 6mm perspex lid with laser-engraved logo for easy inspection
• Powdercoated Dulux Mannex Black finish for durability

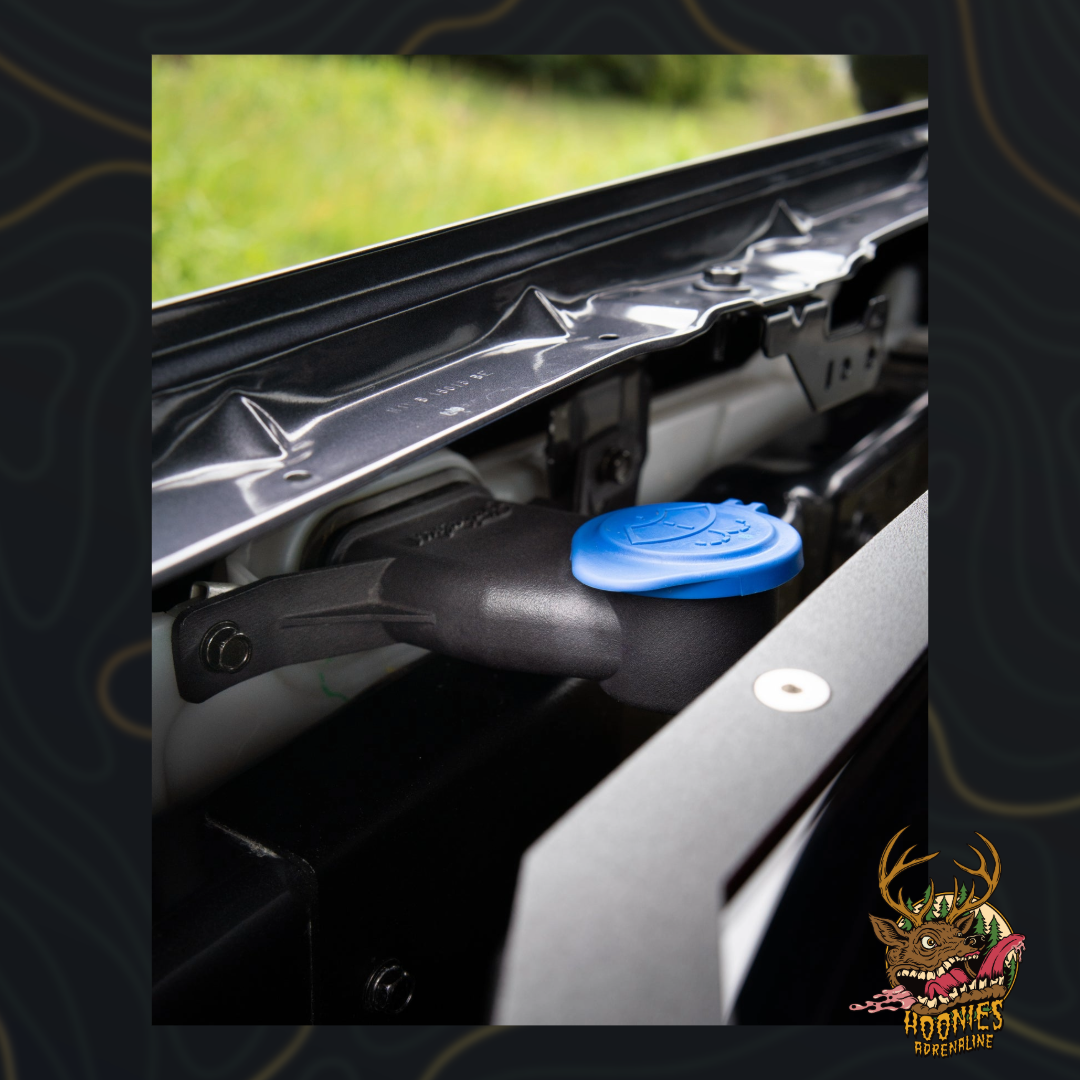

• Custom printed washer bottle filler neck and all required fittings included

Construction and Materials

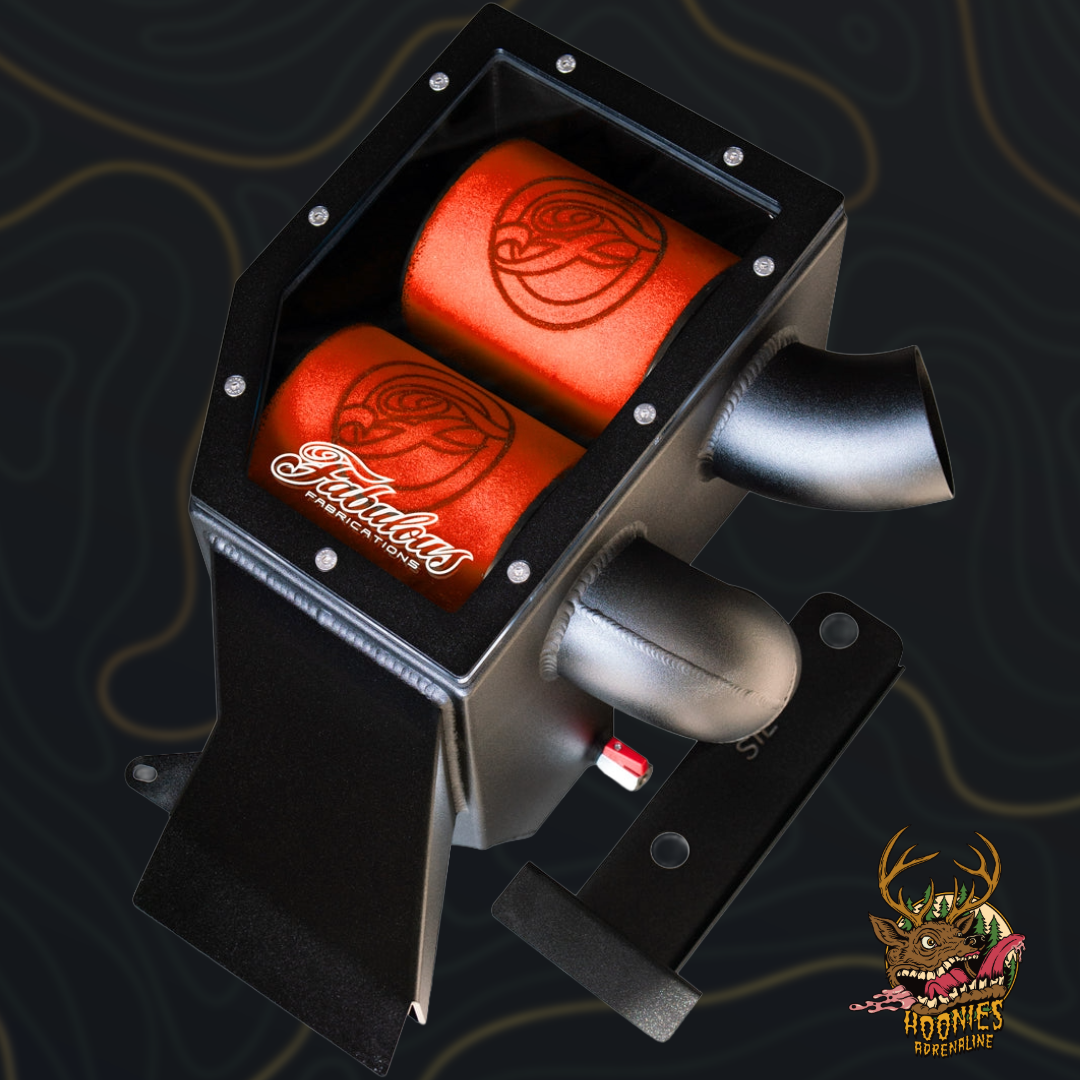

Each airbox is crafted from 3mm aluminium, laser cut and folded for precision. The assembly is fully TIG welded, ensuring structural integrity and a premium finish. The 4.5mm nitrile gasket and alloy pressure plate provide a long-lasting seal, while the perspex lid allows for easy visual inspection and features a laser-engraved Fabulous Fabrications logo. The Australian-made Unifilter foam filters are designed for maximum filtration and are fully serviceable.

Installation and Compatibility Notes

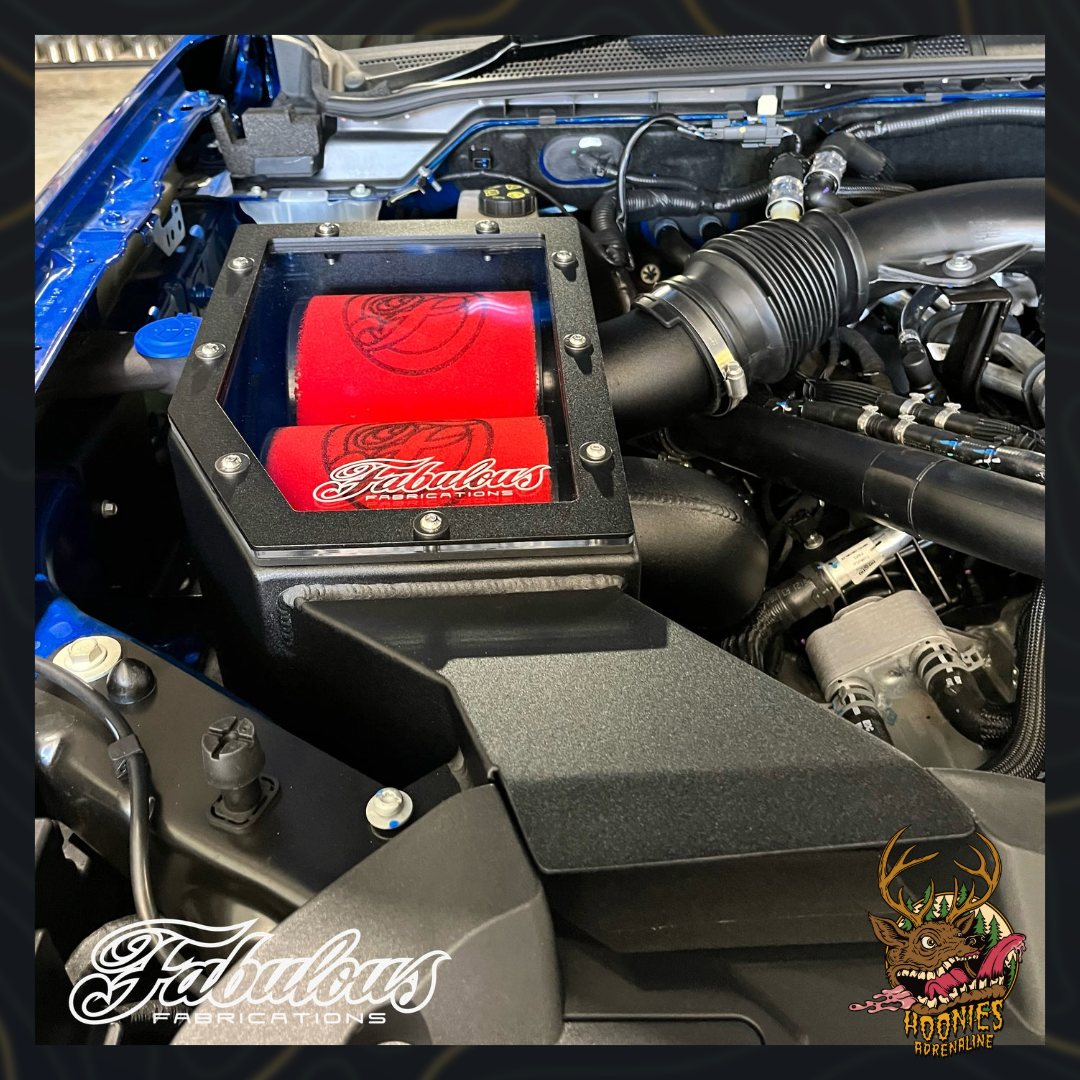

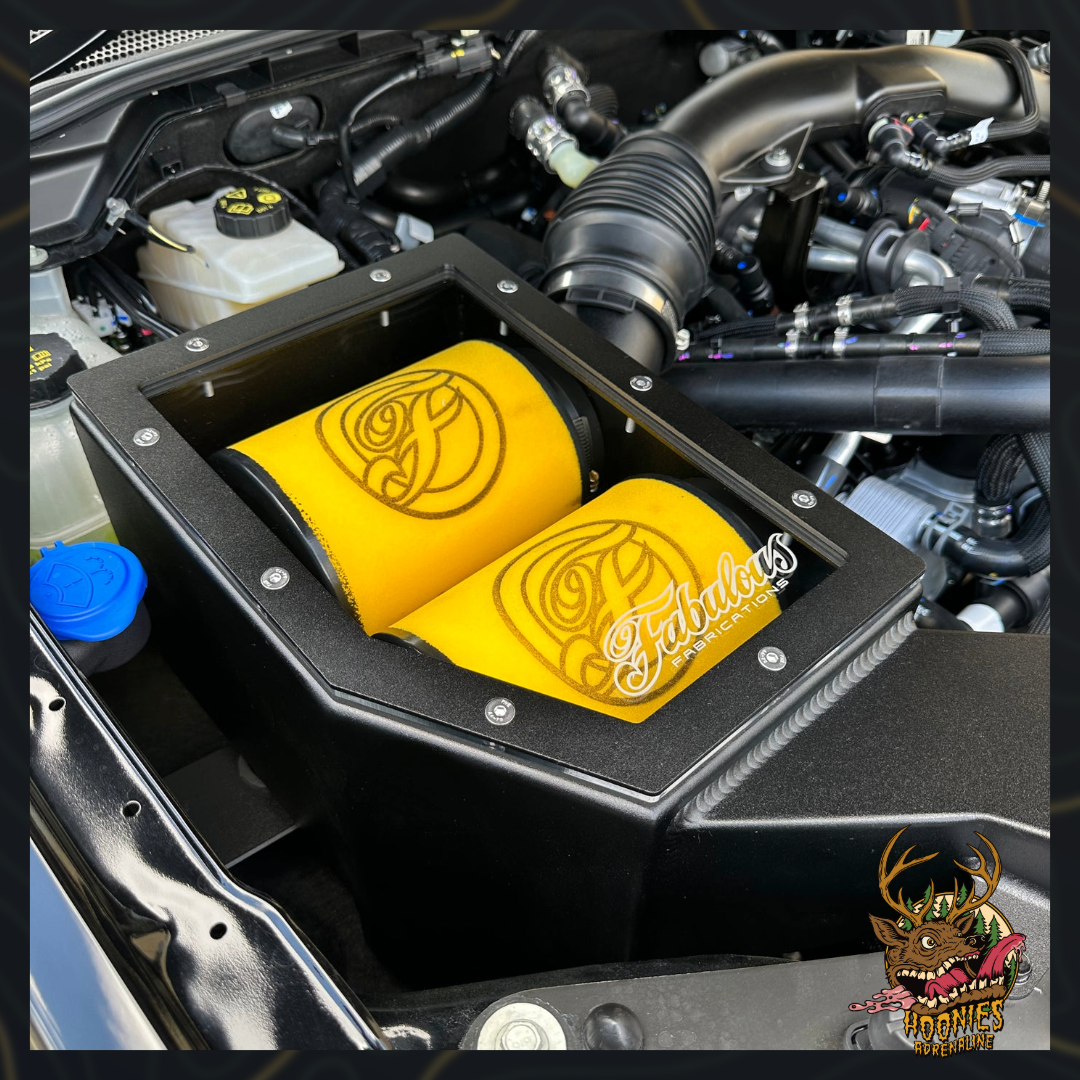

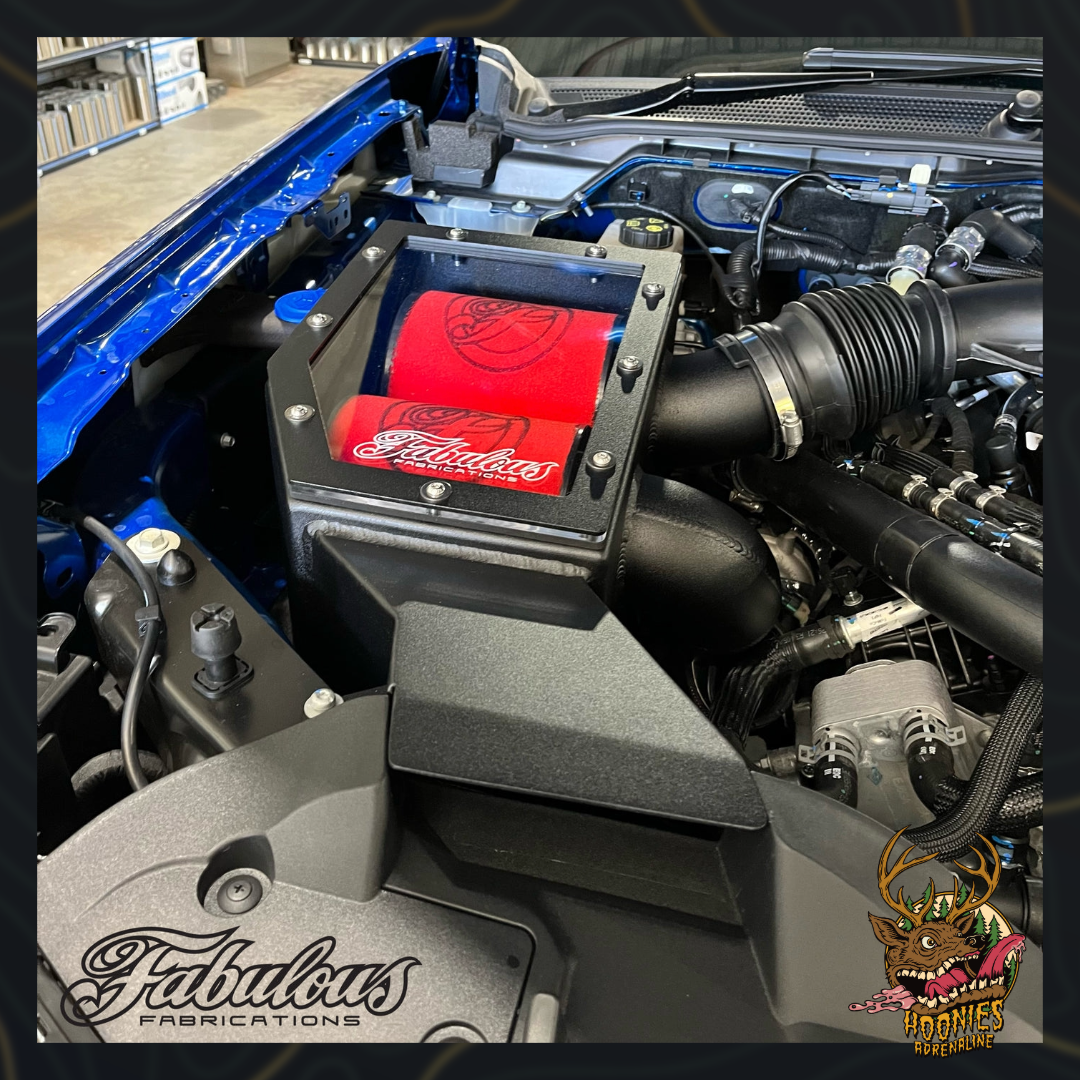

This airbox is engineered for a direct fit to all Next-Gen Ford Ranger Raptor models using the standard inlet location and is not compatible with snorkel setups. All necessary fixtures, fittings, and a comprehensive fitting guide are supplied for a straightforward installation process. The airbox is designed to accommodate the factory inlet air temperature sensor and mounting hardware, ensuring seamless integration with OEM systems.

Technical Specifications

Frequently Asked Questions

How does this airbox improve performance compared to the factory unit?

The twin intake design allows each turbo its own dedicated airflow path, reducing restriction and supporting improved throttle response and efficiency.

Is this airbox compatible with snorkel setups?

No, this model is designed for standard inlet location only and is not compatible with snorkels.

Are the filters reusable or do they need regular replacement?

The included Unifilter foam filters are fully serviceable and can be cleaned and reused, reducing long-term maintenance costs.

What is included in the kit?

The kit includes the complete airbox assembly, Unifilter elements, all required fittings, a custom washer bottle filler neck, and a comprehensive fitting guide.

Can I install this airbox myself?

Yes, the airbox is supplied with all necessary hardware and a detailed guide, making it suitable for DIY installation by experienced owners or professional fitment.

Does this airbox affect my vehicle's warranty?

As with any aftermarket modification, warranty implications depend on your dealer and local regulations. It is advisable to consult your dealer before installation.
