Borla xr-1 raceline - sportsman. Match the dimensions, pipe connections and installation method to your exhaust. Construction: T-304 stainless steel. Supplied finish: Natural mill. The muffler can be installed in either flow direction. Clamps are supplied separately.
Application: Universal exhaust component. Dimensions and connection layout depend on the selected SKU; compare the variant specifications before installation.
| SKU / option | Borla technical table specification | Installation and care requirements |
|---|---|---|

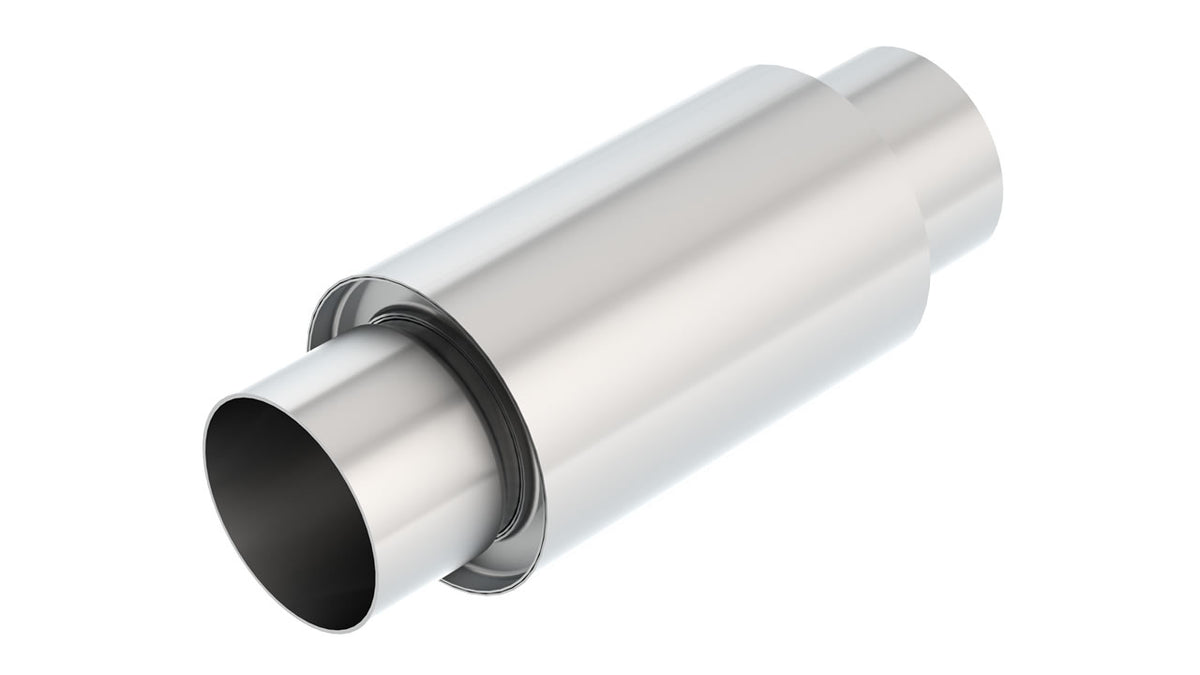

| 40004S — 3.5" / Round / 8" X 5" / 13" overall | Borla application panel: XR-1® Sportsman Racing Muffler 3.5" Center Inlet/ 3.5" Center Outlet 5" Round x 8" Long Body 13" Overall Length. Universal Part. Reversible Design.; Borla technical table: Muffler Config: Center/Center; Muffler Shape: Round; Muffler Tubing Size: 3.5"; Case Dimensions: 8" X 5"; Muffler Oal: 13" | If clamping, use wide (2 bolt style) band clamps (clamps NOT included). High-quality T-304 austenitic stainless steel for superior corrosion resistance. 100% welded construction for strength. |
| 40085 — 3" / Round / 15" X 5" / 20" overall | Borla application panel: XR-1® Sportsman Racing Muffler 3" Center Inlet/ 3" Center Outlet 5" Round x 15" Long Body 20" Overall Length. Universal Part. Reversible Design.; Borla technical table: Muffler Config: Center/Center; Muffler Shape: Round; Muffler Tubing Size: 3"; Case Dimensions: 15" X 5"; Muffler Oal: 20" | If clamping, use wide (2 bolt style) band clamps (clamps NOT included). High-quality T-304 austenitic stainless steel for superior corrosion resistance. 100% welded construction for strength. |
| 40086 — 3.5" / Round / 15" X 5" / 20" overall | Borla application panel: XR-1® Sportsman Racing Muffler. 3.5" Center Inlet/ 3.5" Center Outlet 5" Round x 15" Long Body 20" Overall Length. Universal Part. Reversible Design.; Borla technical table: Muffler Config: Center/Center; Muffler Shape: Round; Muffler Tubing Size: 3.5"; Case Dimensions: 15" X 5"; Muffler Oal: 20" | If clamping, use wide (2 bolt style) band clamps (clamps NOT included). High-quality T-304 austenitic stainless steel for superior corrosion resistance. 100% welded construction for strength. |
| 40941 — 2.5" / Oval / 12" X 4.25" X 7.88" / 17" overall | Borla application panel: XR-1® Sportsman Racing Muffler. 2.5" Center Inlet/ 2.5" Center Outlet 4.25" x 7.88" Oval x 12" Long Body 17" Overall Length. Universal Part. Reversible Design.; Borla technical table: Muffler Config: Center/Center; Muffler Shape: Oval; Muffler Tubing Size: 2.5"; Case Dimensions: 12" X 4.25" X 7.88"; Muffler Oal: 17" | If clamping, use wide (2 bolt style) band clamps (clamps NOT included). High-quality T-304 austenitic stainless steel for superior corrosion resistance. 100% welded construction for strength. |
| 40942 — 2.5" / Oval / 16" X 4.25" X 7.88" / 21" overall | Borla application panel: XR-1® Sportsman Racing Muffler. 2.5" Center Inlet/ 2.5" Center Outlet 4.25" x 7.88" Oval x 16" Long Body 21" Overall Length. Universal Part. Reversible Design.; Borla technical table: Muffler Config: Center/Center; Muffler Shape: Oval; Muffler Tubing Size: 2.5"; Case Dimensions: 16" X 4.25" X 7.88"; Muffler Oal: 21" | If clamping, use wide (2 bolt style) band clamps (clamps NOT included). High-quality T-304 austenitic stainless steel for superior corrosion resistance. 100% welded construction for strength. |
| 40943 — 3" / Oval / 12" X 4.25" X 7.88" / 17" overall | Borla application panel: XR-1® Sportsman Racing Muffler - 3" Center Inlet/ 3" Center Outlet 4.25" x 7.88" Oval x 12" Long Body 17" Overall Length. Universal Part. Reversible Design.; Borla technical table: Muffler Config: Center/Center; Muffler Shape: Oval; Muffler Tubing Size: 3"; Case Dimensions: 12" X 4.25" X 7.88"; Muffler Oal: 17" | If clamping, use wide (2 bolt style) band clamps (clamps NOT included). High-quality T-304 austenitic stainless steel for superior corrosion resistance. 100% welded construction for strength. If clamping, use 3" wide band clamps 18006. |
| 40944 — 3" / Oval / 16" X 4.25" X 7.88" / 21" overall | Borla application panel: XR-1® Sportsman Racing Muffler 3" Center Inlet/ 3" Center Outlet 4.25" x 7.88" Oval x 16" Long Body 21" Overall Length. Universal Part. Reversible Design.; Borla technical table: Muffler Config: Center/Center; Muffler Shape: Oval; Muffler Tubing Size: 3"; Case Dimensions: 16" X 4.25" X 7.88"; Muffler Oal: 21" | If clamping, use wide (2 bolt style) band clamps (clamps NOT included). High-quality T-304 austenitic stainless steel for superior corrosion resistance. 100% welded construction for strength. If clamping, use 3" wide band clamps 18006. |
| 40945 — 3.5" / Oval / 12" X 4.25" X 7.88" / 17" overall | Borla application panel: XR-1® Sportsman Racing Muffler 3.5" Center Inlet/ 3.5" Center Outlet 4.25" x 7.88 Oval x 12" Long Body 17" Overall Length. Universal Part. Reversible Design.; Borla technical table: Muffler Config: Center/Center; Muffler Shape: Oval; Muffler Tubing Size: 3.5"; Case Dimensions: 12" X 4.25" X 7.88"; Muffler Oal: 17" | If clamping, use wide (2 bolt style) band clamps (clamps NOT included). High-quality T-304 austenitic stainless steel for superior corrosion resistance. 100% welded construction for strength. |
| 40946 — 3.5" / Oval / 16" X 4.25" X 7.88" / 21" overall | Borla application panel: XR-1® Sportsman Racing Muffler 3.5" Center Inlet/ 3.5" Center Outlet 4.25" x 7.88" Oval x 16" Long Body 21" Overall Length. Universal Part. Reversible Design.; Borla technical table: Muffler Config: Center/Center; Muffler Shape: Oval; Muffler Tubing Size: 3.5"; Case Dimensions: 16" X 4.25" X 7.88"; Muffler Oal: 21" | If clamping, use wide (2 bolt style) band clamps (clamps NOT included). High-quality T-304 austenitic stainless steel for superior corrosion resistance. 100% welded construction for strength. |
| 40947 — 4" / Oval / 12" X 4.25" X 7.88" / 17" overall | Borla application panel: XR-1® Sportsman Racing Muffler 4" Center Inlet/ 4" Center Outlet 4.25" x 7.88" Oval x 12" Long Body 17" Overall Length. Universal Part. Reversible Design.; Borla technical table: Muffler Config: Center/Center; Muffler Shape: Oval; Muffler Tubing Size: 4"; Case Dimensions: 12" X 4.25" X 7.88"; Muffler Oal: 17" | If clamping, use wide (2 bolt style) band clamps (clamps NOT included). High-quality T-304 austenitic stainless steel for superior corrosion resistance. 100% welded construction for strength. |
| 40948 — 4" / Oval / 16" X 4.25" X 7.88" / 21" overall | Borla application panel: XR-1® Sportsman Racing Muffler 4" Center Inlet/ 4" Center Outlet 4.25" x 7.88" Oval x 16" Long Body 21" Overall Length. Universal Part. Reversible Design.; Borla technical table: Muffler Config: Center/Center; Muffler Shape: Oval; Muffler Tubing Size: 4"; Case Dimensions: 16" X 4.25" X 7.88"; Muffler Oal: 21" | If clamping, use wide (2 bolt style) band clamps (clamps NOT included). High-quality T-304 austenitic stainless steel for superior corrosion resistance. 100% welded construction for strength. |
| 401392 — 2.5" / Round / 15" X 5" / 20" overall | Borla application panel: XR-1® Sportsman Racing Muffler 2.5" Center Inlet/ 2.5" Center Outlet 5" Round x 15" Long Body, 20" Overall Length. Universal Part. Reversible Design.; Borla technical table: Muffler Config: Center/Center; Muffler Shape: Round; Muffler Tubing Size: 2.5"; Case Dimensions: 15" X 5"; Muffler Oal: 20" | If clamping, use wide (2 bolt style) band clamps (clamps NOT included). High-quality T-304 austenitic stainless steel for superior corrosion resistance. 100% welded construction for strength. |
Check Borla's installation instructions for the selected part number before fitting.
