| Specification | Details |
|---|---|
| Manufacturer | ARB |
| SKU | XRRB1780420 |
| Manufacturer part number | 1780420 |
| Bridge plates | Four |
| Included bolts | Four M8 x 50 |
| Included nuts | Four M8 Nyloc |
| Included washers | Eight M8 |
| Rooftop-tent clamp rating | 75 kg per set of four |
| Clamped-pair rating | 5 kg |
| Stud-plate bolt-mount rating | 2 kg; separate 6980060 kit |
| Alloy-block mount rating | 10 kg; 1780200 or 1780610 mounts |
| BASE Rack cross-slat limit | 25 kg per slat |
| Overall installation limit | Lowest applicable mounting, rack and vehicle limit |
The narrow bridge plates give you several ways to connect suitable equipment to the BASE Rack, including a matched rooftop-tent clamp arrangement. Four plates and the specified M8 hardware are supplied, ready for the mounting method your equipment requires.
SKU: XRRB1780420
The rooftop-tent clamp arrangement is rated at 75 kg per set of four plates. A clamped pair is rated at 5 kg; the stud-plate bolt arrangement at 2 kg; and the specified alloy-block arrangement at 10 kg. Those ratings belong to different installations and cannot be swapped between them.
The bolt-mount option needs the separate 6980060 stud-plate kit; the alloy-block option uses 1780200 or 1780610 mounts. The BASE Rack limit of 25 kg per cross slat and the rack and vehicle limits still apply. For large tents it may be necessary to fit the tent to the rack off the vehicle before refitting the rack.

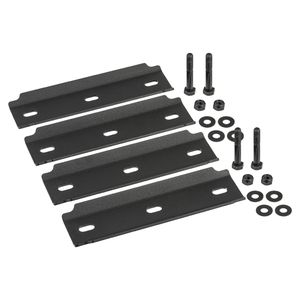

The kit contains four narrow bridge brackets, four M8 x 50 bolts, four M8 Nyloc nuts and eight M8 washers. Use the specified hardware and mounting guide, with fastener checks after installation and at regular intervals.
For UK customers, the price shown includes VAT, customs charges and supplier shipping costs, so you can order with confidence and avoid unexpected customs bills after purchase. If any customs-related questions or issues arise, Hoonies Adrenaline will handle them for you.
For orders outside the UK, please contact us through the contact form before purchasing so we can prepare a personalised quote.
We aim to keep strong stock availability across the products we sell, but imported, specialist and custom-order items may have a lead time. If you need an estimated delivery window before ordering, please contact us and we will be happy to check this for you.
If you place an order for an item that is currently out of stock or already on order with a supplier, Hoonies Adrenaline will contact you as soon as possible with an update.
| Specification | Details |
|---|---|
| Manufacturer | ARB |
| SKU | XRRB1780420 |
| Manufacturer part number | 1780420 |
| Bridge plates | Four |
| Included bolts | Four M8 x 50 |
| Included nuts | Four M8 Nyloc |
| Included washers | Eight M8 |
| Rooftop-tent clamp rating | 75 kg per set of four |
| Clamped-pair rating | 5 kg |
| Stud-plate bolt-mount rating | 2 kg; separate 6980060 kit |
| Alloy-block mount rating | 10 kg; 1780200 or 1780610 mounts |
| BASE Rack cross-slat limit | 25 kg per slat |
| Overall installation limit | Lowest applicable mounting, rack and vehicle limit |
No. The 75 kg figure applies to the specified rooftop-tent clamp arrangement using four plates. Other mounting methods have different limits.
Yes, with the listed M8 bolts, nuts and washers.
No. The vehicle and rack limits still apply alongside the rating for your mounting method.
