An XL80 pair gives your truck a compact, purposeful lighting upgrade with enough choice to suit the way you drive. Choose Driving/Combo for a blend of reach and spread, or Wide Cornering to put more light around the bends and edges of the track. Each light produces 9,022 raw lumens, and the kit brings two pods, a harness and mounting hardware together.
Driving/Combo combines forward spot and driving optics. Wide Cornering favours a broader view around the front of the truck, useful when you want to see where a tight trail turns. Clear and amber main lenses are offered with either pattern.
The XL80 also has a dimming function for lower-output use with the appropriate wiring and control arrangement. Plan that control during installation rather than assuming every switch arrangement operates every function.
The hard-anodised and powder-coated aluminium housing, hard-coated polycarbonate lens and stainless hardware suit regular off-road use. Replaceable lenses and optics let you keep the lights useful if you later need a repair or want a different compatible pattern.
The light body is 4.43in square and 3.65in deep. Allow additional room for its bracket, connector and aiming movement. The pair includes a harness and mounting hardware; vehicle-specific mounting brackets are separate.
| Specification | Details |
|---|---|
| Brand | Baja Designs |
| Supplied quantity | Two light pods |
| Raw output per light | 9,022 lm |
| Electrical rating per light | 75.9W / 5.5A |
| Modes | Main beam and 20% dimming function with appropriate wiring/control |
| Housing | Hard Anodized and Powder Coated Cast Aluminum |
| Lens | Hardcoated Polycarbonate |
| Mounting hardware material | Stainless Steel |
| Average rated LED life | 49,930 hours |
| Light body dimensions, W x H x D | 4.43 x 4.43 x 3.65in; allow additional mounting/connector clearance |
| Main lens choices | See the beam and lens options below |
| Wiring harness included | Yes |
| Mounting hardware included | Yes |
| Durability rating | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Impact rating | IK10 Compliant (Mechanical Impact Testing) |
| Water-resistance rating | IP69K (Waterproof up to 9ft & Pressure Washable) |
| SKU / reference | Option | Details |
|---|---|---|

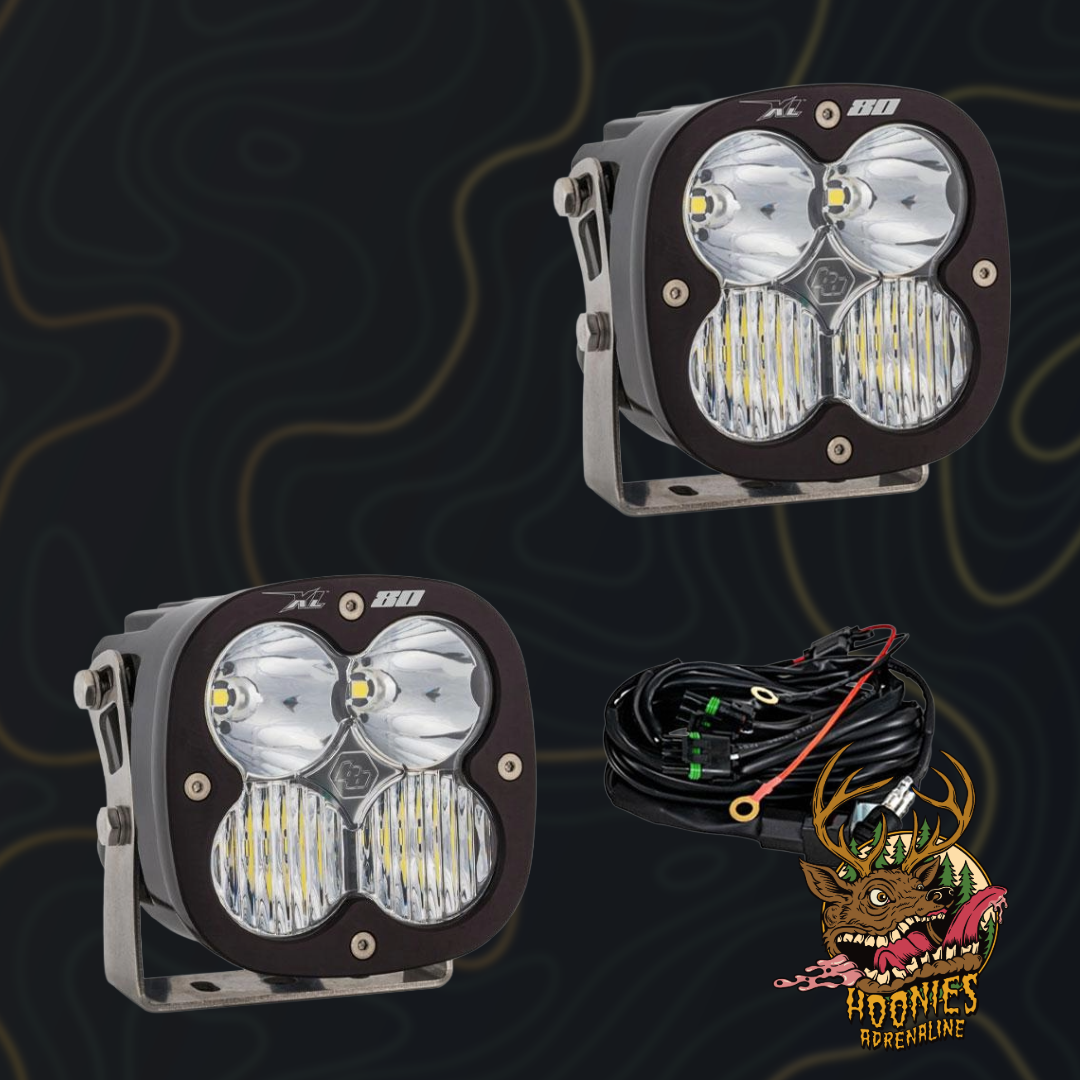

| 677803 | Driving / Combo / Clear | Two lights; Driving/Combo; Clear main lenses; harness included |

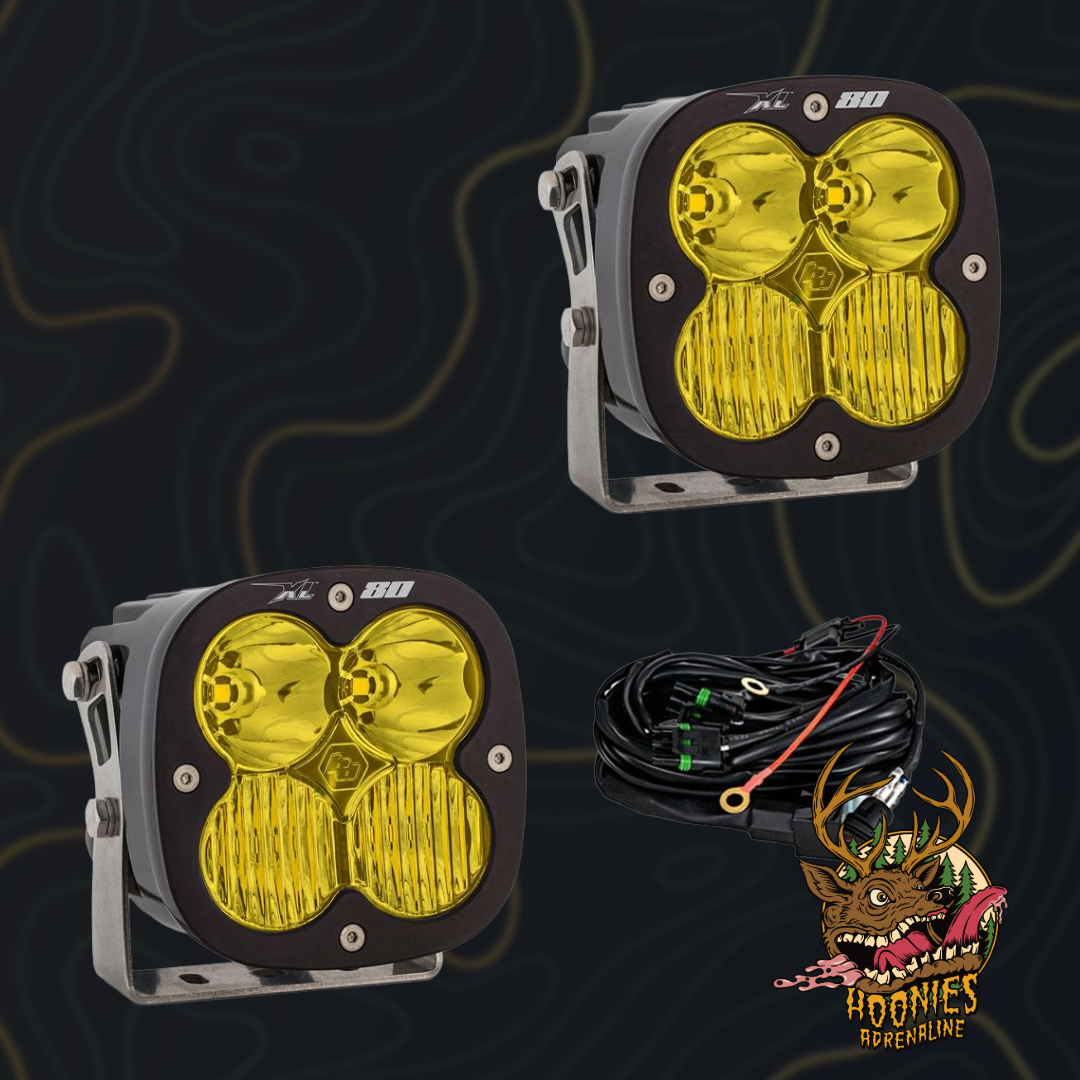

| 677813 | Driving / Combo / Amber | Two lights; Driving/Combo; Amber main lenses; harness included |

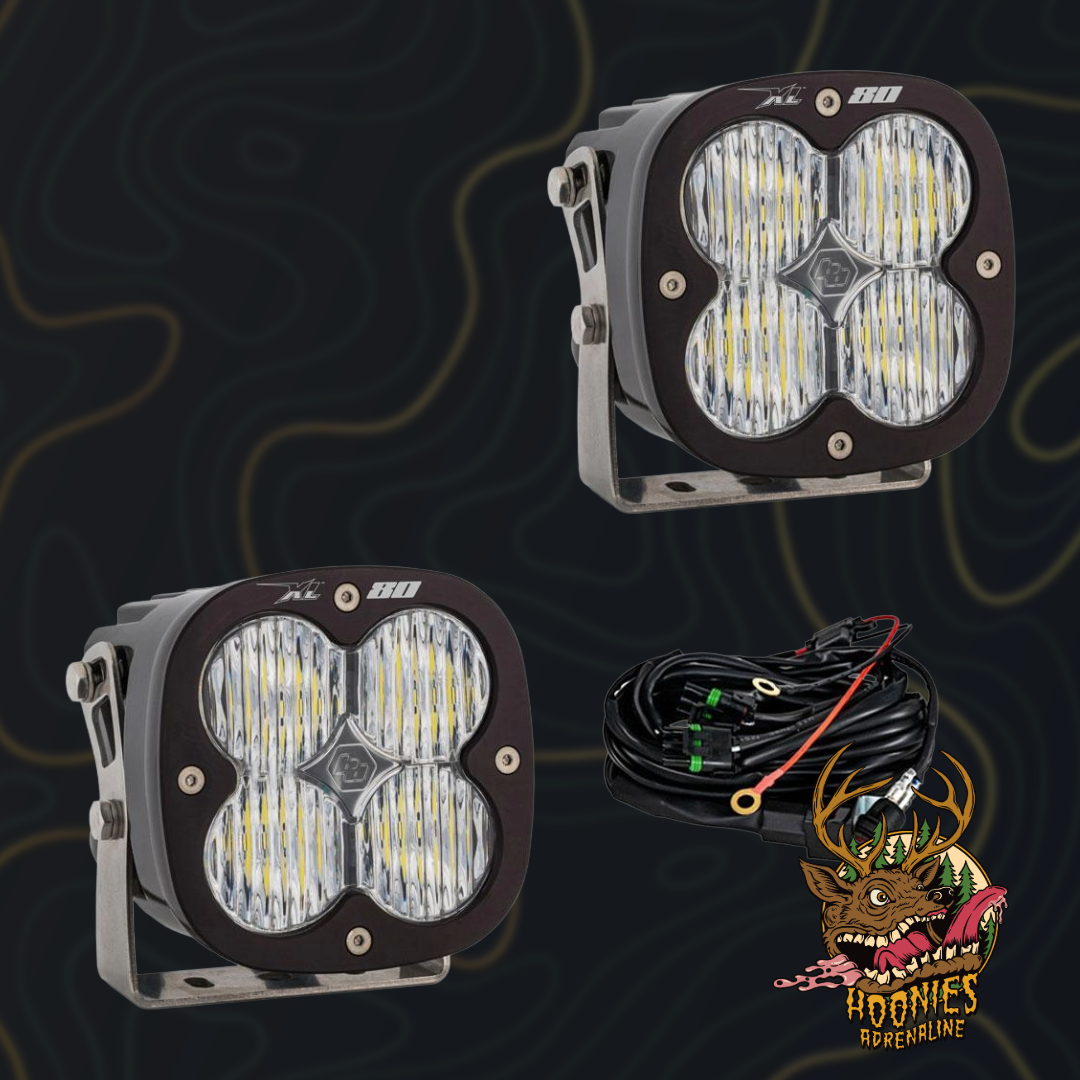

| 677805 | Wide Cornering / Clear | Two lights; Wide Cornering; Clear main lenses; harness included |

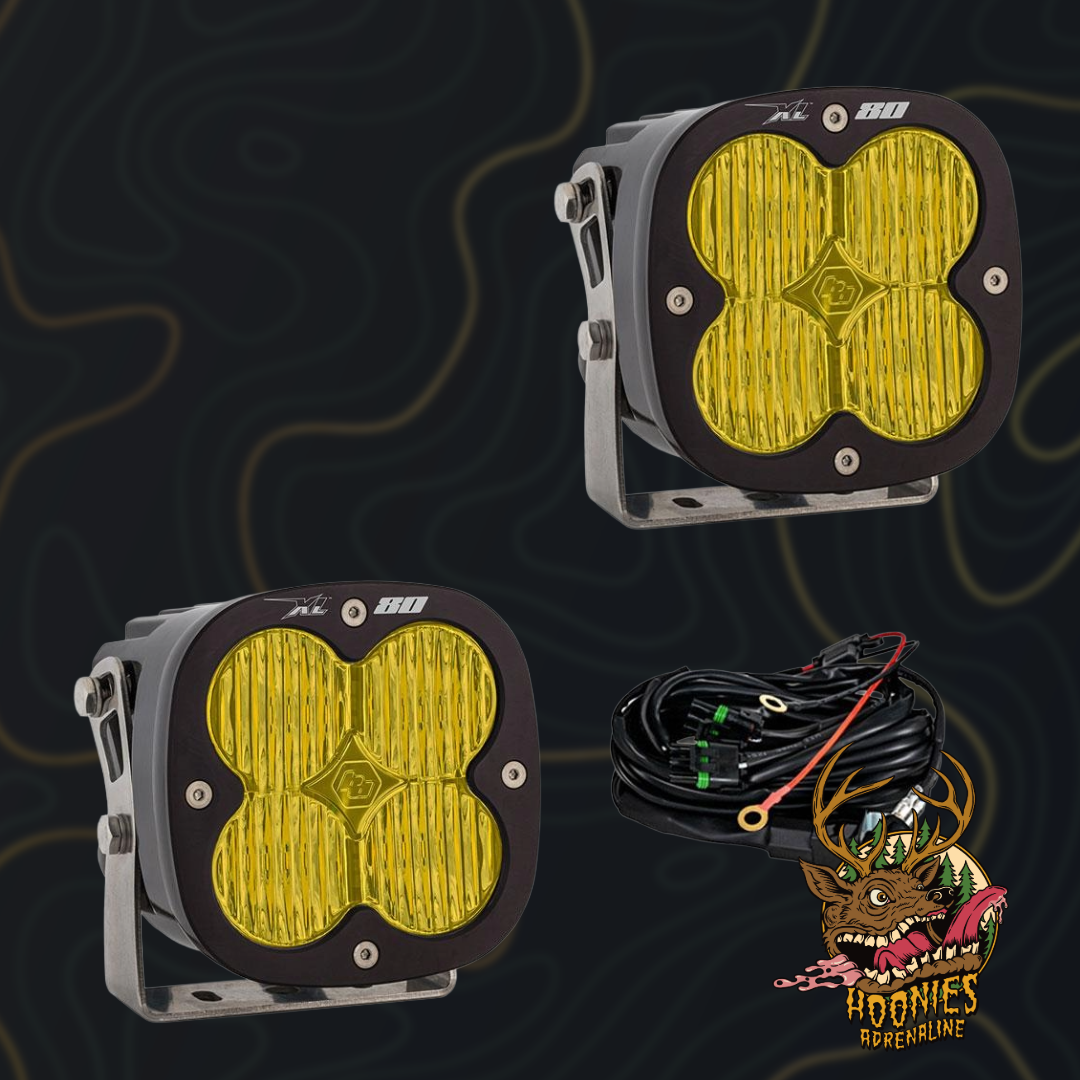

| 677815 | Wide Cornering / Amber | Two lights; Wide Cornering; Amber main lenses; harness included |
Yes. This is a two-light kit with wiring harness and mounting hardware. Choose any vehicle-specific brackets separately.
It is the raw-lumen rating for one XL80. There are two lights in this kit.
Driving/Combo and Wide Cornering, each with clear or amber main lenses.
Yes, with the appropriate wiring and control arrangement. Follow the light wiring guidance when planning how you will switch the function.
The light body measures 4.43 x 4.43 x 3.65in. Leave room for the mounting bracket, connector and adjustment as well.
