AutoVolt Reverse Light Relay Loom Ford Ranger (2011–2022) – Plug & Play Auxiliary Reverse Light Wiring Harness (LED Only, 80W Rated)

AutoVolt Reverse Light Relay Loom for Ford Ranger – Reliable Auxiliary Reverse Lighting

Purpose-Built Solution for Auxiliary Reverse Lighting

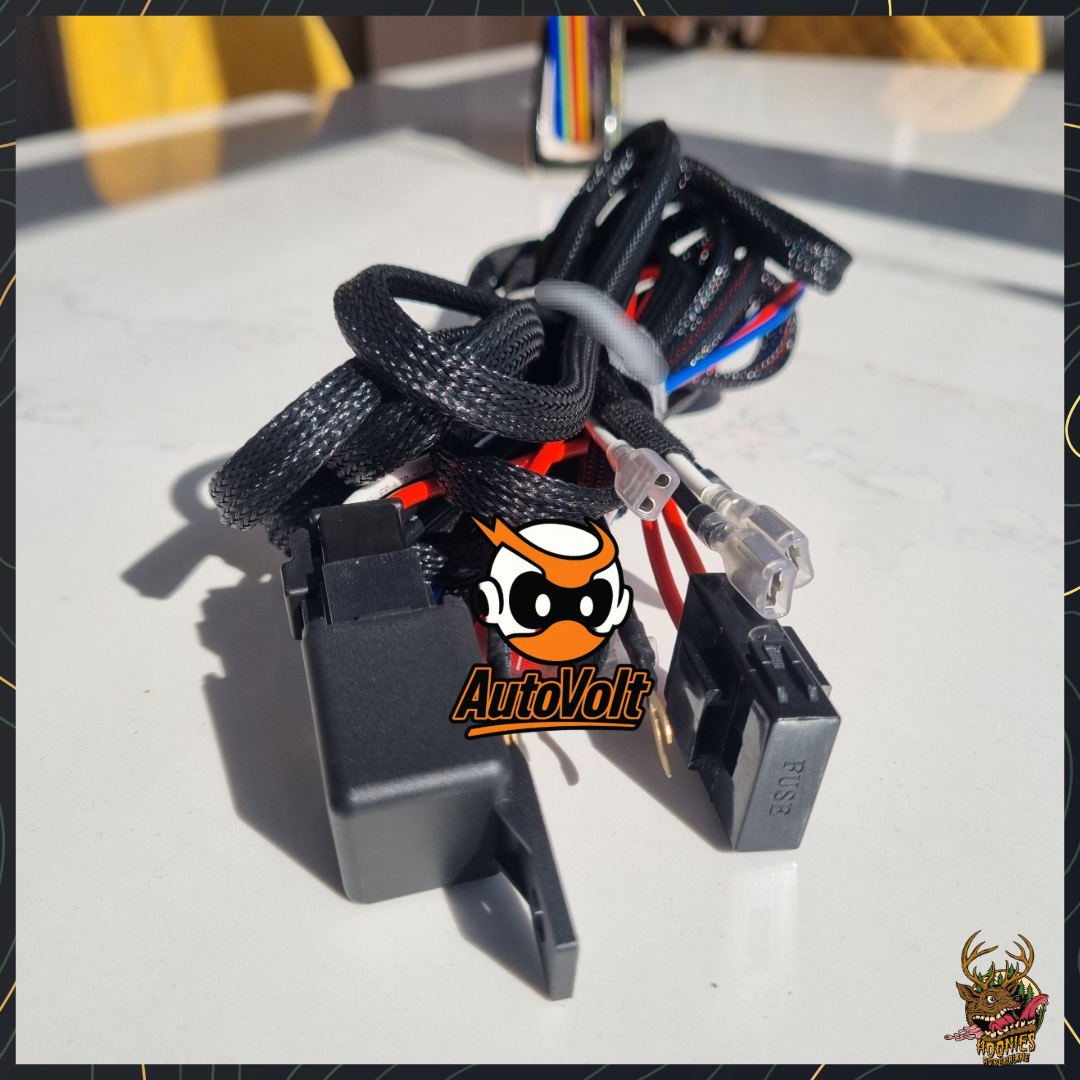

The AutoVolt Reverse Light Relay Loom is engineered specifically for Ford Ranger models from 2011 to 2022, providing a robust and safe wiring solution for adding auxiliary LED reverse lights. This plug-and-play harness is designed to integrate seamlessly with AutoVolt reverse light piggyback looms, ensuring a straightforward installation and dependable performance for demanding off-road, worksite, or expedition use.

How the Relay Loom Works

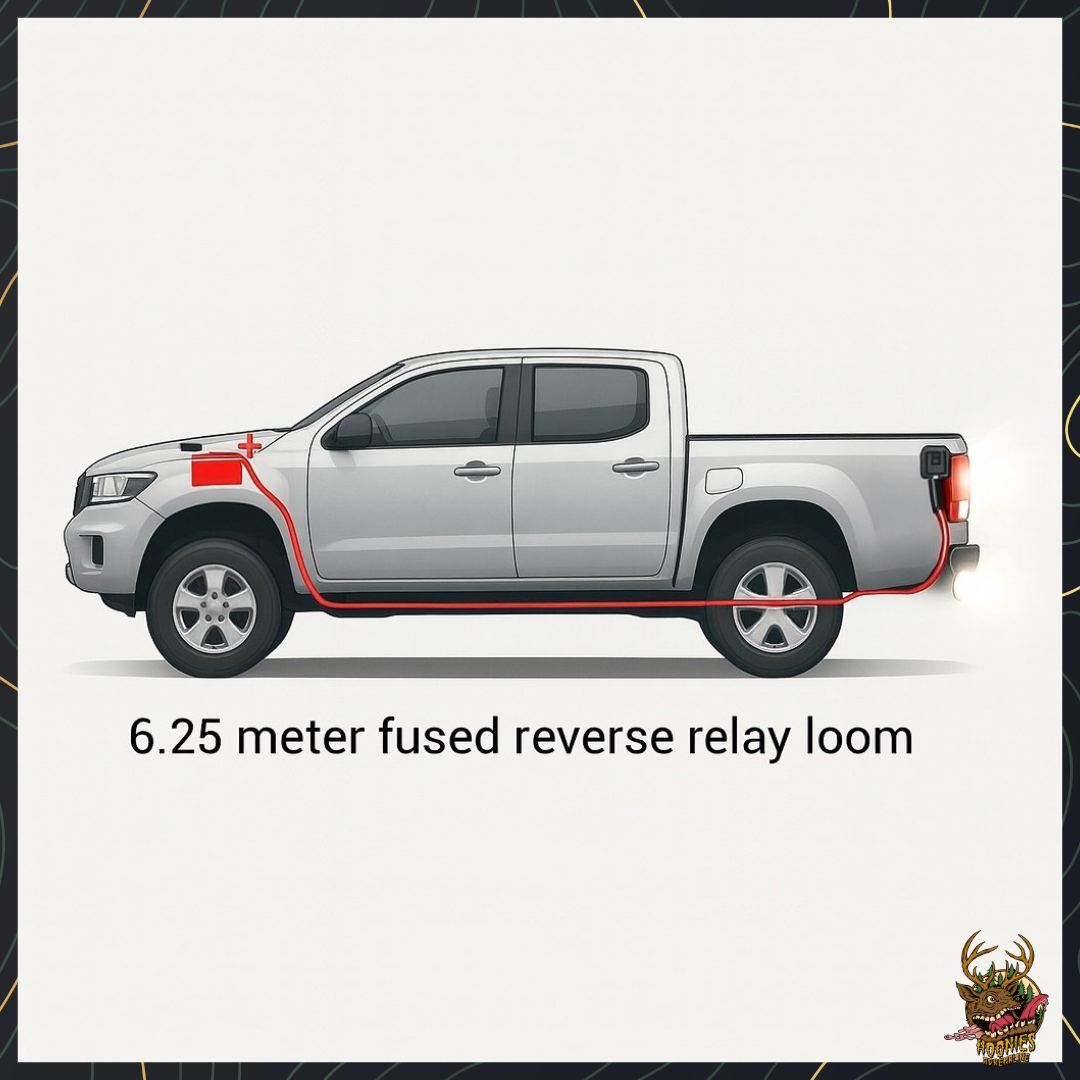

Modern vehicles like the Ford Ranger utilise sensitive electronic control modules to manage lighting circuits. Drawing extra power directly from the factory reverse light wiring can risk overloading these systems, potentially causing faults or damaging the Body Control Module (BCM). The AutoVolt relay loom solves this by using the factory reverse light signal only as a trigger, while the relay supplies power to auxiliary lights directly from the battery via a dedicated fused line. This approach protects the vehicle’s electronics and ensures consistent, reliable lighting output.

Where This Loom Is Most Useful

This relay harness is ideal for Ford Ranger owners who need to install:

• Multiple LED auxiliary reverse lights
• High-output LED reverse work lights
• Reverse light bars mounted under the bumper or canopy
• Auxiliary lighting systems requiring secure, high-current power delivery

It is especially valuable for off-roaders, tradespeople, and anyone who regularly operates in low-light or challenging environments where enhanced rear visibility is essential.

Key Benefits for Ford Ranger Owners

• Protects factory wiring and BCM from overload
• Supports up to 80W combined LED lighting load
• Plug-and-play compatibility with AutoVolt piggyback looms
• Dual output connectors for two lights or one high-power light
• No cutting or modification of factory wiring required
• Professional-grade installation with weather-resistant connectors

Technical Specifications

Installation and Compatibility Notes

The AutoVolt relay loom is designed for a true plug-and-play experience when used with compatible AutoVolt reverse light piggyback looms on Ford Ranger models (2011–2022). No cutting, splicing, or modification of the factory wiring is required, making installation straightforward for both DIY enthusiasts and professional installers. This loom is only suitable for LED lighting systems and is not intended for halogen lights due to their higher current draw.

Why Choose This Relay Loom?

Adding auxiliary reverse lighting to your Ford Ranger can transform night-time visibility and safety, but only if installed with a system that protects your vehicle’s sensitive electronics. The AutoVolt relay loom provides a dedicated, fused power path for high-output LED lights, ensuring reliable operation without risking BCM faults or wiring damage. This is a proven solution for those who demand more from their vehicle’s lighting, whether for off-roading, towing, or worksite applications.

Frequently Asked Questions

Will this relay loom fit my Ford Ranger?

This loom is specifically designed for Ford Ranger models from 2011 to 2022. It is intended to be used in conjunction with AutoVolt reverse light piggyback looms for seamless integration.

Can I use this loom with halogen reverse lights?

No, this relay loom is designed for LED lighting systems only and is rated for a maximum combined load of 80W. Halogen lights typically draw more current and are not supported.

Do I need to modify my factory wiring?

No modifications are required. The loom is plug-and-play with compatible AutoVolt piggyback looms, preserving your vehicle’s original wiring and warranty.

How many auxiliary lights can I run with this loom?

The loom provides two output connectors, allowing you to run two separate LED reverse lights or one higher-power light bar, up to a total of 80W combined.

What protection does the loom offer for my vehicle?

The relay and inline fuse protect both your auxiliary lighting and your vehicle’s sensitive electronics, ensuring safe operation and reducing the risk of electrical faults.
