AutoVolt Main Beam Relay Loom & Piggyback Package Ford Ranger (2011–2022) – Plug & Play High Beam Auxiliary Lighting Wiring Kit

AutoVolt Main Beam Relay Loom & Piggyback Package for Ford Ranger

The AutoVolt Main Beam Relay Loom & Piggyback Package is engineered specifically for the Ford Ranger (2011–2022), providing a professional-grade, plug-and-play wiring solution for integrating auxiliary LED light bars and driving lights with your vehicle’s high beam system. Designed for enthusiasts and professionals seeking a reliable and reversible installation, this kit enables seamless control of aftermarket lighting upgrades while protecting the vehicle’s sensitive electronics.

How the Main Beam Relay Loom Works

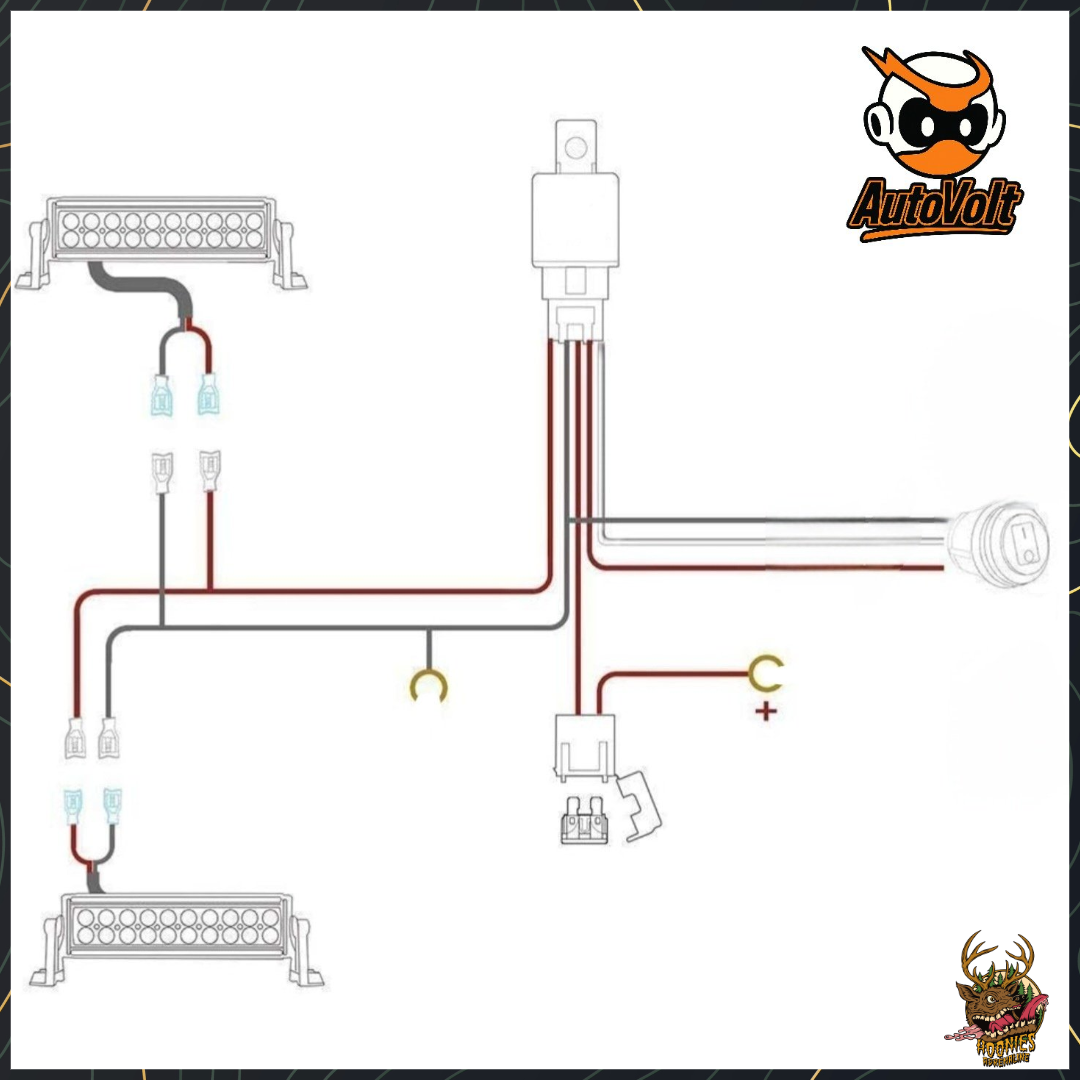

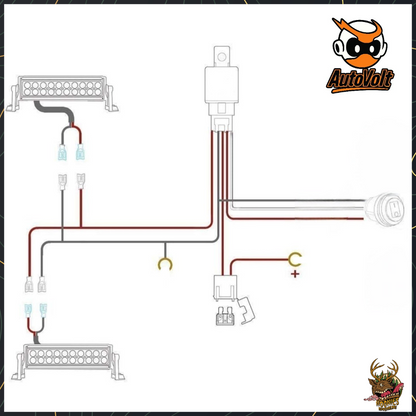

Modern vehicles like the Ford Ranger use advanced electronic control modules that can be damaged by high-current loads from auxiliary lighting. The AutoVolt relay loom addresses this by using the factory main beam (high beam) signal purely as a trigger. The actual power for your auxiliary lights is drawn directly from the battery via a fused relay harness, ensuring safe and consistent operation without overloading the original wiring or control units.

Where This Wiring Kit Is Most Useful

This kit is ideal for any Ford Ranger owner looking to add roof-mounted LED light bars, bumper-mounted driving lights, or other high-output auxiliary lighting. Whether you’re preparing for off-road adventures, night-time expeditions, or simply want improved visibility on rural roads, the AutoVolt loom enables your auxiliary lights to activate automatically with the main beam, all while maintaining a clean, OEM-style installation.

• Roof-mounted LED light bars
• Bumper-mounted driving lights
• Auxiliary off-road lighting systems

Key Benefits of the AutoVolt Relay Loom for Ford Ranger

• Plug-and-play installation—no cutting or splicing of factory wiring
• Dedicated piggyback loom for safe, reversible connection to the high beam circuit
• 40A relay and 15A inline fuse support up to 200W of LED lighting (upgradeable to ~250W with a 20A fuse)
• Heavy-duty wiring and weather-resistant connectors for durability
• Inline isolation switch allows auxiliary lights to be disabled for road use or inspections
• Maintains vehicle warranty and integrity by avoiding direct modification of OEM wiring

Construction and Electrical Components

AutoVolt’s loom is built for reliability in demanding environments. The package includes a 40-amp relay for robust switching, a 15-amp inline fuse (supporting up to 200W LED lighting), and heavy-duty wiring with weather-resistant connectors. The wiring lengths and trigger cable routing are optimised for the Ford Ranger engine bay, ensuring a tidy, factory-style installation that is fully reversible if required.

Installation and Use Considerations

This kit is designed for straightforward, plug-and-play fitting with no need for specialist tools or electrical knowledge. The piggyback loom connects directly to the Ranger’s high beam circuit, while the relay harness draws power from the battery. An inline switch is included, giving you the flexibility to disable the auxiliary lighting circuit for legal compliance or vehicle inspections. The entire system can be removed without leaving permanent changes to the vehicle.

Technical Specifications

Why Choose This AutoVolt Loom for Your Ford Ranger?

Adding powerful auxiliary lighting to your Ford Ranger can risk damaging factory wiring or voiding warranties if not done correctly. The AutoVolt Main Beam Relay Loom & Piggyback Package solves this by isolating the high beam trigger from the lighting power circuit, ensuring safe, reliable operation and a professional finish. This is the ideal solution for owners who want robust lighting upgrades without compromising vehicle integrity or future resale value.

Frequently Asked Questions

Will this loom fit other vehicles besides the Ford Ranger (2011–2022)?

This package is specifically designed for the Ford Ranger (2011–2022). For other vehicles, check for dedicated AutoVolt looms or consult with your supplier.

Can I install this kit myself, or do I need a professional?

The loom is designed for straightforward, plug-and-play installation. Basic tools and familiarity with your vehicle’s engine bay are recommended, but no specialist skills are required.

What types of auxiliary lights can I connect?

The kit supports LED driving lights, light bars, and other auxiliary lighting systems up to 200W with the supplied fuse, or up to ~250W with a 20A fuse upgrade.

Will this kit affect my vehicle’s warranty?

Because the loom connects via piggyback connectors and does not require cutting or splicing, it is designed to avoid affecting your vehicle’s warranty. Always confirm with your dealer for specific warranty terms.

Is the installation reversible?

Yes, the system can be removed at any time, restoring the vehicle to its original condition without trace.

How does the inline switch work?

The inline switch allows you to disable the auxiliary lighting circuit when required, such as for road use or during vehicle inspections.
