AutoVolt LED Grille DRL Piggyback Loom for Ford Ranger (Next-Gen 2023+)

Purpose and Function of the Piggyback Loom

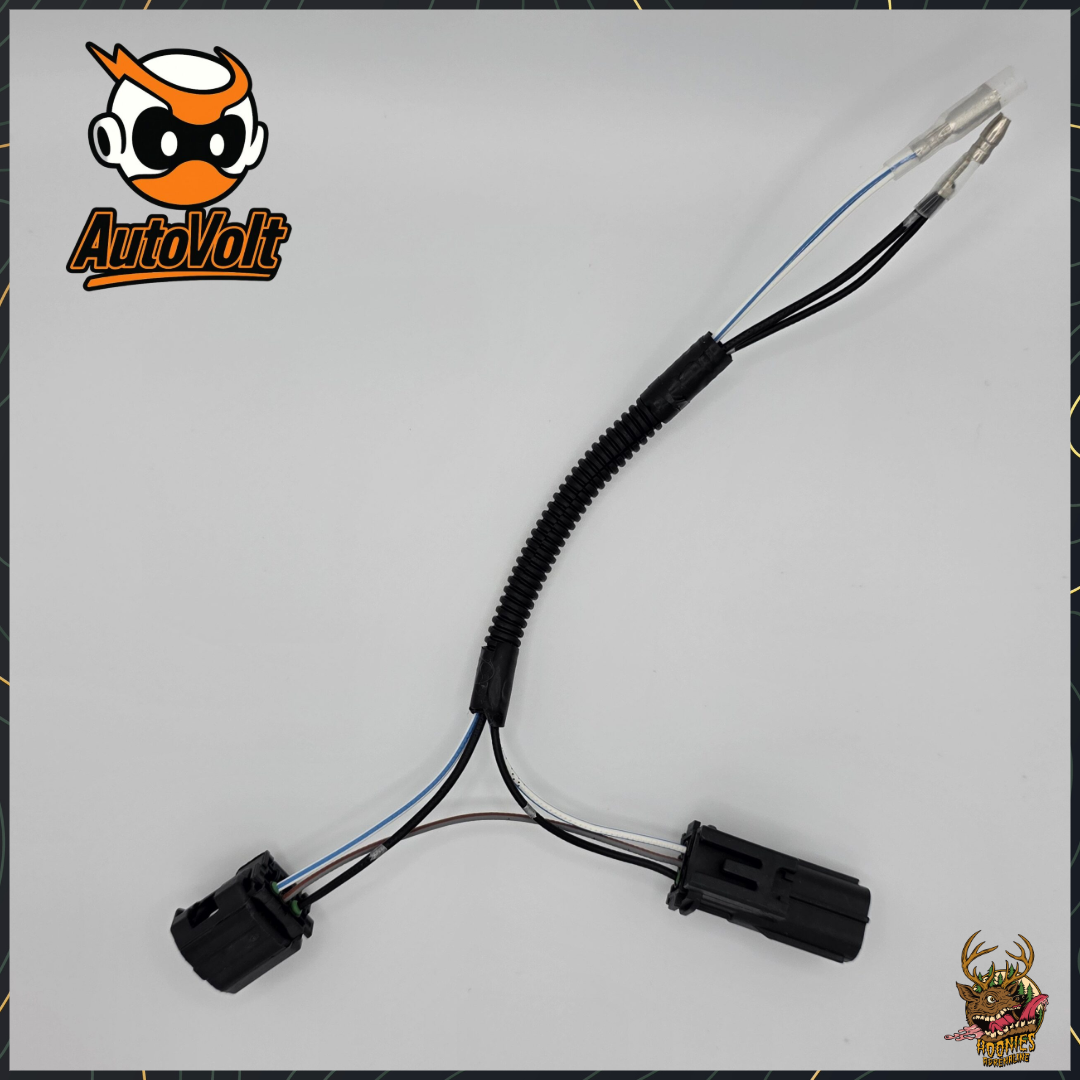

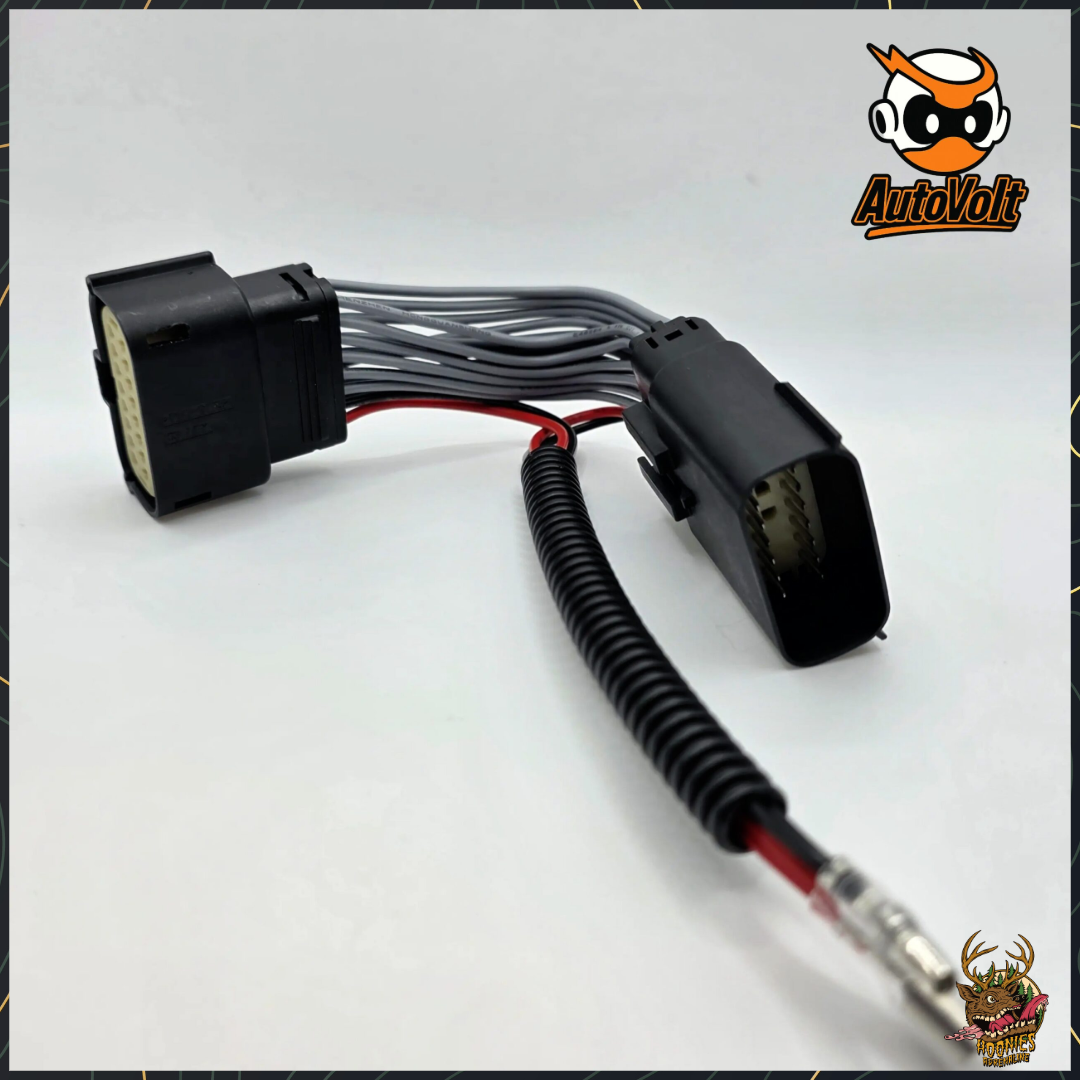

The AutoVolt LED Grille DRL Piggyback Loom is engineered for the Next-Gen Ford Ranger (2023+), providing a seamless solution for adding aftermarket LED grille lights or light strips. This plug-and-play wiring harness allows you to power low-voltage LED lighting directly from the vehicle’s existing wiring, without the need to cut, splice, or modify the factory loom. The loom is designed to insert between the original factory connector and the vehicle wiring, creating a dedicated power source for grille lighting while keeping the OEM system untouched and fully reversible.

How the Loom Improves Grille Lighting Installation

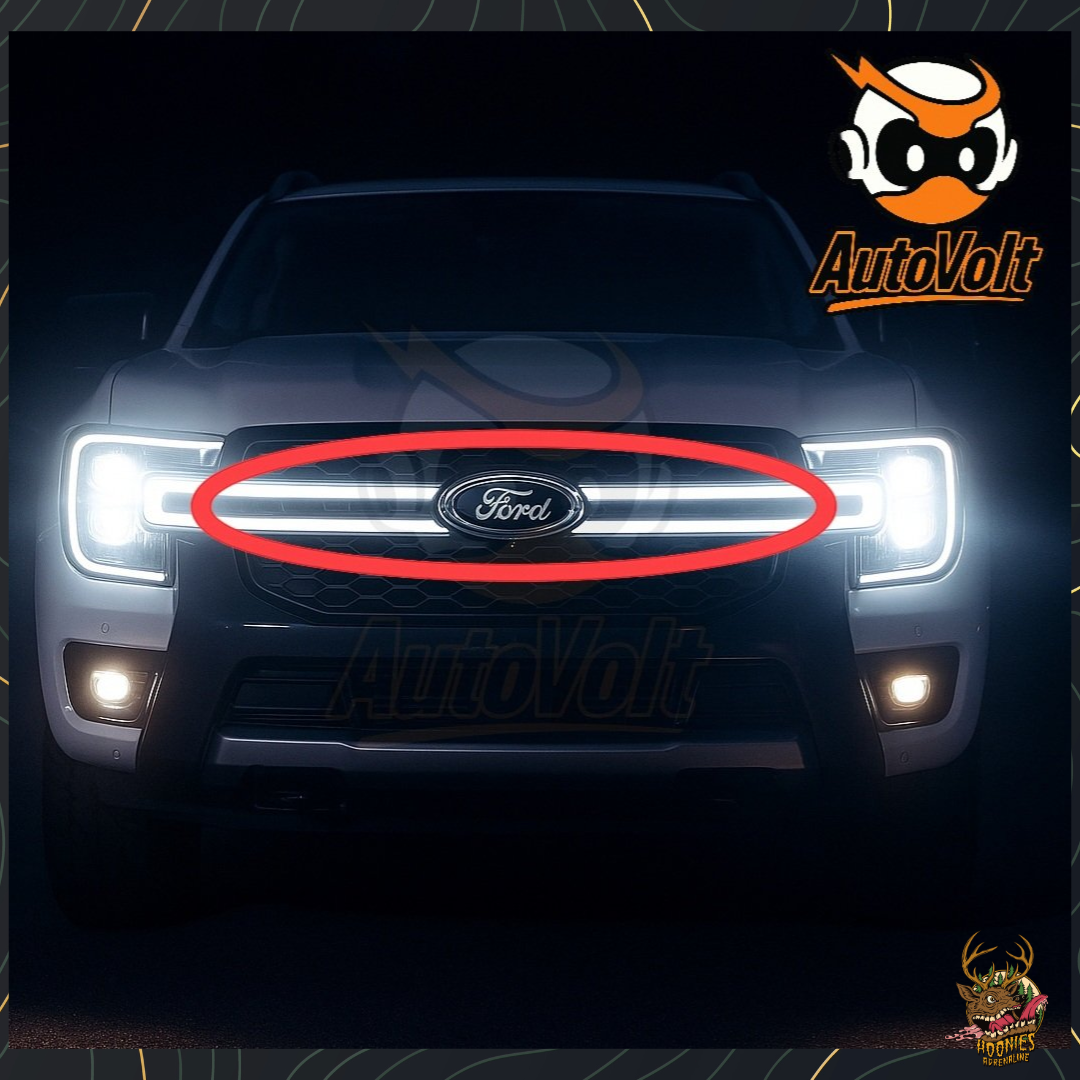

Traditional LED grille light installations often require tapping into the fuse box or cutting into the factory wiring—procedures that can introduce electrical faults, complicate future servicing, and potentially void warranties. The AutoVolt piggyback loom eliminates these risks by offering a non-invasive, vehicle-specific solution. It ensures that your LED grille lights operate as daytime running lights (DRLs), activating with the ignition and remaining illuminated regardless of headlight status. This is particularly valuable for off-road, expedition, and accessory lighting builds where constant visibility and reliability are essential.

Where This Loom Is Especially Useful

This piggyback loom is ideal for Ford Ranger owners who want to add LED grille marker lights or light bars while maintaining the integrity of their vehicle’s electrical system. It is especially suited to:

• Off-road builds requiring robust, always-on grille lighting
• Expedition vehicles where electrical reliability is critical
• Owners seeking a fully reversible, warranty-friendly installation
• Installers aiming for a professional finish without complex wiring work

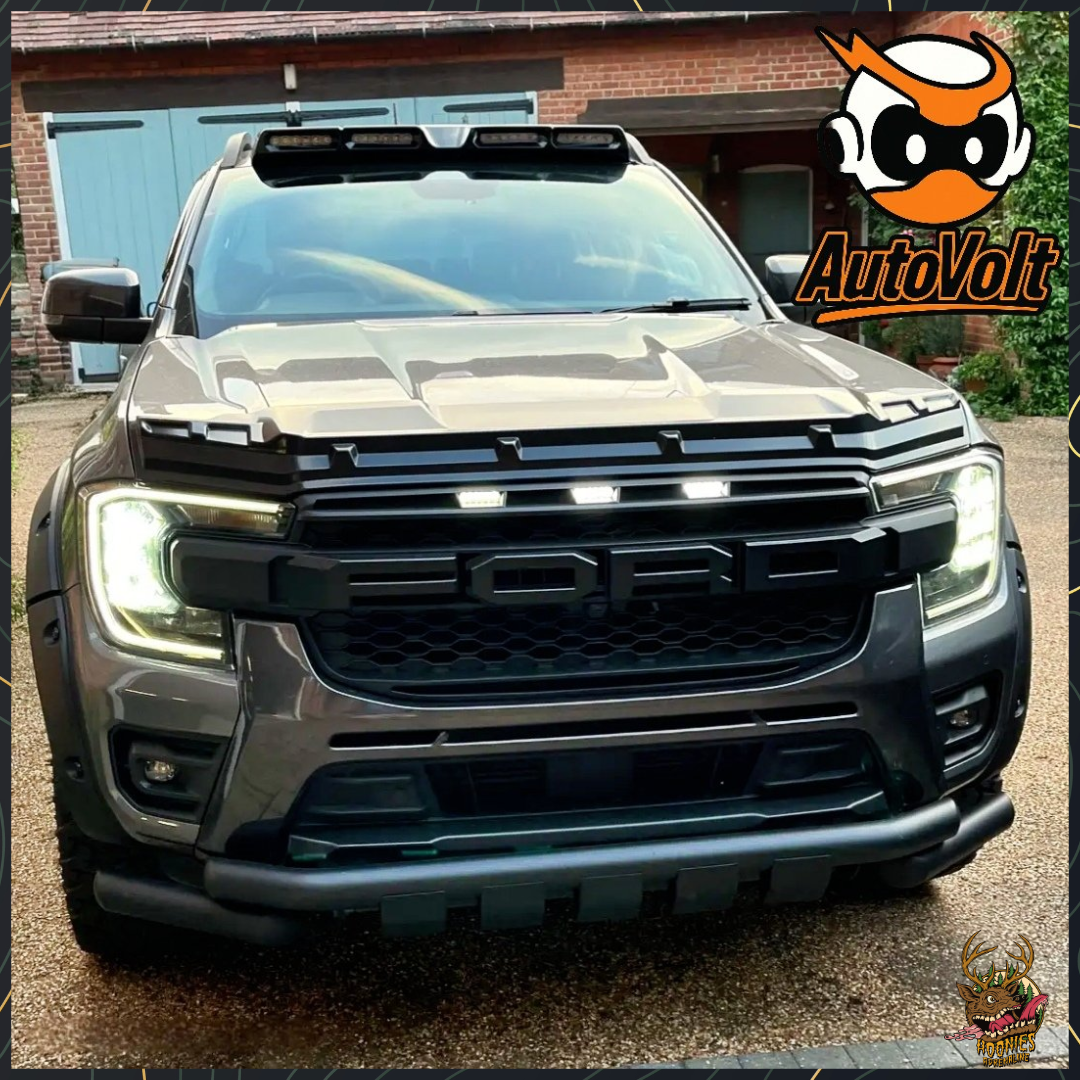

The loom is compatible with low-voltage LED grille lights and LED strip lights, supporting popular aftermarket lighting kits for the Next-Gen Ranger Wildtrak and Raptor variants.

Key Benefits of the AutoVolt Piggyback Loom

• No cutting or modification of the factory wiring loom required
• True plug-and-play installation for straightforward fitting
• Designed specifically for the 2023+ Ford Ranger platform
• Provides reliable power for LED grille lights or strips
• Does not interfere with CANBUS or body control module (BCM) systems
• Lights activate automatically with ignition for DRL-style operation
• Quickly removable for servicing, warranty work, or MOT preparation

Technical Specifications

Brand	AutoVolt
Product Type	Piggyback wiring loom for LED grille lighting
Vehicle Compatibility	Ford Ranger (Next-Gen, 2023+), Wildtrak, Raptor
Supported Lighting	Low-voltage LED grille lights or LED strip lights
Weight	0.7 kg
Dimensions	23 × 17 × 3 cm

Installation and Practical Usage Notes

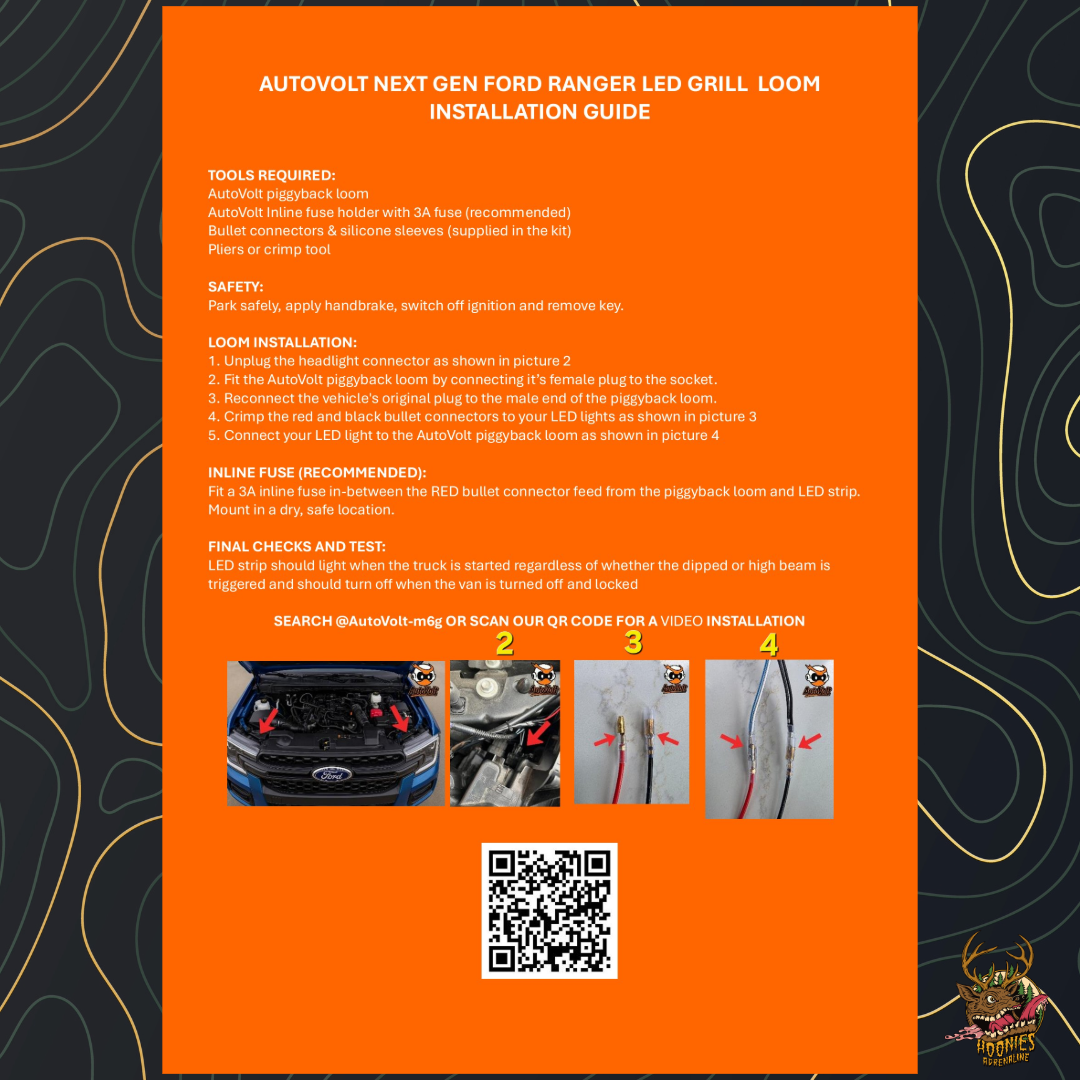

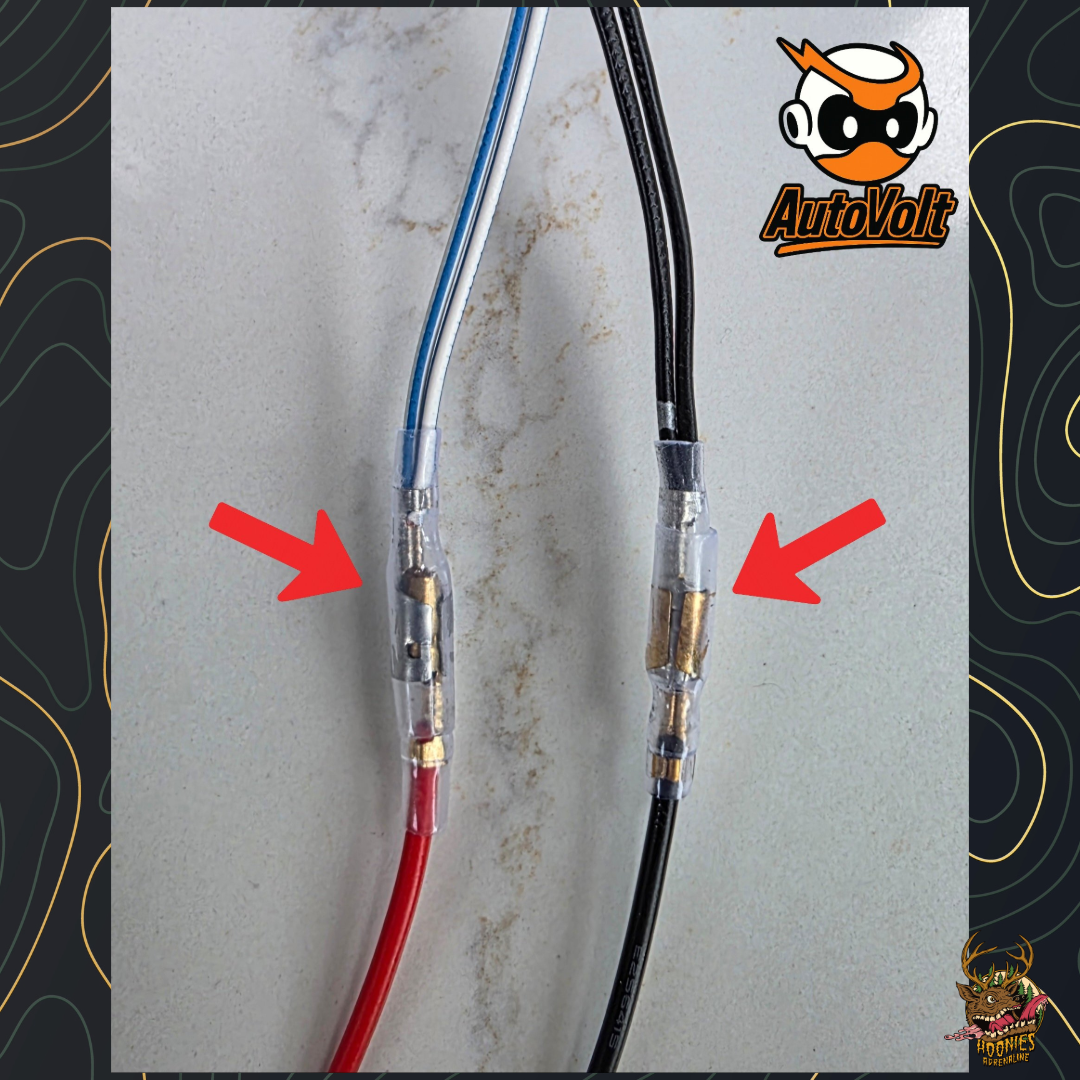

Installing the AutoVolt piggyback loom is designed to be accessible for both DIY enthusiasts and professional installers. The process involves disconnecting the relevant factory connector, inserting the loom in-line, and connecting your LED grille lights using the supplied wiring (red to red, black to black). Connections can be made using solder and heat shrink or waterproof butt connectors. For added protection, an inline fuse is recommended. No specialist electrical knowledge is required, and the loom can be quickly removed if needed, allowing the vehicle to be restored to its original configuration for warranty or MOT purposes.

Real-World Problem Solved

Adding aftermarket grille lighting to modern vehicles can risk electrical faults, interfere with CANBUS or BCM systems, and complicate future repairs. The AutoVolt piggyback loom solves this by providing a safe, reversible, and non-intrusive method to power grille lights, ensuring both reliability and peace of mind for Ford Ranger owners.

Frequently Asked Questions

Does this loom require cutting or splicing the factory wiring?

No, the loom is fully plug-and-play and does not require any modification of the factory wiring.

Which Ford Ranger models is this loom compatible with?

This loom is designed for the Next-Gen Ford Ranger (2023+), including Wildtrak and Raptor variants.

Will the loom affect my vehicle’s CANBUS or BCM systems?

No, the loom is engineered to avoid interference with the vehicle’s CANBUS or body control module.

What type of LED lights can I connect to this loom?

The loom supports low-voltage LED grille lights and LED strip lights commonly used for DRL or accessory lighting.

Is the installation reversible if I need to return the vehicle to stock?

Yes, the loom can be unplugged at any time, returning the vehicle to its original wiring configuration.

Do I need any special tools or electrical skills to install this loom?

No specialist tools or electrical expertise are required. Basic hand tools and attention to wiring polarity (red to red, black to black) are sufficient.
