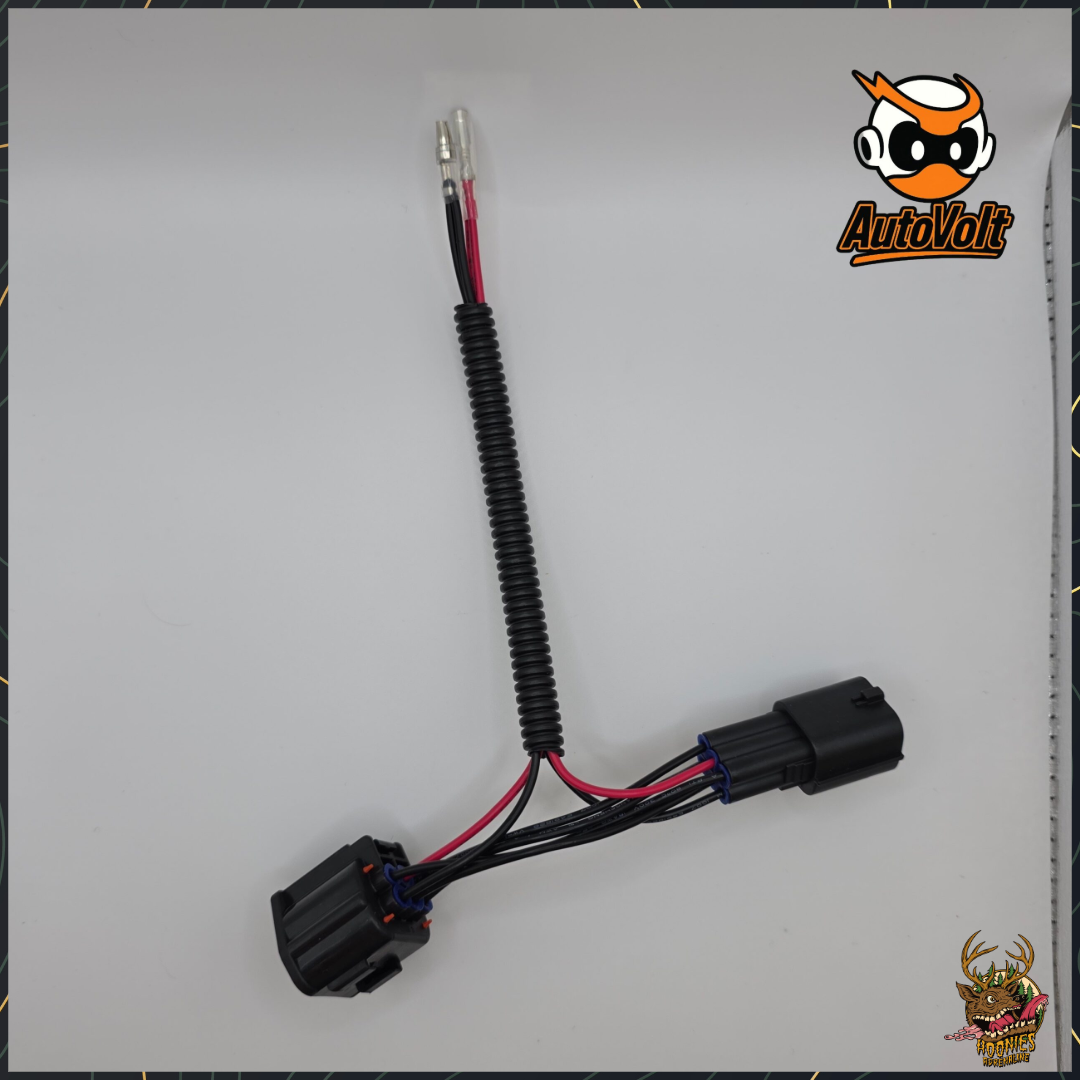

AutoVolt Ford Ranger (2011–2022) Reverse Light Piggyback Loom – Plug & Play Auxiliary Reverse Light Wiring Harness

AutoVolt Reverse Light Piggyback Loom for Ford Ranger (2011–2022)

The AutoVolt Reverse Light Piggyback Loom is engineered specifically for Ford Ranger models from 2011 to 2022, providing a seamless solution for adding auxiliary reverse or work lights. This plug-and-play wiring harness enables owners to enhance rear visibility without modifying or damaging the original vehicle wiring, making it ideal for off-road, towing, and work applications.

How the Piggyback Loom Supports Auxiliary Reverse Lighting

Factory reverse lighting on the Ford Ranger can be insufficient for demanding scenarios such as night-time reversing, off-road manoeuvring, or trailer coupling. The AutoVolt loom connects directly between the factory reverse light connectors, creating a dedicated output for additional lighting. This ensures that auxiliary lights activate automatically when reverse gear is engaged, delivering immediate and reliable illumination exactly when needed.

Typical Use Cases for Ford Ranger Owners

This loom is designed for Ranger owners who require improved rear visibility in challenging environments. It is particularly useful for:

• Reversing in poorly lit areas or at night
• Off-road driving where obstacles may not be visible with standard lighting
• Coupling trailers or caravans after dark
• Working around the rear of the vehicle in low-light conditions

By maintaining the integrity of the factory wiring, the loom is also suitable for leased or fleet vehicles where reversibility and warranty compliance are important.

Key Benefits of the AutoVolt Piggyback Loom

• Plug-and-play installation with no cutting or splicing required
• Maintains full factory wiring integrity and reversibility
• Automatically triggers auxiliary lights when reverse is selected
• Engineered specifically for Ford Ranger (2011–2022)
• Supports a professional, OEM-style installation
• Ideal for powering LED reverse lights or rear work lights

Construction and Compatibility Details

The loom is purpose-built for the Ford Ranger platform, matching factory connector standards to ensure reliable integration. It is lightweight and compact, making it easy to route and conceal during installation. The design supports a total auxiliary light power draw up to 20W; for higher loads, a relay loom is recommended to protect the vehicle’s Body Control Module (BCM).

Installation Guidance

Installation is straightforward and fully reversible:

1. Disconnect the factory reverse light connector at the rear of the vehicle.
2. Insert the AutoVolt piggyback loom between the original connectors.
3. Connect your auxiliary reverse or work light wiring to the loom’s output.

Once installed, auxiliary lights will operate automatically with the vehicle’s reverse gear. No special tools or electrical expertise are required, making this upgrade accessible for DIY or professional installers.

Technical Specifications

FAQ – AutoVolt Ford Ranger Reverse Light Piggyback Loom

How does this loom work with the factory wiring?

The loom piggybacks between the factory reverse light connectors, providing a dedicated output for auxiliary lights without altering the original wiring.

Is the installation reversible?

Yes, the loom can be removed at any time, restoring the vehicle to its original state with no trace of modification.

What type of auxiliary lights can I use?

The loom is suitable for most LED reverse or work lights with a combined power draw up to 20W. For higher-powered lights, a relay loom is recommended.

Will this affect my vehicle’s electrical warranty?

Because no cutting or splicing is required, the loom helps maintain the integrity of the factory wiring, supporting warranty compliance. Always check with your dealer for specific warranty terms.

Can I install this loom myself?

Yes, the plug-and-play design makes installation straightforward for most DIY users. Basic hand tools are typically sufficient.

Does this loom fit other Ford models?

This product is engineered specifically for Ford Ranger models from 2011 to 2022. Compatibility with other vehicles is not confirmed.

Why Choose the AutoVolt Piggyback Loom?

For Ford Ranger owners seeking a clean, reliable way to add auxiliary reverse lighting, the AutoVolt loom delivers a professional solution without compromising factory wiring. It is especially valuable for those who regularly tow, work, or drive off-road in low-light conditions, and for anyone wanting to avoid the risks of permanent electrical modification.
