AutoVolt Ford Ranger (2011–2022) LED Grille Piggyback Loom – Plug & Play Wiring Harness

AutoVolt LED Grille Piggyback Loom for Ford Ranger (2011–2022)

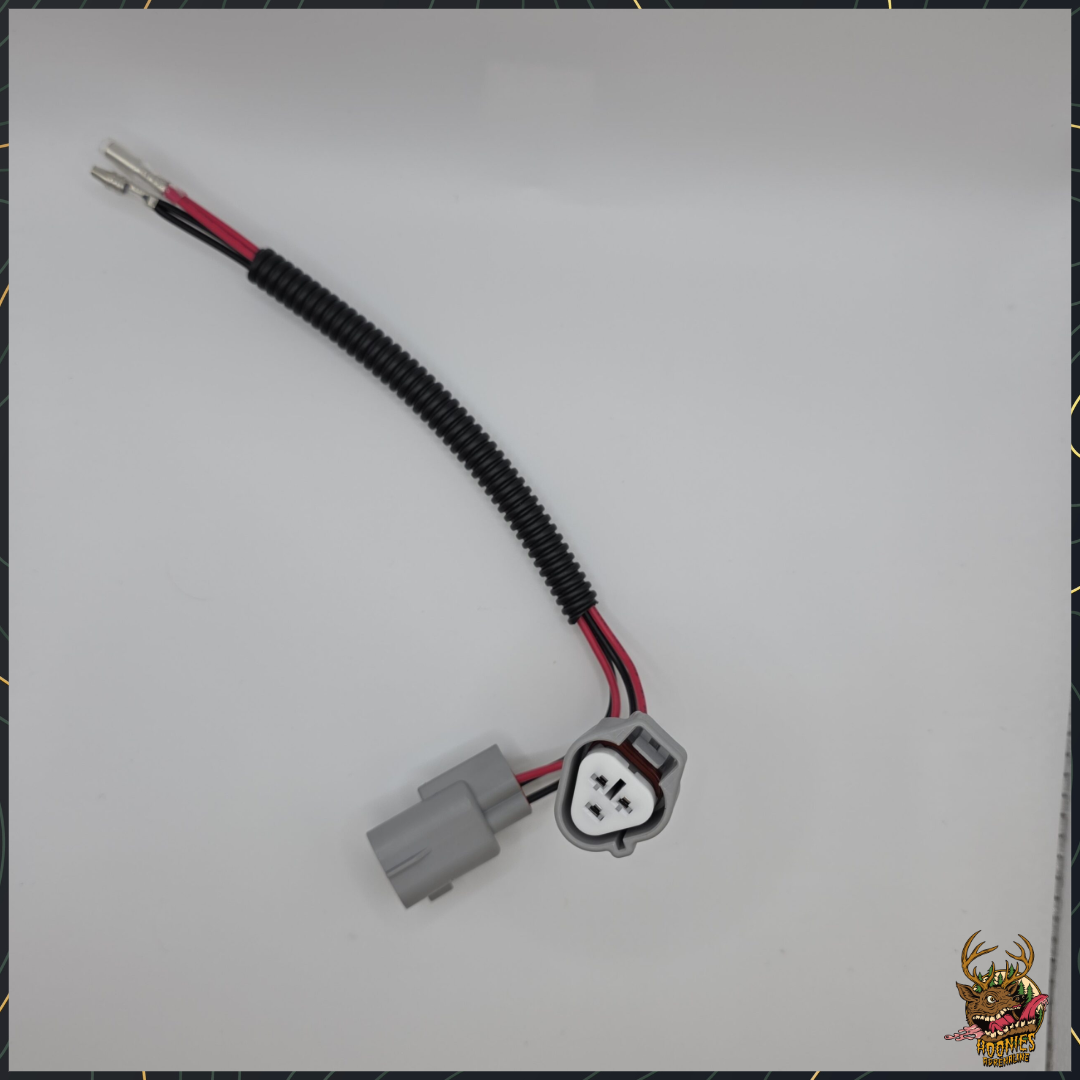

The AutoVolt LED Grille Piggyback Loom is engineered specifically for Ford Ranger models produced from 2011 to 2022, providing a dedicated, plug-and-play wiring harness for aftermarket LED grille lights. This accessory is designed for enthusiasts and professionals seeking a reliable, non-invasive solution to power popular three-light LED grille conversions without altering the vehicle’s original wiring.

How the Piggyback Loom Works

This loom connects directly between the factory connectors in the Ranger’s engine bay, supplying power to low-voltage LED grille lights. By piggybacking onto the existing wiring, it eliminates the need for cutting, splicing, or tapping into fuse boxes—common issues that can compromise electrical integrity or void warranties. The loom powers the grille lights automatically when the vehicle is running, delivering a clean daytime running light effect that remains active even when headlights are switched on.

Where This Wiring Harness Is Useful

Owners fitting aftermarket LED grille lights to their Ford Ranger often face the challenge of integrating new lighting without risking electrical faults or damaging factory wiring. The AutoVolt loom is ideal for:

• DIY installers wanting a straightforward, reversible solution
• Professional fitters aiming for a factory-quality result
• Ranger owners who want to maintain warranty and electrical reliability

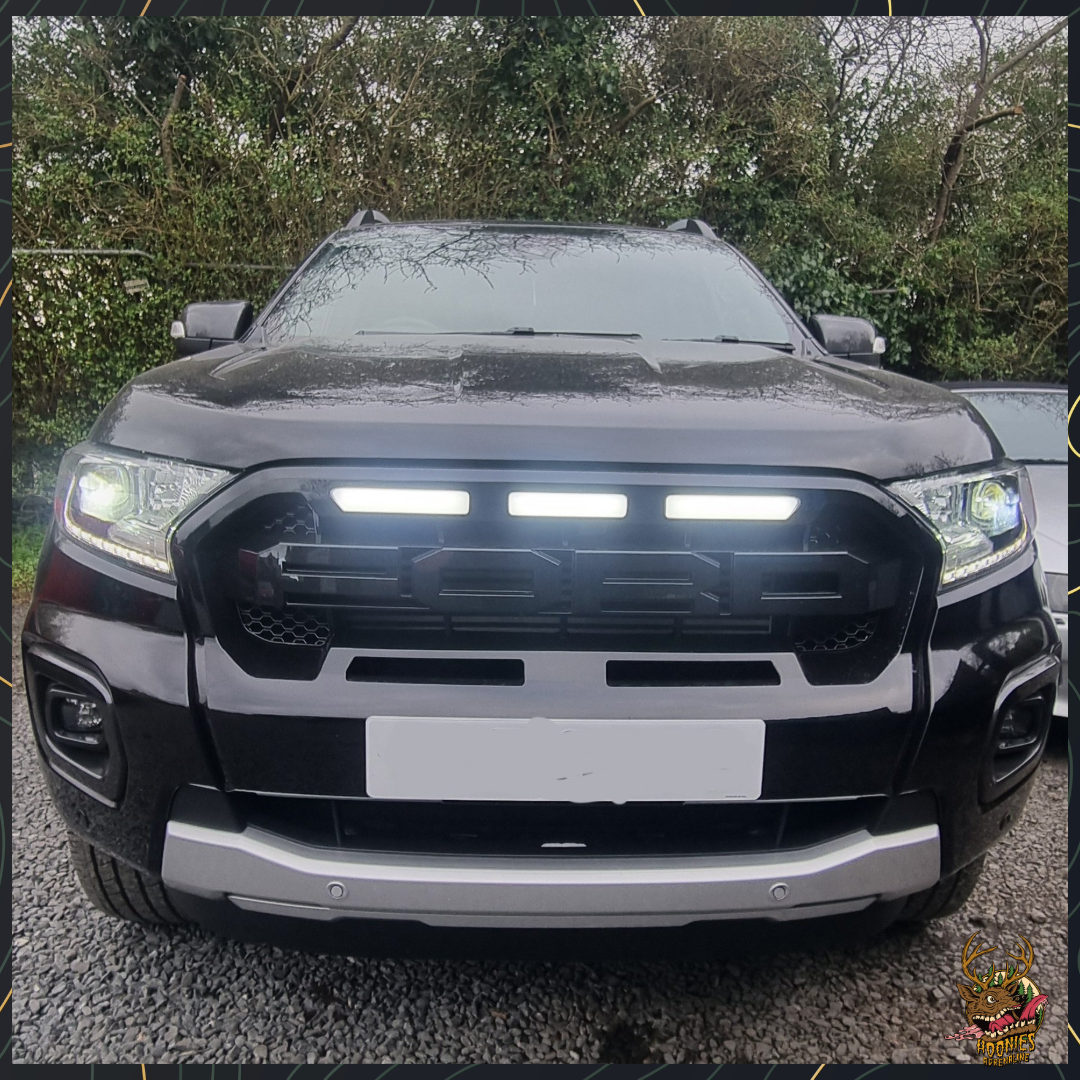

• Anyone upgrading to a three-light grille marker setup

This product is particularly well-suited for off-road, expedition, and utility builds where electrical reliability is critical and modifications must be easily reversible.

Key Benefits of the AutoVolt Ford Ranger LED Grille Loom

• Plug-and-play installation with no cutting or splicing required
• Preserves factory wiring and vehicle warranty
• Compatible with common three-light LED grille kits
• Safe, non-invasive power delivery for LED accessories
• Quick removal for servicing, inspections, or returning to stock
• Reduces risk of electrical faults from moisture or poor connections

Construction and Included Features

The loom is designed and manufactured by AutoVolt, tailored for the Ford Ranger platform. It features factory-style connectors and dedicated wiring for low-voltage LED grille lights. The harness is sized for typical grille light installations and is supplied ready for connection to standard three-light setups. An inline fuse is recommended for additional circuit protection (not included).

Installation Guidance

Installation is straightforward and requires no specialist tools:

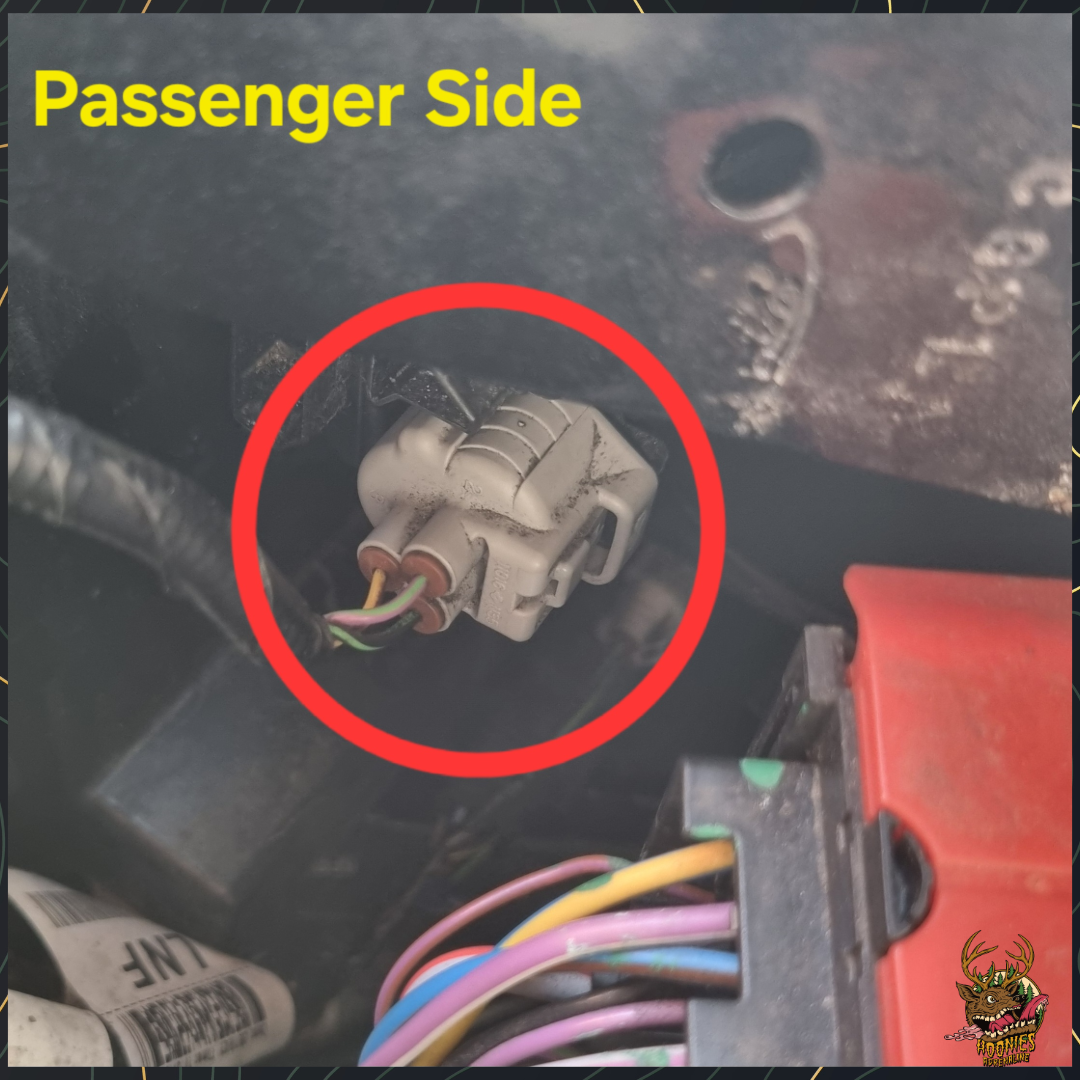

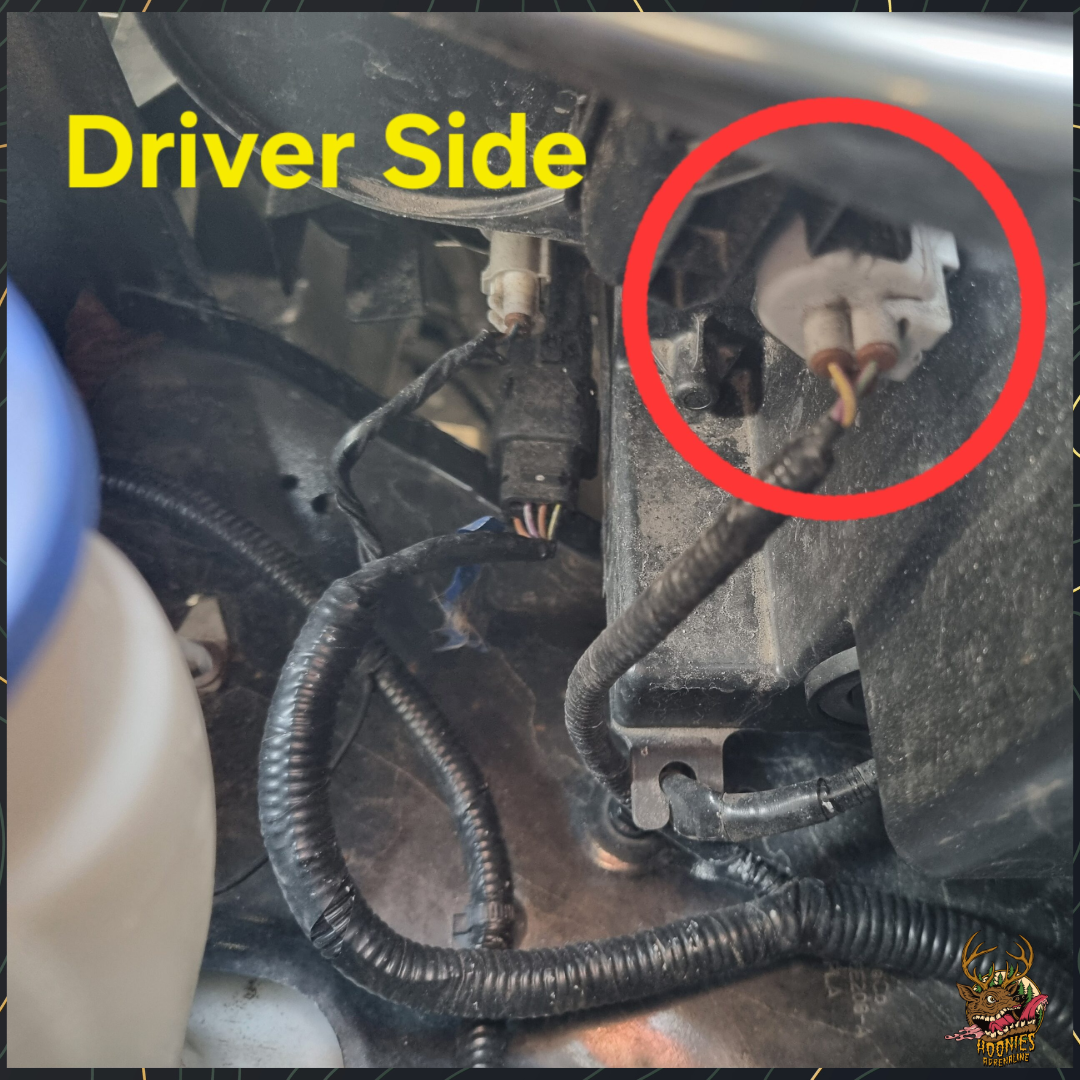

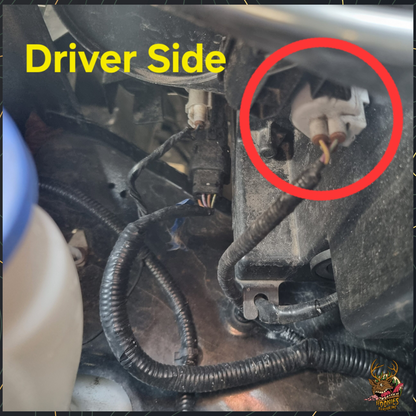

• Disconnect the relevant factory connector in the engine bay
• Insert the piggyback loom between the original connectors
• Connect the LED grille lights to the loom using matching red and black wires
• Secure connections with solder and heat shrink or waterproof butt connectors

The loom can be easily removed if necessary, allowing the vehicle to be returned to its original configuration for warranty work or inspections.

Technical Specifications

Frequently Asked Questions

Will this loom fit all Ford Ranger models from 2011 to 2022?

Yes, it is designed specifically for Ford Ranger models produced between 2011 and 2022. Always confirm your vehicle’s year before ordering.

Is any cutting or modification to the vehicle required?

No cutting, splicing, or permanent modifications are needed. The loom plugs directly into factory connectors for a non-invasive installation.

What type of LED lights is this loom compatible with?

This loom is intended for low-voltage LED grille lights, typically used in three-light marker setups common on Ranger grille conversions.

Can the loom be removed for servicing or inspections?

Yes, the loom is fully reversible and can be unplugged to restore the vehicle to its original wiring configuration.

Is an inline fuse included?

No, an inline fuse is not included but is recommended for additional circuit protection when installing LED accessories.

Does this affect the vehicle’s warranty?

Because the loom does not require cutting or splicing factory wiring, it helps maintain the vehicle’s electrical warranty. Always check your warranty terms before installation.
