| Specification | Details |
|---|---|
| Manufacturer | ARB |
| Manufacturer part number | 10900048 |
| Fridge compatibility | ARB ZERO 60L, 69L and 73L |
| Sale unit | One fridge slide; fridge separate |
| Construction | Steel |
| Slide travel | Full extension |
| Closed dimensions (L x W x H) | 946 x 444 x 79mm |
| Fully extended overall length | 1669mm |
| Weight | 18kg |
| Main-tray load rating | 120kg |
| Accessory-tray load rating | 40kg |
| Latch operation | Open and closed positions |
| Latch position | Left or right installation |
| Installation | Secure to a suitable load-bearing floor or support |

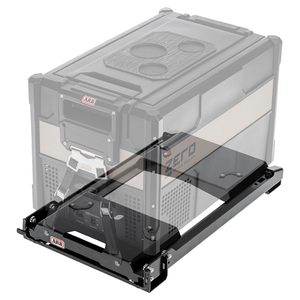

A fridge is much easier to use when you can pull it towards you. This full-extension ARB slide brings your ZERO 60L, 69L and 73L fridge out from the cargo area, giving you better access to food and drinks without having to move the fridge itself or unload the equipment around it.
SKU: XCFA10900048
Slide the fridge out on its steel drawer-style runners, open the lid and reach what you need from outside the vehicle. It is particularly useful when the fridge sits behind the tailgate or inside a packed touring setup. The latch holds the slide in its open or closed position, helping keep it where you need it while parked or travelling.
The latch can be arranged on the left or right during installation. That makes it easier to suit the way you approach the fridge and the other items in the load area.
The closed slide measures 946 x 444 x 79mm (length x width x height). Its fully extended overall length is 1669mm, so allow enough clearance outside the vehicle for the slide to travel.
Measure the complete installation, including the fridge height, slide thickness, ventilation space and the tailgate or rear-door position. A compact slide still needs a solid mounting surface and suitable fixings so the floor can support the loaded fridge.
This is slide 10900048, matched to the ARB ZERO 60L, 69L and 73L range. For ZERO 36L or 44L fridges, choose the smaller 10900047 slide instead. The slide is supplied separately from the fridge.
The main tray is rated at 120kg and the accessory tray at 40kg. These are tray-specific limits: the vehicle floor, mountings and any other support still need to suit the installation. Keep the runners clean and periodically check the latch and mounting fasteners.
| Specification | Details |
|---|---|
| Manufacturer | ARB |
| Manufacturer part number | 10900048 |
| Fridge compatibility | ARB ZERO 60L, 69L and 73L |
| Sale unit | One fridge slide; fridge separate |
| Construction | Steel |
| Slide travel | Full extension |
| Closed dimensions (L x W x H) | 946 x 444 x 79mm |
| Fully extended overall length | 1669mm |
| Weight | 18kg |
| Main-tray load rating | 120kg |
| Accessory-tray load rating | 40kg |
| Latch operation | Open and closed positions |
| Latch position | Left or right installation |
| Installation | Secure to a suitable load-bearing floor or support |
Slide 10900048 is matched to ARB ZERO 60L, 69L and 73L fridges. Choose by the exact fridge range and capacity rather than assuming every similarly sized fridge will fit.
The fridge is separate. This listing is for one fridge slide.
Yes. It latches in the open and closed positions. Make sure it is fully latched before travelling.
Yes. The latch can be installed on the left or right to suit your layout.
The closed slide is 946 x 444 x 79mm. Also allow for the fridge itself, ventilation, lid movement and the space needed for full extension outside the vehicle.
