Available to Order
Not sure which one? Ask us to confirm fitment first →For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. Outside the UK, shipping is shown at checkout and local customs and taxes remain your responsibility.
Some products are made to order, imported or custom built. If timing matters, contact us before ordering and we will confirm the expected delivery timeframe.
Send the vehicle, engine and current setup if you want us to confirm the exact application before checkout.
| Specification | Details |
|---|---|
| Manufacturer | ARB |
| SKU | XAACCKMA12, XAACKMA24 |
| Product Type | On-board brushed single air compressor |
| Supply voltage | 12V or 24V, selected model |
| Included parts | Compressor, full wiring loom and mounting hardware |
| Functions | Tyre inflation and ARB Air Locker activation |
| Duty cycle | 50% |
| Volume flow at 0 kPa | Up to 87.2 L/min |
| Volume flow at 200 kPa | Up to 65.9 L/min |
| 12V current at 20 °C, 0 / 200 kPa | 14.2 / 25.2 A |
| 24V current at 20 °C, 0 / 200 kPa | 7.1 / 12.6 A |
| Thermal protection | Internal motor protection |
| Pressure protection | Over-pressure safety valve |

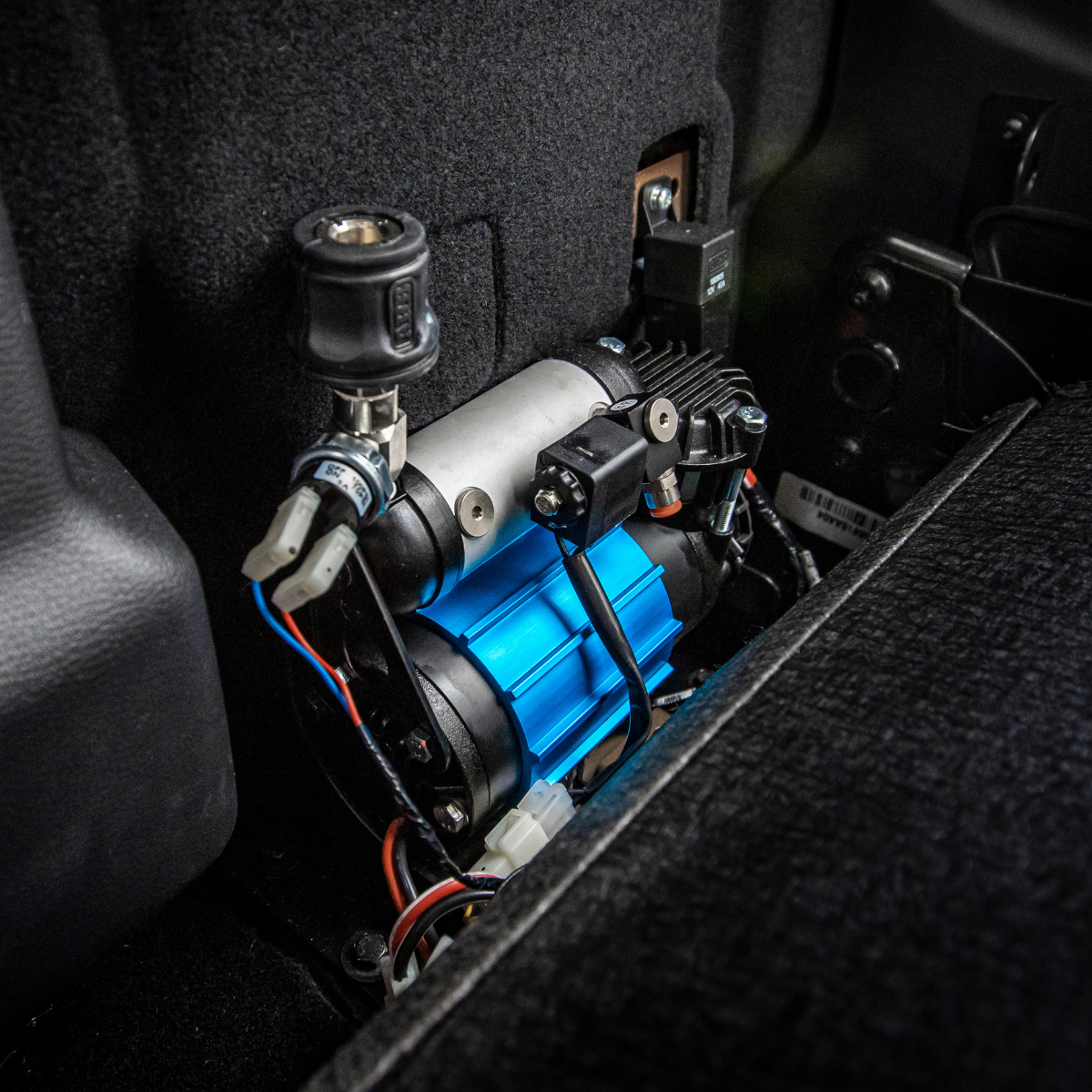

Adjust your tyre pressures when the terrain changes, then inflate them again before the drive home. This ARB on-board single compressor gives you a permanently mounted air supply for tyre inflation and ARB Air Locker activation.
SKU: XAACCKMA12, XAACKMA24
Choose the 12V or 24V version to match your vehicle. Both come with a full wiring loom and mounting hardware, with moisture and dust resistance, internal thermal protection and an over-pressure safety valve.
The hard-anodised cylinder bore reduces friction, while the anodised mounting bracket helps dissipate motor heat and allows the compressor to be repositioned through 180 degrees. Plan a secure mounting position with access for wiring, air lines and servicing.
| SKU | Supply voltage |
|---|---|
| XAACCKMA12 | 12V |
| XAACKMA24 | 24V |
| Specification | Details |
|---|---|
| Manufacturer | ARB |
| SKU | XAACCKMA12, XAACKMA24 |
| Product Type | On-board brushed single air compressor |
| Supply voltage | 12V or 24V, selected model |
| Included parts | Compressor, full wiring loom and mounting hardware |
| Functions | Tyre inflation and ARB Air Locker activation |
| Duty cycle | 50% |
| Volume flow at 0 kPa | Up to 87.2 L/min |
| Volume flow at 200 kPa | Up to 65.9 L/min |
| 12V current at 20 °C, 0 / 200 kPa | 14.2 / 25.2 A |
| 24V current at 20 °C, 0 / 200 kPa | 7.1 / 12.6 A |
| Thermal protection | Internal motor protection |
| Pressure protection | Over-pressure safety valve |
Yes. These on-board models are designed for ARB Air Locker activation as well as tyre inflation.
Choose the compressor that matches your vehicle electrical supply: 12V or 24V.
Both voltage versions include a full wiring loom and mounting hardware. Choose any additional air-system accessories around your installation.
For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. For customers outside the UK, local customs and taxes remain your responsibility, and shipping is shown at checkout. If a shipping option is not available, email us and we will prepare a tailored quote.
Many of the products we sell are made to order, imported or custom built, so a lead time may apply. If you need a part urgently, contact us before ordering and we will confirm the expected delivery timeframe and process.
Check dimensions, mounting points, clearance and any wiring or hose requirements against your setup before ordering.
Send us your vehicle, year, current setup and any fitting date, event, trip or deadline before ordering. We will help check fitment, product choice and timing.
