Summary

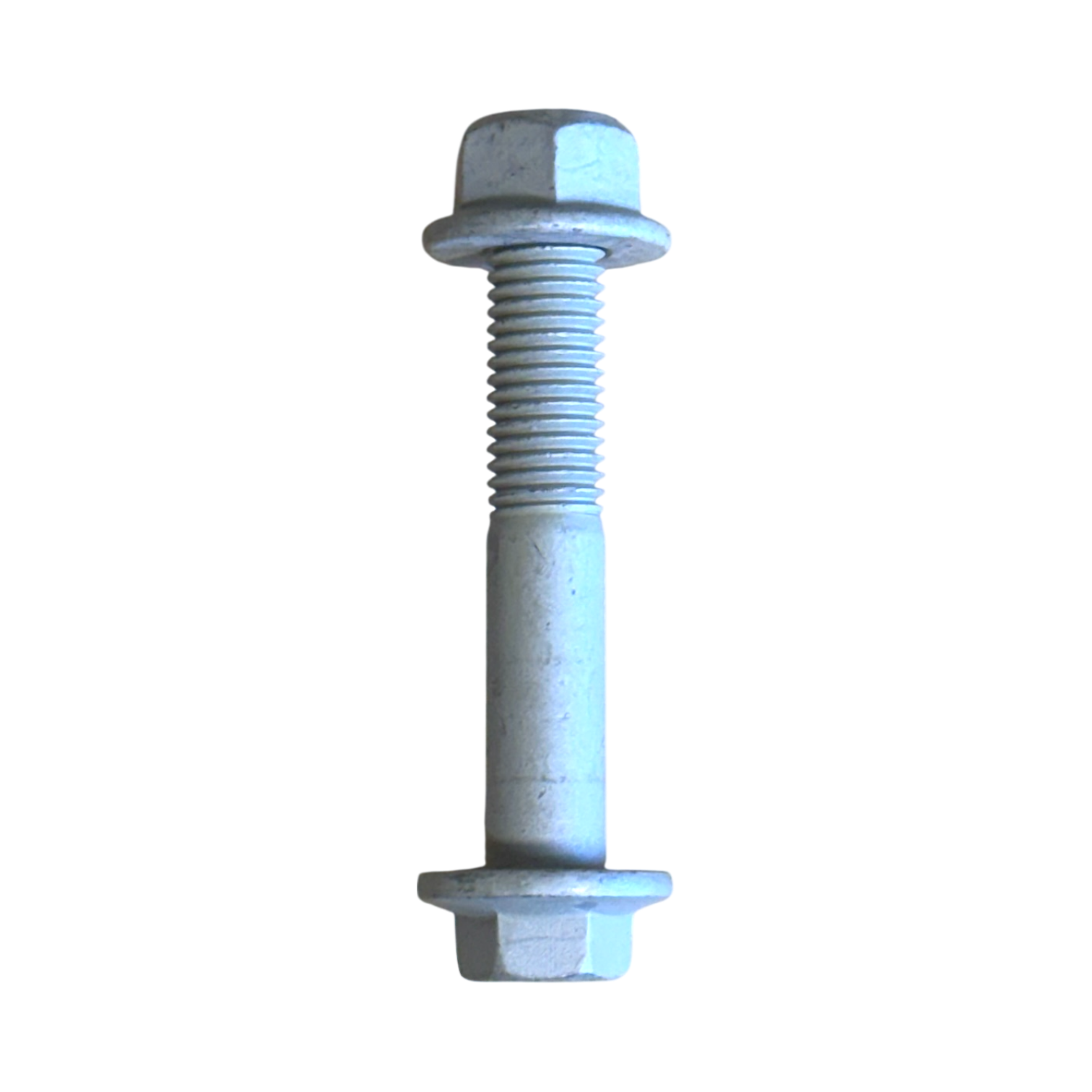

The APEX Design USA TSR Axle Side Rod End Bolt is the axle-side fastener required when you run the Through Shaft Ram High Mount version. It is a small line on the order, but it is the part that completes the high mount installation - order it with the kit and the build goes together first time instead of stalling at the axle end.
Best For
- Buyers ordering the TSR High Mount version - this bolt is required for it
- Workshops staging a complete high mount install in one parts order
- Replacing axle-side hardware during a TSR refit
Key Specs
- Manufacturer: APEX Design USA
- Product Type: Rod end bolt (axle side)
- SKU: X01-17-019
- Required For: TSR High Mount version
Fitment And Setup Checks
Confirm which TSR version you are running before ordering: the high mount setup needs this bolt, the standard mount does not. If you are ordering the high mount kit now, add this to the same order and torque all steering fasteners to spec during installation.
Technical Specifications
| Manufacturer | APEX Design USA |
| Product Type | Axle side rod end bolt |
| SKU | X01-17-019 |
| Required For | TSR High Mount version |
Frequently Asked Questions
Do I need this bolt with a standard TSR kit?
No - it is required for the High Mount version. Check which mount style your kit uses before ordering.
Ordering the high mount setup? Add this bolt now and browse the APEX steering range for the brackets that finish the install.
