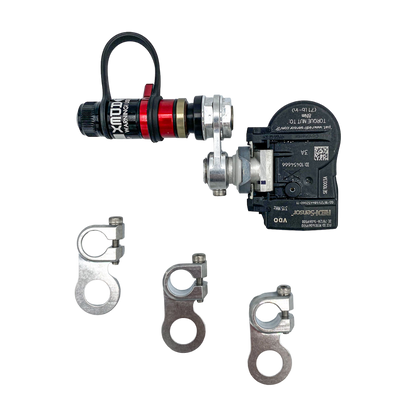

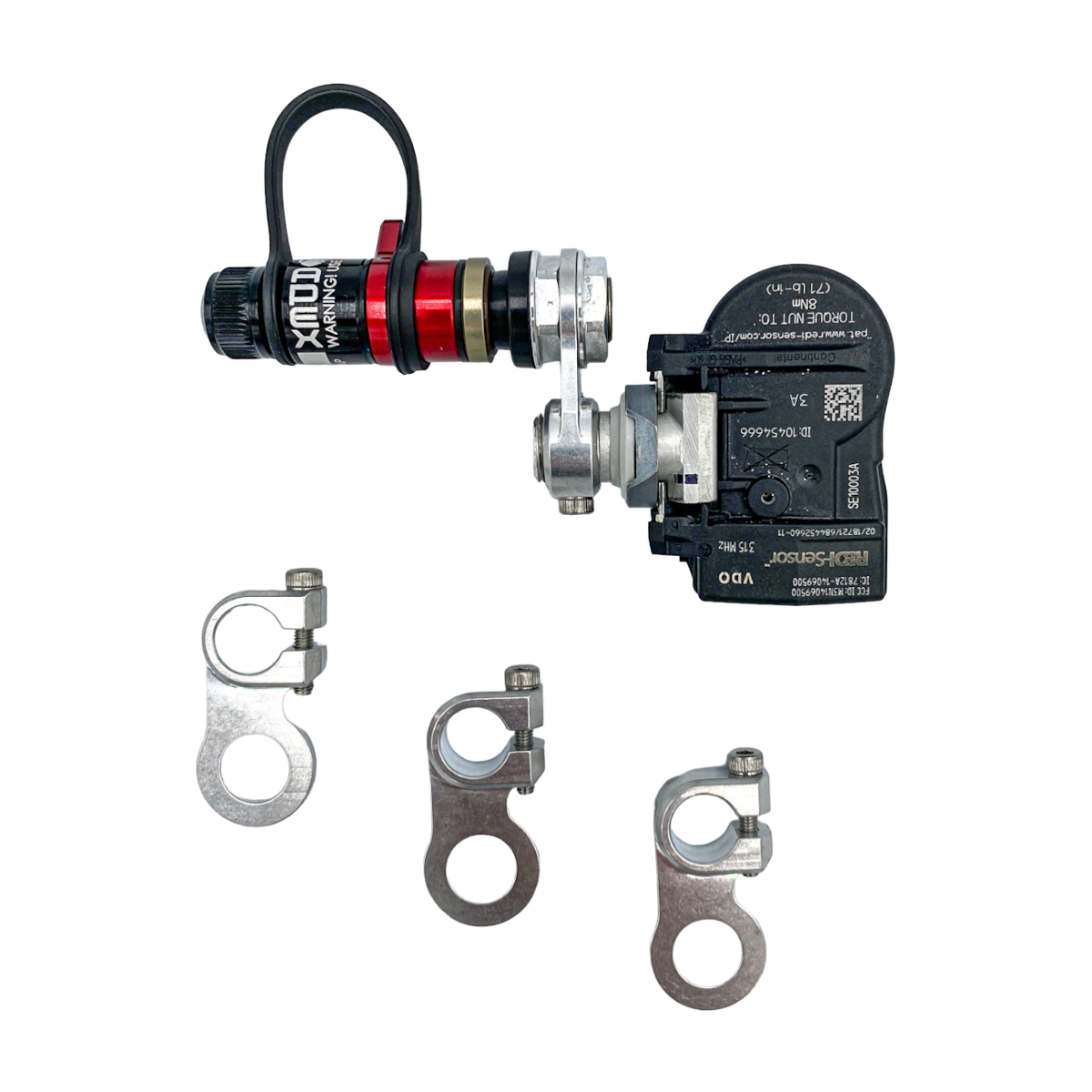

Changing to APEX Rapid Precision Valves doesn't have to mean giving up your compatible factory pressure sensors. This adapter provides the mounting arrangement for the specified OEM Toyota/Japanese-style sensors, with four- and five-valve kit choices.
Available SKUs: X02-03-003, X02-03-007
The kit is for the compatible OEM sensor arrangement. Aftermarket click-in sensors are excluded. Some 2022-onwards Toyotas use an American-standard arrangement and do not need this adapter, so identify the sensor style before ordering.

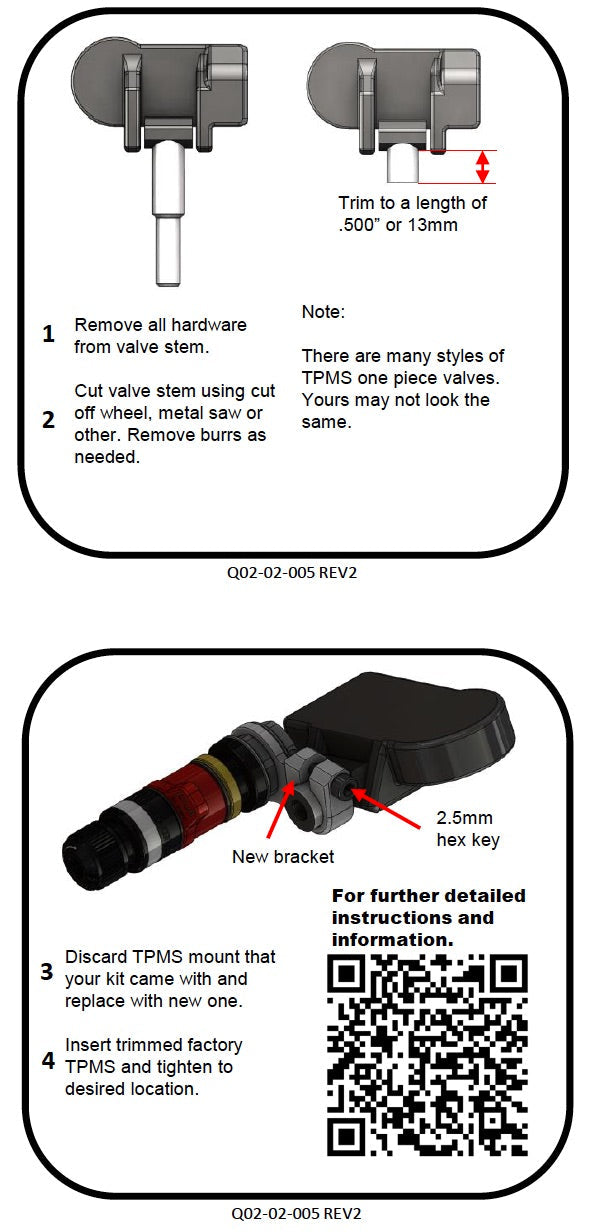

The guide requires removing the sensor's existing valve hardware and cutting the one-piece stem to 0.500 in / 13 mm, deburring it and installing the replacement mount. This is an adapter installation with a real modification, not a clip-on addition.
Choose four or five adapters to match the RPV valve set you are fitting. If your sensor already uses the compatible American-standard arrangement, the standard RPV TPMS mount is a different replacement part rather than an extra to buy with this kit.
| Specification | Details |
|---|---|
| Brand | APEX Design USA |
| Purpose | RPV mounting adapter for compatible OEM Toyota/Japanese-style TPMS |
| Kit choices | Four-valve or five-valve |
| Excluded sensors | Aftermarket click-in sensors |
| Later Toyota distinction | Some 2022+ vehicles use American-standard sensors and do not need this adapter |
| Required fitting work | Remove valve hardware; cut one-piece stem to 0.500 in / 13 mm and deburr; fit replacement mount |
| Separate product | RPV valves |
| SKU | Option | Details |
|---|---|---|
| X02-03-003 | TPMS Adapter Kit [4 Valve] | Adapter kit for four RPV-equipped wheels |
| X02-03-007 | TPMS Adapter Kit [5 Valve] | Adapter kit for five RPV-equipped wheels |
No. Identify the actual sensor style. Some 2022-onwards Toyotas use American-standard TPMS and do not need this adapter.
No. This adapter does not fit aftermarket click-in sensors.
The guide requires trimming the factory one-piece sensor stem to 0.500 in / 13 mm and fitting the new mount. Plan that work with your tyre fitter.
