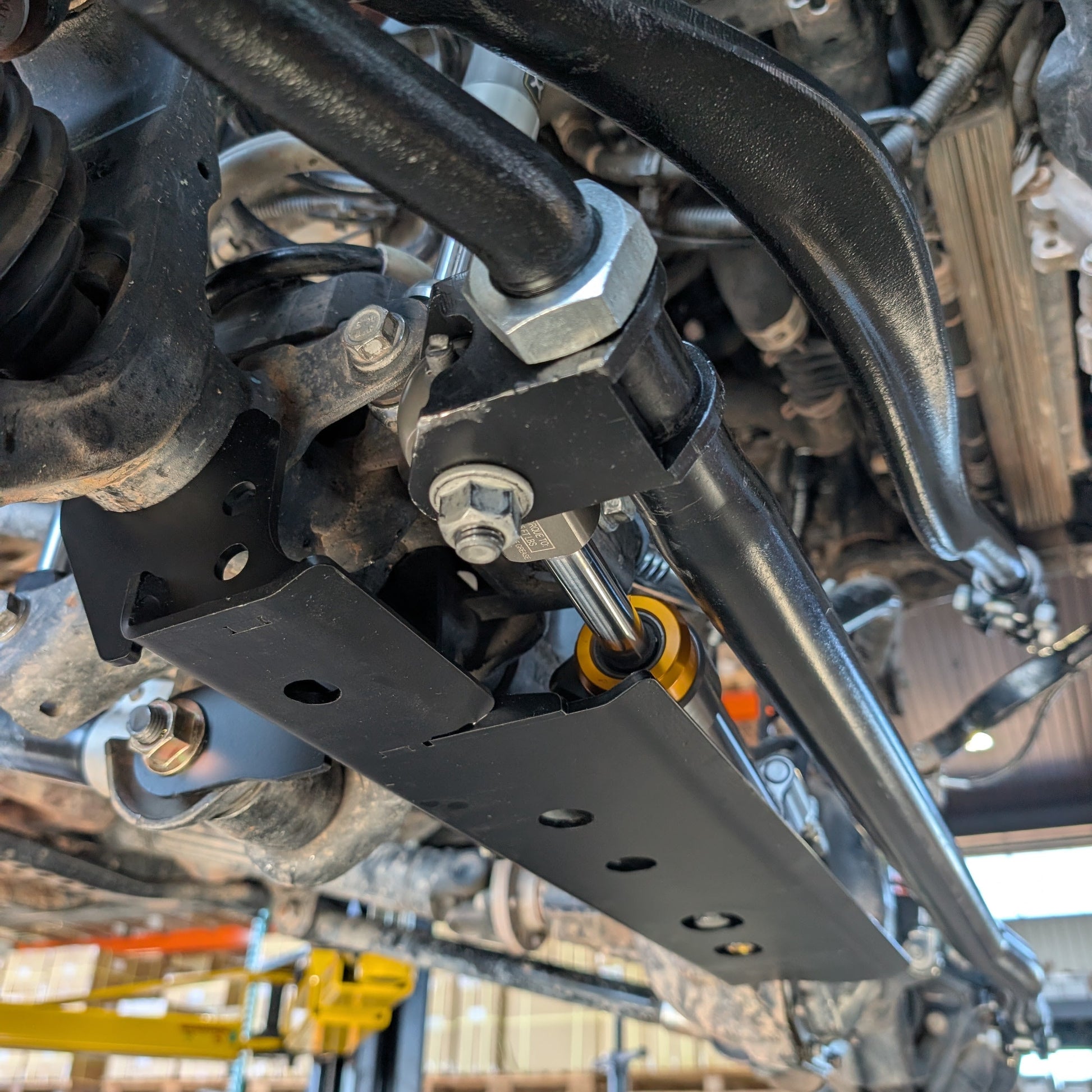

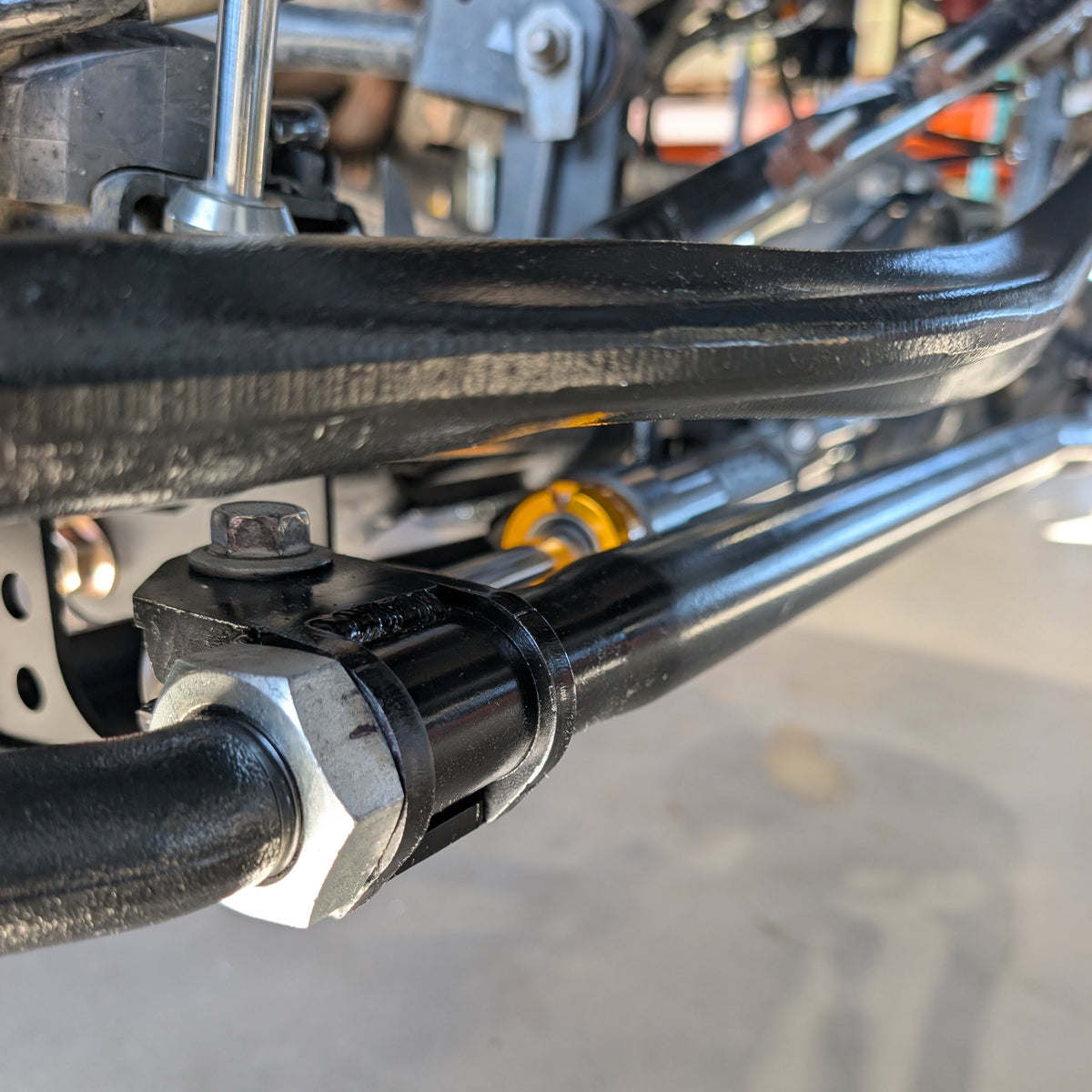

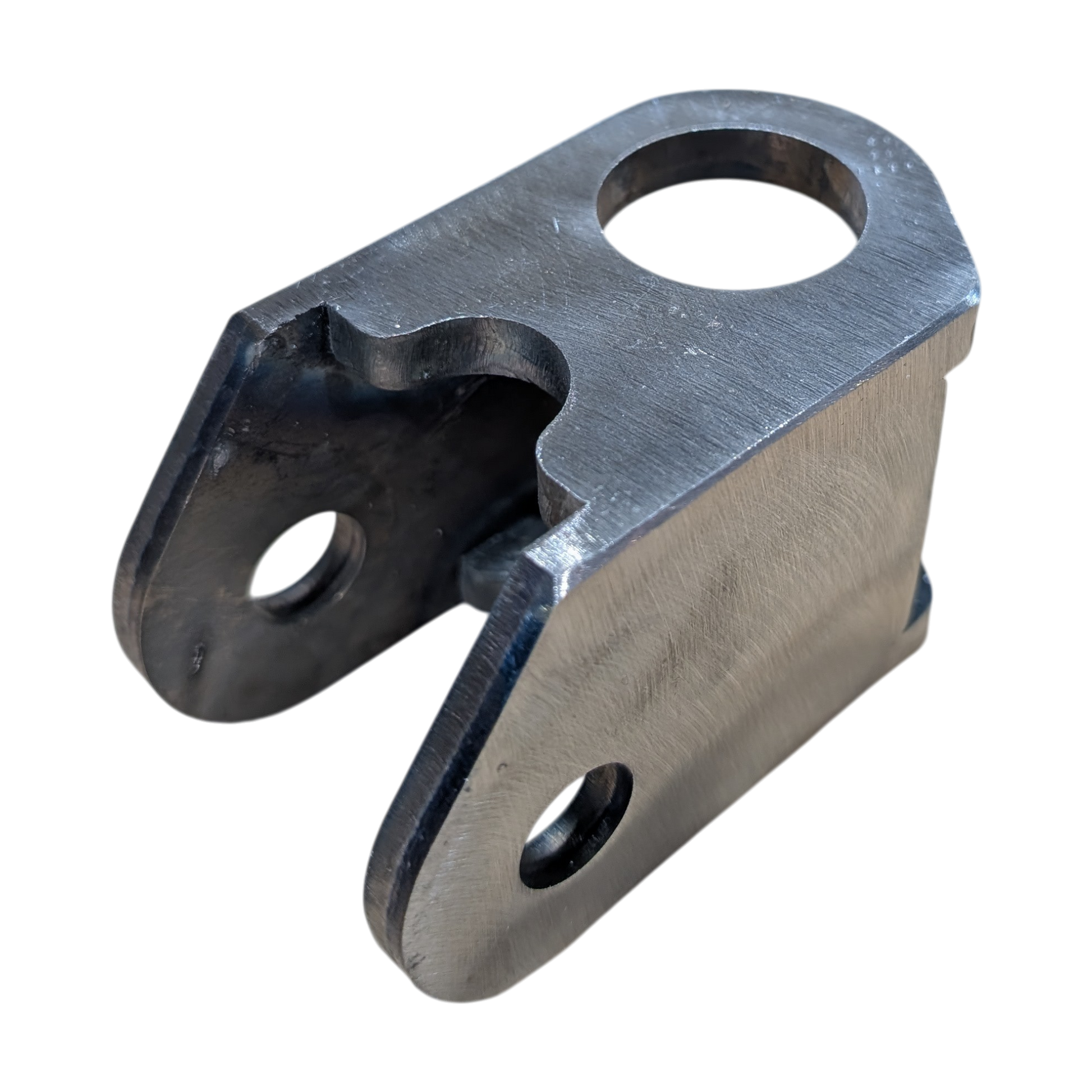

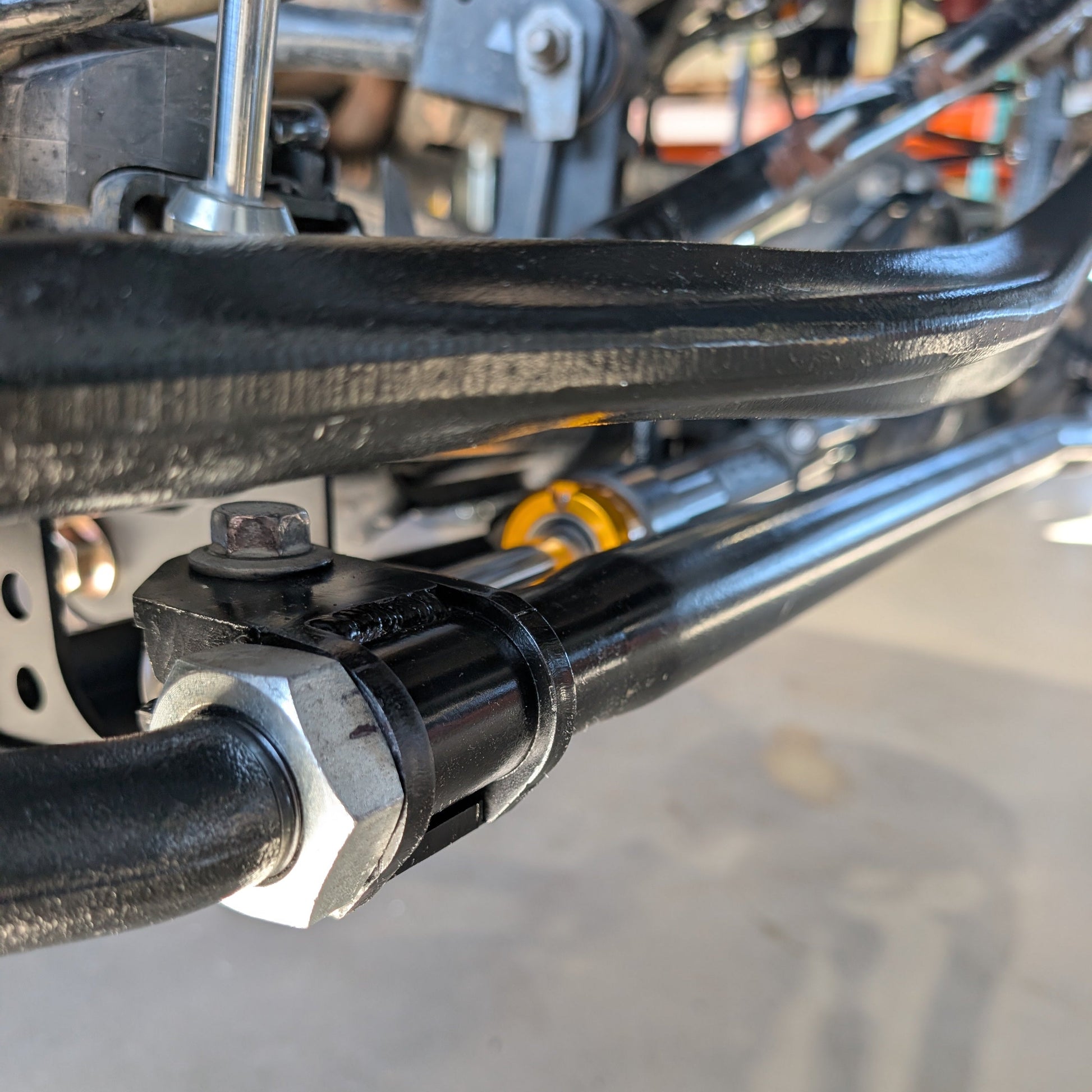

This bracket provides the APEX Through Shaft Ram mounting arrangement for a specifically matched Rock Jock Currectlync steering combination. It lets the ram installation work with that steering hardware, with the clearances and alignment checked as part of the job.
SKU: X02-10-012
The verified combination is Currectlync tie rod RJ-442101-101 and drag link RJ-442103-101, with the APEX X02-10-001 or X02-10-003 TSR. Other tie-rod or drag-link combinations can cause unwanted contact, so keep both exact references together when selecting the bracket.
The fitting guide requires welding the bracket to the tie-rod centre section. This is professional steering work, including trial positioning, checks through steering movement, protection of the ram during welding and finishing, and a final alignment check.
If you also fit the TSR skid plate, check clearance between the ram, bracket and guard through full steering lock. The guide uses ram-side hardware from kit E supplied with the steering-ram kit; that is separate from this bracket's own contents.
| Specification | Details |
|---|---|
| Brand | APEX Design USA |
| SKU | X02-10-012 |
| Application | Rock Jock Currectlync steering with matching APEX TSR |
| Verified tie rod | RJ-442101-101 |
| Verified drag link | RJ-442103-101 |
| Compatible TSR kits | X02-10-001 and X02-10-003 |
| Required work | Welding bracket to tie-rod centre section |
| Clearance checks | Steering movement, ram travel, axle and optional skid plate |
| Guide hardware dependency | Kit E hardware from steering-ram kit |
| Installation | Professional installation and final alignment recommended |
No. The guide requires welding the bracket to the tie-rod centre section after the position and clearances have been checked.
The verified combination is tie rod RJ-442101-101 with drag link RJ-442103-101. Keep that exact pairing; other steering parts can create unwanted contact.
The guide covers checking clearance with the skid guard fitted. Verify the ram, eyelet and bracket remain clear throughout full steering lock.
