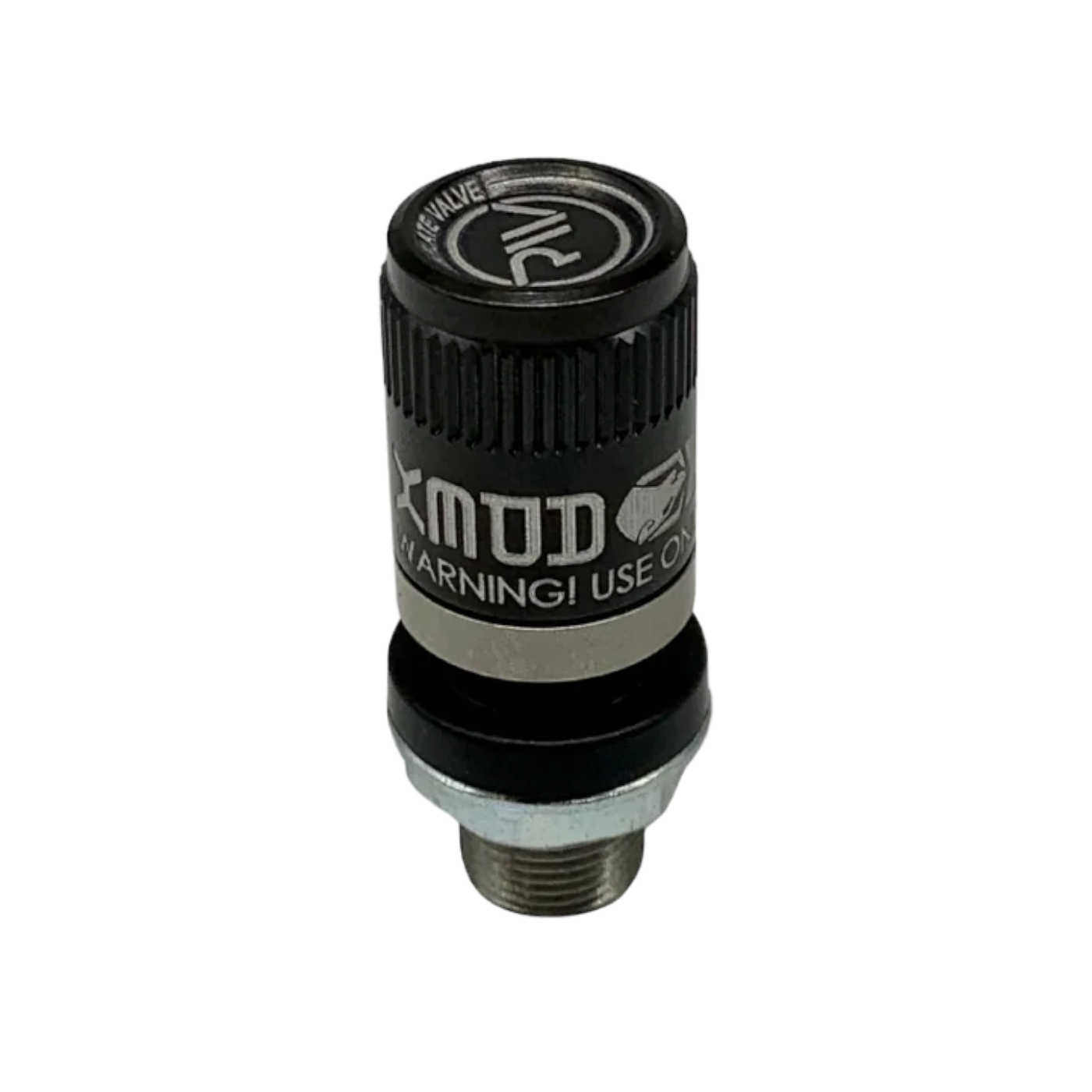

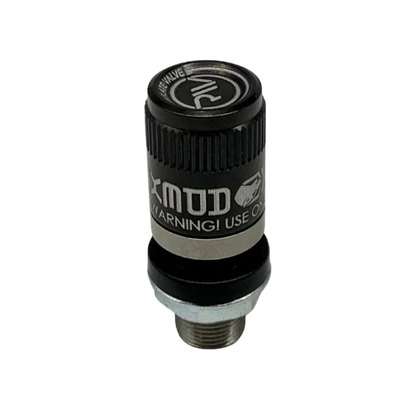

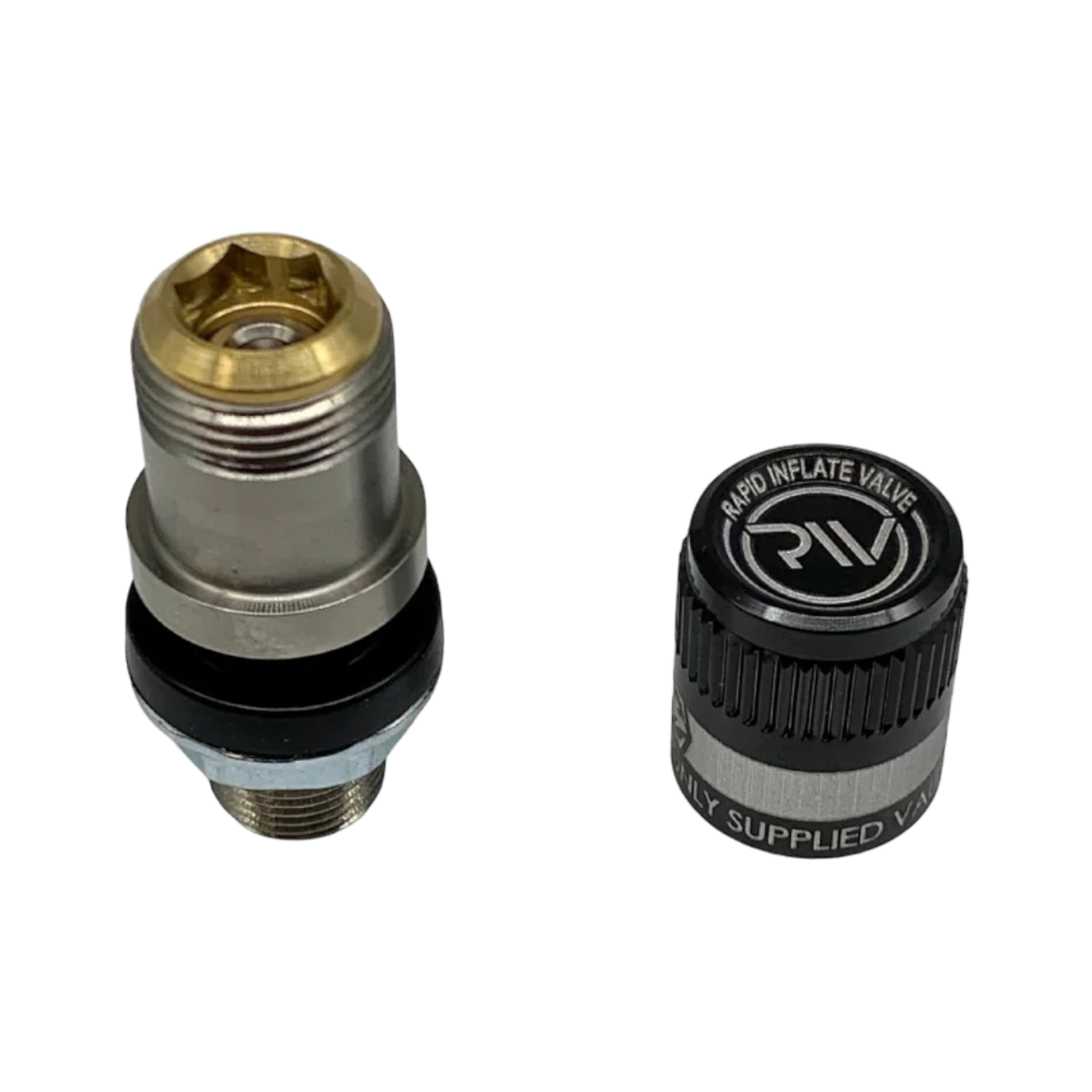

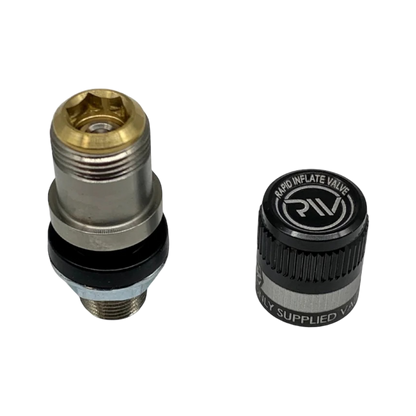

Large tyres take a lot of air after a day at trail pressure. The APEX Rapid Inflation Valve adds a dedicated high-flow filling point to a dual-valve-stem wheel, reducing the restriction of a normal Schrader fill route. Use the RIV-specific chuck and an air supply matched to the job.
Available SKUs: X02-02-007, X02-02-011, X02-02-013
RIV is for wheels with two valve-stem positions. It is not a conventional Schrader connection. The separately listed RIV screw-on chuck is the correct interface; the four- and five-valve options here are labelled as including an RIV chuck.
Measure the wheel's valve well and cap clearance against the RIV drawing. This listing is Standard length, with a normal shortest-counterbore limit of 0.500 in. The guide illustrates a specific seal-flip arrangement gaining 0.100 in. Wheels with the illustrated AEV-style valve protector are excluded.
The sub-10-second air-up demonstration uses 37-39 in tyres and a 120 psi, 10 CFM shop-air supply. An on-board compressor is a different supply, so choose it for its real airflow and the tyres you need to fill.
For vehicle use, an ARB CKMTA12 twin compressor is an air-supply option, with the correct heat-rated feed, controlled hose arrangement and RIV chuck. Your actual filling time depends on the compressor's output, pressure, hose and tyre. The RIV guide specifies at least 0.188 in hose ID for on-board air and 0.250 in ID for the shop-air arrangement.

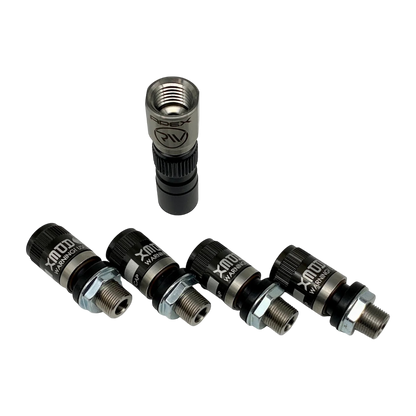

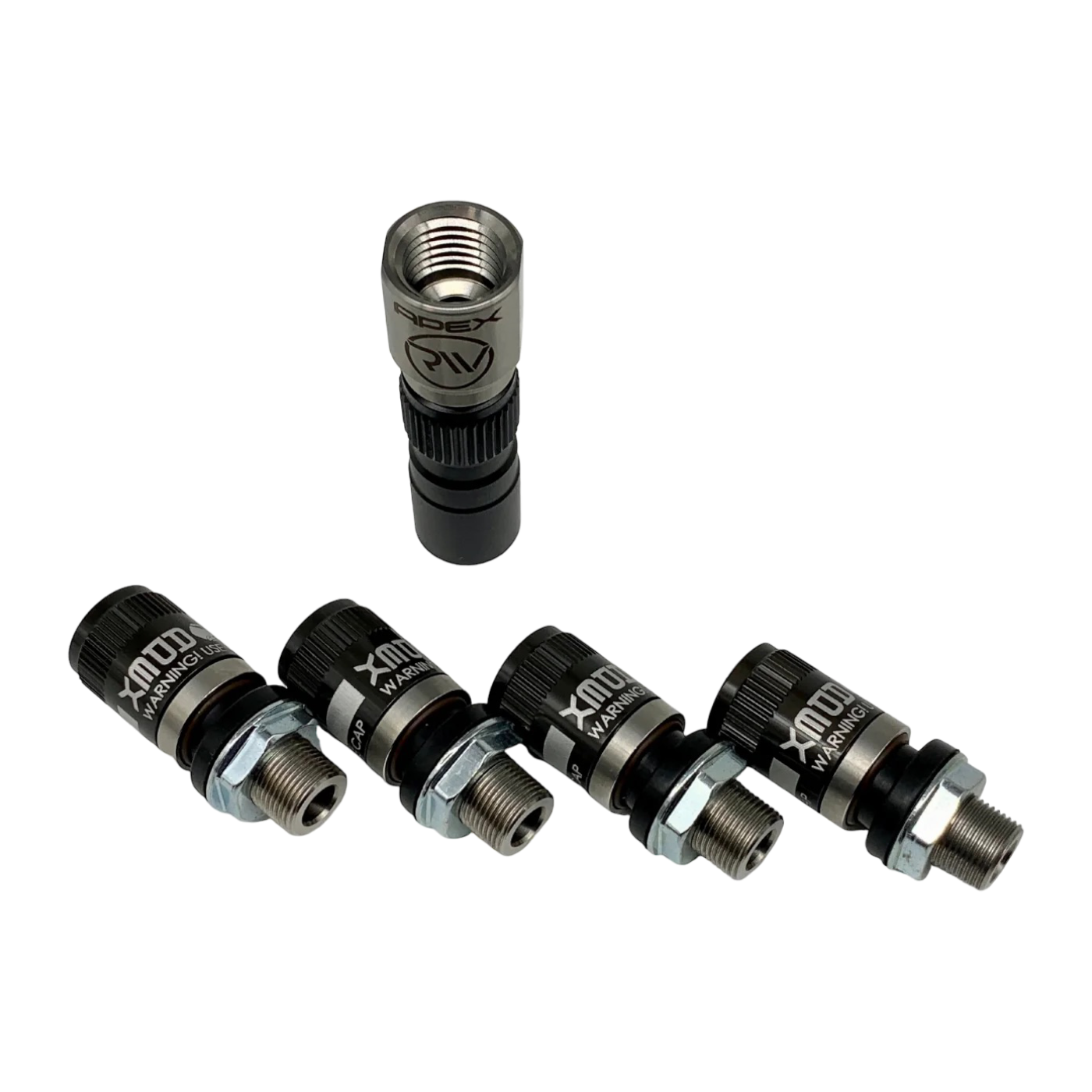

Choose a single Standard valve, four for the road wheels or five to include the spare. The four- and five-valve set labels include the dedicated chuck. Use the guide's regulator arrangement where you want pressure-controlled filling; do not assume that a bare valve adds automatic shut-off to the compressor.
| Specification | Details |
|---|---|
| Brand | APEX Design USA |
| Application | Dual-valve-stem wheels only |
| Length offered | Standard |
| Pack choices | Single, four valves or five valves |
| Set accessory | Four- and five-valve options include an RIV chuck |
| Chuck interface | RIV-specific screw-on chuck, not standard Schrader |
| Standard clearance | Shortest counterbore 0.500 in or less, normal seal arrangement |
| Seal-flip allowance | Additional 0.100 in only in the illustrated arrangement |
| Wheel exclusion | Illustrated AEV-style valve protector |
| On-board hose minimum | 0.188 in internal diameter in the guide arrangement |
| Shop-air hose minimum | 0.250 in internal diameter in the guide arrangement |
| APEX shop-air benchmark | Sub-10-second air-ups on 37-39 in tyres with a 120 psi, 10 CFM shop-air supply |
| Pressure control | External regulator/control arrangement required for regulated automatic filling |
| SKU | Option | Details |
|---|---|---|
| X02-02-007 | Set of 4 [STD] - Includes RIV chuck | Four Standard RIV valves; RIV chuck included in the set |
| X02-02-011 | Set of 5 [STD] - Includes RIV chuck | Five Standard RIV valves; RIV chuck included in the set |
| X02-02-013 | Single [STD] | Single Standard RIV valve |
Use the RIV-specific chuck. RIV is a dedicated high-flow valve and is not a standard Schrader connection.
This application is for dual-valve-stem wheels. Follow the fitment guide and retain the appropriate separate tyre valve arrangement.
That depends on its airflow, your hose and the tyres. The sub-10-second demonstration uses a 120 psi, 10 CFM shop-air supply on 37-39 in tyres, so choose an on-board compressor for its actual output rather than expecting that shop-air time.
The valve alone does not add that control. The guide shows a separate pressure-regulator arrangement for pressure-controlled filling.
