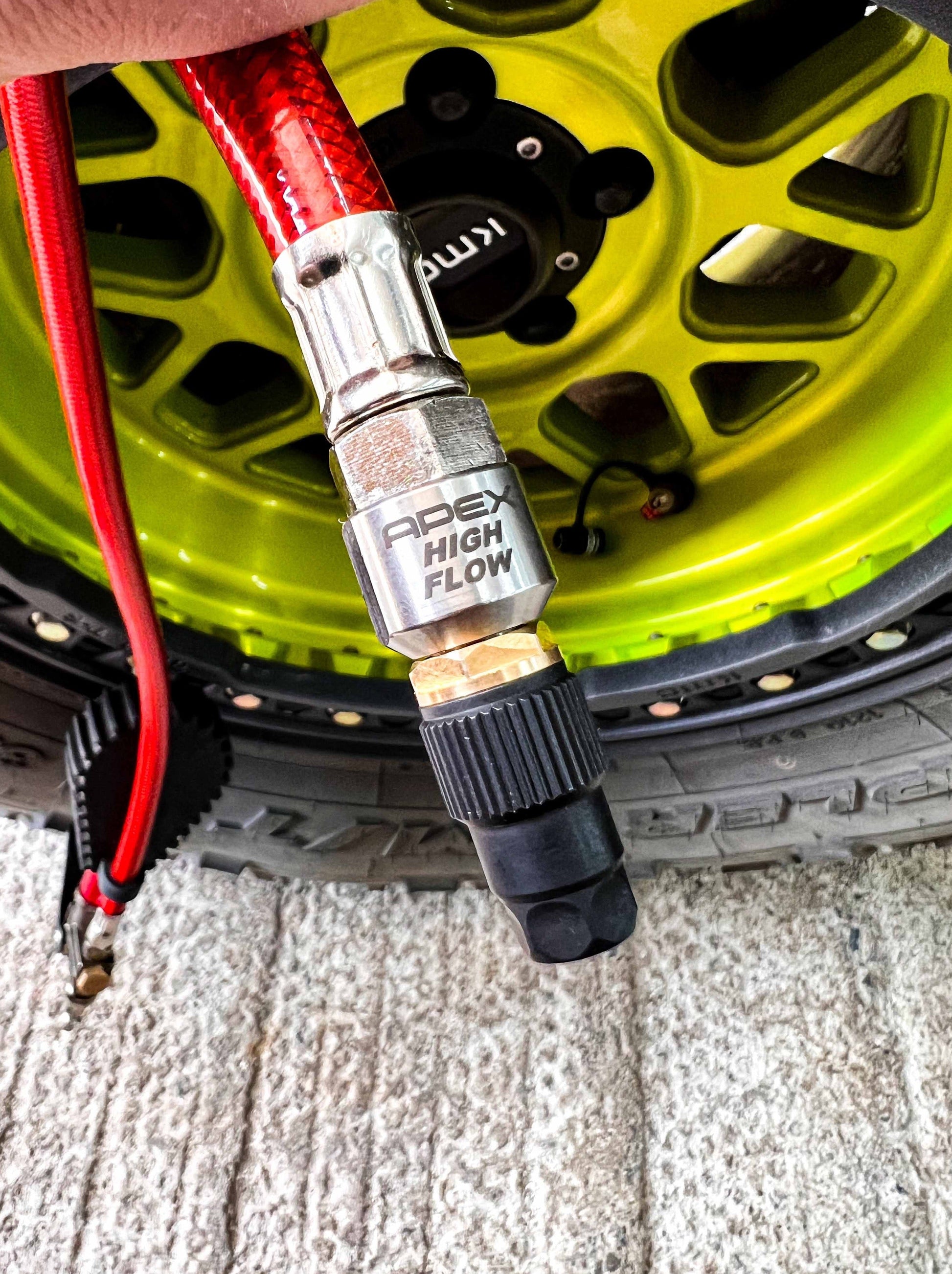

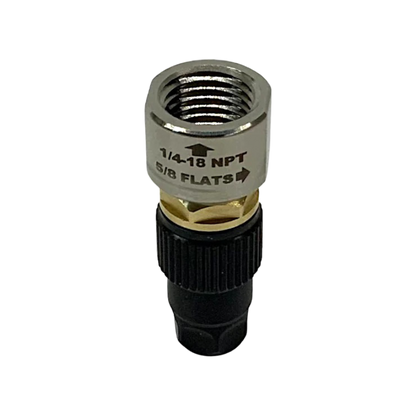

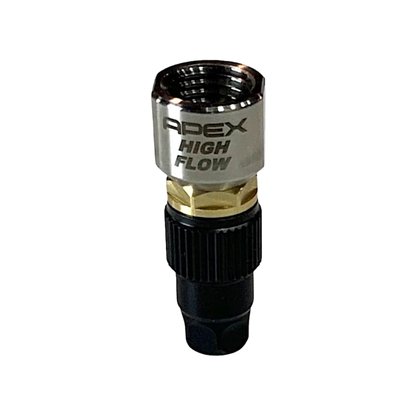

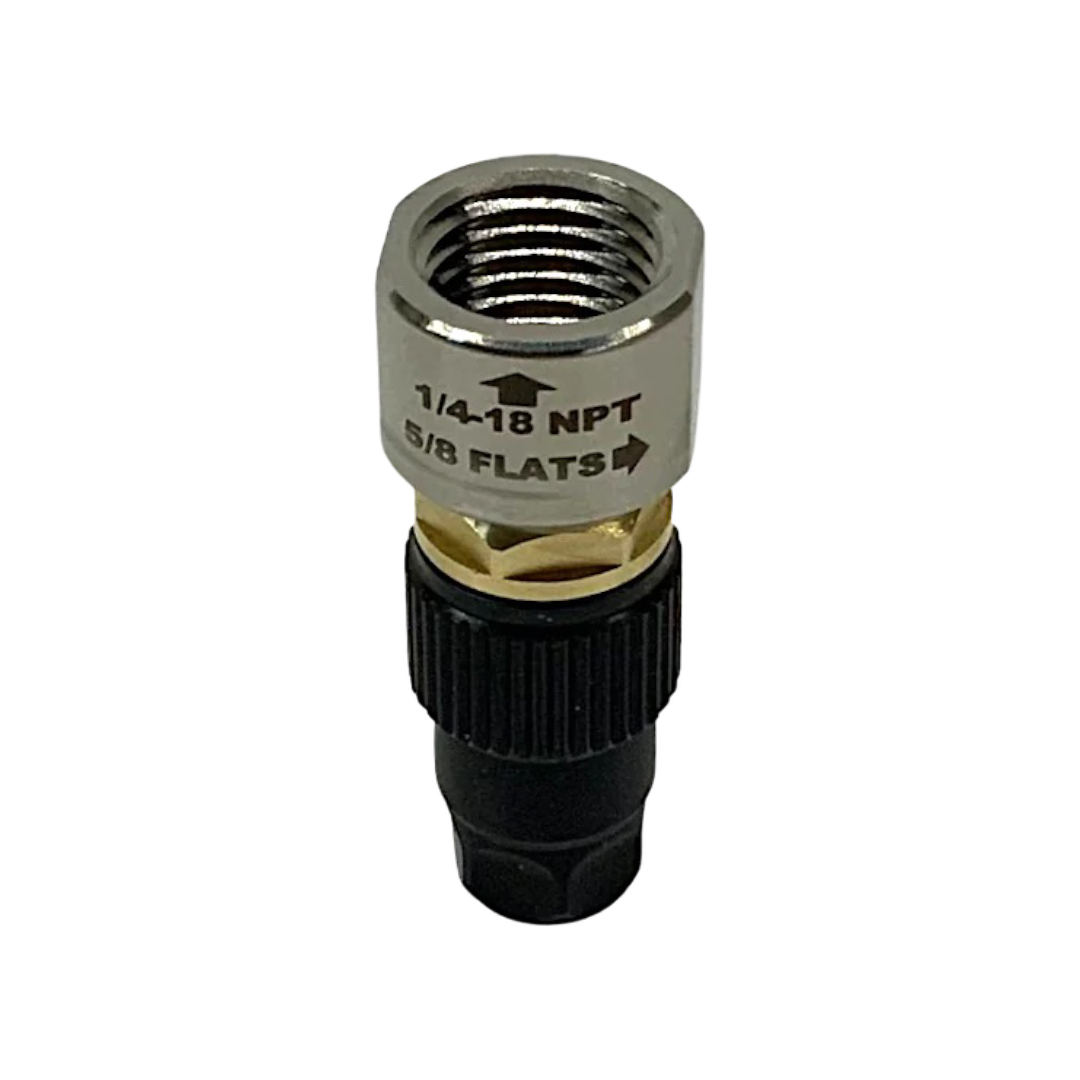

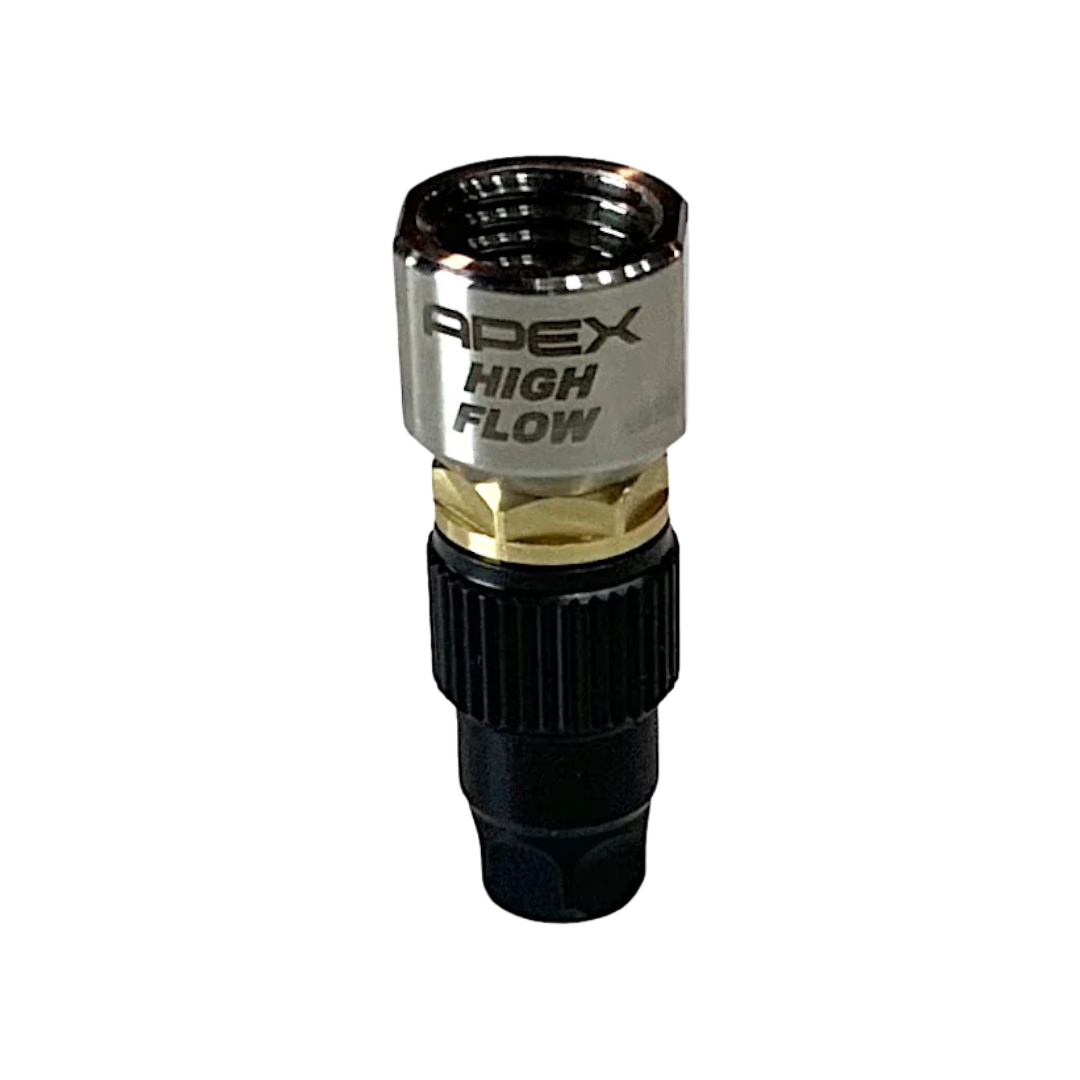

Thread the APEX high-flow chuck onto the valve and give the air a clear route into the tyre. It opens the Schrader core fully and consistently, making it a considered option when you prefer a screw-on connection for single-point inflation.
SKU: X02-02-006
The black component is heat-treated 4140 chromoly steel with QPQ salt-bath nitrocarburising treatment; the other parts are stainless steel. A metal sealing seat and consistent core opening are designed for repeated use. It works with standard Schrader stems and is optimised for APEX Rapid Precision Valves.
This chuck is open flow only. It must not be used on multi-hose air-up or air-down systems, which require closed-flow chucks. For those branches, choose the APEX dual-flow push-on chuck in closed-flow form instead.
For a matching air source on a properly connected single-point tyre-inflation installation, see the ARB CKMTA12 twin compressor. Select the hose and connection fittings separately.
| Specification | Details |
|---|---|
| Brand | APEX Design USA |
| SKU | X02-02-006 |
| Tyre-valve connection | Screw-on Schrader |
| Flow type | Open flow only |
| Intended use | Single-point tyre inflation |
| Multi-hose restriction | Not suitable; multi-hose systems require closed-flow chucks |
| Black component | Heat-treated 4140 chromoly steel with QPQ treatment |
| Other components | Stainless steel |
| Sealing seat | Metal |
| Core opening | Fully opens Schrader core |
No. It is open flow only, while a multi-hose system needs closed-flow chucks.
Yes. It works with standard Schrader valves as well as APEX RPVs.
No. Full core opening reduces restriction at the valve; the compressor still determines the available air supply.
