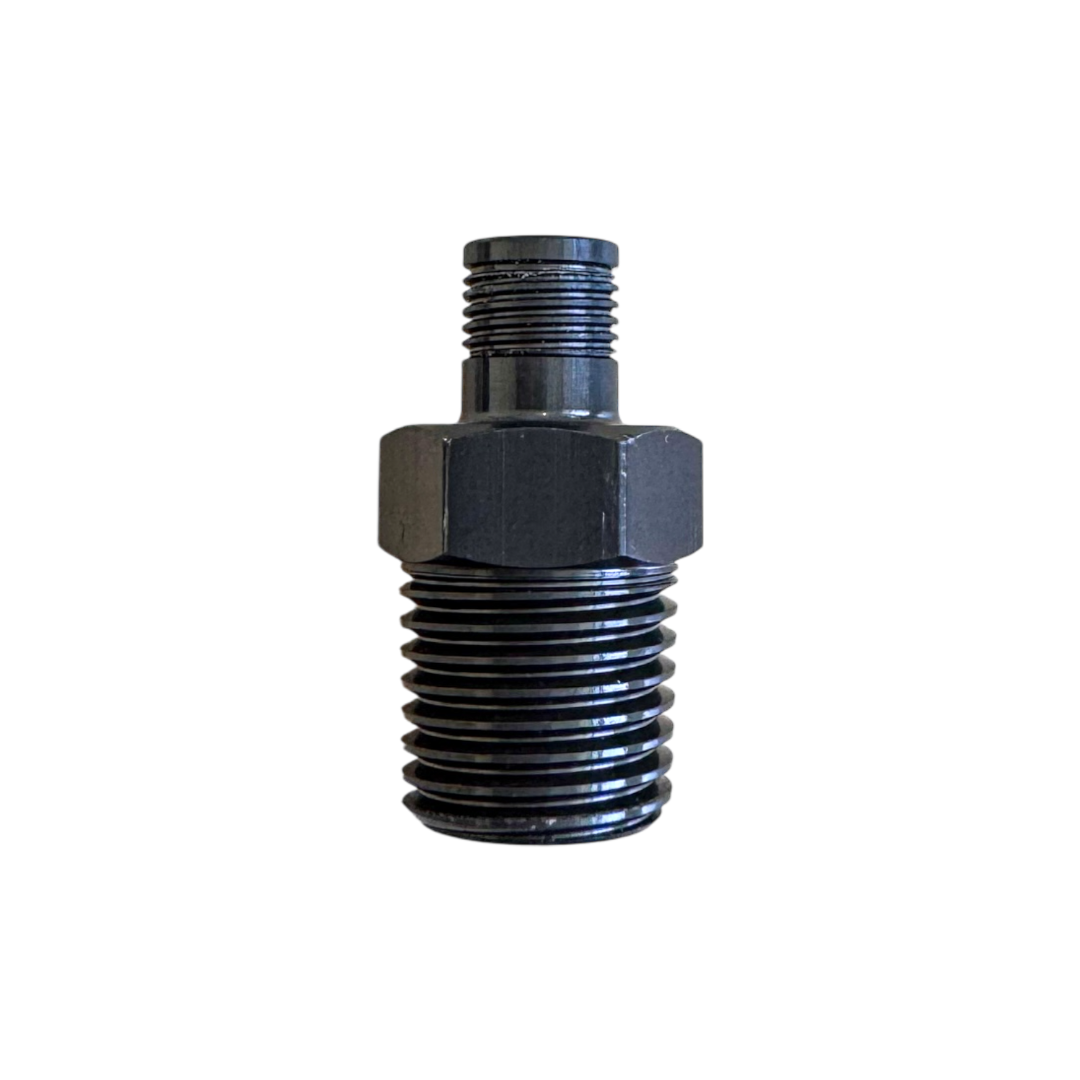

APEX DESIGN USA Compact Quick Coupler to 1/4 NPT - Air System Adapter Fitting

APEX Compact Quick Coupler to 1/4 NPT Air Adapter

The APEX DESIGN USA Compact Quick Coupler to 1/4 NPT is a small air system adapter fitting for shoppers building a cleaner tyre inflation, onboard air or workshop air setup. It is designed for the APEX High Flow Push-On Chuck and lets a female 1/4 NPT air accessory connect into that APEX system without adding unnecessary bulk.

When you are airing tyres up after a trail, adjusting pressures on an overland trip or setting up a portable compressor layout, the wrong fitting can make the system awkward to use. This compact quick coupler helps keep the connection simple, direct and space conscious, so the rest of your air system is easier to package and handle.

What This Quick Coupler Does

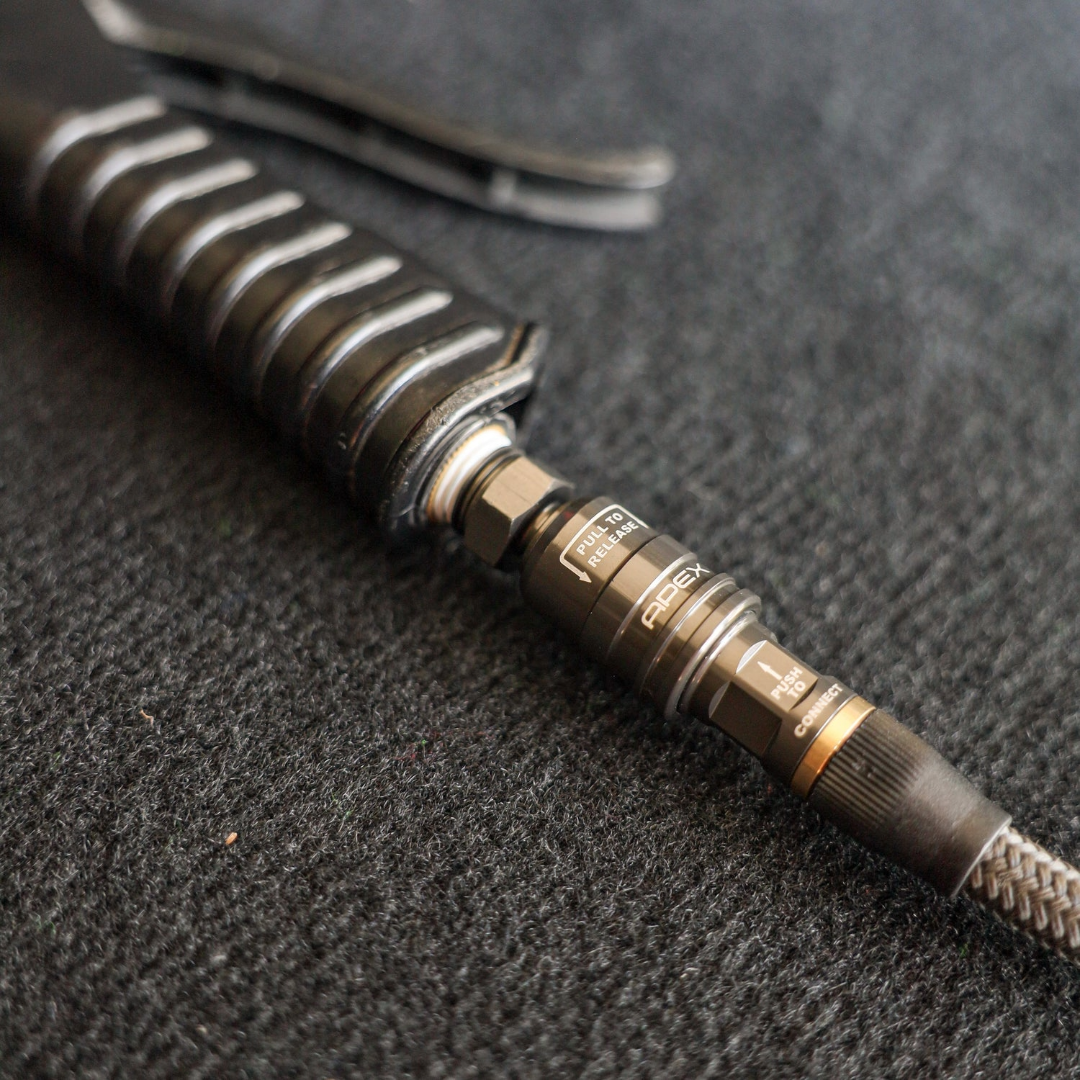

This APEX DESIGN USA fitting adapts the APEX High Flow Push-On Chuck to female 1/4 NPT air accessories. It is a supporting component rather than a complete air system, making it best suited to buyers who already have, or are planning, compatible APEX air equipment.

• Provides a 1/4 NPT male connection for compatible female 1/4 NPT accessories.
• Designed for use with the APEX High Flow Push-On Chuck.
• Helps reduce connection bulk in portable, vehicle-mounted and workshop air layouts.
• Uses a hard anodised coating for a more durable exterior finish.
• Useful for tyre inflation setups when paired with compatible APEX air components.

Who This 1/4 NPT Adapter Is For

Choose this adapter if your air system uses the APEX High Flow Push-On Chuck and you need to connect a female 1/4 NPT accessory. It is relevant for off-road and overlanding builds, onboard compressor setups and workshop air systems where compact connections matter.

For Ford Raptor, touring or general 4x4 air systems, select this part by thread and APEX component compatibility rather than by vehicle model. No specific vehicle fitment is required for the fitting itself, but your air system layout must use the correct APEX chuck and 1/4 NPT accessory connection.

Choosing The Right APEX Air System Parts

If you are building an APEX setup from scratch, the APEX Compact Reel System is the hose reel around which many portable air layouts are planned. Add the APEX Air Gauge ON/OFF Valve when you need tyre inflation control at the hose end.

This adapter is the right choice when the accessory side is female 1/4 NPT. If you are joining the CRS to 3/8 inch braided hose, compare the APEX 1/4 NPT CRS to 3/8 inch braided hose banjo fitting. If your build uses APEX nylon braided hose rather than a female 1/4 NPT accessory, the APEX compact quick coupler nylon braided hose adapter may be more suitable.

Compatibility Notes Before Ordering

• Connection type: 1/4 NPT male.
• Accessory side: female 1/4 NPT air accessories.
• Designed for: APEX High Flow Push-On Chuck, sold separately.
• Application: air compressor, tyre inflation, onboard air and shop air setups with compatible components.
• APEX does not publish dimensions for this fitting, so check clearance in your own hose, chuck and accessory layout.

Technical Specifications

Frequently Asked Questions

Will this fit my vehicle?

This fitting is selected by air-system compatibility rather than vehicle model. Use it where your setup includes the APEX High Flow Push-On Chuck and a female 1/4 NPT accessory.

Is the APEX High Flow Push-On Chuck included?

No. The APEX High Flow Push-On Chuck is sold separately, so plan that part separately if it is not already in your air system.

What thread does this adapter use?

It uses a 1/4 NPT male connection for female 1/4 NPT air accessories.

Can I use it for tyre inflation?

Yes, it is suitable for tyre inflation setups when paired with compatible APEX air components and the correct inflation accessories.

Are dimensions, material or temperature ratings published?

APEX does not publish dimensions, base material or temperature rating for this fitting, so check your available space and operating environment before ordering.

Do I need thread sealant?

Use the sealing method appropriate to your air system and accessory threads. Ensure all threads are clean and tightened correctly during installation.
