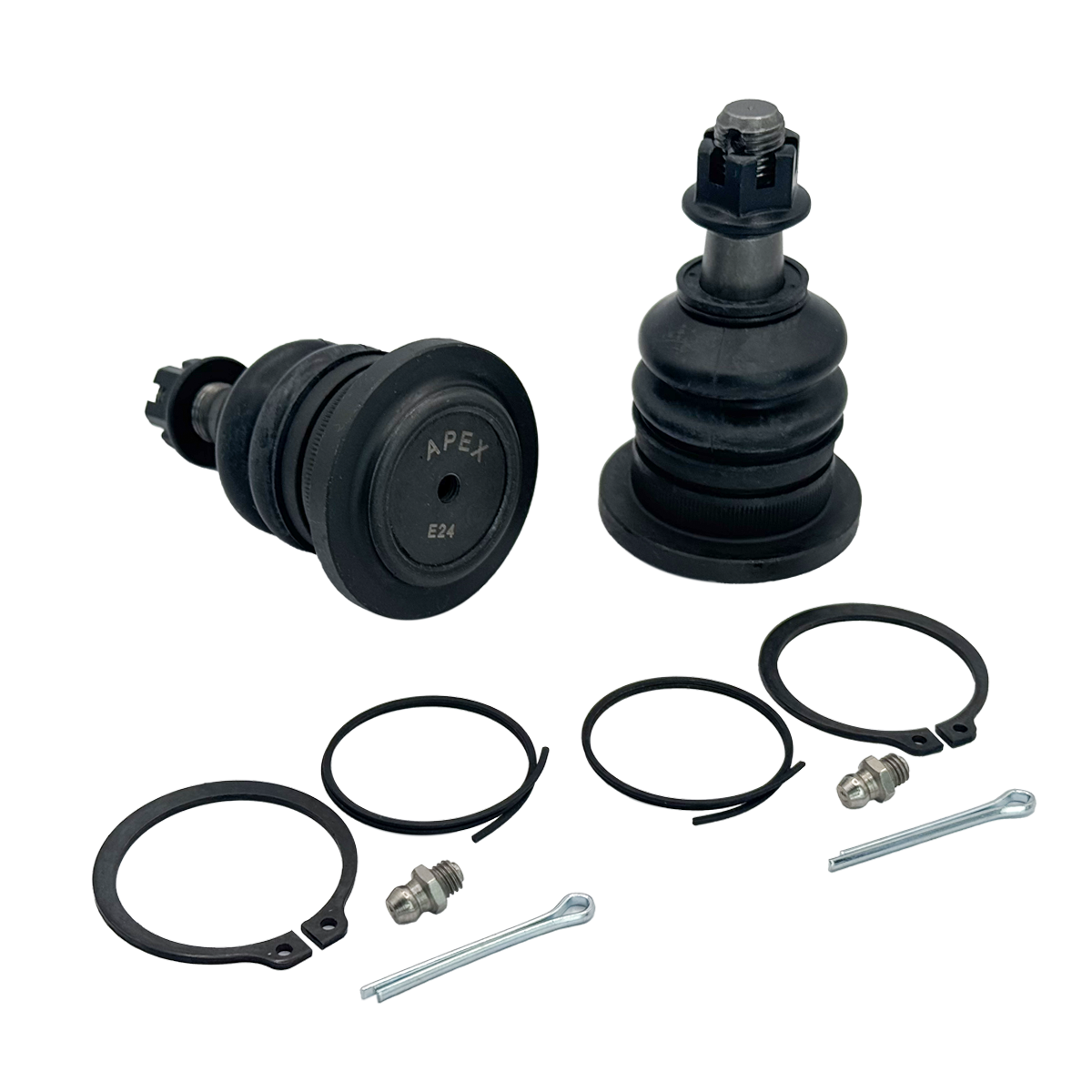

When the upper ball joints on your Tacoma need replacing, Apex KIT215 gives you a pair built with forged steel housings, chromoly studs and greaseable joints. You get two BJ137 front upper ball joints for 2005-2023 Tacoma 2WD or 4WD models, with grease fittings and mounting hardware included.
SKU: KIT215
The knurled SAE 1045 steel housings are CNC machined. Hot-forged SAE 4140 chromoly studs receive induction heat treatment, with rolled and stepped threads for the mounting hardware. Together they make a substantial replacement for the worn upper joints on your truck.
CR rubber boots help protect the bearings from road dirt, while pre-threaded grease ports make fitting the supplied zerks straightforward. The joints arrive pre-greased, and gull-wing grooves distribute lubricant around the studs. Being able to grease and inspect them gives you a practical way to look after the upgrade as the miles build.
KIT215 contains two BJ137 joints, covering the front upper positions on both sides. The housings are knurled, so check the mounting bores for the correct press fit before installation. These are upper joints; choose the lower replacements separately if those also need attention.
We recommend professional fitting, inspection of the joint mounting bores and a wheel alignment afterwards. Include the grease fittings and rubber boots in your regular front-end checks, particularly after muddy or wet use. The joints arrive pre-greased; add grease as required without overfilling the boots.
If the tie rods are worn too, our KIT400 inner and outer tie rod pair covers the 2005-2023 Tacoma 2WD/4WD steering links. That kit suits lifts up to 3 in, requires limit straps above 3 in and excludes the Fabtech 6 in lift with ductile iron knuckles. Other aftermarket knuckle or top-mount arrangements need checking.
| Specification | Details |
|---|---|
| SKU | KIT215 |
| Product type | Two-piece front upper ball joint kit |
| Vehicle application | Toyota Tacoma 2005-2023, 2WD or 4WD |
| Position | Front upper, both sides |
| Supplied quantity | Two BJ137 upper ball joints |
| Housing selection | Knurled |
| Boot design | CR rubber protective boot |
| Servicing | Pre-threaded grease ports; gull-wing grease grooves |
| Moog interchange reference | K80811 |
| Manufacturer | Apex Chassis |
| Housing material | SAE 1045 forged steel, CNC machined |
| Ball stud material | Hot-forged SAE 4140 chromoly steel |
| Ball stud treatment | Induction heat treated |
| Threads | Rolled and stepped |
| Boot material | CR rubber |
| Hardware | Grade 8 / class 10.9; castle nuts |
| Lubrication | Pre-greased and greaseable; zerk fittings included |
| SKU | Make | Model | Years | Details |
|---|---|---|---|---|
| KIT215 | Toyota | Tacoma | 2005-2023 | 2WD or 4WD; front upper positions, both sides |
Register your Apex parts with proof of purchase within 90 days to access the manufacturer's limited lifetime warranty while you own the vehicle. It covers eligible product defects, premature wear and breakage under the policy; labour, consequential costs and listed wear items are excluded. Read the warranty terms and registration requirements for the full conditions.
Upper. KIT215 contains two BJ137 front upper ball joints.
The kit supplies the pair, covering the front upper positions on both sides.
Yes. The application covers 2005-2023 Tacoma in both 2WD and 4WD form.
Yes. Have the mounting bores inspected for the correct press fit before fitting.
Yes. They are supplied pre-greased with grease fittings. Inspect the boots and lubricate as required without overfilling.
We recommend professional installation and a wheel alignment afterwards. If the truck has clunks or vague steering, have the rest of the front end inspected too.
