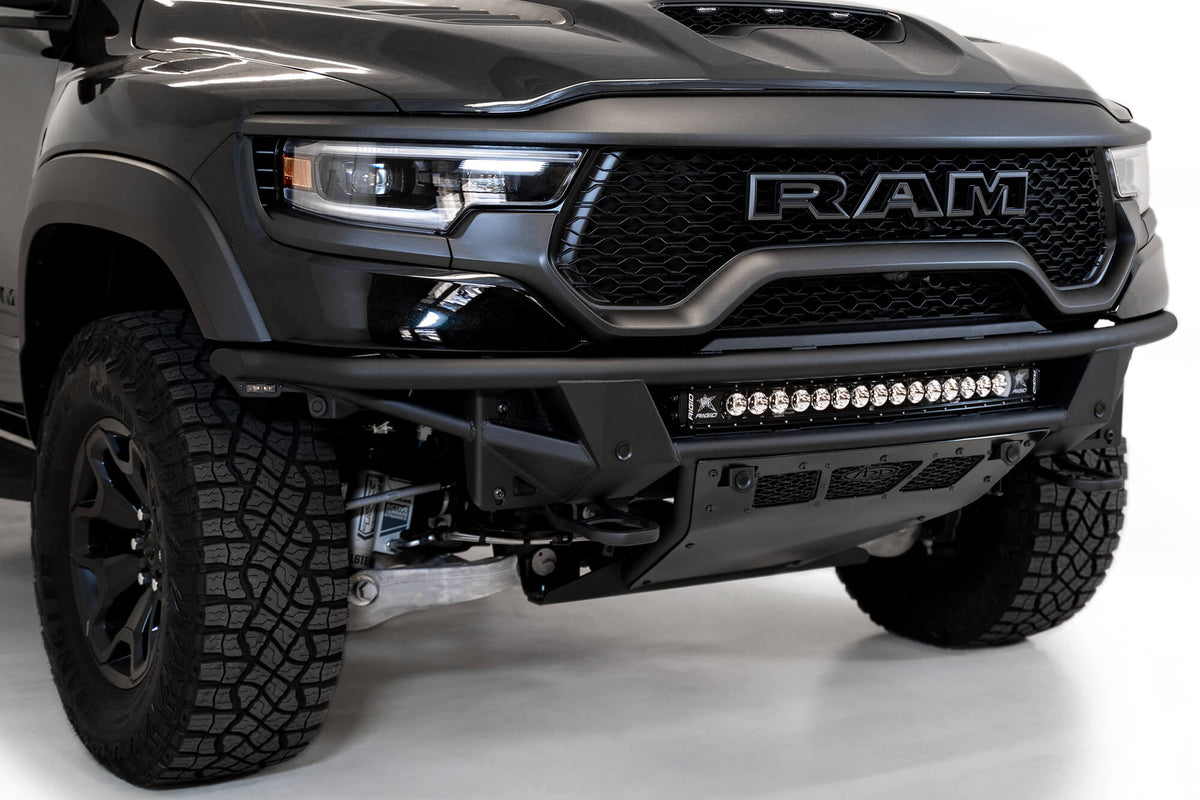

Give your TRX the Baja look
Give your TRX the open, tubular front end of a Baja-style truck. The PRO's radiused steel main tube follows the body closely for a leaner profile, with a vented aluminium skid underneath. Factory marker lights, parking sensors and tow hooks remain part of the finished truck.
SKU: F628102160103
A close-fitting tube design
The main steel tube sits flush to the front of the TRX, giving the bumper a leaner outline around obstacles. Hammer Black powder coat and Satin Black panels match the rest of the ADD range without losing the truck's original front shape.
Underbody protection with airflow
The included 1/8-inch aluminium skid plate extends below the bumper. Vents allow airflow to the cooler, pairing useful front protection with the more open tubular design.
Choose a bar, cubes or an extra hoop
The centre universal mount accepts up to eight cube lights or a 30-inch radius bar. A compatible optional add-on hoop can carry four 6-inch round lights above the bumper. The hoop and all driving lights are separate purchases, so you can start with the arrangement you want.
Allow for the fitting work
Installation uses bolt-on attachment points and includes enlarging the lower outer frame-horn mounting holes to 1/2 inch. The guide also shows optional trimming of the skid-plate mounting brackets and inner fender mounting brackets for appearance. Your fitter can complete those mounting steps and align the bumper during installation.
Vehicle fitment
| SKU | Make | Model | Years | Details |
|---|---|---|---|---|
| F628102160103 | RAM | 1500 TRX | 2021-2024 | - |
Applications shown are for North American-spec vehicles.
Talk to us about the centre lights and optional light hoop for your TRX.
Technical specifications
| Specification | Details |
|---|---|
| Construction | Steel tubular bumper |
| Main tube | Radiused profile follows the front body lines |
| Skid plate | Included vented 1/8-inch aluminium plate |
| Finish | Hammer Black powder coat with Satin Black accent panels |
| Centre lights | Up to eight cube lights or one 30-inch radius light bar |
| Optional hoop | Separate compatible hoop for four 6-inch round lights |
| Factory features | Retains marker lights, parking sensors and tow hooks |
| Fitting | Enlarge lower outer frame-horn holes to 1/2 inch |
| Optional trimming | Skid-plate and inner fender mounting brackets for appearance |
| Accessories | Additional driving lights and their wiring are sold separately |
| Manufacture | Made in the USA |
Frequently asked questions
What is included beneath the bumper?
A vented 1/8-inch aluminium skid plate is included to protect the front underbody and allow airflow to the cooler.
Does it retain the factory tow hooks?
Yes. Factory tow hooks, marker lights and parking-sensor provisions are retained.
Does the upper light hoop come with it?
No. The compatible light hoop is a separate add-on, with mounts for four 6-inch round lights.
What can I fit in the centre?
Up to eight cube lights or a 30-inch radius light bar. Lights are purchased separately.
Does fitting require drilling?
Yes. The fitting guide calls for enlarging the lower outer frame-horn holes to 1/2 inch. Bracket trimming is optional for appearance.
How should I care for the powder coat?
Rinse off mud and road salt after your trips, use a mild cleaner and check for stone chips. Touch up exposed metal promptly so your bumper keeps looking its best.
