Make your Sierra's front end your own

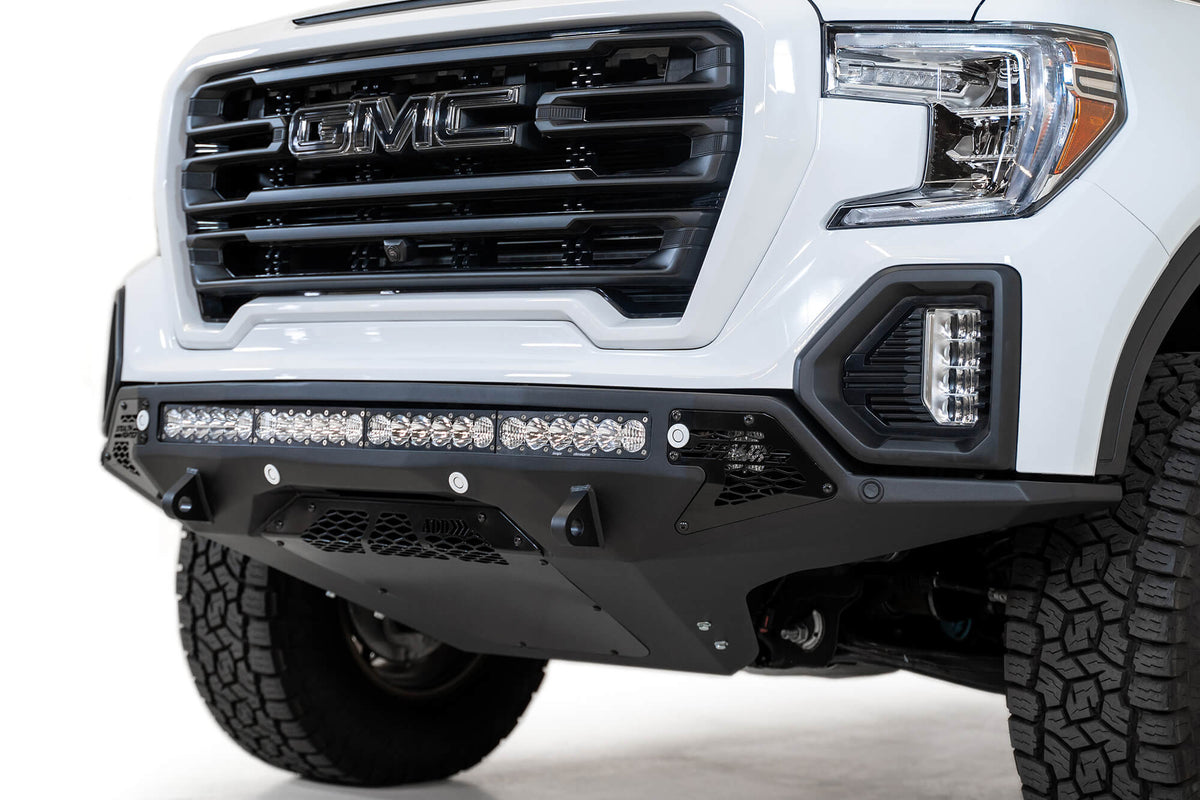

The ADD Stealth Fighter follows the Sierra 1500's body lines closely, giving the front end a tougher look with plenty of choice over the lighting. The universal centre mount takes up to ten cube lights or a 40-inch radius bar. Choose Standard for petrol or diesel trucks, or With winch mount for a non-diesel truck when you want to add a winch.
SKUs: F471763030103, F471423030103
Choose by engine and winch provision
Standard F471763030103 suits petrol and diesel models and is designed for sensor and non-sensor trucks. With winch mount F471423030103 is for non-diesel applications only. Both offered versions cover the listed 2019-2021 Sierra 1500 application, but the winch option must not be selected for a diesel truck. Standard F471763030103 provides soft-shackle clevis mounts; With winch mount F471423030103 provides D-ring mounts.
Your choice of lights, a close-fitting shape
The universal centre mount supports up to ten cube lights or a 40-inch radius LED bar, with one cube-light mount behind each side panel. Both versions retain the factory fog lights. The radius plate steel shape, Hammer Black finish and Satin Black panels give the bumper a close-fitting, finished appearance.
Fitting details for each version
The Standard version has a vented skid plate for diesel intercooler airflow. On diesel trucks using Standard F471763030103, fitting also requires shutter-motor relocation and drilling two holes in plastic. Both bumper versions require inner fender liner trimming. Have the bumper and your chosen equipment fitted together for a tidy finish, with their clearances and wiring checked.
Choose your option
| SKU | Option | Details |
|---|---|---|
| F471763030103 | Standard | 2019-2021 Sierra 1500; petrol and diesel; sensor and non-sensor applications |
| F471423030103 | With winch mount | 2019-2021 Sierra 1500; non-diesel applications only; winch separate |
Vehicle fitment
| SKU | Make | Model | Years | Details |
|---|---|---|---|---|
| F471423030103 | GMC | Sierra 1500 | 2019-2021 | Non-diesel only |
| F471763030103 | GMC | Sierra 1500 | 2019-2021 | Petrol and diesel |
Applications shown are for North American-spec vehicles.
Fitting guide - Standard
Fitting guide - With winch mount
Talk to us about lights, recovery equipment and the fitting parts for your exact bumper option.
Technical specifications
| Specification | Details |
|---|---|
| Construction | Radius plate steel design |
| Finish | Hammer Black powder coat with Satin Black panels |
| Centre lighting provision | Up to ten cube lights or one 40-inch radius LED bar |
| Side lighting provision | One cube-light mount behind each side panel |
| Factory equipment | Factory fog lights retained; parking sensor positions provided |
| Standard version | F471763030103; petrol/diesel and sensor/non-sensor applications |
| Winch version | F471423030103; non-diesel applications only; winch mounting provision |
| Cooling provision | Vented skid plate for diesel intercooler airflow on F471763030103 |
| Installation | Inner-liner trimming on both versions; diesel installations of Standard F471763030103 also require shutter-motor relocation and drilling two holes in plastic |
| Recovery mounts | Standard F471763030103: soft-shackle clevis mounts; With winch mount F471423030103: D-ring mounts |
Frequently asked questions
Which option should I buy for a diesel Sierra?
Standard, SKU F471763030103. The With winch mount option, F471423030103, specifically excludes diesel models.
Can I keep the factory fog lights?
Yes. Both versions retain them.
Are the centre lamps included?
No. The bumper provides the universal centre mount and side cube-light mounts. Your chosen lights are separate.
Does bolt-on mean no trimming or drilling?
Both guides include inner fender liner trimming. On diesel trucks using Standard F471763030103, the guide also requires shutter-motor relocation and drilling two holes in plastic.
