More front clearance for your Raptor

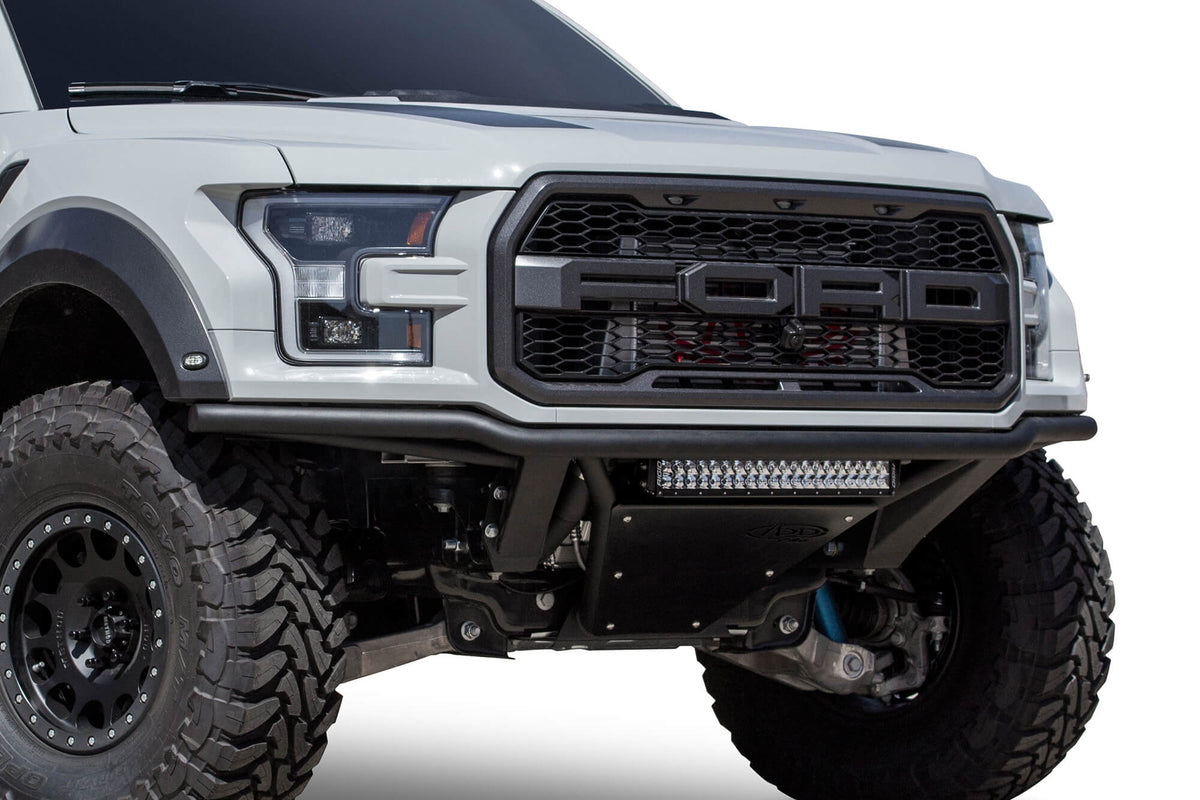

The PRO V1 is for a Raptor you intend to take seriously off-road. Its frame-cut design lets the tubular bumper sit close to the front of the truck, improving approach clearance while keeping the clean, exposed-tube look of a prerunner.
SKU: F118052100103
Protection and a close fit
The main frame uses 0.120-inch-wall steel tubing with an aluminium skid plate beneath it. The bumper follows the Raptor body lines without relying on a plastic valance, finished in Hammer Black with Satin Black panels.
Choose your off-road lighting
Mount a 20-inch radius light bar or up to seven cube lights beneath the main tube. The supplied universal light-mount kit provides the fitting arrangement; lights and wiring are separate.
Recovery equipment and factory features
This bumper requires a separate high-mount intercooler upgrade with a clocked blow-off valve. Plan that cooling installation with the bumper, so the parts and fitting work are matched from the start.
Fitting your bumper
Frame cutting is required. On the 2017-2020 application, the linked bumper guide shows the permanent frame-horn cuts and supplied mounting plates; the cooling guide also includes grille and recirculation-valve trimming and shutter-motor repositioning. Professional installation is strongly recommended. Later listed applications need their matching installation instructions.
Vehicle fitment
| SKU | Make | Model | Years | Details |
|---|---|---|---|---|
| F118052100103 | Ford | F-150 Raptor | 2017-2020 | - |
| F118052100103 | Ford | F-150 Raptor | 2021-2023 | - |
Applications shown are for North American-spec vehicles.
Fitting guide - F118052100103 (2017-2020 application)
Fitting guide - F118052100103 (2017-2020 application) - intercooler upgrade
Talk to us about compatible lights, recovery equipment and fitting your bumper.
Technical specifications
| Specification | Details |
|---|---|
| SKU | F118052100103 |
| Construction | 0.120-inch-wall steel tubing |
| Included protection | Aluminium skid plate |
| Centre lighting | 20-inch radius light bar or up to seven cube lights |
| Light fitting parts | Universal light-mount kit supplied |
| Required cooling upgrade | Separate high-mount intercooler with clocked blow-off valve |
| Fitting | Permanent frame cutting required |
| Finish | Hammer Black powder coat with Satin Black panels |
| Country of manufacture | USA |
Frequently asked questions
Does this require cutting the frame?
Yes. The frame-cut installation is a permanent modification, allowing the bumper to sit further back for approach clearance.
Is an intercooler upgrade required?
Yes. A separate high-mount intercooler upgrade with a clocked blow-off valve is required.
Are the lights included?
No. The universal light-mount kit is supplied, but the lamps and wiring are separate.
