Know the landed cost before you order
Prices include VAT and customs. Shipping is charged separately and calculated at checkout for your destination. If no shipping option is shown, contact us for a quote before ordering.

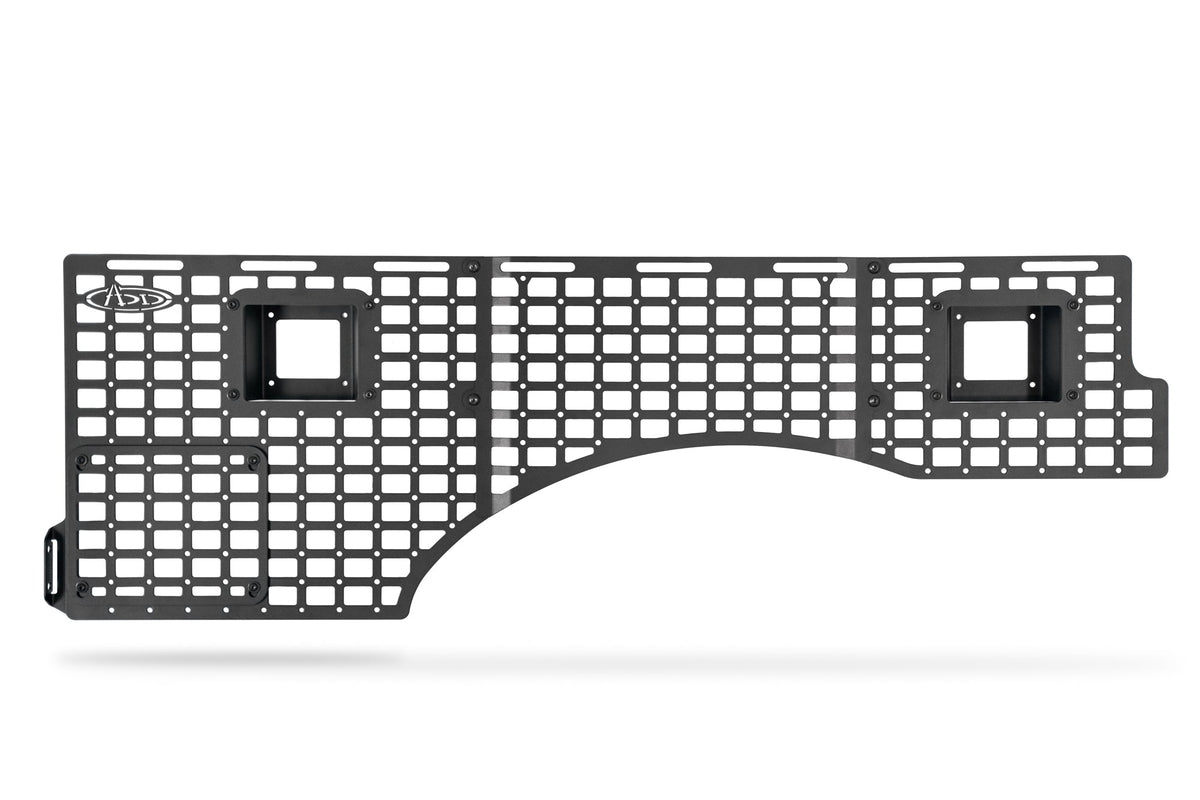

Keep your F-150 bed floor clear for larger loads
Give tools and recovery equipment their own mounting positions along your F-150 bed sides. The contoured steel panels use the vertical space, leaving the floor available for larger cargo and bags.
SKU: AC1903201NA, AC1903301NA
Choose the side you need
Driver Side AC1903201NA and Passenger Side AC1903301NA are separate side-panel sets for the listed 5.5-foot-bed applications. Order one side or both to suit your cargo. The centre section needs the front and rear sections for support.
Keep your original bed equipment useful
The panels follow the bed contours and retain factory tie-down access. The electrical-box opening stays accessible, with the matching expansion panel available to cover that area when desired. The steel has a dual-stage Hammer Black powder coat and is made in the USA. Compatible mounts and straps let you secure a shovel, recovery equipment, jack or suitable containers.
Bolt-on fitting with optional extra fixing
The panels mount at several points for a rigid fit and can be removed when needed. The linked guides also show an optional extra fixing step involving drilling and rivet nuts; keep that optional step separate from the main bolt-on installation. Equipment and its attachment accessories are sold separately.
Choose your option
| SKU | Selection |
|---|---|
| AC1903201NA | Driver Side |
| AC1903301NA | Passenger Side |
Vehicle fitment
| SKU | Make | Model | Years | Details |
|---|---|---|---|---|
| AC1903301NA | Ford | F-150 Raptor | 2021-2023 | ** Fitment Note: These are compatible with the 5.5’ Short Bed Only.; Bed length: 5.5 ft |
| AC1903201NA | Ford | F-150 Raptor | 2021-2023 | ** Fitment Note: These are compatible with the 5.5’ Short Bed Only.; Bed length: 5.5 ft |
| AC1903301NA | Ford | F-150 | 2021-2023 | ** Fitment Note: These are compatible with the 5.5’ Short Bed Only.; Bed length: 5.5 ft |
| AC1903301NA | Ford | F-150 | 2024+ | ** Fitment Note: These are compatible with the 5.5’ Short Bed Only.; Bed length: 5.5 ft |
| AC1903301NA | Ford | F-150 Raptor | 2024+ | ** Fitment Note: These are compatible with the 5.5’ Short Bed Only.; Bed length: 5.5 ft |
| AC1903201NA | Ford | F-150 Raptor | 2024+ | ** Fitment Note: These are compatible with the 5.5’ Short Bed Only.; Bed length: 5.5 ft |
| AC1903201NA | Ford | F-150 | 2021-2023 | ** Fitment Note: These are compatible with the 5.5’ Short Bed Only.; Bed length: 5.5 ft |
| AC1903201NA | Ford | F-150 | 2024+ | ** Fitment Note: These are compatible with the 5.5’ Short Bed Only.; Bed length: 5.5 ft |
These applications are for North American-spec vehicles.
Technical specifications
| Specification | Details |
|---|---|
| SKU | AC1903201NA, AC1903301NA |
| Construction | Steel |
| Quantity | One selected side-panel set |
| Side choices | Driver Side AC1903201NA or Passenger Side AC1903301NA |
| Bed requirement | 5.5-foot short bed only |
| Centre section | Requires front and rear panels |
| Factory equipment | Tie-down access and electrical-box opening retained |
| Expansion panel | Matching MOLLE cover for the electrical-box area when desired |
| Main fitting | Bolt-on mounting arrangement |
| Optional additional fixing | Linked guide shows optional drilling and rivet nuts |
| Separate purchases | Stored equipment and attachment accessories |
| Finish | Hammer Black powder coat |
| Country of manufacture | Made in the USA |
Frequently asked questions
Does one selection include both sides?
No. Choose the driver or passenger set. Order both sets if you want both bed walls covered.
Does fitting always require drilling?
The main arrangement is bolt-on. The linked guides describe drilling and rivet nuts for an optional additional fixing step.
