Keep your Raptor adaptive cruise control after the bumper upgrade

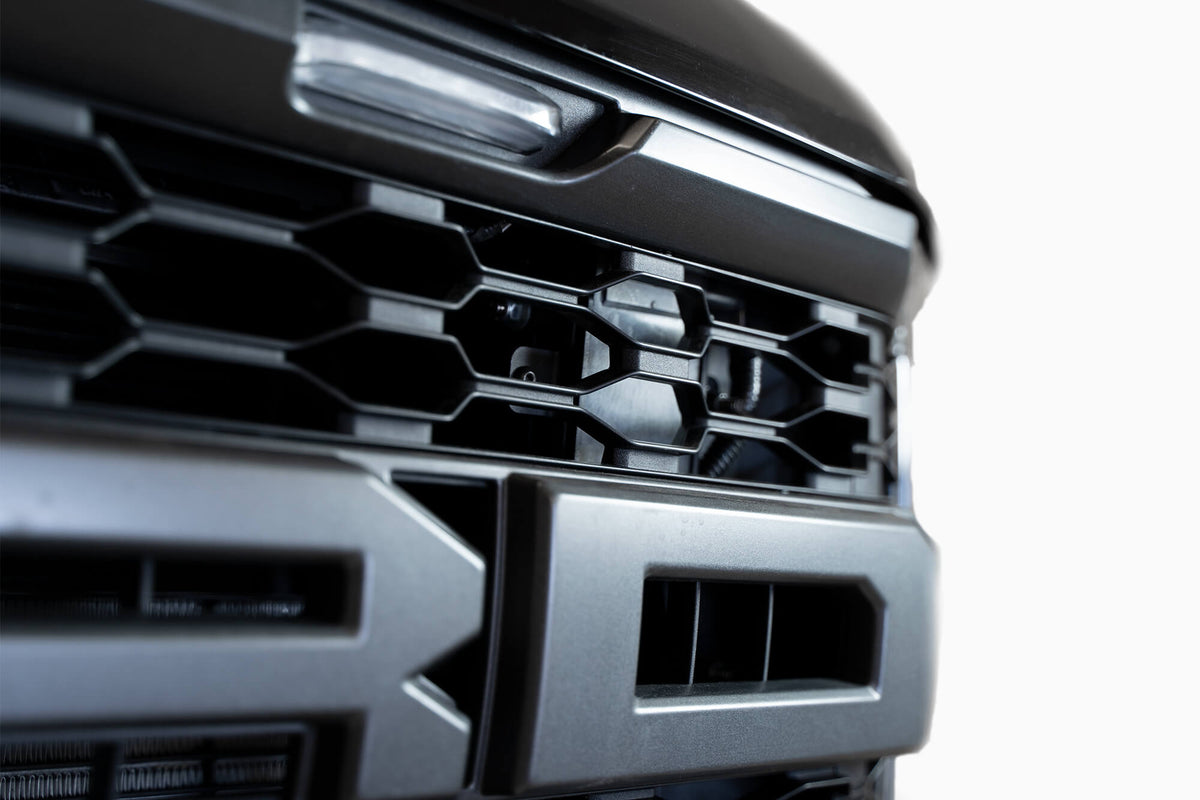

Place the original ACC module behind your Raptor grille with the matching ADD relocation bracket. It gives the sensor an adjustable position when the aftermarket front bumper changes the original mounting arrangement.
SKU: AC2101501NA
A position to suit the lighting arrangement
The module can sit lower or higher behind the grille. The lower orientation is the primary position; the upper arrangement is used where front accessories obstruct the sensor, with the linked fitting route showing the light-hoop condition.
Match the exact bracket reference
AC2101501NA replaces the earlier AC21152501NA reference. The aluminium bracket provides the mounting arrangement for the original ACC module.
Drilling, alignment and possible recalibration
The 2022-2023 fitting route requires marked grille and support-bracket holes to be drilled. In some installations the ACC system may need recalibration by a Ford service centre. We recommend professional fitting and sensor alignment, using the original module and the matching guide.
Grille and wiring preparation
On the 2022-2023 fitting route, fitting requires removing the driver-side grille shutters to accommodate the ACC bracket. On the 2022-2023 route, the ACC wiring is separated from its loom covering and re-covered after routing.
Vehicle fitment
| SKU | Make | Model | Years | Details |
|---|---|---|---|---|
| AC2101501NA | Ford | F-150 Raptor | 2021-2023 | - |
These applications are for North American-spec vehicles.
Technical specifications
| Specification | Details |
|---|---|
| ACC wiring preparation | 2022-2023 route: separate and re-cover the ACC loom covering during routing |
| Grille-shutter fitting | 2022-2023 route: remove the driver-side grille shutters to accommodate the ACC bracket |
| SKU | AC2101501NA |
| Purpose | Relocates the original ACC sensor |
| Position | Adjustable lower or upper grille arrangement |
| Previous reference | Supersedes AC21152501NA |
| Construction | Aluminium |
| Fitting | 2022-2023 route: drill marked grille and support-bracket holes |
| Calibration | Ford service-centre recalibration may be needed in some installations |
| Vehicle requirement | Existing factory adaptive cruise control |
| Country of manufacture | Made in the USA |
Frequently asked questions
Does this replace AC21152501NA?
Yes. AC2101501NA is the replacement reference for this listed arrangement.
Could the ACC need recalibration?
Yes. Some installations may require recalibration by a Ford service centre after the module is moved.
